2006 Harley-Davidson TLE Sidecar
Back to 2006 Harley-Davidson Motorcycle Index Page
Click photos to enlarge.
They make great desktop images.

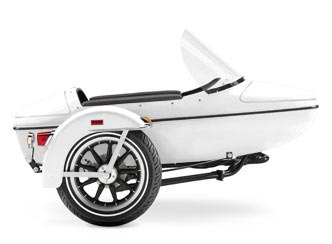

2006 Harley-Davidson TLE Sidecar
White Pearl

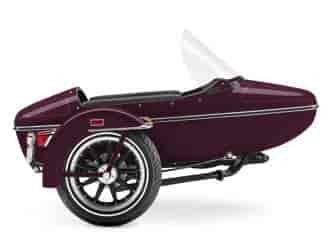

2006 Harley-Davidson TLE Sidecar
Black Cherry
2006 Harley-Davidson TLE Sidecar
Black Pearl
2006 Harley-Davidson TLE Sidecar
Vivid Black
2006 Harley-Davidson TLE Sidecar
Deep Cobalt

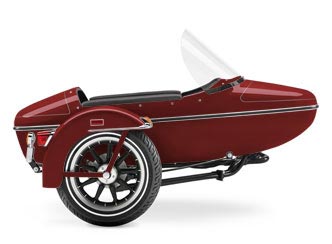

2006 Harley-Davidson TLE Sidecar
Fire Red Pearl
2006 Harley-Davidson TLE Sidecar
Two-tone Black Cherry and Black Pearl

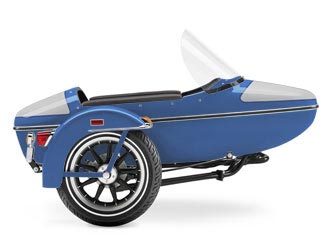

2006 Harley-Davidson TLE Sidecar
Two-tone Chopper Blue and Brilliant Silver
2006 Harley-Davidson TLE Sidecar
Two-tone Fire Red and Vivid Black
2006 Harley-Davidson TLE Sidecar
Two-tone Rich Sunglo Blue and Chopper Blue
2005 Harley-Davidson TLE Sidecar for Fire/Rescue
Fire Engine Red

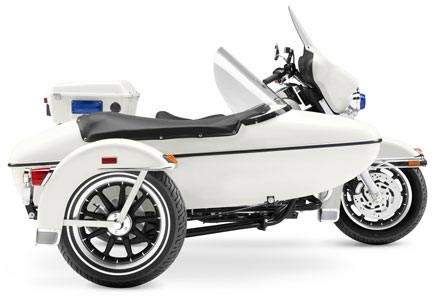

2005 Harley-Davidson TLE Sidecar Police
Birch White
– 2006 Harley-Davidson TLE Sidecar
The mother of all accessories. The Harley-Davidson TLE Sidecar.
*Color schemes shown are for the FLHR/FLHRI Road King®. Color schemes may vary to match each specific motorcycle model. Contact your dealer for more information.
DIMENSIONS U.S.
LENGTH 78.4 in.
HEIGHT 42.1 in.
SIDECAR WIDTH 23.5 in.
WIDTH FROM BRACKET TO SIDECAR WHEEL 53.3 in.
WEIGHT 234.0 lbs.
TIRES Dunlop® Harley-Davidson® Series (matches vehicle tires)
FRONT – D402F MT90B16 (black/white/wide whitewall)
REAR – D402 MT90B16 (black/white/wide whitewall)
GROSS AXLE WEIGHT RATING 300.0 lbs
CHASSIS
WHEEL 9 spoke (hollow) cast aluminum alloy; wire laced (wide whitewalls require laced wheels)
BRAKES Single disc
SUSPENSION Single leaf-spring
FRAME Easy toe in/out adjustment
ELECTRIC
LIGHTS Directional signal, tail lights and fender tip lamp
STYLING/CONVENIENCE
BODY CONSTRUCTION Hand-laid, fiberglass-reinforced resin
PASSENGER AREA Fully-carpeted w/ padded siderails and forward footrest
SEAT Padded vinyl w/ fold-down backrest
STORAGE Lockable, carpeted compartment behind fold-down seat
COVER Snap-down tonneau type, vinyl/cotton
WINDSHIELD Contoured Lexan®
FRAME AND COMPONENT FINISH Powder-coated paint
LOWER FENDER TRIM SKIRT Decorative aluminum
COLORS
Painted to match motorcycle (colors available for current and previous to 2004 model year)
WARRANTY
WARRANTY 24 months (unlimited mileage)
SERVICE INTERVAL First 1,000 miles (1,600 km); every 5,000 miles (8,000 km) thereafter. Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals.
Harley-Davidson reserves the right to discontinue models or change specifications at any time without incurring any obligations. Vehicle specifications may vary from country to country depending on local laws. Some models are not available in certain countries.
Consult your Harley-Davidson dealer regarding ABS equipped motorcycles.
Availability may vary dealer to dealer, and is subject to change without notice.
See motorcycle owner’s manual for complete details.
DIMENSIONS METRIC
LENGTH 1989.2 mm
HEIGHT 1069.1 mm
SIDECAR WIDTH 596.4 mm
WIDTH FROM BRACKET TO SIDECAR WHEEL 1351.5 mm
WEIGHT 106.14 kg
TIRES Dunlop® Harley-Davidson® Series (matches vehicle tires)
FRONT – D402F MT90B16 (black/white/wide whitewall)
REAR – D402 MT90B16 (black/white/wide whitewall)
GROSS AXLE WEIGHT RATING 136.2 kg
CHASSIS
WHEEL 9 spoke (hollow) cast aluminum alloy; wire laced (wide whitewalls require laced wheels)
BRAKES Single disc
SUSPENSION Single leaf-spring
FRAME Easy toe in/out adjustment
ELECTRIC
LIGHTS Directional signal, tail lights and fender tip lamp
STYLING/CONVENIENCE
BODY CONSTRUCTION Hand-laid, fiberglass-reinforced resin
PASSENGER AREA Fully-carpeted w/ padded siderails and forward footrest
SEAT Padded vinyl w/ fold-down backrest
STORAGE Lockable, carpeted compartment behind fold-down seat
COVER Snap-down tonneau type, vinyl/cotton
WINDSHIELD Contoured Lexan®
FRAME AND COMPONENT FINISH Powder-coated paint
LOWER FENDER TRIM SKIRT Decorative aluminum
COLORS
Painted to match motorcycle (colors available for current and previous to 2004 model year)
WARRANTY
WARRANTY 24 months (unlimited mileage)
SERVICE INTERVAL First 1,000 miles (1,600 km); every 5,000 miles (8,000 km) thereafter. Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals.
Harley-Davidson reserves the right to discontinue models or change specifications at any time without incurring any obligations. Vehicle specifications may vary from country to country depending on local laws. Some models are not available in certain countries.
Consult your Harley-Davidson dealer regarding ABS equipped motorcycles.
Availability may vary dealer to dealer, and is subject to change without notice.
See motorcycle owner’s manual for complete details.
