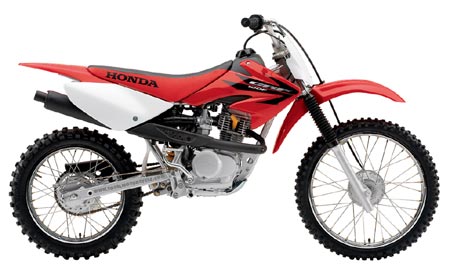

2006 Honda CRF100F
2006 Honda CRF100F



– 2006 Honda CRF100F

CRF100F

The CRF100F is the best-selling off-road bike of all time. Why? Amazing versatility, long-term toughness and all-around fun are the hallmarks of the CRF100F.



Features & Benefits

Engine/Drivetrain

– Simple, proven, dependable 99cc four-stroke engine produces smooth, easy-to-use power that’s ideal for recreational riders.

– 22mm carburetor offers excellent throttle response.

– Valve-guide, valve-stem seal and piston-ring design minimize oil consumption and maintain consistent power delivery at all operating temperatures.

– Closed crankcase vent system safeguards against engine oil contamination.

– Ultra-reliable CD ignition never needs maintenance.

– Primary kickstarting for easy starts in any gear.

– Lightweight, upswept competition-type exhaust system utilizes a quiet, USDA-qualified muffler/ spark arrester.

– Smooth-shifting five-speed transmission.

– Heavy-duty clutch offers smooth engagement and durability.



Chassis/Suspension

– Lightweight high-tensile steel frame is durable and strong.

– Leading-axle 27mm Showa front fork offers 5.2 inches of compliant suspension travel.

– Pro-Link® rear suspension with box-section swingarm offers 5.8 inches of wheel travel.

– Heavy-duty Showa rear shock.

– Lightweight screw-type drive chain adjusters for simple maintenance.

– Lightweight, powerful drum brakes.



Additional Features

– CRF®-R-inspired graphics.

– Engine design produces low emissions and meets California Air Resources Board (CARB) off-road emissions standards.

– Keyed ignition switch provides added security.

– Durable body components.

– Large-capacity fuel tank and thrifty four-stroke engine for extended range.

– CR®-style seat shape and thicker seat foam accommodate a broad range of rider sizes.

– Generous ground clearance and skidplate for undercarriage protection.

– CR-shape handlebar enhances rider comfort.

– High-quality controls feature dogleg levers, comfortable grips and side-pull throttle just like those of the bigger CRFs and XR™s.

– Cleated, folding and self-cleaning footpegs offer secure footing.

– Long-wearing knobby tires offer excellent grip on a variety of terrain.

– Fork gaiters help protect stanchion tubes and fork seals.

– Silver-painted frame and footpegs.

– Durable steel sprockets.

– Washable, reusable foam air filter.

– Front and rear suspension spring and damping rates, and new Pro-Link ratio for improved bump absorption.

– Transferable six-month limited warranty; extended warranty available with a Honda Protection Plan.

– Ownership includes one-year complimentary membership for an individual in the Honda Rider’s Club of America™ (HRCA®). Benefits include: discounts, travel benefits, roadside assistance, one year of Honda Red Rider™ magazine, access to HRCA Clubhouse Web site (www.hrca.honda.com) and access online to Honda Common Service Manual. For HRCA details, call 1-800-847-HRCA. For dealers only, please call (310) 783-3958.



Specifications

Model: CRF100F

Engine Type: 99cc air-cooled single-cylinder four-stroke

Bore and Stroke: 53mm x 45mm

Compression Ratio: 9.4:1

Valve Train: SOHC; two-valve

Carburetion: 22mm piston-valve

Ignition: CD

Transmission: Five-speed

Final Drive: #428 chain; 14T/50T

Suspension
Front: 27mm leading-axle Showa fork; 5.2 inches travel
Rear: Pro-Link Showa single shock; 5.8 inches travel

Brakes
Front: Drum
Rear: Drum

Tires
Front: 2.50-19
Rear: 3.00-16

Wheelbase: 49.2 inches

Rake (Caster Angle): 28.5°

Trail: 99mm (3.9 inches)

Seat Height: 30.9 inches

Ground Clearance: 10.0 inches

Dry Weight: 165 pounds

Fuel Capacity: 1.5 gallons, including 0.3-gallon reserve

Color : Red

Meets current CARB and EPA standards.


Suggested Retail Price: $2,319.00
