2006 Kawasaki KLX300R
Back to 2006 Kawasaki Motorcycle Index Page


Click photos to enlarge.
They make great desktop images.

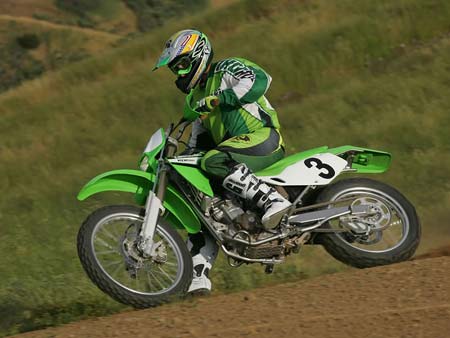

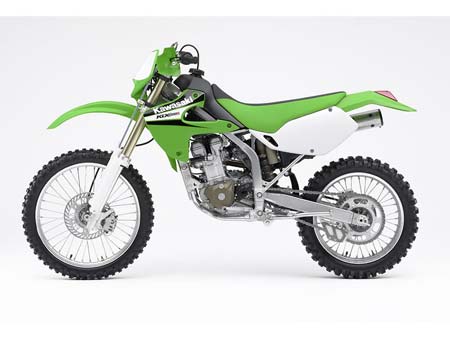

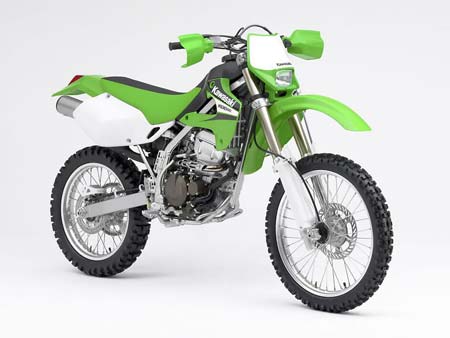

2006 Kawasaki KLX300R
2006 Kawasaki KLX300R

2006 Kawasaki KLX300R
2006 Kawasaki KLX300R

2006 Kawasaki KLX300R
2006 Kawasaki KLX300R


– 2006 Kawasaki KLX300R

2006 Kawasaki KLX300R

The ideal off-road motorcycle should combine tractable power with a comfortable chassis that can handle challenging trails.

Enter the KLX™300R. With its liquid-cooled four-stroke engine, perimeter frame and plush suspension, this Kawasaki gives off-road riders the balance of power and handling they want.

Designed to be ultra-compact, the KLX300R’s liquid-cooled 292cc engine features dual overhead cams activating four valves atop an Electrofusion-coated aluminum cylinder, which is wear resistant. The engine is wrapped in a high-tensile steel perimeter frame based on the design of Kawasaki’s championship-winning KX™ motocross bikes. A 26.5-degree steering angle and shorter wheelbase contribute to quick handling characteristics.

The KLX300R comes fully loaded with equipment to handle the rigors of trail riding, and is covered by a six-month limited warranty. Standard items include headlight and taillight, odometer, sidestand, hand guards, snail-type chain adjusters for quick rear-wheel removal and quick adjustment of the O-ring chain, a U.S. Forest Service-approved spark arrestor, and a large fuel tank with reserve petcock.



Engine: Four-stroke, DOHC, four-valve single
Displacement: 292cc
Bore x stroke: 78.0 x 61.2mm
Compression ratio: 11.0:1
Cooling: Liquid
Carburetion: Keihin CVK34
Ignition: Digital CDI
Transmission: Six-speed, manual clutch
Final drive: Chain
Frame: High-tensile steel, perimeter design
Rake / trail: 26.5 degrees / 4.2 in.
Front suspension / wheel travel: 43mm inverted cartridge fork with 20-way compression damping / 11.2 in.
Rear suspension / wheel travel: UNI-TRAK® single shock system with 20-way compression damping and 18-way rebound damping / 11.0 in.
Front tire: 80/100×21
Rear tire: 100/100×18
Front brake / rear brake: Hydraulic disc / Disc
Overall length: 83.3 in.
Overall width: 35.8 in.
Overall height: 48.0 in.
Seat height: 36.4 in.
Wheelbase: 56.5 in.
Ground clearance: 12.6 in.
Fuel capacity: 2.6 gal.
Dry weight: 233.7 lbs.
Color: Kawasaki Lime Green / Black

*Specifications are subject to change.



Ultra-compact 292cc Liquid-cooled, Four-stroke Single
– Lightweight piston and connecting rod allow power-producing revs
– Liquid cooling for even-running temperatures, longer engine life and consistent power on hot days

Double Overhead Cams
– A cam lobe for each valve with shim-under tappets has less reciprocating weight for efficiency at high rpm

Electrofusion Cylinder
– Incredibly hard coating in the aluminum cylinder provides superior heat transfer with less weight
– Holds lubrication, resists abrasion and seizure, and allows tighter clearances for more horsepower

Kawasaki Automatic Compression Release (KACR)
– KACR provides quick, easy starts

Four-valve Cylinder Head
– Provides maximum valve area for optimum flow
– Boosts low-end torque

34mm Semi-flat Slide CVK Carburetor
– Precisely meters for good fuel economy
– Provides quick throttle response

Gear-driven Engine Balancer
– Engine runs smoothly from idle to redline
– More rider comfort on long rides

Six-speed Transmission
– Positive shifting action and rugged durability with gearing for every situation
– Oil level window provided

Digital Capacitor Discharge Ignition (CDI)
– Digital microcomputer delivers a precisely timed spark regardless of rpm changes
– Reliability under extreme conditions

High-tensile Steel Perimeter Frame
– Frame is built of box-section and tubular high-tensile steel
– Straight-line ability is not sacrificed due to the incredible frame rigidity

43mm Upside-down Cartridge Fork
– 20-way compression damping adjustment
– Cartridge maintains more consistent damping force by minimizing aeration of the fork oil

UNI-TRAK® Rear Suspension
– Temperature-compensating rebound damping keeps things under control even when the shock heats up under strenuous conditions

Front and Rear Disc Brakes
– Twin piston front caliper grasps a floating front disc for “single finger” stopping power
– Single piston rear caliper from the KX™250 gives strong, reliable performance

O-ring Drive Chain
– O-rings keep the dirt and water out, while retaining lubrication in for longer chain life

Enduro and Trail Equipment
– Headlight and taillight for long rides or enduro competition requirements
– Odometer to track progress
– Large 2.6-gallon tank allows for long distance riding
– Hand guards fend off the brush
– Snail-type chain adjusters for quick wheel changes and chain adjustments
– U.S. Forest Service-approved spark arrestor

MSRP $4,949 USD
