2006 Suzuki Boulevard M50

You are here: Home — New 2006 Models — 2006 Suzuki Motorcycle Models

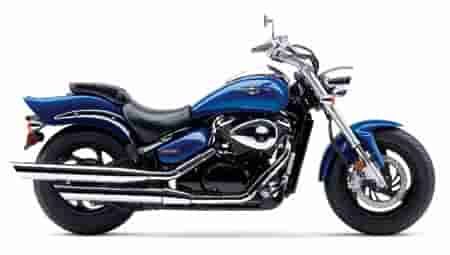

2006 Suzuki Boulevard M50
Back to 2006 Suzuki Motorcycle Index Page



Click photos to enlarge.
They make great desktop images.

2006 Suzuki Boulevard M50

2006 Suzuki Boulevard M50



– 2006 Suzuki Boulevard M50

2006 Suzuki Boulevard M50

FEATURES:

Suzuki Boulevard M50 is styled with a sleek, muscular look combined with advanced Suzuki technology and features



CHASSIS FEATURES:

Soft-tail-style frame creates a continuous flowing line from the headlight, through the fuel tank, seat and rear fender

Sharp-edged-styled front fender adds to the clean look of the front end, while the bob-tail rear fender adds to the flowing lines at the rear

Long, wide 4.1 gallon fuel tank flows smoothly back to the seat -attractive raised fuel filler includes indicator lights for turn signals, high beam and low fuel

Handlebar-mounted speedometer styled for a clean appearance and positioned for good visibility

Wide, comfortable seat with low seat height – passenger seat can be removed for a bobbed rear fender appearance

Low-rise handlebars mounted on pull-back risers provide a comfortable reach for the rider and increased comfort around town or on the highway

Inverted, 41mm front fork for a performance look and comfortable ride – the only model in the class with an inverted fork

Link-type rear suspension connects to a truss-style swingarm and a single shock absorber with 7-way spring preload adjustment

Large LED-type taillight with a clear lens provides a modern custom look
Powerful multi-reflector headlight housed in an attractive case with stylish headlight rim – headlight switches off during startup to reduce load on battery

Bright bullet-style turn signals designed for high visibility and attractive appearance

Standard 4-way emergency flasher and high-beam passing switch

Black cast aluminum rims carry a wide 130/90-16 front tire and 170/80-15 rear tire

Single front disc brake with large 300mm rotor and 180mm rear drum brake for strong braking performance



ENGINE FEATURES:

Fuel-injected, 50 cubic inch, eight-valve, liquid-cooled, 45 degree V-twin engine tuned for exceptional low rpm power and torque

GSX-R-derived electronic fuel injection system features the Suzuki Dual Throttle Valve System (SDTV) – maintains optimum air velocity in the intake tract for smooth low-to-mid rpm throttle response and high torque output – includes Auto Fast Idle System (AFIS)

32-bit ECM provides precise control of ignition timing and multi-hole-type injectors ensuring quick startup and excellent drivability under all conditions

Fuel injection system receives input from gear position sensor, water temp. sensor, air temp. sensor and intake port sensors for efficient power delivery and better fuel economy

Crankshaft designed with 45#176; offset crank pins to reduce engine vibration without a counterbalancer for a more comfortable ride

Five-speed transmission features a high fifth gear ratio for relaxed highway cruising

Low-maintenance shaft final-drive system is clean-running with low torque reaction

Custom-styled exhaust designed for a deep rumbling sound and tuned low rpm power

Pulsed-secondary air-injection system introduces air into the exhaust ports to ignite unburned hydrocarbons and reduce emissions – CA. spec. model is equipped with a catalyst for further emission reduction



OPTIONAL ACCESSORIES:

Windshield
Light Bar
Saddlebags
Engine Guards
Custom Seats
Billet Aluminum Items



SPECIFICATIONS

MSRP: $6,899.00
Engine: 50 cubic inch, four-stroke, liquid cooled, 45 degree V-twin, SOHC, 8-valves, TSCC
Warranty: 12 month unlimited mileage limited warranty
Bore & Stroke: 83.0 x 74.4mm
Compression ratio: 9.4:1
Fuel System: Fuel Injection
Lubrication: Wet Sump
Ignition: Digital
Starter: Electric
Transmission: 5-speed
Final Drive: Shaft Drive
Overall Length: 2370mm (93.3 in.)
Overall Width: 920mm (36.2 in.)
Overall Height: 1125mm (44.5 in.)
Seat Height: 700mm (27.6 in.)
Ground Clearance: 140mm (5.5 in.)
Wheelbase: 1655mm (65.2 in.)
Dry Weight: 247kg (544 lbs.)



Suspension:

FRONT: Inverted, telescopic, coil spring, oil damped
REAR: Link-type, oil damped, 7-way adjustable spring preload
Brakes:
FRONT: Single hydraulic disc
REAR: Single drum
Tires:
FRONT: 130/90-16
REAR: 170/80-15
Fuel Tank Capacity: 15.5 liter (4.1 gal.)
Color: Black, Blue, Gray
