2006 Suzuki Burgman 125

You are here: Home — New 2006 Models — 2006 Suzuki Motorcycle Models

2006 Suzuki Burgman 125
Back to 2006 Suzuki Motorcycle Index Page



Click photos to enlarge.
They make great desktop images.

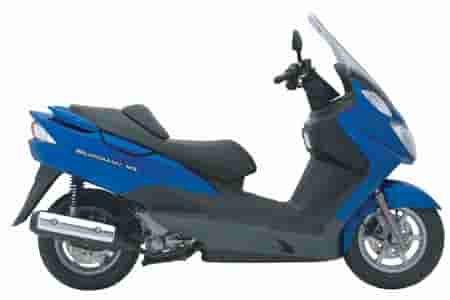

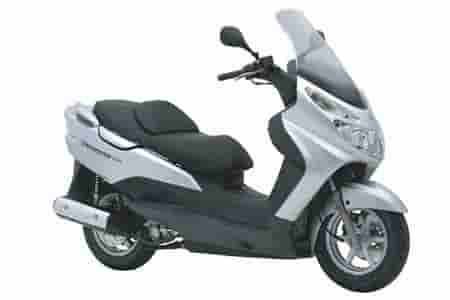

2006 Suzuki Burgman 125

2006 Suzuki Burgman 125



– 2006 Suzuki Burgman 125

2006 Suzuki Burgman 125 – Europe Model

Super Scooter style, comfort and refinement in a city-sized form.

Single-cylinder four-stroke engine delivers plenty of torque.

Practical and nimble around town.

Extensive luggage space with large illuminated storage space under seat that can accept two full face helmets.



FEATURES:

124.5cc liquid-cooled, single cylinder, 4-stroke engine with SOHC

Engine designed for optimum delivery at low and mid-range engine speeds typically used around town

Large comfortable dual seat with integrated rider backrest

Low seat height and long footboards for a relaxing rider position Integrated screen for maximum weather protection

Extensive luggage space with large illuminated storage space under seat that can accept two full face helmets plus a front lockable compartment Ignition switch with magnetic security cover

Large section rear tyres for fine traction and slimmer front tyres for precise steering

SPECIFICATIONS

TECHNICAL SPECIFICATIONS:
Overall Length: 2,085 mm
Overall Width: 720 mm
Overall Height: 1,325 mm
Wheelbase: 1,450 mm
Ground Clearance: 125 mm
Seat Height: 705 mm
Dry Mass: 139 kg
Fuel Capacity: 10 litres

ENGINE:
Engine Type: 1-cylinder, liquid-cooled, SOHC, 4-stroke
Bore x Stroke: 57.0 x 48.8mm
Max Power: 11.8 PS (8.7 Kw) @ 8,500 rpm
Max Torque: 11 Nm @ 7,000 rpm
Piston Displacement: 125 cc
Compression Ratio: 11:6 : 1
Carburettor: Keihin CVK24
Lubrication: Wet sump

ELECTRICAL SYSTEM:
Ignition Type: CDi
Starter System: Electric

TRANSMISSION:
Clutch: Automatic
Transmission: Variable ratio automatic
Drive System: V-Belt

CHASSIS:
Front Suspension: Telescopic
Rear Suspension: Dual shock absorber, adjustable preload
Rake/Trail: 26.7 degrees / 93 mm
Front Brake: 220 mm single hydraulic disc
Rear Brake: 220 mm single hydraulic disc
Front Tyre: 110/90-12
Rear Tyre: 130/70-12
