2006 Suzuki DR-Z125L
Back to 2006 Suzuki Motorcycle Index Page
Click photos to enlarge.
They make great desktop images.

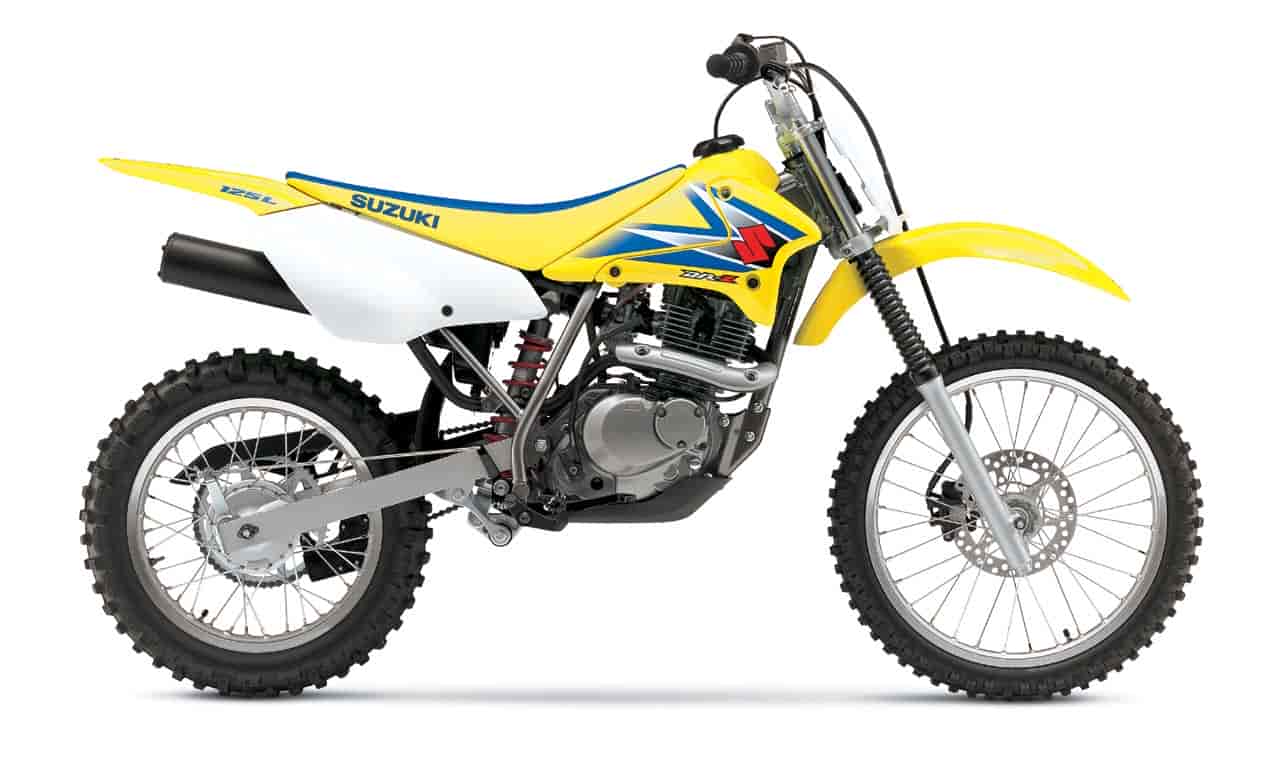

2006 Suzuki DR-Z125L

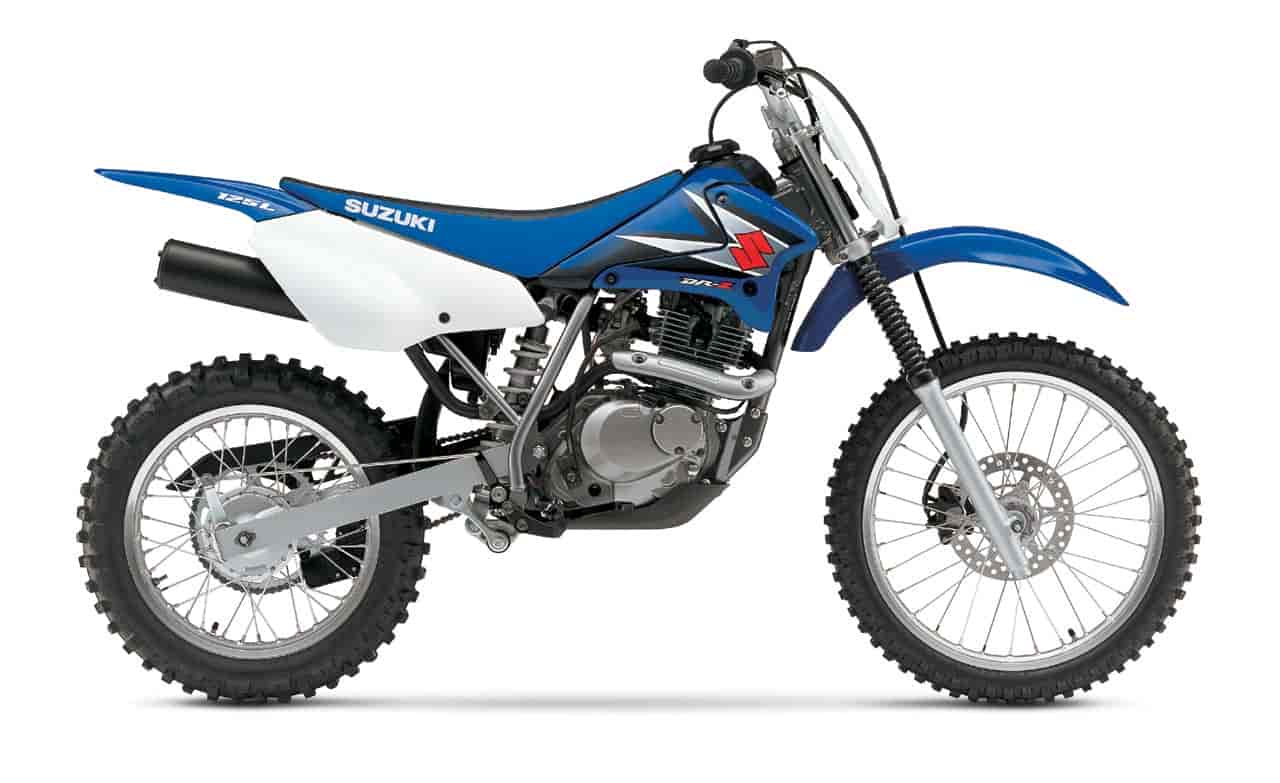

2006 Suzuki DR-Z125L

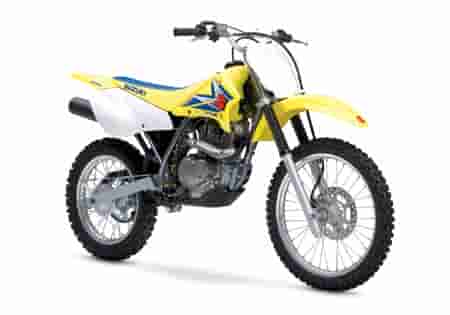

2006 Suzuki DR-Z125L
– 2006 Suzuki DR-Z125L
2006 Suzuki DR-Z125L
KEY FEATURES:
Entry-level off-road model in two different wheel/tire size versions
CHASSIS FEATURES:
Sharp off-road styling with fuel tank, radiator shrouds and frame covers patterned after RM models; handlebar, front fender and number plate shared with RM85; plus seat and rear fender inspired from RM85
Two wheel/tire versions to fit young riders and adults: DR-Z125 – F: 70/100-17, R: 90/100-14, DR-Z125L – F: 70/100-19, R: 90/100-16
Lightweight and durable steel frame and swingarm
Lightweight aluminum wheel rims for reduced weight
Long-travel, oil damped front fork and link-type rear suspension provide a smooth, compliant ride
Strong braking performance provided by single front disc brake with RM85 caliper. Rear drum brake.
ENGINE FEATURES:
Compact 125cc 4-stroke, SOHC, single-cylinder, air-cooled engine designed for ease-of -operation and low maintenance
Tuned intake tract and exhaust system for more low-to-mid rpm power
Five-speed transmission with link-type gearshift system for precise operation and positive feel
Mikuni™ VM20SS carburetor for smooth throttle response
Digital-type CDI ignition system with timing set to enhance the engine’s low-rpm power characteristics
SPECIFICATIONS
MSRP: $2,499.00
Engine: 124cc, 4-stroke, single-cylinder, SOHC 2-valve, air-cooled
Warranty: 6 month limited warranty.
Bore & Stroke: 57.0 x 48.8mm
Compression ratio: 9.5:1
Fuel System: Mikuni™ VM20SS
Lubrication: Wet sump
Ignition: CDI
Starter: Kick
Transmission: 5-speed constant mesh
Final Drive: 428 Chain
Overall Length: 1885mm (74.2 in.)
Overall Width: 770mm (30.3 in.)
Overall Height: 1095mm (43.1 in.)
Seat Height: 805mm (32.0 in.)
Ground Clearance: 290mm (11.4 in.)
Wheelbase: 1270mm (50.0 in.)
Dry Weight: 80 kg (176 lbs.)
Suspension:
FRONT: Telescopic, oil-damped
REAR: Link-type, oil-damped
Brakes:
FRONT: Single hydraulic disc
REAR: Single drum
Tires:
FRONT: 70/100-19
REAR: 90/100-16
Fuel Tank Capacity: 6.6 liter (1.7 gal.)
Color: Yellow, Blue/White
