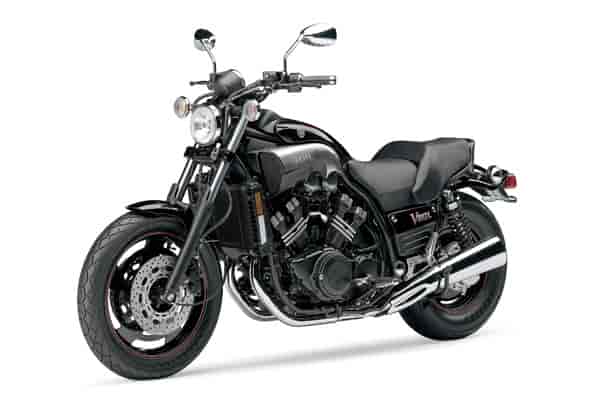

2006 Yamaha V-Max

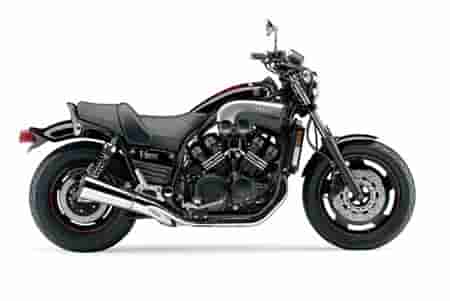

2006 Yamaha V-Max

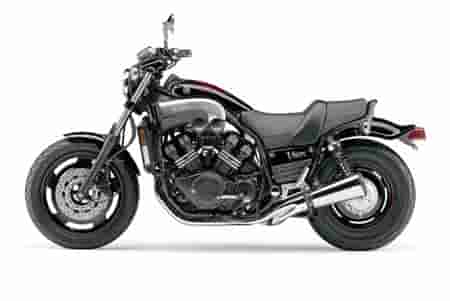

2006 Yamaha V-Max

2006 Yamaha V-Max





– 2006 Yamaha V-Max

V-Max

The first true muscle bike, the V-Max’s asphalt shredding performance has made it a legend.

This is definitely the coolest looking V-Max ever. But hot looks aren’t the only thing the V-Max has going for it. Unleash its 1198cc V-4 and you’ll see why so many accolades have been bestowed upon it.

The V-Max offers a significant level of power and performance. It is not intended for novice or inexperienced riders.

Engine:

Liquid-cooled, 1,198cc, DOHC, 16-valve, 70°, V-4 engine has no equal in its class, pumping out tremendous, hard-hitting power and awesome acceleration.

4 valves per cylinder provide maximum breathing efficiency for awesome power delivery.

Specially designed, tempered crankshaft and connecting rods provide great durability.

Specifically designed, high-lift camshafts ensure ample acceleration at lower rpm, helping to further broaden the already awesome powerband.

Four huge, 35mm Mikuni downdraft carburetors ensure seamless, lightning-quick throttle response.

The only motorcycle of its kind equipped with “V-Boost” induction; a variable intake system that allows two carbs to feed fuel into one cylinder via a servo-controlled butterfly valve at 6,000 rpm and above. The effect is like a supercharger “kicking-in”.

Smooth-shifting, 5-speed transmission puts that massive power to the pavement with one purpose: maximum acceleration all the way to the redline.

Handy, spin-on type oil filter

Hydraulically activated, diaphragm-type clutch delivers precise clutch performance with a light lever pull and minimal maintenance.

Clean, quiet, low-maintenance shaft drive provides ultra-smooth performance that’s virtually lash-free.

Dual chrome mufflers provide excellent flow for maximum power. Chroming makes them easy to clean.

Chassis/Suspension:

Low-slung, double-cradle, steel frame helps reduce seat height to 765mm (30.1″) for a low centre of gravity and better-balanced handling.

Stout, 43mm, front fork features 140mm (5.5″) of wheel travel and air-assist adjustability that allows the rider to fine-tune front preload suspension characteristics to his or her riding style.

Plastic chip guards protect fork tubes from stone damage while the integral fork brace minimizes fork flex.

Dual rear shocks feature 4-way rebound damping and 5-way spring preload adjustability for ultimate versatility and performance in varying road and/or riding situations. Rear wheel travel is 100mm (3.9″).

Huge, 6″ wide, rear tire with solid dish-type wheel provides superb traction and a massive contact patch for hooking up the V-Max’s awesome power.

Special design, “dish-type” wheels are easy to clean and maintenance free. Red key line highlights the new black finish wheels.

Dual 298mm front discs with four-piston calipers provide outstanding stopping power.

282mm rear disc brake with 2-piston caliper

Underseat fuel tank helps lower bike’s centre of gravity and provides space for the large-capacity airbox located above the carburetors.

Fuel reserve switch is conveniently positioned on the right handlebar switch for ease of use.

Wide, thickly padded seat and plush passenger saddle with grab rail add exceptional comfort to the incomparable excitement.

Triple clamp-mounted, compact speedometer with tripmeter keeps cockpit clean and simple.

Fuel tank-mounted tachometer and temperature gauge, with neutral, high beam, turn signal, low oil and low fuel indicator lights



Features:

Handy centre stand

Self-cancelling turn signals with new white lenses

Bright, 60/55-watt, halogen headlight

Steering head-mounted steering lock

Helmet lock

Low-fuel warning light

The V-Max offers a significant level of power and performance. It is not intended for novice or inexperienced riders.

Specifications:

Engine

Engine Liquid-cooled, 4-valve, DOHC, 70° V-4
Displacement 1,198cc
Bore and Stroke 76 x 66mm
Compression Ratio 10.5:1
Maximum Torque 12kg-m (86.9 ft-lb) @ 7,500 rpm
Fuel Delivery Mikuni BSD35 x 4
Ignition CDI
Transmission 5-speed w/hydraulically activated diaphgram-type clutch
Final Drive Shaft



Chassis

Suspension (Front) 43mm air adjustable fork
Suspension (Rear) Dual shocks
Brakes (Front) Dual 298mm discs
Brakes (Rear) 282mm disc
Tires (Front) 110/90-V18
Tires (Rear) 150/90-V15



Details

Length 2,300mm (90.6″)
Width 795mm (31.3″)
Height 1,160mm (45.7″)
Wheelbase 1,590mm (62.6″)
Seat Height 765mm (30.1″)
Dry Weight 263kg (581 lb)
Fuel Capacity 15 litres (3.3 imp. gallons)
Colour(s) Yamaha Black
