2006 Yamaha YZF-R6S

Back to 2006 Yamaha Motorcycle Index Page


Click photos to enlarge.
They make great desktop images.

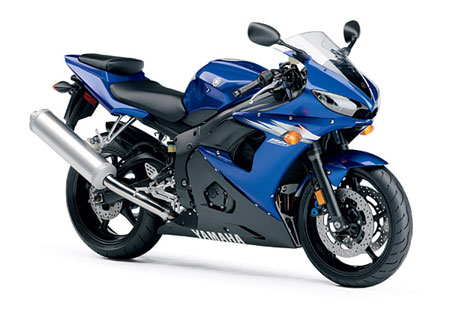

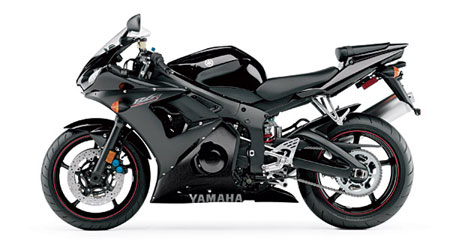

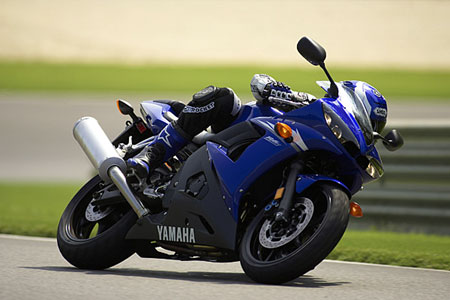

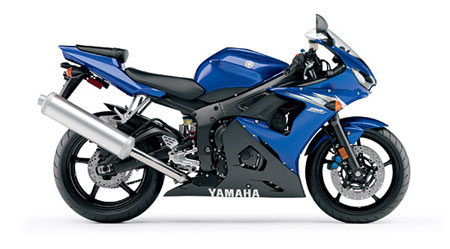

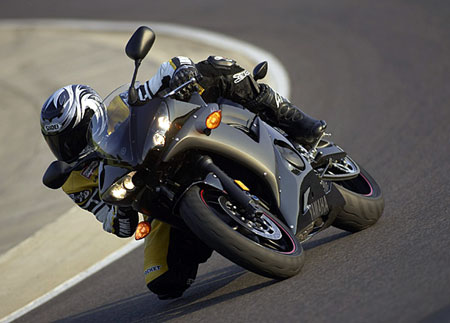

2006 Yamaha YZF-R6S
2006 Yamaha YZF-R6S

2006 Yamaha YZF-R6S
2006 Yamaha YZF-R6S

2006 Yamaha YZF-R6S
2006 Yamaha YZF-R6S

2006 Yamaha YZF-R6S
2006 Yamaha YZF-R6S

2006 Yamaha YZF-R6S
2006 Yamaha YZF-R6S


– 2006 Yamaha YZF-R6S

YZF-R6S – Middleweight Supersport Class Reinvented

Cycle World magazine’s Best Middleweight Streetbike of 2005 also won the 2003 AMA Supersport championship. That’s a thing we call “balance”—a seemingly impossible combination of cutting-edge sporting prowess and real-world ridability. For 2006 we’ve changed the name but kept the same incredible combination of power, performance and style—at a lower price. The R6S.



600cc liquid-cooled, 16-valve, DOHC, inline four cylinder

Fuel injection with 40mm throttle bodies

Fully adjustable fork; Fully adjustable linkage-mount rear shock

Dual 310mm front discs squeezed by 4-piston calipers

Team Yamaha Blue/White; Raven




Type 600cc, Liquid cooled, 4-stroke, forward inclined inline 4 cylinder, DOHC, 16 valves

Bore x Stroke 65.5 x 44.5mm

Compression Ratio 12.4 1

Carburetion Fuel Injection

Ignition Digital DC-CDI

Transmission 6-speed w/multi-plate clutch

Final Drive #532 O-ring chain

Suspension/Front 43mm telescopic fork w/adjustable preload, compression and rebound damping; 4.7” travel

Suspension/Rear Single shock w/piggyback reservoir and adjustable preload, compression and rebound damping; 4.7″ travel

Brakes/Front Dual 298mm floating discs w/4-piston calipers

Brakes/Rear 220mm disc w/single-piston caliper

Tires/Front 120/70-ZR17

Tires/Rear 180-55-ZR17

Length 80.5″

Width 27.1″

Height 43.5″

Seat Height 32.3″

Wheelbase 54.5″

Rake (Caster Angle) 24.5°

Trail 3.7″

Fuel Capacity 4.5 gallons

Oil Capacity (with oil filter change) 2.85 Qt.

Dry Weight 357 lbs.

Primary Reduction Ratio 86/44 (1.955)

Secondary Reduction Ratio 48/16 (3.000)

Gear Ratio – 1st Gear 37/13 (2.846)

Gear Ratio – 2nd Gear 37/19 (1.947)

Gear Ratio – 3rd Gear 28/18 (1.556)

Gear Ratio – 4th Gear 32/24 (1.333)

Gear Ratio – 5th Gear 25/21 (1.190)

Gear Ratio – 6th Gear 26/24 (1.083)

Color Team Yamaha Blue/White; Raven

Warranty 1 Year (Limited Factory Warranty)
