2009 BMW F650GS
Back to 2009 BMW Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

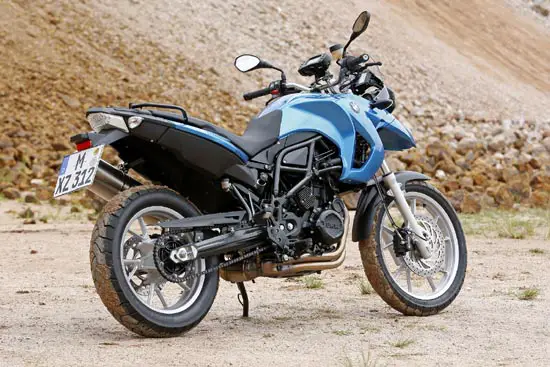

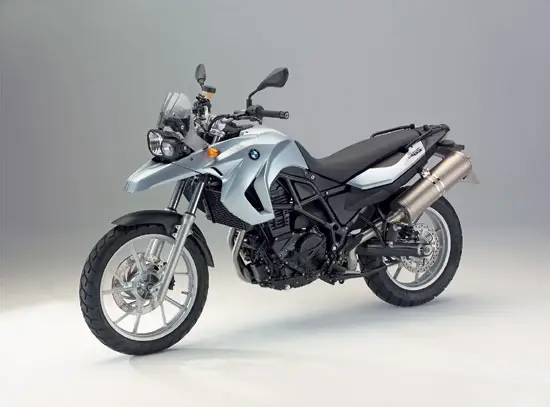

2009 BMW F650GS

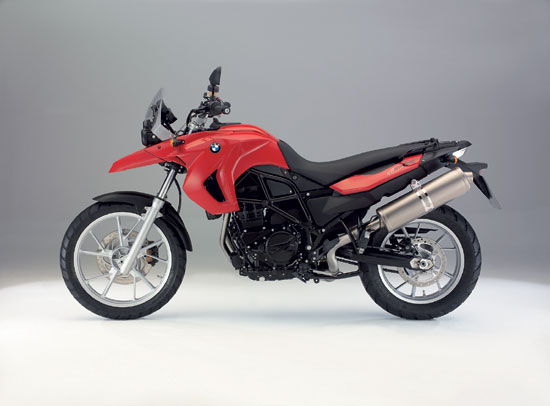

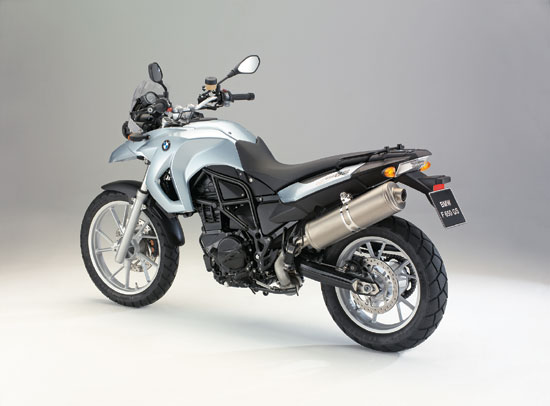

2009 BMW F650GS

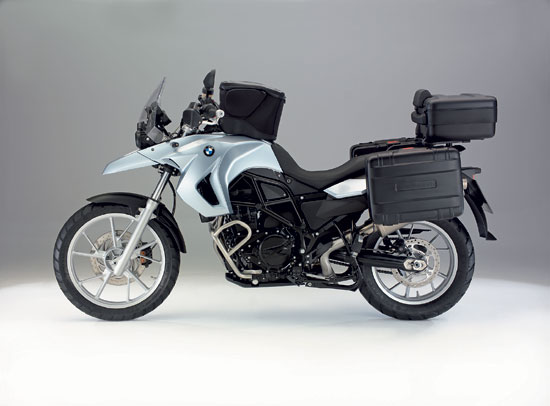

2009 BMW F650GS

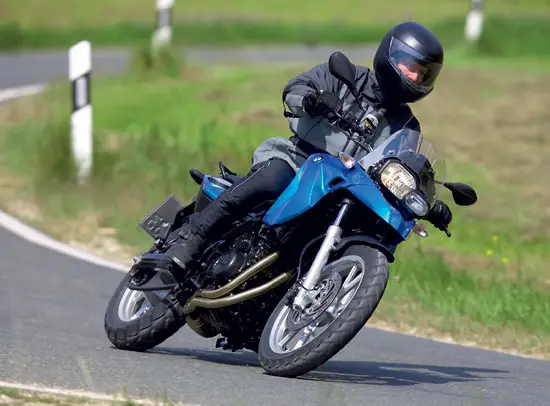

2009 BMW F650GS

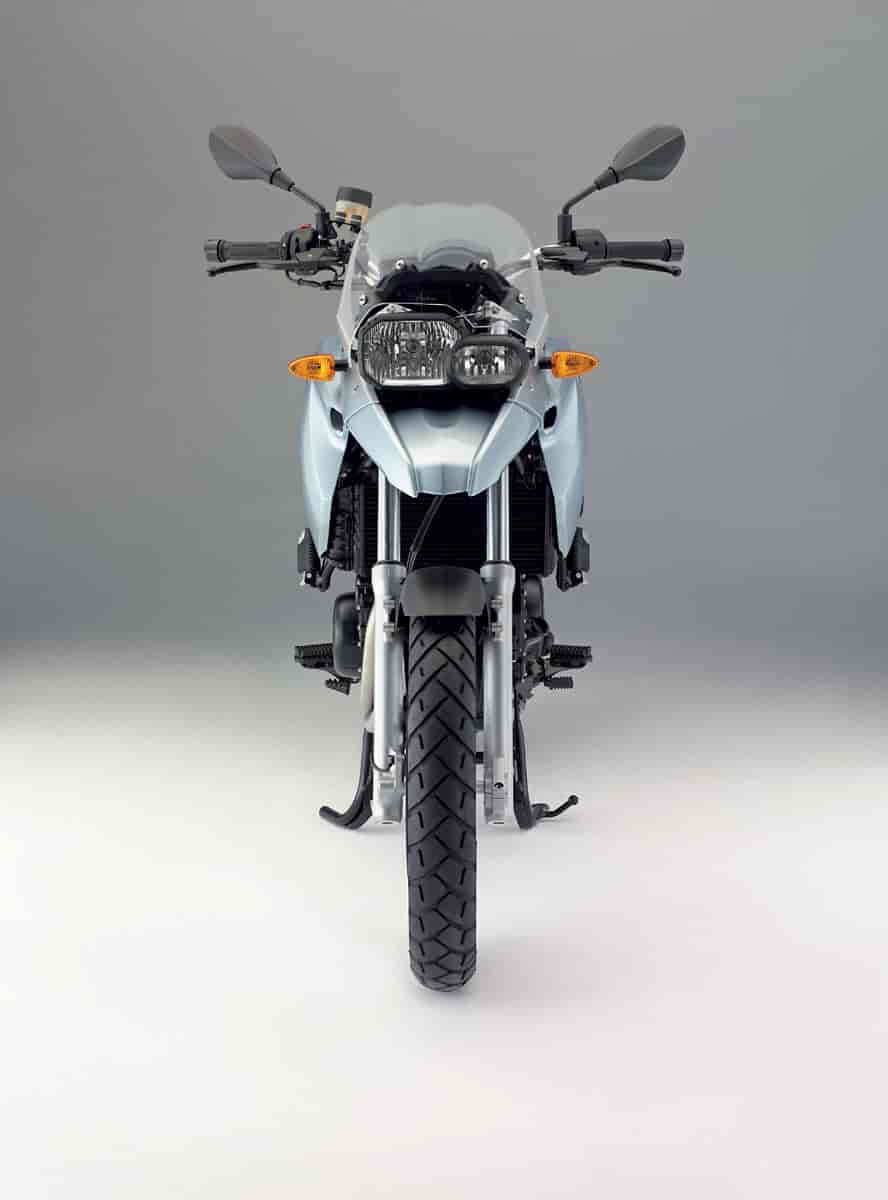

2009 BMW F650GS

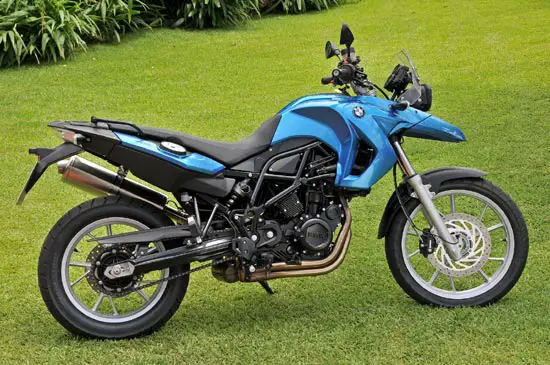

2009 BMW F650GS

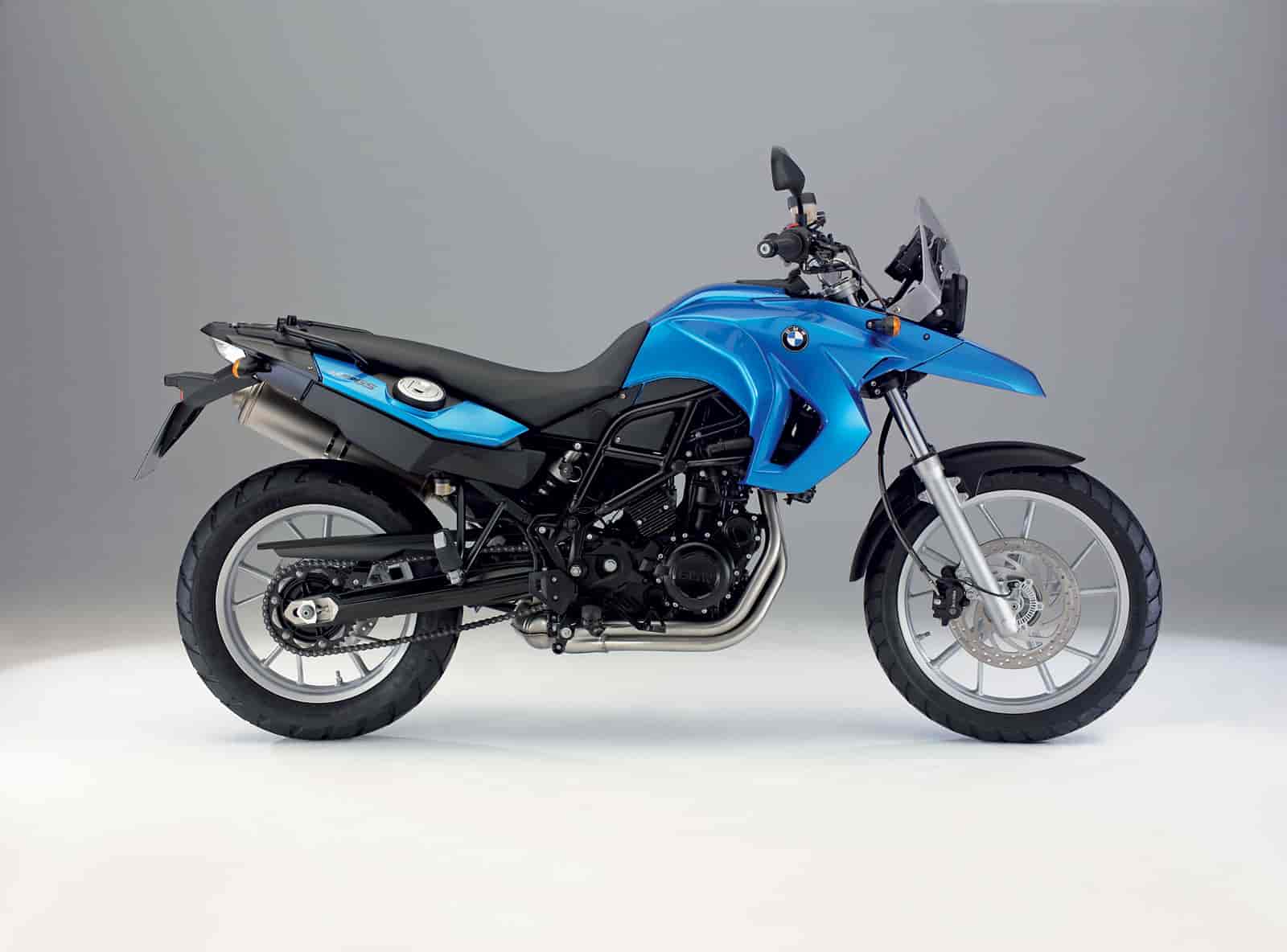

2009 BMW F650GS

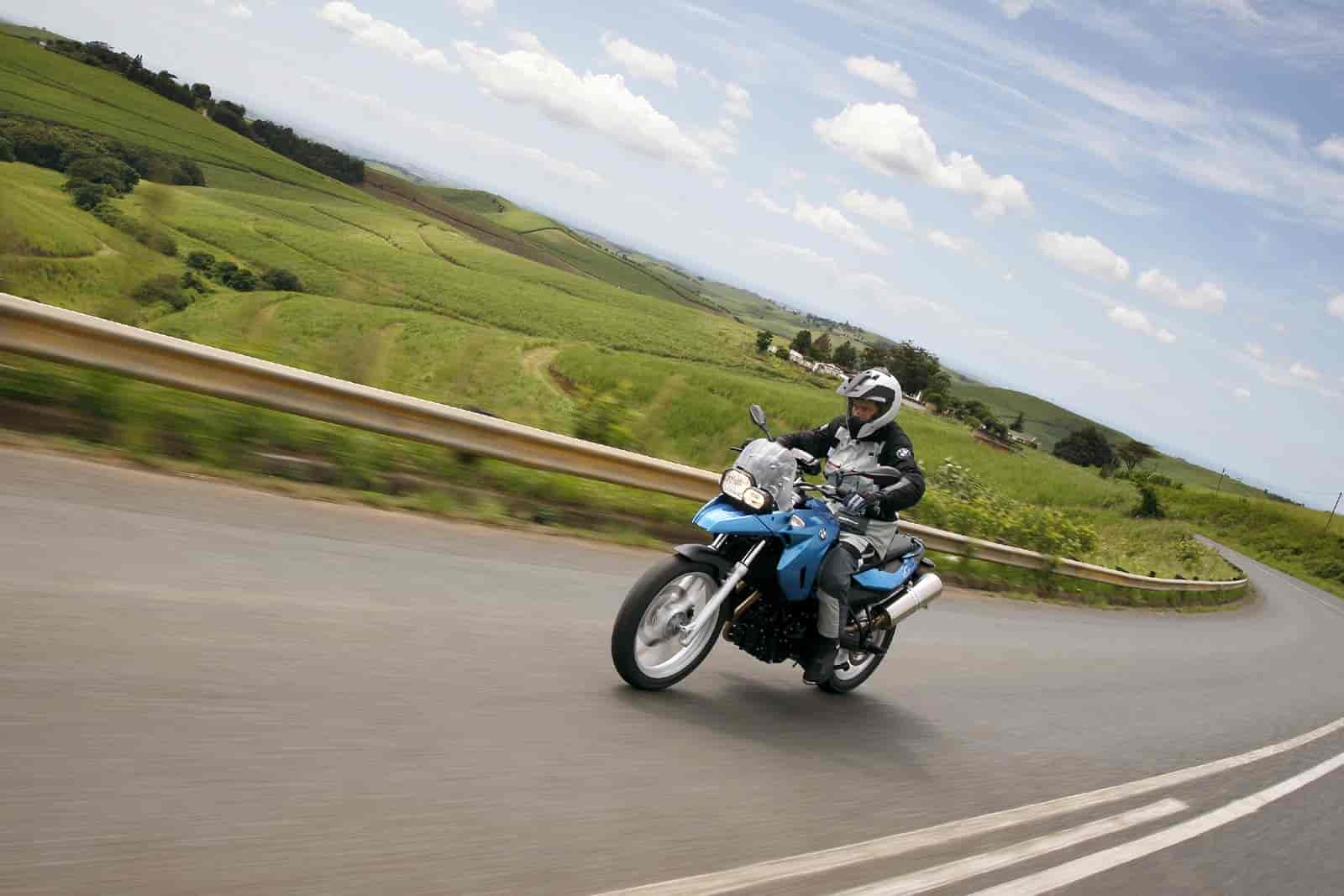

2009 BMW F650GS

2009 BMW F650GS
2009 BMW F650GS

2009 BMW F650GS
2009 BMW F650GS

2009 BMW F650GS
2009 BMW F650GS

2009 BMW F650GS
2009 BMW F650GS

2009 BMW F650GS
2009 BMW F650GS

2009 BMW F650GS
2009 BMW F650GS

– 2009 BMW F650GS

2009 BMW F650GS

BMW F650GS
Gravel? Tarmac? Cobblestones? Sand? The BMW F650GS is a match for any surface. This is the definitive multi-talented bike. Whether it’s tiny alleyways in town, sweeping bends on country roads or adventurous wild terrain, the light handling is a winner with novices and pros alike.

The new BMW F 650 GS – the most unstoppable enduro in its class. Dynamic and sporty, it is built around a punchy twin-cylinder engine that delivers an impressive 71 horsepower. Light weight and a comfortable low seat ensure outstanding agility, while ABS and Tyre Pressure Control maximize safety. AND it is as at home in the big city as in the big wide world beyond. The new F 650 GS. 100 per cent BMW. 100 per cent unstoppable.

The all-new 2009 F 650 GS offers more power and more thrills per mile than ever before in the form of a 71 hp, torque-filled, twin cylinder engine. From touring, to off-road exploring, to sporty handling on the tarmac, this middleweight machine, based on the much anticipated F 800 GS, does anything and everything the ambitious motorcyclist could ever want. With a rigid steel tube trellis frame, it’s sturdy. With a double-sided swing arm and chain drive, it’s reliable. And with a low seat height and narrow design, it’s ideal for darting through trees or traffic. Cast aluminum wheels and telescopic forks keep the ride smooth and precise at all times. Throw in disengageable ABS and even Tire Pressure Monitoring as options, and you get a road-hungry, enduro-styled motorcycle that can tackle anything in its path and beg for more.

With its 71 hp, torquey twin-cylinder engine, the all-new 2009 F 650 GS offers more power and sophistication than its single-cylinder predecessor. Ideal for on- or off-road riding, urban commuting and any rider looking for a fun, efficient and reliable motorcycle, the middleweight twin tackles anything the ambitious motorcyclist could throw at it. Its rigid steel tube trellis frame, double-sided swing arm and chain drive offer reliability. A low seat height and narrow design make navigation through the worst traffic a breeze. Cast aluminum wheels and telescopic forks keep the ride smooth and precise at all times.

The 2009 F 650 GS has a manufacturer’s suggested retail price of $8,255 (excluding freight). The Standard Package, offered at a manufacturer’s suggested retail price of $9,760, (excluding freight) includes heated hand grips, Anti-Lock Brakes, an on-board computer, and white turn signals. The 2009 F 650 GS is available in three colors — Flame Red, Iceberg Silver Metallic, and Azur Blue Metallic.

The F 650 GS is the newest addition to BMW’s dual-sport line up.



Standard Equipment:
Closed-Loop 3-way Catalytic Converter
Hazard Warning Flashers
Heated Grips


Available Equipment:
ABS Brakes
Centre Stand
Low Seat – 790 mm
Tire Pressure Control
On Board Computer
White Turn Indicators
Anti-Theft Alarm System





2009 BMW F650GS – Specifications
MSRP: $8,255

Engine
Type Water cooled twin cylinder 4 stroke
Displacement 798 cc
Bore X Stroke 82 mm x 75. mm
Horsepower 71 bhp @ 7000 rpm
Torque 55 lb/ft @ 4500 rpm
Valve Gear DOHC chain driven with cam followers
No of cylinders 2
Compression Ratio 12.0 :1
Engine Management BMW Engine Controller – BMS K
Valves per Cylinder 4
Valves 2 x 32 mm intake / 2 x 27.5 mm exhaust
Fuel Tank HDPE, internal pump and internal filter
Alternator W N/A
Battery V/AH 12 Volts 14 Amps/hour maintenance-free
Engine Summary N/A

Drivetrain
Clutch Wet multi plate
Gear Box N/A
Primary Transmission 1:1.943
Gear Ratios I: 2.46:1
II: 1.75:1
III: 1.38:1
IV: 1.17:1
V: 1.04:1
VI: 0.96:1

Final Drive System Chain
Final Drive Ratio 2.41:1
Frame & Suspension
Frame Tubular steel trellis frame
Front wheel suspension 43 mm telescopic fork
Rear wheel suspension Double sided aluminum swingarm
Spring Travel front/rear 7.1 inches / 6.7 inches
Ground Clearance N/A
Handlebar center point angle 64.0 degrees

Brakes
Brake System Front and rear disc with optional ABS
Front Brakes One double piston floating caliper
Front Rotor 11.8 inch single rotor
Rear Brakes One single piston floating caliper
Rear Rotor 10.4 inch two piston floating caliper
Actuation Hydraulic, DOT 4 fluid type

Wheels & Tires
Front Wheel 2.50 x 19 cast aluminum
Rear Wheel 3.50 x 17 cast aluminum
Front Tire 110/80 x 19 tubeless
Rear Tire 140/80 x 17 tubeless

Dimensions
Overall Length 89.7 inches
Overall Width 33.2 inches
Wheelbase 62.0 inches
Seat height 32.2 inches
Weight – Dry 377 lbs. excluding options
Max permissible weight 952 lbs. GVWR
Fuel Capacity 4.2 U.S. gallons
Standard Equipment
Available Equipment
Low Suspension $175
Heated Hand Grips $250
ABS $900
Tire Pressure Monitoring (TPM) $250
On Board Computer $295
White Turn Indicator $60
Anti Theft Alarm $395
Center Stand $150
Low Seat $0





2009 BMW F650GS – Canada Specifications
MSRP*: $9,490.00

ENGINE
Type Water-cooled, 2-cylinder, 4-stroke, four valves per cylinder, two overhead camshafts, dry sump lubrication
Bore / stroke 82 mm x 75.6 mm
Capacity 798 cc
Rated output 52 kW (71 hp) at 7,000 rpm (output reduction to 25 kW (34 hp) at 5,000 rpm possible)
Max. torque 75 Nm at 4,500 rpm (with output reduction: 57 Nm at 3,000 rpm)
Compression ratio 12.0 : 1
Mixture control / engine management
Electronic intake pipe injection / digital engine management (BMS-K)
Emission control Closed-loop 3-way catalytic converter, emission standard EU-3

PERFORMANCE / FUEL CONSUMPTION
Maximum speed Ca. 185 km/h
Fuel consumption per 100 km at constant 90 km/h
3.7 l
Fuel consumption per 100 km at constant 120 km/h
5.2 l
Fuel type Unleaded regular, minimum octane rating 91 (RON)

ELECTRICAL SYSTEM
Alternator Three-phase alternator 400 W
Battery 12 V / 14 Ah, maintenance-free

POWER TRANSMISSION
Clutch Multiple-disc clutch in oil bath, mechanically operated
Gearbox Constant mesh 6-speed gearbox integrated into crankcase
Drive Endless O-ring chain with shock damping in rear wheel hub

CHASSIS / BRAKES
Frame Tubular steel space frame, load-bearing engine
Front wheel location / suspension Telescopic fork, Ø 41 mm
Rear wheel location / suspension Cast aluminium dual swing arm, central spring strut, spring pre-load
hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable
Suspension travel, front / rear 180 mm / 170 mm
Wheel base 1,575 mm
Castor 92 mm
Steering head angle 64°
Wheels Cast aluminium
Rim, front 2.50 x 19″
Rim, rear 3.50 x 17″
Tyre, front 110/80 – 19 59H
Tyre, rear 140/80 – 17 69H
Brake, front Single disc, diameter 300 mm, double-piston fl oating caliper
Brake, rear Single disc, diameter 265 mm, single-piston fl oating caliper
ABS Optional extra: BMW Motorrad ABS (can be switched off)

DIMENSIONS / WEIGHTS
Seat height 820 mm (low seat: 790 mm; lowered suspension: 765 mm)
Inner leg curve 1,820 mm (low seat: 1,780 mm; lowered suspension: 1,710 mm)
Unladen weight, road ready, fully fuelled1)
199 kg
Dry weight2) 179 kg
Permitted total weight 436 kg (with lowered suspension 349 kg)
Payload (with standard equipment) 237 kg (with lowered suspension 150 kg)
Usable tank volume 16.0 l
Reserve approx. 4.0 l
Length 2,280 mm
Height (excl. mirrors) 1,240 mm
Width (incl. mirrors) 890 mm





Media/Press Release

THE 2009 F 650 GS ARRIVES AT U.S. BMW MOTORRAD DEALERS
08/19/2008

BMW’s All-New Entry Level Model Makes its Debut with a Twin-Cylinder Engine
Woodcliff Lake, NJ – August 19, 2008… Tame the urban jungle or take the road less traveled! After much anticipation, BMW’s sophisticated new addition to its entry level model lineup — the 2009 BMW F 650 GS — has arrived at U.S. BMW Motorrad dealers.

With its 71 hp, torquey twin-cylinder engine, the all-new 2009 F 650 GS offers more power and sophistication than its single-cylinder predecessor. Ideal for on- or off-road riding, urban commuting and any rider looking for a fun, efficient and reliable motorcycle, the middleweight twin tackles anything the ambitious motorcyclist could throw at it. Its rigid steel tube trellis frame, double-sided swing arm and chain drive offer reliability. A low seat height and narrow design make navigation through the worst traffic a breeze. Cast aluminum wheels and telescopic forks keep the ride smooth and precise at all times.

The 2009 F 650 GS has a manufacturer’s suggested retail price of $8,255 (excluding freight). The Standard Package, offered at a manufacturer’s suggested retail price of $9,760, (excluding freight) includes heated hand grips, Anti-Lock Brakes, an on-board computer, and white turn signals. The 2009 F 650 GS is available in three colors — Flame Red, Iceberg Silver Metallic, and Azur Blue Metallic.

The F 650 GS is the newest addition to BMW’s dual-sport line up. It follows in the footsteps of the highly acclaimed R 1200 GS – which traces its roots back to the early 1980s when BMW won the grueling Paris-Dakar rally four times with its trailblazing dual-purpose R 80 GS. Since their debut in 2004, the versatile R 1200 GS and its rugged companion, the R 1200 GS Adventure, have earned praise from motorcycle enthusiasts and the press for their exceptional performance both on and off the road.

The R 1200 GS has earned award after award, including Cycle World’s Best Open Class Street Bike and the International Journalist’s Panel “Best Bike in the World.” The R 1200 GS Adventure was named “Best Adventure Bike” three years in a row by editors of Motorcyclist Magazine.
