2009 Harley-Davidson Firefighter Road King

You are here: Home2009 Models — 2009 Harley-Davidson Motorcycle Models

2009 Harley-Davidson Firefighter Road King
Back to 2009 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

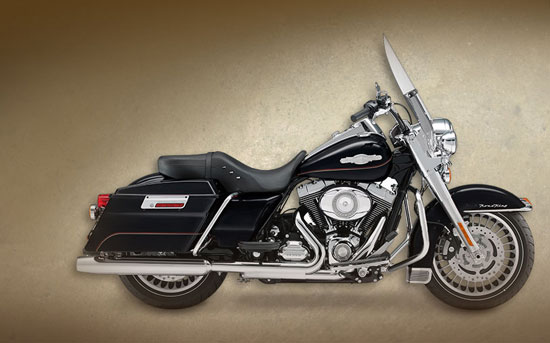

2009 Harley-Davidson Firefighter Road King

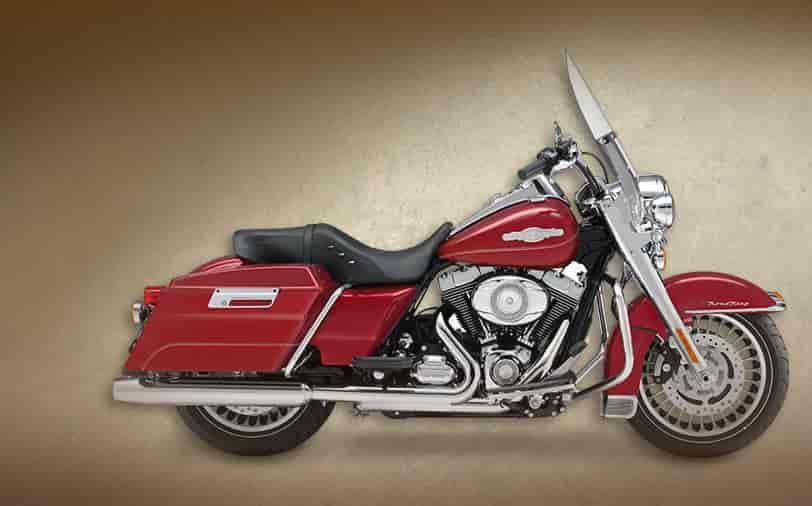

2009 Harley-Davidson Firefighter Road King

2009 Harley-Davidson Firefighter Road King
2009 Harley-Davidson Firefighter Road King

– 2009 Harley-Davidson Firefighter Road King

2009 Harley-Davidson Firefighter Road King

FIREFIGHTER SPECIAL EDITION
Harley-Davidson is proud to honor our nation’s heroes… not just today, but every day.



MOTORCYCLES DESIGNED TO HONOR THOSE WHO SERVE
Harley-Davidson® Peace Officer and Firefighter Special Edition motorcycles are offered as a
proud tribute to law enforcement and firefighter personnel for use in their off duty hours.

Harley-Davidson offers a limited number of these exclusive Special Edition models, available
only to active and retired members of the law enforcement and firefighter profession. These
motorcycles feature distinctive designs and special graphics that allow these riders to travel
down the highway in style while displaying their professional pride in a unique and satisfying way.



KEY FEATURS
NEW FRAME AND SWING ARM
NEW 2-1-2 EXHAUST
NEW 68 TOOTH REAR DRIVE SPROCKET
NEW CAST ALUMINUM WHEELS



NEW IN 2009
NEW STYLING
on Heritage Softail Classic Special Editions.
NEW FRAME AND SWINGARM
on Road King and Ultra Classic Electra Glide Special Editions.
INCREASED LOAD CAPACITY
on Road King and Ultra Classic Electra Glide Special Editions.
NEW COLOR OPTION
Firefighter Special Edition available in Vivid Black with gold and red pinstripes.



ALSO AVAILABLE
2009 Harley-Davidson Firefighter Heritage Softail Classic
2009 Harley-Davidson Firefighter Fat Boy
2009 Harley-Davidson Firefighter Road King
2009 Harley-Davidson Firefighter Ultra Classic Electra Glide







2009 Harley-Davidson Firefighter Road King – Specifications

U.S. UNITS

DIMENSIONS U.S. UNITS
Length 95.0 in.
Seat Height
Laden 1 27.3 in.
Unladen 29.9 in.
Ground Clearance 5.10 in.
Rake Steering Head/Trail 26° / 6.69 in.
Wheelbase 63.5 in.
Track Width N/A
Fuel Capacity 6.0 gal.
Oil Capacity 4.0 qt.
Weight
Dry Weight 775.0 lbs.
Running Order 812.0 lbs.
Luggage Capacity
Volume N/A
Weight N/A

POWERTRAIN
Engine 2 Air-cooled, Twin Cam 96®
Displacement 96.00 cu. in.
Bore x Stroke 3.75 in. x 4.38 in.
Engine Torque 3 92.60 ft lbs @ 3500 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.2:1
Miles per Gallon 5
ESPFI 54 hwy / 35 city
Primary Drive Chain, 34/46 ratio
Gear Ratio (overall)
1st 9.593
2nd 6.65
3rd 4.938
4th 4
5th 3.407
6th 2.875

WHEELS/TIRES
Wheels 6
Front Black, 28-spoke Cast Aluminum
Rear Black, 28-spoke Cast Aluminum
Wheel Option Chrome, Profile Laced Aluminum
Tire Size
Front 130/80 B17 M/C 65H
Rear 180/65 B16 M/C 81H

ELECTRICAL
Instruments Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer; dual tripmeter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light
Indicator Lamps 7 High beam, running lights, front fender running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system6 (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)
Reverse Function N/A

CHASSIS
Brakes 4-piston fixed front and rear
Parking Brake N/A
Lean Angle (per SAEJ1168) 31° / 33°
Exhaust System Chrome, dual exhaust w/ taper End Caps

COLOR OPTIONS
Vivid Black; Fire Engine Red

PRICING 8
MSRP
Black $17,187
Color $17,562
Two-Tone $ N/A
Custom Color $ N/A
Security $345
Wheel Option $450
ABS Option $795
Reverse Option $ N/A
Cruise Control $270
California Emissions $200
Freight $375



METRIC UNITS

DIMENSIONS METRIC UNITS
Length 2413.51 mm
Seat Height
Laden 1 693.42 mm
Unladen 759.46 mm
Ground Clearance 129.54 mm
Rake Steering Head/Trail 26° / 169.93 mm
Wheelbase 1613.92 mm
Track Width N/A
Fuel Capacity 22.71 L
Oil Capacity 3.78 L
Weight
Dry Weight 351.53 kg
Running Order 368.32 kg
Luggage Capacity
Volume N/A
Weight N/A

POWERTRAIN
Engine 2 Air-cooled, Twin Cam 96®
Displacement 1584 cm³
Bore x Stroke 95.25 mm x 111.25 mm
Engine Torque 3 125.57 Nm @ 3500 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.2:1
Liters per 100 KM
ESPFI 4.36 hwy / 6.72 city
Primary Drive Chain, 34/46 ratio
Gear Ratio (overall)
1st 9.593
2nd 6.65
3rd 4.938
4th 4
5th 3.407
6th 2.875

WHEELS/TIRES
Wheels 5
Front Black, 28-spoke Cast Aluminum
Rear Black, 28-spoke Cast Aluminum
Wheel Option Chrome, Profile Laced Aluminum
Tire Size
Front 130/80 B17 M/C 65H
Rear 180/65 B16 M/C 81H

ELECTRICAL
Instruments Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer; dual tripmeter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light
Indicator Lamps 6 High beam, running lights, front fender running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system6 (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)
Reverse Function N/A

CHASSIS
Brakes 4-piston fixed front and rear
Parking Brake N/A
Lean Angle (per SAEJ1168) 31° / 33°
Exhaust System Chrome, dual exhaust w/ taper End Caps

COLOR OPTIONS
Vivid Black; Fire Engine Red

PRICING 7
MSRP
Black $17,187
Color $17,562
Two-Tone $ N/A
Custom Color $ N/A
Security $345
Wheel Option $450
ABS Option $795
Reverse Option $ N/A
Cruise Control $270
California Emissions $200
Freight $375


1 Measurement reflects 180 lb./81.7 kg operator weight.
2 Recommended 91 octane or higher fuel (R+M)/2.
3 Values shown are nominal. Performance may vary by country and region.
4 Standard and optional fuel systems may vary by country.
5 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6 Standard and optional wheels may vary by country and region.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.

Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered.
All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed.

Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation.

Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information.

All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
