2009 Husqvarna SM610 IE
Back to 2009 Husqvarna Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

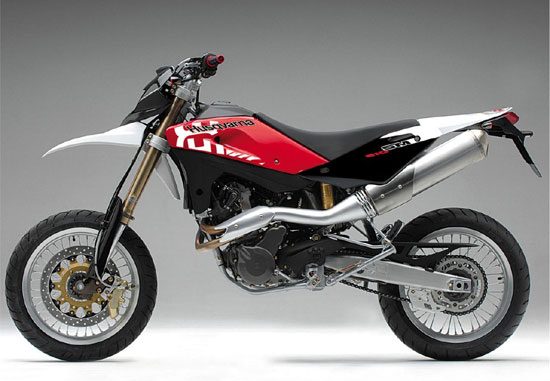

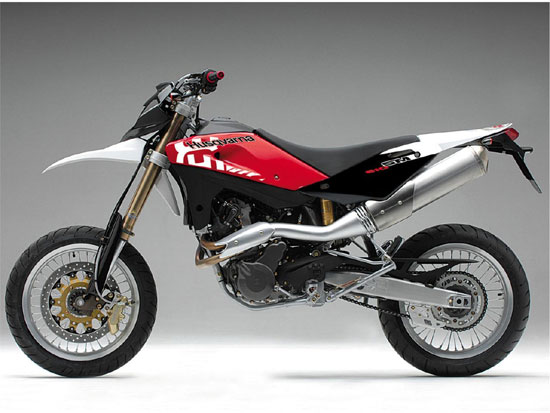

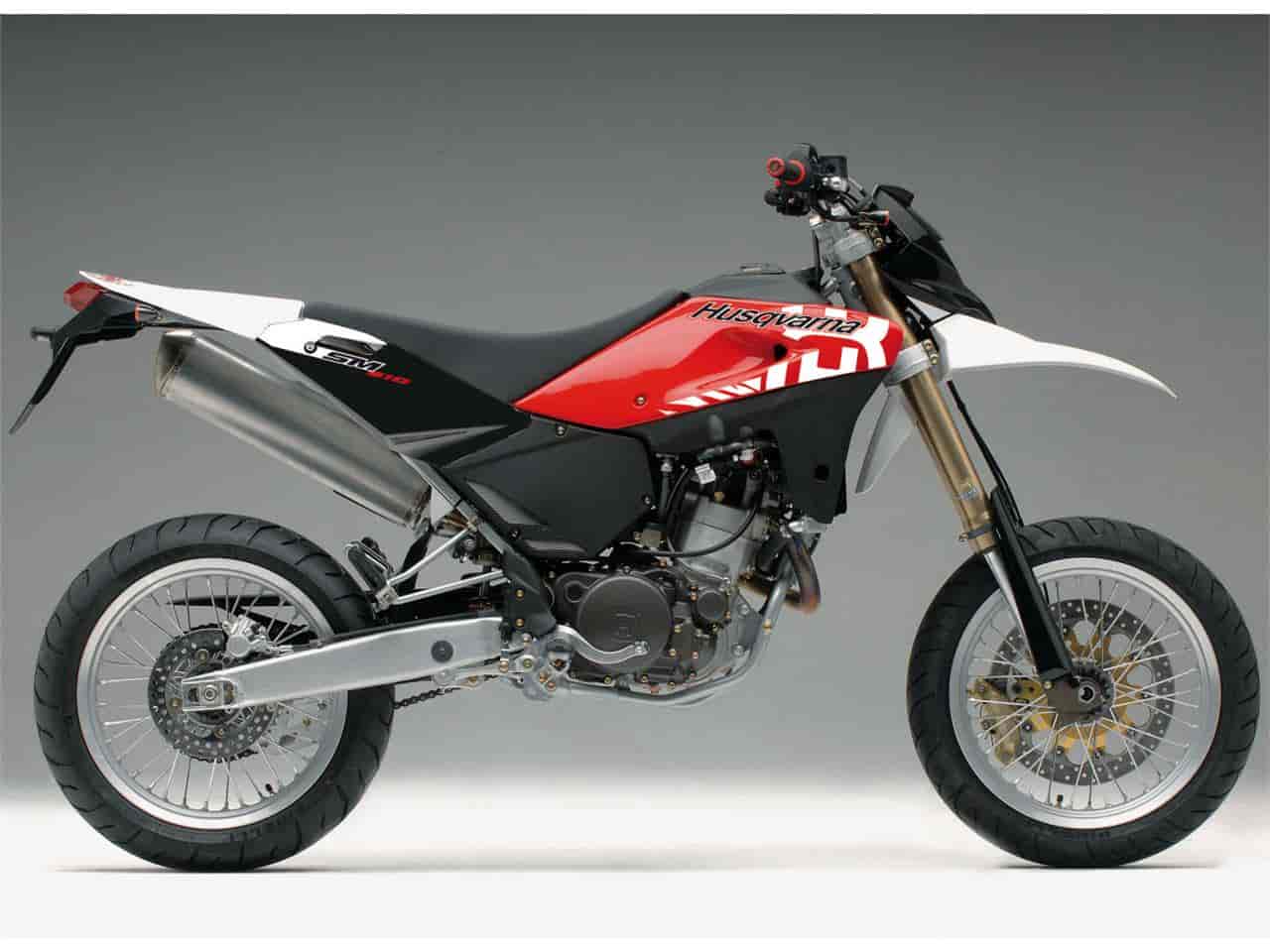

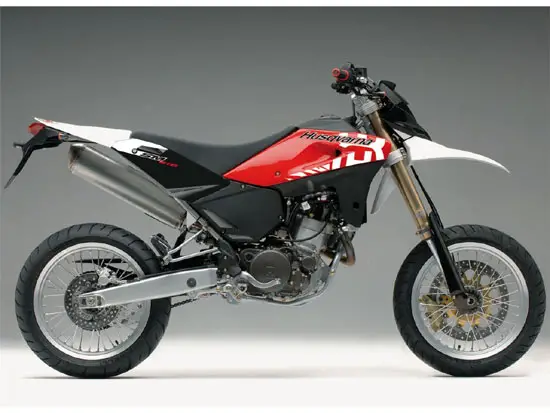

2009 Husqvarna SM610 IE
2009 Husqvarna SM610 IE

2009 Husqvarna SM610 IE
2009 Husqvarna SM610 IE

– 2009 Husqvarna SM610 IE

2009 Husqvarna SM610 IE

SM 610 – HUSQVARNA. The SM 610 i.e. now has an electronic injection system that was developed in collaboration with Mikuni.

The exhaust system on the four-stroke single cylinder engine has a “closed loop” lambda probe. The catalyser has been redesigned and optimised to meet Euro 3 requirements. Colour schemes will include the classic red/white like on the machine of Gerald Delepine who so dominated the recently concluded 2007 Supermoto Championship. A dark grey colour scheme will also be available.

When it was launched in 2006 the SM610 was awarded the prize of ‘Best Street Supermoto’ by MCN. Since then the bike has been revised to meet the later ‘Euro 3’ emissions regulations with the fitment of electronic fuel injection. Not only does the EFI reduce the emissions output but it transforms the feel of the engine, giving a smoother, more linear power delivery. An impressive engine mated to an equally impressive chassis makes the SM610 one of the best street Supermotos you can buy today.



Wheelbase 1485 mm
Overall length 2080 mm
Overall width 820 mm
Overall height 1190 mm
Seat height 910 mm
Min. ground clearance 245 mm
Dry weight 142.5 kg
Fuel tank capacity 12.5 litres



2009 Husqvarna SM610 IE Specifications

Type Single cylinder, 4-stroke, SOHC, 4 valve
Bore 98 mm
Stroke 76.4 mm
Displacement 576.28 cc
Compression ratio 11 : 1
Starting Electric
Cooling Liquid-cooled
Radiator 2
Lubrication Froced lubrication with lobew double pump
Ignition Digital C.D.I., with variable advance
Spark plug type NGK CPR 8E
Spark plug gap 0.55 – 0.65 mm
Fuel system Electronic injection feed
Clutch Wet, multi-plate, mechanic control
Driving disc number 8
Driven disc number 7

Type Steel single tube cradle with steel round tubes
Rear frame with light alloy square tubes
Front suspension MARZOCCHI USD telescopic hydraulic fork with advanced axle, compression and rebound stroke adjustment
Fork leg diameter 45 mm
Fork travel 250 mm
Rear suspension SACHS Progressive Soft Damp type with single hydraulic shock absorber, spring pre-load adjustment. Compression and rebound adjustment (compression stroke – double adjustment)
Rear wheel travel 290 mm
Front brake 320 mm BREMBO floating disc type with hydraulic control and fixed caliper
Rear brake 240 mm BREMBO floating disc type with hydraulic control and floating caliper
Rim front 3.50″ x 17″, light alloy
Rim rear 4.25″ x 17″, light alloy
Tyre front 120/70-17″ PIRELLI MTR 21-DIABLO
Tyre rear 150/60-17″ PIRELLI MTR 22 Dragon-EVO

Electrical Equipment
Voltage 12 V
Head light 55/60 W
Pilot light 5 W
Tail light 5 W
Stop light 21 W
Turn signal 10 W
Battery 12 V – 12 Ah
