– 2009 KTM 450 EXC Sixdays

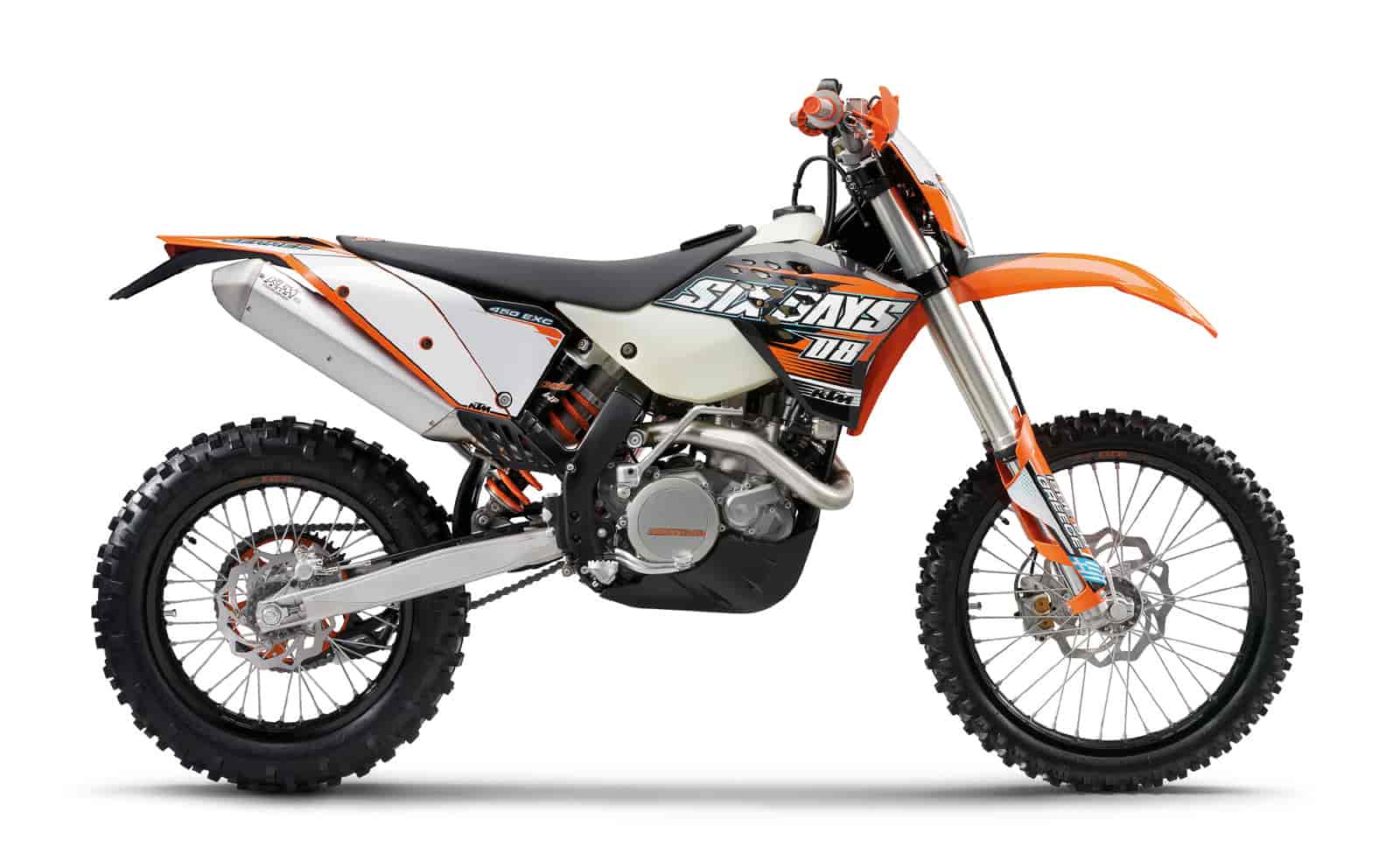

2009 KTM 450 EXC Sixdays
Once a champion, always a champion. If one bike in the hard-fought E2 class has until now had what it takes to be the series winner, then that bike is the 450 EXC Sixdays. And so it should stay! Ultra-modern technology is used both in the chassis and also in the ultra-powerful SOHC engine, which further perfects one of the most successful of off-road bikes.
The result is an extremely light, agile and immensely powerful high-tech race bike which once again raises the bar a whole step higher for the opposition.
The SIX-DAYS models draw their power from two-stroke and four-stroke racing engines which have been optimised down to the finest detail for Enduro racing. Powerful, with perfect power delivery and excellent durability. Pure energy!
Ergonomic tank for ideal contact with the bike. Special KTM airflow system with ducts beneath the spoilers for an optimum fresh air supply to the airbox. Another advantage for racing: transparent polyethylene lets you see the fuel level from the outside.
The seat of the Six-Days bike is supplied with additional pockets and logos. It also has a reduced-weight, optimised foam core for improved comfort and longer service life.
2009 KTM 450 EXC Sixdays – Specifications
Engine type Single cylinder, 4-stroke
Displacement 449.3 cc
Bore x stroke 95 / 63.4 mm (3.74 / 2.5″)
Compression ratio 11.9:1
Starter/Battery Kick- and electric starter/12V 4Ah
Transmission 6 gears
Carburetor Keihin FCR-MX 39
Control 4 V / OHC with rocker levers
Lubrication Pressure lubrication with 3 oil pumps
Engine lubrication Motorex, SAE 15W-50
Transmission oil Motorex, SAE 15W-50
Primary drive 33:76
Final drive 15:45 (13:52)
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Frame Central double-cradle-type 25CrMo4 steel
Subframe Aluminium 7020
Handlebar Neken, Aluminium Ã˜ 28/22 mm (1.10/0.87″)
Front suspension WP USD Ã˜ 48 mm (1.89″)
Rear suspension WP PDS shock absorber
Suspension travel front/rear 300/335 mm (11.81/13.19″)
Brakes, front/rear Disc brakes Ã˜ 260/220 mm (10.24/8.66″)
Rims, front/rear 1.60 x 21″; 2.15 x 18″ Excel
Tires, front/rear 90/90-21″; 140/80-18″
Chain X-ring chain 5/8 x 1/4″
Main silencer Aluminium
Steering head angle 63.5°
Wheel base 1475 ± 10 mm (58.0 ± 0.39″)
Ground clearance (unloaded) 380 mm (15″)
Seat height 985 mm (38.78″)
Tank capacity approx. 9 liters (2.38 gal)
Weight (no fuel) approx. 113.9 kg (251 lbs)
