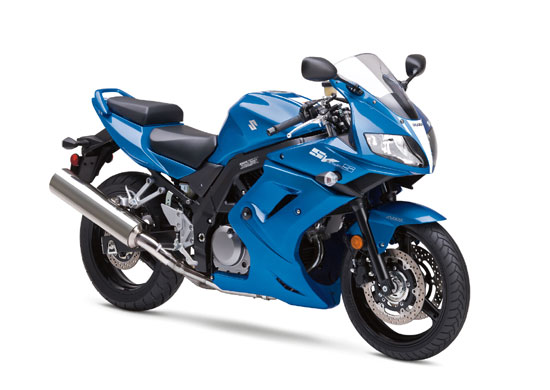

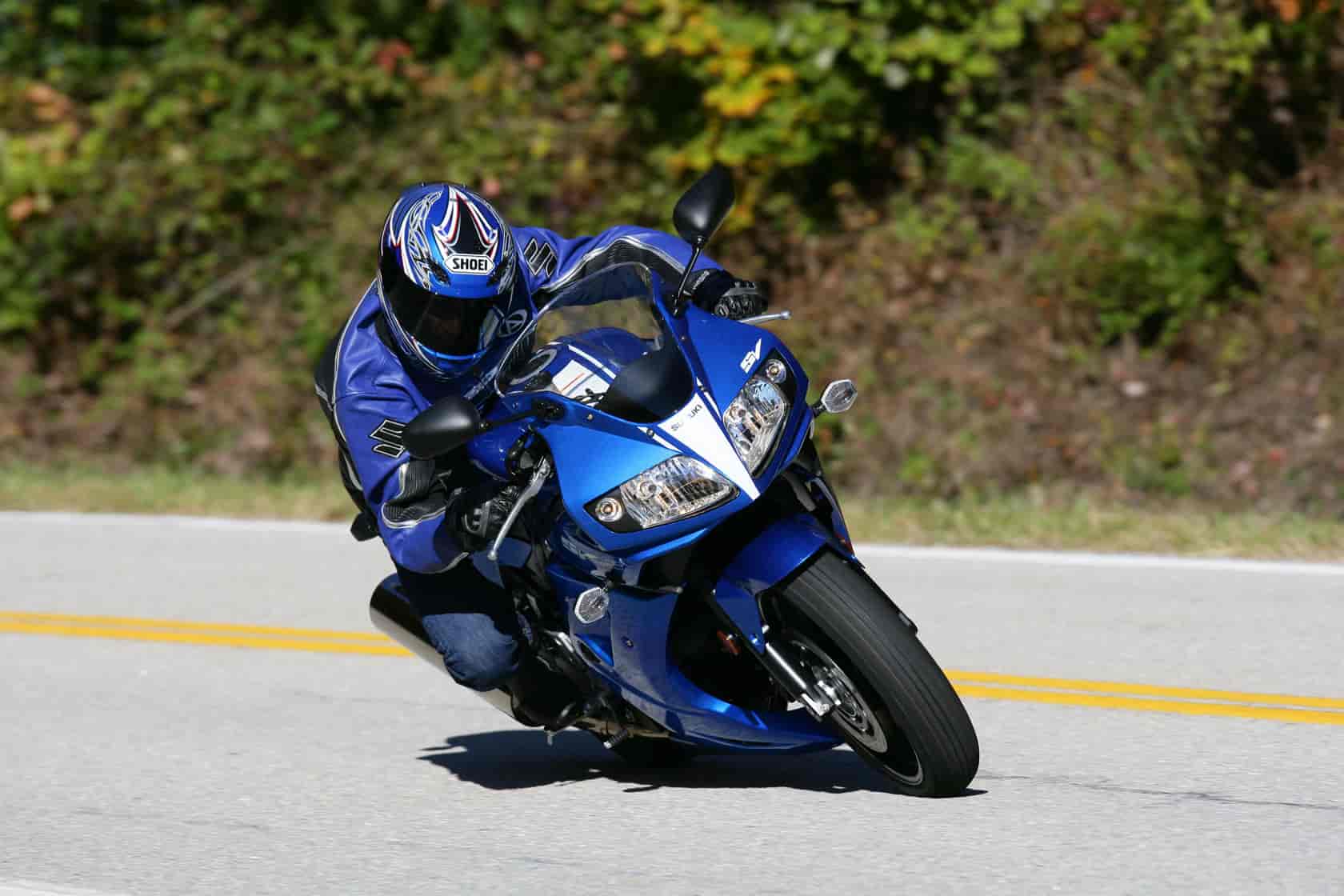

2009 Suzuki SV650SA ABS
Back to 2009 Suzuki Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

2009 Suzuki SV650SA ABS
2009 Suzuki SV650SA ABS

2009 Suzuki SV650SA ABS
2009 Suzuki SV650SA ABS


– 2009 Suzuki SV650SA ABS

2009 Suzuki SV650SA ABS


Welcome to a bike that combines middleweight agility with V-twin power – and tops it all off with aggressive and sporty styling. The 2009 Suzuki SV650SA comes complete with a full fairing, solo seat cover and ABS as standard equipment.

Middleweight sport bikes are known for their responsive handling, and the SV650SA is engineered to set the standard for its class. With its light and rigid aluminum-alloy truss frame and technically advanced suspension front and rear, it invites you to carve up the canyon roads with complete confidence.

The SV650SA offers an equal measure of V-twin excitement. It’s loaded with advanced designs, starting with a liquid-cooled, fuel-injected engine that boasts a wide powerband with crisp throttle response and strong acceleration in every gear. What’s more, its 90-degree V-twin design offers perfect primary balance, which results in smooth performance and comfortable open-road riding.



Key Features

– Antilock Brake System (ABS) monitors brake lever input and wheel speed, and matches stopping power to available traction



Engine Features

– Twin spark plug cylinder heads for optimum combustion and reduced emissions.

– Compact 645cc, 90 degree liquid-cooled V-twin, DOHC 8-valve engine tuned for strong low to mid rpm power

– 90 degree V-twin cylinder layout eliminates primary vibration without a counterbalancer, keeping the engine simple and compact

– Lightweight chain-driven DOHC, shim-under-bucket valve system with 31 mm intake valves and 25.5 mm exhaust valves

– Electronic fuel injection system featuring the Suzuki Dual Throttle Valve System (SDTV) – maintains optimum air velocity in the intake tract for smooth low-to-mid rpm throttle response and high torque output – includes Auto Fast Idle System (AFIS)

– High capacity liquid-cooling system enhances engine performance and durability – coolant routing is integrated with the clutch cover and engine case for a cleaner look and reduced weight

– Smooth-shifting 6-speed transmission with vertically staggered transmission shafts for a shorter, more compact crankcase

– Plastic outer clutch cover and engine sprocket cover for reduced weight and noise

– Lightweight 2-into-1 exhaust system tuned for strong low and mid-range torque



Chassis Features

– Anti-lock Braking System (ABS) for maximum braking performance in wet riding conditions

– Sleek fairing features dual 60/55W headlights with running lights and folding mirrors

– Narrow, lightweight aluminum truss-style frame constructed with high-vacuum die-cast process for more consistent strength and fewer individual welded sections

– Black-painted frame, swingarm, and wheels for more sport appearance

– 41 mm front fork with 130 mm of wheel travel provides a smooth, compliant ride

– Link-type single-shock rear suspension with 7-way adjustable preload

– Box-section aluminum swingarm is lightweight with high torsional rigidity

– Powerful dual hydraulic disc front brakes with 290 mm floating rotors and adjustable brake lever position

– Single disc rear brake with 240 mm rotor

– Compact instrument cluster includes analog tach, LCD speedometer, odometer/tripmeters, and temperature gauge, plus LCD clock and low fuel warning light

– Steeply-angled tail section houses unique vertically-styled, high visibility LED taillight and compact rear fender

– Large under-seat storage area, passenger grab-bar and tie-down hooks

– Slim 4.5 gallon fuel tank with low fuel warning light

– Hinged fuel tank swings up for easy access to the airbox and throttle bodies

– Wide radial tires mounted on lightweight, 3-spoke cast aluminum wheels






2009 Suzuki SV650SA ABS – USA Specifications
MSRP: $7,499 USD

Model Number SV650SAK9
Type Sportbike
Warranty
Suggested Retail $7499
SEP $0
Engine 645 cc (39.4 cu. in), 4-stroke, liquid-cooled, DOHC, 90? V-twin
Bore & Stroke 81.0 mm (3.189 in) x 62.6 mm (2.465 in)
Compression Ratio 11.5 : 1
Fuel System Fuel injection
Lubrication Wet sump
Ignition Electronic ignition (Transistorized)
Starter Electric
Transmission 6-speed constant mesh
Final Drive DID525V8, 114 links
Overall Length 2120 mm (83.5 in)
Overall Width 730 mm (28.7 in)
Overall Height 1170 mm (46.1 in)
Seat Height 800 mm (31.5 in)
Ground Clearance 155 mm (6.1 in)
Wheelbase 1470 mm (57.9 in)
Curb Weight 203 kg (445 lbs)
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc brake, twin
Brakes Rear Disc brake
Tires Front 120/60ZR17M/C (55W), tubeless
Tires Rear 160/60ZR17M/C (69W), tubeless
Fuel Tank Capacity 17.0 L (4.5/3.7 US/Imp gal)
Color Blue




2009 Suzuki SV650SA ABS – Canada Specifications
MSRP: $8,899 CDN

Chassis:
Brakes Front Disc brake, twin
Brakes Rear Disc brake
Color Gray, Black
Curb Weight 203 kg (445 lbs)
Final Drive DID525V8, 114 links
Fuel Tank Capacity 17.0 L (4.5/3.7 US/Imp gal)
Ground Clearance 155 mm (6.1 in)
Overall Length 2120 mm (83.5 in)
Overall Width 730 mm (28.7 in)
Seat Height 800 mm (31.5 in)
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Tires Front 120/60ZR17M/C (55W), tubeless
Tires Rear 160/60ZR17M/C (69W), tubeless
Transmission 6-speed constant mesh
Wheelbase 1470 mm (57.9 in)

Engine:
Bore Stroke 81.0 mm (3.189 in) x 62.6 mm (2.465 in)
Compression Ratio 11.5 : 1
Engine 645 cc (39.4 cu. in), 4-stroke, liquid-cooled, DOHC, 90-degree V-twin
Fuel System Fuel injection
Ignition Electronic ignition (Transistorized)
Lubrication Wet sump
Starter Electric

Warranty:
Warranty 12 Month unlimited mileage limited warranty


Prices and specifications subject to change without notice.
