2009 Ural Patrol

You are here: Home2009 Models — 2009 Ural Motorcycle Models

2009 Ural Patrol
Back to 2009 Ural Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

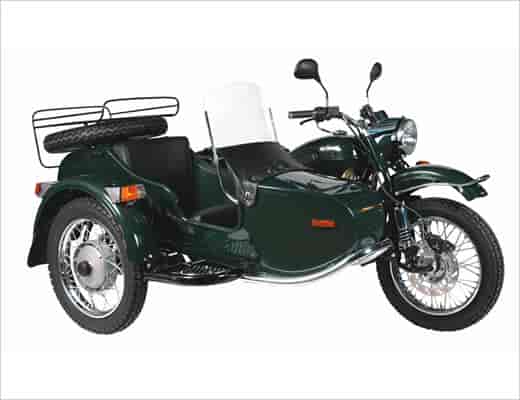

2009 Ural Patrol
2009 Ural Patrol

2009 Ural Patrol
2009 Ural Patrol

2009 Ural Patrol
2009 Ural Patrol

2009 Ural Patrol
2009 Ural Patrol

– 2009 Ural Patrol

2009 Ural Patrol

Want to get dirty? Looking for a bike that can travel those snow-covered roads like no other? Look no further.

In a class by itself, the Patrol is the only motorcycle in the world manufactured with an on-demand sidecar drive. This street legal ATV gives you the ability to switch between single-wheel drive and the unbelievable traction of dual-wheel drive with the flip of a lever!



SPECIFICATIONS USA – 2009 Ural Patrol:

Specifications
Model number
Dimensions (L x W x H)
Seat height
Road clearance
Dry weight
Recommended max speed
Engine
Bore & Stroke
Compression ratio
Displacement
Rated HP @ 5600 RPM
Carburetion
Clutch
Rated Torque @ 4000 RPM
Alternator (14 Volt)
Starting
Gearbox
Fuel
Tank Capacity
Front Brakes
Rear Brakes
Ignition
Front suspension
Rear suspension
Wheels
Color

Special features
  IMZ-8.1037
2580 x 1700 x 1100 mm / 101.6 x 66.9 x 43.3 inches
785 mm / 30.9 inches
125 mm / 4.9 inches
335 kg / 739 lbs
95 km/h / 62 mph
OHV Air-cooled, four-stroke, flat twin cylinder
78 & 78 mm
8.6:1
749 cc
40
Twin KEIHIN L 22 AA Carburetors
Dry double disc
52 Nm / 38 ft-lbs
55 Amps / 770 Watts
Electric and Kick-start
4 forward, 1 reverse, shaft drive
91 Octane Unleaded
19 liters / 5.0 US gallons
Front – BREMBO disk brake
Rear and sidecar wheel – IMZ drum brake
Electronic
Leading link forks
Hydraulic spring shock absorbers
19″ chrome steel spokes and cast aluminum hubs
Woodland Green, Deep Blue or Black

Engageable sidecar drive shaft


SPECIFICATIONS Europe – 2009 Ural Patrol:


N/A

Specifications and features are subject to change
