– 2009 Yamaha YZ85

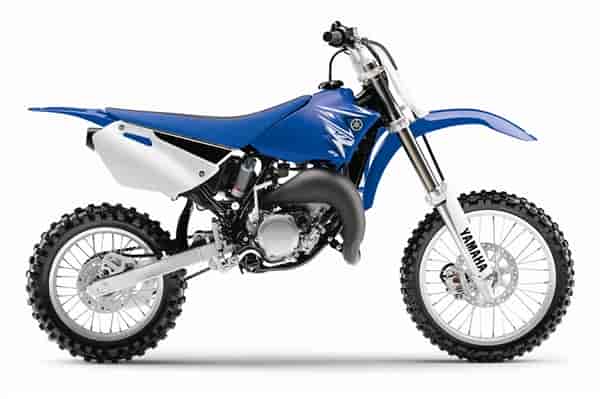

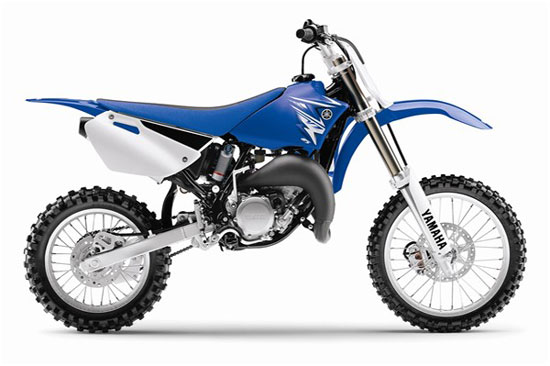

2009 Yamaha YZ85
The ideal choice for the next generation of champions.
The 2009 Yamaha YZ85 may be the smallets member of the YZ family, but it’s a big-time competitor. It’s got the power to win with a liquid-cooled, 85cc engine, 6-speed gearbox, and adjustable suspension up front and out back. This is one mighty mini.
The mini racer of choice. Born from the award winning YZ competition bikes, YZ 85 features a liquid-cooled, 84.7cc crankcase reed-valve-inducted six-speed that is compact and light. You also get an ultra-rigid, single backbone, semi-double-cradle frame, fully adjustable suspension and more to suit a wide range of rider from novice to mini expert.
With the same chassis and engine technology that goes into every 2-stroke YZ, the scaled-down YZ85 is a true competitor.
The YZ85, with its ultra-rigid high-tensile steel frame and 36mm inverted forks, weighs just 55kg (126lbs.) Powered by a compact but muscular liquid-cooled 85cc engine pumping the power through a six-speed gearbox, this bike’s engineered to catch some major air — and trophies, too. Fully adjustable suspensions, front and rear disc brakes and almost 11″ of wheel travel highlight “for competition use only.” Truly, this is full-sized performance in a scaled-down package.
– 84.7cc, 2-stroke
– Adjustable suspension
Lightweight, compact, 84.7cc, liquid-cooled, crankcase reed-valve inducted,
Crankcase reed valve induction and 28mm Keihin flat-slide carburetor ensures seamless throttle response across the powerband. The aluminium carb body helps reduce weight.
Lightweight, forged piston means less reciprocal mass and less friction for a faster revving engine with great durability.
Digital CD ignition system provides a hot, precise spark and monitors engine speed to ensure optimal timing for quicker, stronger response during hard acceleration. This is a maintenance-free system.
Smooth-shifting, 6-speed transmission with involute splines on main and drive shafts are mated to a heavy-duty, multi-plate clutch delivering maximum hook-up for outstanding acceleration and corner-exiting power.
Clutch cover features a quick remove sub-cover for fast, easy access during maintenance.
Lightweight radiator with large size cores and computer-designed louvers provides maximum cooling efficiency.
Washable, dual-stage, foam filter ensures great air filtering performance and easy, economical maintenance.
Lightweight exhaust system is specially designed to create a broad powerband with strong low-end punch. The aluminium silencer is re-packable to maintain optimum performance and reduced noise levels.
Rigid, semi-double cradle steel frame is ultra-lightweight and incredibly strong providing minimal flex for razor-sharp moto-wining handling
Detachable rear subframe allows easy access for suspension maintenance
Lightweight box-section aluminium swingarm provides excellent rigidity for awesome rear wheel control and traction.
Lightweight, adjustable 36mm inverted Kayaba cartridge fork provides 275mm (10.8″) of wheel travel and adjusts for compression and rebound damping. Adjustments include: 20 clicks of both compression and rebound damping. Their construction offers YZ125/250 type valving and low-friction seals to ensure a smooth, compliant stroke for superior suspension performance and handling. Optional fork springs are available through Yamaha Genuine Parts and Accessories.
Monocross link rear suspension features a fully adjustable Kayaba piggyback shock providing 282mm (11.1″) of wheel travel. The piggyback design helps to keep the shock cool during a long moto to provide fade resistant damping and consistent performance. Adjustments include spring preload, 20 clicks of compression and 20 clicks of rebound damping. Optional shock springs are available through Yamaha Genuine Parts and Accessories.
220mm front disc with twin piston caliper and stainless steel rotor deliver strong stopping power with excellent control and great feedback. “Shorty style” adjustable brake lever can be tailored to fit various hand sizes.
190mm stainless steel rear disc brake is squeezed by a single piston caliper. The caliper is protected by a rugged plastic protector.
Lightweight 17″ front and 14″ rear DID rims provide exceptional durability and help reduce unsprung weight for optimal suspension performance.
Premium Dunlop knobby tires enhance traction and cornering on a wide variety of tracks and terrain.
Slim line body design and flat seat provide excellent freedom of movement for the rider. The seat features a “gripper” type seat.
Sealed tapered steering head bearings for durability.
Cleated rear brake pedal and folding shift lever tip provide superb grip and excellent durability.
Wide, cast-alloy footpegs are serrated to provide superb comfort, grip and ground clearance.
Wide-diameter fuel tank cap and large tank opening ensures fast, hassle-free refuelling.
Stainless steel inner clutch cable ensures longer life and smooth operation
Sealed pivot on kickstarter helps reduce wear.
Rubber boots on clutch and brake levers help reduce dirt, mud, and water entry for improved durability.
Convenient lifting holes in side cover.
Rugged chain guide helps prevent chain from de-railing and also protects the rear sprocket.
Heavy-duty rubber swingarm protector.
Stylish crossbar pad.
All new graphics for 2009.
2009 Yamaha YZ85 – USA Specifications
MSRP* $3,349 (Team Yamaha Blue/White) Available from August 2008
Type 84.7cc liquid-cooled 2-stroke; reed-valve inducted
Bore x Stroke 47.5 x 47.8mm
Compression Ratio 8.2:1
Carburetion Keihin® PWK 25
Transmission Constant-mesh 6-speed; multiplate wet clutch
Final Drive Chain Drive
Suspension/Front Inverted fork; fully adjustable, 10.8-in travel
Suspension/Rear Single shock; fully adjustable, 11.1-in travel
Brakes/Front Hydraulic single disc brake, 220mm
Brakes/Rear Hydraulic single disc brake, 190mm
Length 71.7 in
Width 30.9 in
Height 45.7 in
Seat Height 34 in
Wheelbase 49.5 in
Ground Clearance 13.8 in
Fuel Capacity 1.3 gal
Wet Weight 156 lb
Warranty 30 Day (Limited Factory Warranty)
2009 Yamaha YZ85 – Canada Specifications
MSRP: $4,499 CDN
Engine 2-stroke, liquid-cooled,crankcase reed-valve,single
Bore and Stroke 47.5 x 47.8mm
Compression Ratio 8.2:1
Maximum Torque 1.8kg-m (12.3ft-lb) @ 10,500 rpm
Fuel Delivery Keihin PWK28
Drive Train Chain
Suspension (Front) Adjustable 36mm inverted fork / 275mm (10.8″) of wheel travel
Suspension (Rear) Fully adjustable link Monocross / 282mm (11.1″) of wheel travel
Brakes (Front) 220mm disc
Brakes (Rear) 190mm disc
Tires (Front) 70/100-17
Tires (Rear) 90/100-14
Length 1,818mm (71.6″)
Width 758mm (29.8″)
Height 1,161mm (45.7″)
Wheelbase 1,255mm (49.4″)
Ground Clearance 351mm (13.8″)
Seat Height 864mm (34″)
Fuel Capacity 5 litres (1.1 imp. gallons)
Wet Weight 71kg (156.2 lb)
Colour(s) Yamaha Blue
*Prices and specifications subject to change without notice.
