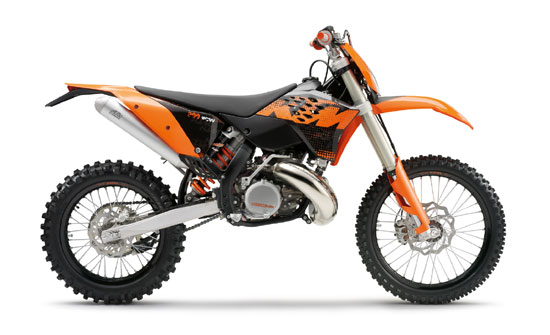

2009 KTM 300XC-W Street
2009 KTM 300XC-W Street

• 2009 KTM 300XC-W Street

2009 KTM 300XC-W Street

If you’re looking for a bruiser that can get into gear with enormous power and yet also features simple handling, you can’t pass up the new 300 XC-W (e) Street. For one thing, it is a true torque wonder that stands by you at full power in every speed range. For another thing, as a lightweight, it features the agility of a born winner.

The biggest two-stroke XC from KTM – the ultimate offroad weapon for pros and a reliable companion for enduro beginners. By the way, in addition to the kickstarter, this bike now comes with a revolutionary electric starter! That saves your strength in tough competition and your nerves in everyday riding, especially in treacherous terrain.


2009 KTM 300XC-W Street – Specifications

Engine type Single cylinder, 2-stroke
Displacement 293.15 cc
Bore x stroke 72/72 mm (2.83/2.83″)
Starter Kickstarter and e-start
Transmission 5 gears wide-ratio
Carburetor Keihin PWK 36 S AG
Control TVC twin valve control
Lubrication Mixture oil lubrication 1:60
Transmission oil 15W50
Primary drive 26:72
Final drive 13:50
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan digital E

Frame Central double-cradle-type 25CrMo4
Subframe Aluminium 7020, removable
Handlebar Neken Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP monoshock PDS
Suspension travel front/rear 300 / 335 mm (11.81 / 13.19″)
Front brake 260mm (10.24″) disc, Brembo double piston
Rear brake 220mm (8.66″) disc, Brembo single piston
Rims, front/rear 1.60 x 21″; 2.15 x 18″
Tires, front/rear 80/100-21″; 110/100-18″
Chain X-ring chain 5/8 x 1/4″
Main silencer Aluminium 200-300 EXC
Steering head angle 63.5°
Trail Adjustable
Wheel base 1475±10 mm (58.07±0.39″)
Ground clearance (unloaded) 385 mm (15.16″)
Seat height 985 mm (38.78″)
Tank capacity approx. 11 liters (2.9 gal)
Weight (no fuel) approx. 100.4 kg (221.34 lbs)
