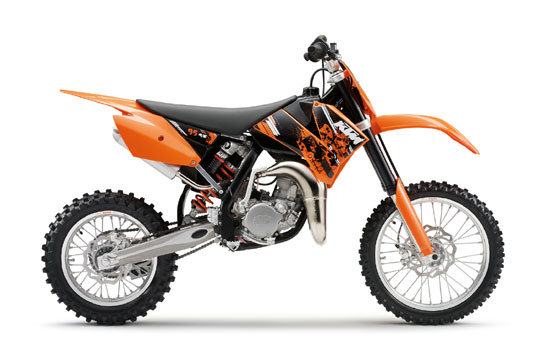

2009 KTM 85SX
Back to 2009 KTM Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

2009 KTM 85SX
2009 KTM 85SX

2009 KTM 85SX
2009 KTM 85SX

• 2009 KTM 85SX

2009 KTM 85SX

The 85 SX has long been the benchmark in its class. The KTM engineers have once again exceeded themselves improving this almost perfect bike even further. Be it power, chassis or quality – the 85 SX is a contender which strikes fear into your opponents. Developed by professionals for the professionals of the future. With new technical highlights and a look which shows off your aim: the podium!



2009 KTM 85SX – Specifications

Engine type Single cylinder, 2-stroke
Displacement 84.9 cc
Bore x stroke 47 x 48.95 mm (1.85 x 1.93″)
Starter Kickstarter
Transmission 6 gears
Carburetor Keihin PWK 28
Control Power Valve
Engine lubrication Mixture oil lubrication 1:40
Transmission oil Motorex, SAE 15W50
Primary drive 19:66
Final drive 14:49
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Moric digital 2M1

Frame Double grinded central double-cradle-type frame
Subframe Aluminium
Handlebar Aluminium Ø 22 mm (0.87″)
Front suspension WP USD Ø 43 mm (1.69″)
Rear suspension WP PDS mono shock
Suspension travel front/rear 280 / 300 mm (10.83 / 11.81″)
Front brake Disc brake Ø 220 mm (8.66″)
Rear brake Disc brake Ø 200 mm (7.87″)
Rims, front/rear 1.4 x 17″; 1.6 x 14″ Alu
Tires, front/rear 70/100 x 17″; 90/100 x 14″
Chain 1/2 x 5/16″
Main silencer Aluminium
Steering head angle 66°
Wheel base 1290 mm (50.79″)
Ground clearance (unloaded) 385 mm (15.16″)
Seat height 845 mm (33.27″)
Tank capacity approx. 5 liters (1.32 gal)
Weight (no fuel) approx. 68 kg (129.94 lbs)
