2010 BMW K1300R

Back to 2010 BMW Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

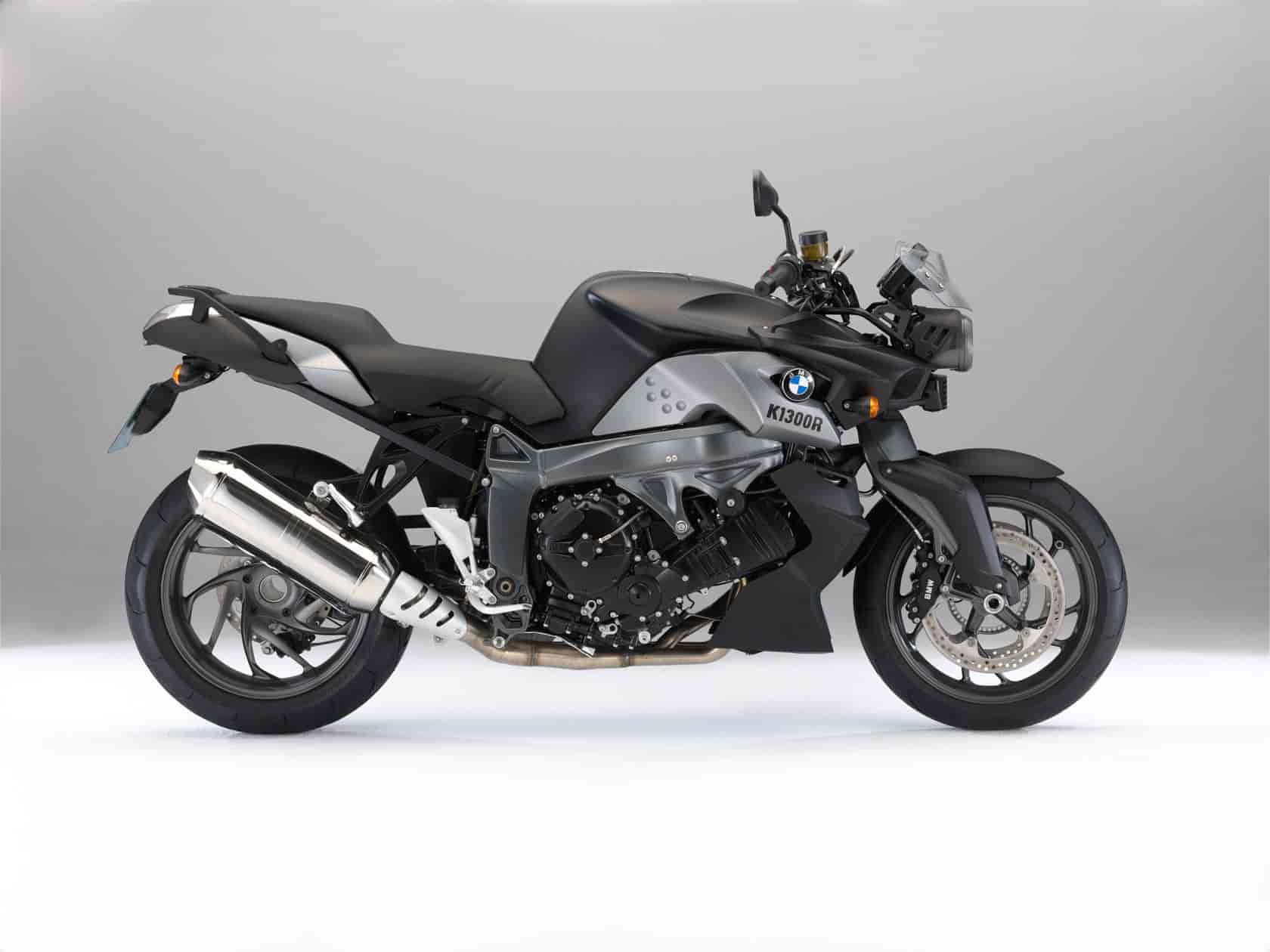

2010 BMW K1300R

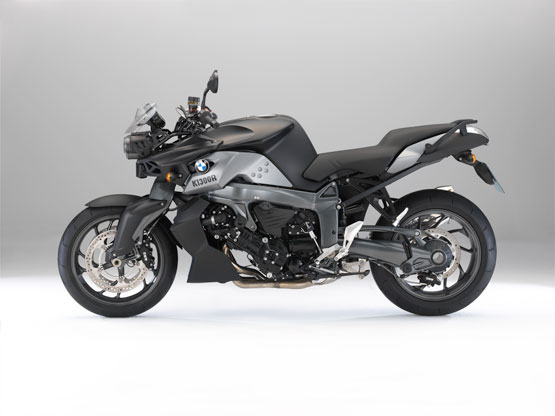

2010 BMW K1300R

– 2010 BMW K1300R

2010 BMW K1300R

The K1300R Power Roadster is a high-performance riding machine offering a perfect blend of performance, riding safety and technical features carried over from the K1300S. So while the drivetrain and running gear are carried over from the K1300S, they have been modified in this case to meet the particular requirements of a large-capacity naked bike. The most significant and outstanding considerations in developing the K1300R were indeed to offer the rider supreme riding pleasure combined with equally outstanding safety on the road as well as the most sophisticated design features and an extroverted, masculine look.

It’s impossible to imagine a more striking or more exciting naked bike. Designed without compromise to impress – and to perform. An output of 173hp (127 kW) an­d 140 Nm of torque ensure it can handle anything the street can throw at it. Looks aren’t always deceptive.

Imposing design meets unique technology. Technology such as the famous BMW Motorrad Duolever for optimum handling, and optional BMW Motorrad ABS and TPC Tyre Pressure Control. The K 1300 R is also the only naked bike available with gear shift assist, allowing riders to change up without declutching or taking their hand off the throttle.

ESA II (Electronic Suspension Adjustment) is available as an option on the K 1300 R, allowing you to modify the suspension set-up depending on the load you are carrying







Canada Features and Specifications

Standard Equipment:
Closed-Loop 3-Way Catalytic Converter
Hazard Warning Flashers
Heated Grips

Available Equipment:
Gear Shift Assistant
Anti-Theft Alarm System
Electronic Suspension Adjustment
Low Seat – 790 mm
Luggage Rack
Comfort Passenger Seat
On Board Computer

Safety Package:
Tire Pressure Control
Automatic Stability Control
ABS Brakes

Equipment Package 1:
Sport Wheel
Sport Windshield



UK Features and Specifications

Standard Factory Equipment:
Engine/Driveline
4 Cylinder in line engine, mounted across the frame and inclined at 55°
4 Valve cylinder heads
6 Speed gearbox
Stainless steel exhaust system
Digital engine management
Closed loop 3 way catalytic converter with oxygen sensor
Shaft drive
Knock control (95 – 98 ROZ)



Running Gear
BMW Motorrad Duolever front suspension and paralever (EVO) rear suspension
Twin disk front brake (EVO, 320mm dia.)
Single disk rear brake
Hydraulic rear spring preload adjuster
Prop stand with starter inhibit
Continuously adjustable rear rebound damping
Cast aluminium single swing arm
Cast Aluminium wheels
5.5 x 17 rear wheel with 180/55 ZR 17 tyre



Electronics
Permanent headlamp beam
Electronic immobiliser
Diagnostic interface
Info flat screen (digital clock, gear indicator, fuel gauge, coolant temperature and cruising range indicator, total and 2 trip odometers, service interval indicator)
Power socket
Single wire system
Hazard warning flasher
White turning indicator



Equipment
Storage compartment with toolkit
One key system for ignition, steering, fuel filler cap and dual seat locks
Adjustable handbrake and clutch lever
Integral ignition switch and steering lock
One piece dual seat

Colour Options:

Lava Orange Metallic
Silk Metallic
Light Grey Metallic Factory Fit Options:
Description Price inc. VAT
Sports Wheels with 190/50 ZR 17 tyre £200.00
Comfort Passenger Seat £75.00
Luggage Grid £115.00
ASC £290.00
Integral ABS (Partial) £965.00
Anti-Theft Alarm £190.00
LED Indicators £95.00
Small Cockpit Fairing £165.00
On Board Computer (with oil level warning) £145.00
Tyre Pressure Control £195.00
Heated Grips £225.00
Electronic Suspension Adjustment 2 (ESA2) £690.00
Gear Shift Assist £315.00
Dual Low Seat (790mm) £0.00
Description Price inc. VAT
Dynamic Package (Tyre Pressure Control, Integral ABS (partial) and ASC) £1365.00
Comfort Package (Sports wheels with 190/50 ZR 17 tyre, Heated Handlebar Grips, On Board Computer with oil level warning, Small Cockpit Fairing and LED indicators) £750.00







2010 BMW K1300R – USA Specifications
US MSRP: $NA USD

Model not available in the USA







2010 BMW K1300R – Canada Specifications
Canada MSRP: $16,850 CDN

Engine:
Type:
– Water-cooled 4-stroke in-line four-cylinder engine, two overhead camshafts, four valves
per cylinder
Bore / stroke:
– 80 mm x 64.3 mm
Capacity:
– 1,293 cc
Rated output:
– 127 kW (173 hp) at 9,250 rpm
Max. torque:
– 140 Nm at 8,250 rpm
Compression ratio:
– 13.0 : 1
Mixture control / engine management:
– Electronic intake pipe injection/digital engine management including knock sensor
(BMS-K+)
Emission control:
– Closed-loop 3-way catalytic converter, emission standard EU-3



Chassis / brakes:
Frame:
– Bridge-type frame, cast aluminium, load-bearing engine
Front wheel location / suspension:
– BMW Motorrad Duolever; central spring strut
Rear wheel location / suspension:
– Cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring
strut with lever system, spring pre-load hydraulic adjustable (continuously variable) at
handwheel, rebound damping adjustable
Suspension travel front / rear:
– 115 mm / 135 mm
Wheelbase:
– 1,585 mm
Castor:
– 104.4 mm
Steering head angle:
– 60.4°
Wheels:
– Cast aluminium wheels
Rim front:
– 3.50 x 17“
Rim rear:
– 5.50 x 17“
Tyres front :
– 120/70 ZR 17
Tyres rear:
– 180/55 ZR 17
Brake front:
– Dual disc brake, floating brake discs, diameter 320 mm, 4-piston fixed calipers
Brake rear:
– Single disc brake, diameter 265 mm, double-piston floating caliper
ABS:
– Optional extra: BMW Motorrad Integral ABS (part-integral)



Performance / fuel consumption:
Maximum speed:
– Over 200 km/h
Fuel consumption per 100 km at constant 90 km/h:
– 5.0 l
Fuel consumption per 100 km at constant 120 km/h:
– 5.8 l
Fuel type:
– Unleaded super and premium, octane number 95-98 (RON) (knock sensor; rated
output at 98 RON)



Power transmission:
Clutch:
– Multiple-disc clutch in oil bath, hydraulically operated
Gearbox:
– Constant mesh 6-speed gearbox
Drive:
– Shaft drive
Electrical system:
Alternator:
– three-phase alternator 580 W
Battery:
– 12 V / 14 Ah, maintenance-free

Length:
– 2,228 mm
Height (excl. mirrors):
– 1,095 mm
Width (incl. mirrors):
– 856 mm
Seat height:
– 820 mm (low seat: 790 mm)
Inner leg curve:
– 1,810 mm (low seat: 1,750 mm)
Unladen weight, road ready, fully fuelled 1):
– 243 kg
Dry weight 2):
– 217 kg
Permitted total weight:
– 460 kg
Payload (with standard equipment):
– 217 kg
Usable tank volume:
– 19 l
Reserve:
– approx. 4.0 l
Technical data relate to the unladen weight (DIN)
1) According to guideline 93/93/EWG with all fluids, fuelled with at least 90% of usable tank
volume
2) Unladen weight without fluids
Color possibilities:
Paintwork: Lava Orange Metallic
Frame color: asphalt grey
Rim color: asphalt grey
Paintwork: Light Grey Metallic
Frame color: asphalt grey
Rim color: asphalt grey
Paintwork: Silk Metallic
Frame color: asphalt grey
Rim color: asphalt grey





2010 BMW K1300R – United Kingdom Specifications
UK MSRP:

Basic VAT OTR Charges inc. VAT Total On Road
£8,442.56 £1,477.44 £330.00 £10,250.00

Engine
Type Water-cooled 4-stroke in-line four-cylinder engine, four valves per cylinder, two overhead camshafts, dry sump lubrication.
Bore x stroke 80 mm x 64,3 mm
Capacity 1,293 cc
Rated output 127 kW (173 hp) at 9,250 rpm
Max. torque 140 Nm at 8,250 rpm
Compression ratio 13.0 : 1
Mixture control / engine management Electronic intake pipe injection/digital engine management including knock sensor (BMS-K)
Emission control Closed-loop 3-way catalytic converter, emission standard EU-3
Performance / fuel consumption
Maximum speed Over 200 km/h
Fuel consumption per 100 km at constant 90 km/h 5,0 l
Fuel consumption per 100 km at constant 120 km/h 5,8 l
Fuel type Unleaded premium, octane number 98 (RON), automatic knock control permits operation with minimum octane number 95 (RON).
Electrical System
Alternator three-phase alternator 580 W
Battery 12 V / 14 Ah, maintenance-free



Power transmission
Clutch Multiple-disc clutch in oil bath, hydraulically operated
Gearbox Constant mesh 6-speed gearbox
Drive Shaft drive



Chassis / brakes
Frame Bridge-type, cast aluminium, load bearing engine
Front wheel location / suspension BMW Motorrad Duolever; central spring strut
Rear wheel location / suspension Cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring strut with lever system, spring pre-load adjustable (continuously variable) at hydraulic handwheel, adjustable rebound damping
Suspension travel front / rear 115 mm / 135 mm
Wheelbase 1.585 mm
Castor 104,4 mm
Steering head angle 60,4°
Wheels Cast aluminium
Rim, Front 3,50 x 17″
Rim, rear 5,50 x 17″
Tyre, front 120/70 ZR 17
Tyre, rear 180/55 ZR 17
Brake, front Twin disc, floating brake discs, diameter 320 mm, 4-piston fixed calipers
Brake, rear Single disc brake, diameter 265 mm, double-piston floating caliper
ABS Optional extra: BMW Motorrad Integral ABS (part-integral)
Dimensions / weights
Length 2.228 mm
Width (incl. mirrors) 856 mm
Height (excl. mirrors) 1.095 mm
Seat height, unladen weight 820 mm (low seat: 790 mm)
Inner leg curve, unladen weight 1,810 mm (low seat: 1,750 mm)
Unladen weight, road ready, fully fueled 243 kg
Dry weight 217 kg
Permitted total weight 460 kg
Payload (with standard equipment) 217 kg
Usable tank volume 19 l
Reserve approx. 4,0 l





Media Press Release 1:



BMW Motorrad Canada Announces 2010 Pricing and Product Updates
16.11.2009
Press Release
Whitby, ON. BMW Motorrad Canada is pleased to announce the introduction of three new models for 2010 – the breathtaking S1000RR, the F800R and the G650GS Enduro, along with upgraded R1200RT, R1200GS and R1200GS Adventure models and three special editions.

S1000RR

After spending its inaugural development season challenging the 2009 World Superbike Championship with factory riders Ruben Xaus and two-times world champion Australian Troy Corser, the new S1000RR exceeded expectations, finishing the series with a gratifying seventeen top-ten finishes. The S1000RR is now poised to arrive in BMW Motorrad showrooms in January of 2010.

The S1000RR will debut with an MSRP of $17,300, a price that includes Race ABS, Dynamic Traction Control (DTC) and Gear Shift Assist as standard equipment. The only option available on the S1000RR will be the Alarm System, priced at $265.

Combining an all-new high-performance engine with lightweight construction, sophisticated chassis dynamics and race-engineered brake and suspension components, the BMW S1000RR will set a new benchmark for ultra-high performance motorcycles – on both the racetrack and the road.

The 999cc liquid-cooled, DOHC, sixteen valve, inline four-cylinder power unit is brand-new from the ground up, bred for racing, developing a maximum output of 193 hp at 13,000 rpm (rev-limited to14,200 rpm) and maximum torque of 82.5 lb-ft at 9,750 rpm.

With overall weight of just 206.5 kg including fuel and Race ABS the S1000RR will also take its place as the lightest motorcycle equipped with ABS in the supersports category.

The combination sets a new standard in its class with a power-to-weight ratio of just 1.06 kg (2.34 lb) per horsepower with Race ABS.

The new BMW S1000RR has been designed not only to compete in the World Superbike Championship, but to take its place among the élite of supersports motorcycles.

F800R

The much anticipated F800R Sport Roadster joined the F800 Series lineup this fall, debuting as a 2010 model in September with an MSRP of $9,990.

The heart of the new F800R is the now familiar 798cc parallel twin shared within the F800 family, rated at 87 bhp @ 8,000 rpm while delivering 86 Nm of torque @ 6,000 rpm. The additional two horsepower, when compared to the other F800 family members, is due to a redesigned exhaust system. The robust powerplant also features intake manifold fuel injection, electronic engine management, oxygen sensor and separate closed-loop 3-way catalytic convertor and secondary air system, for low fuel consumption and optimized emissions.

The F800R has a slightly longer double-sided swing arm and, in keeping with its sporting orientation, incorporates an O-ring chain secondary drive. Other highlights are new compact MID (Moulded Interconnected Devices) technology, featuring a left-handlebar multifunction signal switch and asymmetrical H7 headlights that echo the design of its K1300R Power Roadster sibling.

F800R – Chris Pfeiffer Special Edition

In recognition of Chris’s outstanding achievements with the F800, BMW Motorrad has developed a Chris Pfeiffer Special Edition of the new F800R, which integrates a special factory-team paint scheme and a list of special equipment, including:

– Akrapovic® rear silencer for a dynamic appearance and a sporty sound.
– Rear strut spring finished in red.
– Painted pillion passenger seat cover.
– Highly unique visual appearance with paint finish in the BMW Motorsport colours of Alpine White non-metallic, Lupine Blue metallic and Magma Red non-metallic, contrasting with elements in black silk matt.
– Front wheel finished in white.
– Clear overpainted Chris Pfeiffer signature on the central cover.
– Set of sponsor stickers supplied.
– No cockpit fairing.
– LED direction indicators.

The Chris Pfeiffer Special Edition will command a premium of $1,350 with an MSRP of $11,250 and be available in limited quantities.

G650GS Enduro

An evolution of the former single-cylinder BMW F650GS, the 2010 G650GS joins the BMW Motorrad lineup with an MSRP of $8,750.

The familiar 652cc liquid-cooled four-valve DOHC powerplant remains little changed from its predecessor, featuring BMW’s Digital Motor Electronics and fuel injection, engine management version BMS-CII, and high-performance cylinder head technology, producing 50 bhp at 6,500 and maximum torque of 44 ft-lb at 4,800 rpm. Power transmission is still maintained by the proven five-speed gearbox and an O-ring chain drive.

The new G 650 GS’s brake system, however, is upgraded with standard ABS featuring the new generation BMW Motorrad Bosch 8 M ABS control unit weighing only 1.5 kilograms. ABS can also be deactivated, as on the GS boxer twins. Single discs brakes at both front and rear measure 340mm and 240mm, respectively.

The new G650GS continues with a stiff steel bridge tubular frame with bolt-on lower frame section and rear subframe. The 19-inch front spoke wheel is suspended by a Showa telescopic fork with 170 mm/ 6.7″ spring travel. The 17-inch rear wheel runs in a two-arm box-type swingarm with a central spring strut with adjustable preload and travel of165 mm/ 6.5″ . Standard seat height is a very compatible 780mm, with an optional lowering kit available for $200 ex-factory.

With heated grips also fitted as standard equipment, the new G650GS is available in two colors – Deep Black and Red, both combined with a black tank, further highlighted by matte black engine surface. The new level of standard equipment leave only two available options – the aforementioned lowering kit and a centre stand ($170).

R1200RT

The iconic BMW R1200RT emerges in 2010 with an MSRP of $20,200 and significant changes that further reinforce its position as the benchmark in the touring motorcycle category.

Most prominently, the R1200RT is now powered by the same latest-generation flat-twin engine as the BMW HP2 Sport. Equipped with two overhead chain-driven camshafts (DOHC) per cylinder and dual spark plugs, the new 1,170 cc engine embodies a smoother torque curve with an increase in maximum torque from 85 – 88 lb-ft at 6,000 rpm, while the (unchanged)110 horsepower occurs at 7,750 rpm (previously 7,500 rpm) and the overall range of useful engine speed increased by 500 rpm to a maximum 8,500 rpm.

Additional new features on the 2010 R1200RT are highlighted by:

– An electronically controlled exhaust flap for an aggressive muscular sound.
– Second-generation ESA II Electronic Suspension Adjustment with damping, spring base and now also spring rate adjustable at the touch of a button.
– BMW Motorrad Integral ABS – partly integrated version.
– Newly designed fairing with improved wind and weather protection
– Re-designed cockpit with new instrument cluster and matte visor to minimize reflection.
– New generation signal switch cluster mounted on the left handlebar.
– Handlebars now mounted on rubber bearings to optimize vibration control.
– Electronically controlled windshield with optimized aero-acoustics and improved transparency.
– New optional Audio System featuring interfaces for an MP3 player, an iPod, USB stick or CD player. The new system can store nine playback lists on a USB/MP3 or iPod, and is controlled by a new mouse-type Multi-Controller.
– Adjustable gearshift lever with an eccentric control bar.

The R1200RT comes, of course, with standard hard-shell cases, offering a capacity on each side of 32 litres, with case brackets integrated almost fully into the body and finished in body color, along with four locking points. Additional top cases are available in either 28 or 49 litre sizes and mount directly to the standard luggage rack.

Four dynamic new color choices for the R1200RT enhance the contrast between the color of the body and the matt-painted engine spoiler as well as the seat finished exclusively in black on all models: Thunder Grey Metallic, Polar Metallic, Ostra Grey Metallic and a combination of Thunder Grey /Titan Silver and Granite Grey Metallics.

R1200GS and R1200GS Adventure

Like their boxer-twin sibling, the R1200RT, the new 2010 R1200GS and R1200GS Adventure also feature the same latest-generation flat-twin DOHC engine as the BMW HP2 Sport, producing 110 horsepower and a heftier 88 lb-ft of torque. The new engine is also equipped with an electronically controlled exhaust flap for an even more aggressive and muscular exhaust note.

The upgraded engine is mated to the proven six-speed transmission with larger diameter bearings and numerically higher secondary gear ratio, enhancing the new robust torque curve.

Debuting with an MSRP of $17,650 for the R1200GS and $20,300 for the GS Adventure, both models will sport a new range of colors, the R1200GS available in Ostra Grey Matte Metallic, along with two non-metallic options – Alpine White and Magma Red. The R1200GS Adventure is available in either Smoke Grey Metallic or Brilliant Yellow Metallic, the latter combined with a Black Olive Grey seat.

R1200R Touring Edition

The popular R1200R naked urban motorcycle will continue to offer its perfect synthesis of riding dynamics, agility and classic motorcycle design in 2010, and will be joined by a new Touring Edition.

Targeted at the rider whose itinerary might include substantial long-distance travel, the R1200R Touring Edition features:

– Sport Windshield
– Side Luggage with Coded Locks
– Comfort Seat
– Luggage Rack
– On-board computer
– Chromed Exhaust
– White Turn Indicators
At a premium of $1,000 over the standard base R1200R, the Touring Edition has an MSRP of $15,950.

HP2 Sport Motorsport Edition

The sportiest and most powerful series production flat twin of all time, the HP2 Sport continues into model year 2010 with the addition of a special Motorsport Edition.

The HP2 Sport Motorsport Edition continues to be powered by the familiar flat twin engine equipped with double overhead camshafts delivering 133 hp at 8750 rpm, but emulating the look of the BMW Motorrad Motorsport factory racers, featuring fairing, fuel tank, seat bench, front mudguard and engine spoiler painted in the BMW Motorsport colours Alpine White, Lupine Blue metallic and Magma Red.

The HP2 Sport Motorsport Edition has an MSRP of $27,590.

The balance of the BMW Motorrad lineup carries over into model year 2010, making for an undiminished total of fifteen models. Notable exceptions are the G650X Country, F800S and K1200LT, which are now discontinued.

The 2010 F800R is in BMW Motorrad showrooms now, while the new S1000RR will be available in January, the R1200RT and R1200GS and GS Adventure will be on sale in February of 2010.
