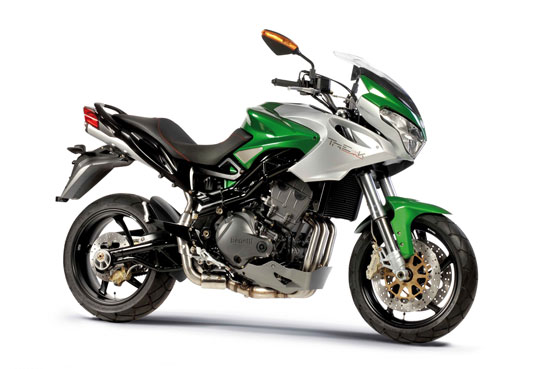

2010 Benelli Tre 1130K

– 2010 Benelli Tre 1130K

2010 Benelli Tre 1130K

“WHEN THE TARMAC ENDS…… A NEW ADVENTURE BEGINS!”

Why should you stop when the road ends?

We live on the same horizon, but we have different views.
That’s Benelli’s answer to the riders who go further !



Project

“Outside the known limits”

A fully new bike for a new way of ride from the research and development dept.
A new product for exclusive adventures.

FRAME
The frame is designed to resist every shock in any situation.
An easy ride and sensitivity to reactions were the targets of Benelli’s technicians during the project.
New geometry for new adventures.

FRONT RADIATOR
The new position of the radiator allows high thermal exchanges at low speed and during off road use. All made to improve reliability .
The new frame is suited to the new requirements.
The new shape guarantees an easy ride and a ride neutrality, both being unique features for a bike in this class.

REAR SUSPENSION
The rear end is designed to guarantee the best stability and the easiest way to ride without loosing comfort or suspension reaction.
The TRE 1130 K is safe to ride in any conditions.







2010 Benelli Tre 1130K – Specifications

ENGINE
TYPE In line 3 cylinders, 4-stroke, liquid cooled , 4 valves per cylinder double overhead camshaft, with balancer shaft
DISPLACEMENT 1131 cc
BORE x STROKE 88 x 62 mm
COMPRESSION RATIO 11.6:1
RATED OUTPUT 92 kW (123 cv) @ 9000 rpm
MAX. TORQUE 112 Nm (11.4 kgm) @ 5000 rpm
FUEL SUPPLY Electronic injection with three throttle bodies ø53 mm
EXHAUST SYSTEM With catalytic converter and oxigen sensor
CERTIFICATION Euro 3
CLUTCH Wet clutch
GEARBOX 6 speed
FINAL DRIVE Chain drive, ratio 16:34

CHASSIS
FRAME Decomposable, front steel trestle, rear aluminium alloy casting
FRONT SUSPENSION ø50 mm upside-down fork
FRONT SUSPENSION STROKE 150 mm
REAR SUSPENSION Steel trestle swingarm, progressive rear dumper with hydraulic extension and spring preload adjustments
REAR SUSPENSION STROKE 144 mm
FRONT BRAKE Twin floating disk ø320 mm with 4 piston calipers
REAR BRAKE Single disk ø240 mm with double piston caliper
FRONT RIM 3.50”x17”
REAR RIM 6.00”x17”
FRONT TYRE 120/70 – ZR17
REAR TYRE 180/55 – ZR17 (190/50 – ZR17)

SIZES
LENGHT 2183 mm
WIDHT EXCLUDING MIRRORS 850 mm
HEIGHT EXCLUDING MIRRORS 1320 mm
SEAT HEIGHT 840 mm
WHEELBASE 1515 mm
UNLADEN WEIGHT* 215 kg
ROAD READY WEIGHT** 240 kg
PERMITTED TOTAL WEIGHT 440 kg
USABLE TANK VOLUME 22 lt
RESERVE 4 lt

* without fluids
** According to guideline 93/93/CEE with all fluids, fuelled with at least 90% of usable tank volume

(Benelli Q.J. reserves the right to change technical specifications, equipment, set ups, and colours without prior notice.)
