2010 Harley-Davidson CVO Sreet Glide FLHXSE

Back to 2010 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

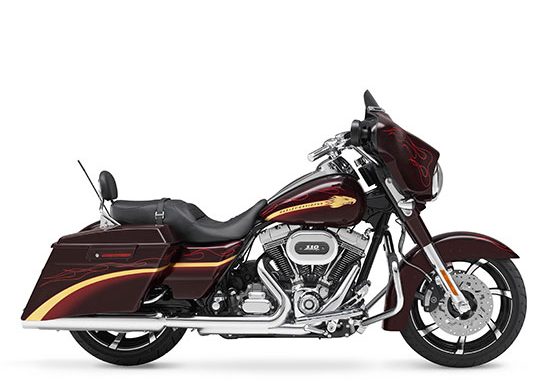

2010 Harley-Davidson CVO Sreet Glide FLHXSE
2010 Harley-Davidson CVO Sreet Glide FLHXSE

2010 Harley-Davidson CVO Sreet Glide FLHXSE
2010 Harley-Davidson CVO Sreet Glide FLHXSE

2010 Harley-Davidson CVO Sreet Glide FLHXSE
2010 Harley-Davidson CVO Sreet Glide FLHXSE

– 2010 Harley-Davidson CVO Sreet Glide FLHXSE

2010 Harley-Davidson CVO Sreet Glide FLHXSE

The Harley-Davidson® CVO™ Street Glide® is a limited-production version of the popular Harley-Davidson® hot-rod bagger. Powered by the largest-displacement V-Twin engine offered by Harley-Davidson, this potent touring bike is loaded with sparkling chrome, electrifying paint and fresh custom-styling ideas.

The CVO Street Glide is built on the innovative Touring chassis introduced by Harley-Davidson in 2009, based on a single-spar, rigid backbone frame and a new swingarm developed to withstand the demands of long-haul touring riders and today’s more-powerful engines.




Model Highlights

New One-piece, injection-molded extended saddlebags offer increased capacity
New Black 18-inch, seven-spoke, front and rear Agitator wheels feature contrast-chrome highlights
New Seven-spoke floating front brake rotors match the Agitator wheel
New Trimmed front fender/bracket assembly showcases the front wheel
New Hydraulic rear shocks with hand-adjustable preload and optimized rebound and damping deliver outstanding response on a range of road surfaces
New Custom, low-profile seat and matching backrest pad have leather inserts and French stitching
New Engine turned insert/emblem collection includes air cleaner, console insert with CVO™ logo, derby cover and timer cover

– Exclusive paint scheme in three color combinations, with color-matched front fairing skirt, upper fork slider covers, saddlebag latches and license plate light cover
– Color-matched rear fascia panel incorporates LED stop/tail/turn lights
– Screamin’ Eagle® Twin Cam 110™ granite powder-coated powertrain with 110 Screamin’ Eagle identifiers on cylinder heads
– Rumble Collection includes grips, floorboard inserts, passenger and shifter pegs, and brake pedal pad
– Custom oil cooler with chrome cover and CVO medallion



Key Features

The Harley-Davidson® CVO™ Street Glide® is a limited-production version of the popular Harley-Davidson® hot-rod bagger. Powered by the largest-displacement V-Twin engine offered by Harley-Davidson, this potent touring bike is loaded with sparkling chrome, electrifying paint and fresh custom-styling ideas.

Production will be limited to approximately 3,500 units assembled at the Harley-Davidson Vehicle Operations facility in York, Pa.

The CVO Street Glide is built on the innovative Touring chassis introduced by Harley-Davidson in 2009, based on a single-spar, rigid backbone frame and a new swingarm developed to withstand the demands of long-haul touring riders and today’s more-powerful engines.

– Smoked low-profile wind deflector
– 40-watt Harman/Kardon® Advanced Audio System
– Anti-Lock Brakes
– Electronic Cruise Control
– Smoked turn signal lenses with amber bulbs
– Carry-out saddlebag liners
– Chrome Accessories
– Fork sliders
– Voltage regulator
– Push-button fuel door
– Classic front axle nut covers
– Lower triple tree cover
– Front wheel spacer
– Valve stem cover caps
– Dipstick
– Rider footboard supports
– Adjustable passenger footboard supports
– Black high-torque 1.4kW starter
– High-performance clutch with hydraulic actuation
– Harley-Davidson® Smart Security System with siren
– Indoor storage cover with embroidered CVO logo
– Commemorative CVO ignition key with display box





2010 Harley-Davidson CVO Sreet Glide FLHXSE – Specifications
USA MSRP: $30,999

Canada MSRP: See Local Canadian Dealer For Pricing

Engine
Engine4 Air-cooled, Twin Cam 110™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 4.0 in. x 4.38 in. (101.60 mm x 111.25 mm)
Displacement 110 cu. in. (1803 cc)
Compression Ratio 9.15:1
Fuel System5 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Chrome cover, Die cast high flow backplate, Fiberglass media, washable, exposed element
Lubrication System Pressurized, dry-sump

Drivetrain
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch Hydraulically actuated, 9-plate, wet, with high performance sprin
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
o 1st 9.593
o 2nd 6.650
o 3rd 4.938
o 4th 4.000
o 5th 3.407
o 6th 2.875

Chassis
Frame Mild steel; tubular frame, two-piece stamped and welded backbone; cast and forged junctions; twin down tubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm Mild steel, two piece drawn and welded section; forged junctions; MIG welded
Front Forks 41.3 mm telescopic with blow-by valve
Rear Shocks Hydraulic – adjustable

Wheels6: 7-spoke, contrast chrome Agitator wheels
o Front 18 in. x 3.5 in. (457.20 mm x 88.90 mm)
o Rear 18 in. x 5.0 in. (457.20 mm x 127.0 mm)
Brakes:
o Caliper Type 32 mm, 4-piston fixed front and rear
o Rotor Type (diameter x width): Patented, dual floating rotors (front), fixed rotor (rear)
o Front (floating) 11.81 in. x .02 in. (299.97 mm x 5.08 mm)
o Rear 11.81 in. x .28 in. (292.97 mm x 7.11 mm)
o ABS Option Standard
Suspension Travel:
o Front Wheel 4.6 in. (116.84 mm)
o Rear Wheel 2.0 in. (50.80 mm)

Performance
Engine Torque7 (per SAE J1349):
o North America 115 ft. lbs. @ 3750 rpm (155.92 Nm @ 3750 rpm)
Lean Angle (per SAE J1168):
o Right 32°
o Left 30°

Fuel Economy8
(EPA urban/highway test) 32/47 mpg (7.35/5.0 L/100 km)

Electric
Battery (per Battery Council International Rating) Sealed, maintenance-free, 12V, 28-amp/hour, 270 cca
Charging Three-phase, 50-amp system (585W @ 13V, 2000 rpm, 650W max power @ 13V)
Starting 1.4 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
o Headlamp (quartz halogen) 55-watt low beam, 35-watt high beam
o Turn Signal Lights 28W (21W) self-canceling
o Indicator Lamps High beam, running lights, neutral, low oil pressure, engine diagnostics, turn signals, security system, 6-speed, low fuel warning, cruise control, ABS

Color Options
Custom Colors
– Candy Concord with Pale Gold Leaf Graphics
– Spiced Rum with Gold Leaf Graphics
– Tequila Sunrise with Pale Gold Leaf Graphics

Pricing

U.S. MSRP $30,999

Dimensions
Length 96.20 in. (2443.48 mm)
Overall Width 38.0 in. (965.20 mm)
Overall Height 53.0 in. (1346.20 mm)
Seat Height:
o Laden2 26.50 in. (673.10 mm)
o Unladen 27.90 in. (708.66 mm)
Ground Clearance 5.10 in. (129.54 mm)
Rake (steering head) 26°
Fork Angle 29.3°
Trail 6.69 in. (169.93 mm)
Wheelbase 63.50 in. (1612.90 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and rear):
o Front – D408 130/70B18 63H
o Rear – D407 180/55B18 80H
Fuel Capacity 6 gal. (22.71 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 4 qts. (3.78 L)
Transmission Capacity 1 qts. (0.95 L)
Primary Chain Case Capacity3 1.4 qts. (1.3 L)

Weight:

o As Shipped 805 lbs. (365.15 kg)
o In Running Order 848 lbs. (384.65 kg)
o Gross Vehicle Weight Rating 1360 lbs. (616.90 kg)
o Gross Axle Weight Rating:
o Front 500 lbs. (226.80 kg)
o Rear 927 lbs. (420.49 kg)

Warranty
Warranty9 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive
comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can
occur and complete accuracy cannot be guaranteed. Harley-Davidson may
make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories
described in this catalog may not be available for sale or use in some locations.
Please check with your dealer for complete product details and the latest
information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Primary case oil fill is 45 oz. or as needed to fill to bottom of diaphragm spring.
4 Recommended 91 octane or higher fuel (R+M)/2.
5 Standard and optional fuel systems may vary by country and region.
6 Standard and optional wheels may vary by country and region. Standard 105th
Anniversary wheel for FLHTCU, FXDL, XL1200L, FLTR and FLHX models is
Gloss Black Painted Cast Aluminum.
7 Values shown are nominal. Performance may vary by country and region.
8 Estimated from fuel economy tests on a sample motorcycle from the
corresponding family conducted by Harley-Davidson under ideal laboratory
conditions. Not all motorcycle models undergo fuel economy testing. Fuel
economy and mileage may vary among motorcycle models within a family. Your
mileage may vary depending on your personal riding habits, weather conditions,
trip length, vehicle condition and vehicle configuration and other conditions.
Break-in mileage may vary.
9 See motorcycle owner’s manual for complete details.







2010 Harley-Davidson CVO Sreet Glide FLHXSE – Media/Press Releases

NEW CVO STREET GLIDE IS A GENUINE HOT-ROD BAGGER

Custom Touring with More Power, Bigger Wheels and New Hydraulic Rear Suspension

MILWAUKEE (July 25, 2009) – The 2010 CVO Street Glide is a tuned-up, tricked-out version of the popular Harley-Davidson hot-rod bagger. Powered by the Screamin’ Eagle Twin Cam 110, the CVO Street Glide packs serious power from the largest-displacement V-Twin engine offered from the factory by Harley-Davidson. But this potent touring bike is also loaded with the sparkling chrome, electrifying paint and fresh custom-styling ideas that have defined the CVO program for more than a decade.

The CVO Street Glide presents a low-and-lean profile behind a fork-mounted “batwing” fairing with a smoke low profile wind deflector and solo headlamp, a clean front fender, and hard extended saddlebags with color-matched latches. The CVO Street Glide is built on the innovative Touring chassis introduced by Harley-Davidson in 2009, based on a single-spar, rigid backbone frame and a new swingarm developed to withstand the demands of long-haul touring riders and today’s more-powerful engines.

Key CVO Street Glide Features

Screamin’ Eagle Twin Cam 110 engine with 110-cid (1803cc), rubber-mounted to the frame, is rated at 115 ft. lbs. of torque at 3750 rpm. The 6-speed Cruise Drive transmission features a new helical-cut fifth gear.

New extended saddlebags are a one-piece, injection-molded, full-depth design that offer increased capacity. Locking latches are color-matched.

Color-matched rear fascia panel fills the space between each saddlebag and the rear fender, and incorporates LED stop/tail/turn lights.

New black 18-inch front and rear “Agitator” wheels are a seven-spoke design with contrast-chrome highlights. New seven-spoke floating front brake rotors match the wheel.

New hydraulic rear shocks have 40mm pistons and 14mm rods, with optimized rebound and damping to deliver outstanding response on a range of road surfaces. Suspension pre-load can be adjusted by hand to accommodate rider, passenger and luggage weight. The pre-load adjustment knob is located behind the left saddlebag.

A new trimmed front fender/bracket assembly showcases the front “Agitator” wheel.

A new custom, low-profile seat and matching backrest pad have leather inserts and French stitching.
Rumble Collection grips, footboard inserts, passenger and shifter pegs, and brake pedal pad.

Standard equipment also includes ABS (anti-lock braking system), electronic cruise control, Harley-Davidson factory security system, and the 40-watt Harman/Kardon Advanced Audio System.

A new custom paint scheme is offered in three color combinations, with color-matched front fairing skirt, upper fork slider covers, and license plate light cover:
Candy Concord with Pale Gold Leaf Graphics
Spiced Rum with Gold Leaf Graphics
Tequila Sunrise with Pale Gold Leaf Graphics

Assembled by teams of technicians in a special assembly area at the Harley-Davidson Vehicle Operations facility in York, Pa., production of the 2010 CVO Street Glide will be limited to approximately 3,500 units. The 2010 CVO Street Glide has a suggested U.S. retail price of $30,999.



Press Release #2

HARLEY-DAVIDSON CVO CREATES FOUR EXCITING MODELS FOR 2010

New CVO Street Glide and CVO Softail Convertible Debut Exclusive Features

MILWAUKEE (July 25, 2009) – Harley-Davidson Custom Vehicle Operations (CVO) will create four extraordinary motorcycle models for 2010, each an uninhibited expression of American motorcycle performance and style. Now in its 11th year, the mission of the CVO program is to design and build limited-production, factory-custom motorcycles for customers who appreciate brilliant chrome, exquisite paint, thundering power and the exclusivity of owning and riding a very special motorcycle.

Harley-Davidson will offer two all-new CVO models for 2010.

2010 CVO Softail Convertible: Designed to be a “two-in-one” touring-and-cruising motorcycle, the CVO Softail Convertible features a new compact fairing, leather saddlebags, a passenger pillion, and upright with backrest that are each quickly detachable. A new full-coverage rear fender, a five-inch digital speedometer with analog tachometer, Stinger chrome aluminum wheels and Ventilator high-flow engine air intake all debut on the CVO Softail Convertible.

2010 CVO Street Glide: The ultimate hot rod bagger from Harley-Davidson, the CVO Street Glide features new 18-inch front and rear “Agitator” contrast chrome wheels, hydraulic rear shocks with adjustable preload, a low-profile custom seat with matching passenger backrest, and a lowered-and-trimmed front fender. New full-depth extended saddlebags are flanked with filler strips incorporating LED stop/tail/turn lighting.


Two CVO models are reprised for 2010 with new paint and features:

2010 CVO Ultra Classic Electra Glide: This magnificent custom touring machine features a new flamed paint scheme, new LED saddlebag lights and LED King Tour-Pak brake/tail light. The seat and backrest have a new perforated leather insert. The backrest also now features adjustable lumbar support. New dimpled trim items and medallions are also included.

2010 CVO Fat Bob: Wide and muscular, the 2010 CVO Fat Bob debuts an exclusive new plating process called Midnight Pearl that is featured on the headlight shell, timer and derby covers, fender strut covers and other components. An all-new paint scheme is offered in three color combinations.
Each 2010 CVO model is powered by the fuel-injected Screamin’ Eagle Twin Cam 110 V-Twin, the largest-displacement engine produced by Harley-Davidson, rated at up to 115 ft. lbs. of torque. This engine is only available from the factory in CVO models.

Harley-Davidson CVO motorcycles are produced in limited numbers by a team of highly skilled technicians in a special assembly area at the Harley-Davidson production facilities in Kansas City, Mo., and York, Pa. CVO models are customized using existing components from the Harley-Davidson Genuine Motor Accessories catalog, and with many all-new custom parts that are exclusive to CVO models. The CVO program is often used to introduce new custom components and techniques before they are offered as individual accessories. Harley-Davidson CVO motorcycles are backed by a two-year, unlimited mileage warranty.




Press Release #3

HARLEY-DAVIDSON ROLLS OUT NINE NEW MODELS FOR 2010


More Performance, Features and Value Across Six Motorcycle Platforms

MILWAUKEE (July 25, 2009) – Harley-Davidson roars into 2010 with nine new motorcycle models, the most expansive new-product introduction in the history of the Motor Company. Across six model platforms, Harley-Davidson achieves a fusion of tradition and technology in a motorcycle product line that offers more power, luxury, and style, and more value.

“This ambitious new motorcycle launch reaches to our riders with the incredible passion that Harley-Davidson has inspired for more than a century,” said Bill Davidson, Harley-Davidson Vice President of Core Customer Marketing. “We are thrilled to offer our customers nine new models and a full selection of products for 2010 that lets their enthusiasm for enjoying great motorcycles continue at full throttle.”

Highlights of the 2010 Harley-Davidson® line include:

As the new king of the Harley-Davidson Touring line, the Electra Glide® Ultra Limited model delivers the performance upgrade of a Twin Cam 103™ engine, and features standard equipment items previously offered only as accessories on regular-production Harley-Davidson Touring models.
The new Road Glide® Custom model looks lean and mean, with a slammed suspension, 18-inch front wheel and a new 2-into-1 exhaust system.

The Wide Glide® returns as an all-new Dyna® model done in old-school chopper style, with black laced wheels, a chopped rear fender, black “wire” sissy bar, 2-1-2 Tommy Gun exhaust and an optional flame paint scheme. Priced starting at $14,499, the Wide Glide is also a great new value.
The new Street Glide® Trike brings stripped-down, hot-rod styling to the three-wheel category, and joins the Tri Glide™ Ultra Classic® in an all new Trike family for 2010.

Dressed in satin chrome and denim black, the new Fat Boy® Lo presents a darker and lower interpretation of the motorcycle that still defines the fat-custom segment.

The 2010 Street Glide® model gets even more hot-rod soul, with updates that include a larger front wheel, slimmed-down exhaust, and a new tail light assembly. Street Glide takes a classic Harley-Davidson Touring profile to a low, light and lean extreme.

No motorcycle on the road today matches the modern street attitude of the three exciting models in the Harley-Davidson VRSC™ family: V-Rod®, Night Rod® Special and V-Rod Muscle®. The explosive performance of the liquid cooled Revolution® V-Twin engine keeps VRSC at the top of the power cruiser food chain in 2010.

The American motorcycle legend that is Harley-Davidson Sportster® features six models for 2010, including the $7,999 Iron 883™ introduced mid-year 2009 and four others priced less than $10,000.
Harley-Davidson Custom Vehicle Operations™ (CVO™), masters of shimmering chrome and bold paint, offers four new limited-production models for 2010. The CVO Softail® Convertible is a versatile urban touring motorcycle, while the CVO Street Glide is a high-performance hot-rod bagger. The CVO Ultra Classic® Electra Glide® and CVO Fat Bob® models are refreshed for 2010 with new paint schemes and styling details. All CVO models are powered by a Twin Cam 110™ engine, the largest displacement V-Twin offered by Harley-Davidson.
