– 2010 Harley-Davidson Road Glide Custom FLTRX

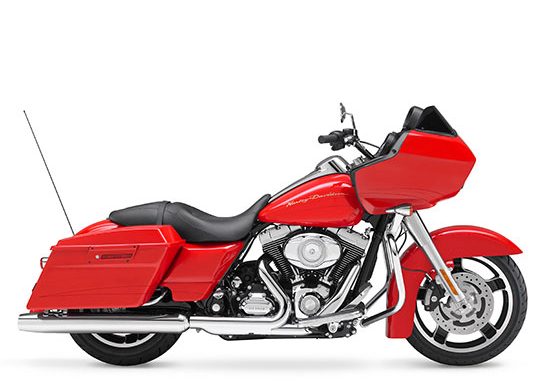

2010 Harley-Davidson Road Glide Custom FLTRX
The Road Glide® Custom is a tougher, lower vision of the shark-nose Harley-Davidson classic, with a big 18-inch front wheel, a 2-into-1 exhaust, and a smooth tail light assembly. This bagger rolls with new swagger.
The innovative Harley-Davidson® Touring chassis is based on a single-spar, rigid backbone frame and a stout swingarm developed to withstand the demands of long-haul touring riders and today’s more-powerful engines.
New 18-inch front wheel with a lower-profile, 130/80B18 tire
New 2-into-1 exhaust and single, four-inchdiameter chrome muffler
New Red LED stop/turn/tail lights with chrome bracket that doubles as a visor over the low-mounted license plate
New Stylized headlamp shroud
New Smoked, short Lexan wind deflector
New Helical cut 5th gear for improved transmission sound
– Black powder-coated powertrain with chrome covers
– Black, Slotted Disc cast aluminum wheels
– Lowered rear suspension
– Aerodynamic frame-mounted fairing
– Deep FL front fender with no trim
– Stainless steel, easy reach handlebar
– Chrome, low-profile fuel tank console
– One-piece, two-up Street Glide®-style seat with perforated insert
– Injection-molded hard saddlebags with color-matched latches; 2.26 cu. ft. volume
– Inserts fill the spaces between the saddlebags and the rear fender
– Silver-faced, fairing-mounted electronic speedometer and tachometer plus fuel, voltage, oil pressure and ambient air temperature gauge
– Streamliner footboards, brake pedal and passenger pegs
– 40-watt, two-speaker Advanced Audio System by Harman/Kardon wCD/MP3 player
– Tri-line LED rear fender tip light
The Road Glide® Custom is a tougher, lower vision of the shark-nose Harley-Davidson classic, with a big 18-inch front wheel, a 2-into-1 exhaust, and a smooth tail light assembly. This
bagger rolls with new swagger.
The innovative Harley-Davidson® Touring chassis is based on a single-spar, rigid backbone frame
and a stout swingarm developed to withstand the demands of long-haul touring riders and today’s
– Rubber-mounted Twin Cam 96™ V-Twin engine with Electronic Sequential Port Fuel Injection
(ESPFI) with heated O2 sensors and Electronic Throttle Control (ETC)
– 6-Speed Cruise Drive® transmission with integrated Isolated Drive System (IDS)
– Dunlop® “Multi-Tread” rear tire construction extends tire life by 25 percent
– Brembo® 4-piston front and rear caliper with dual front rotor brake system
– Air-adjustable rear shocks
– Full-length rider footboards
– Height-adjustable passenger footboards
– Six-gallon fuel tank
– Optional Anti-lock Braking System (ABS)
– Optional Harley-Davidson® Smart Security System with hands-free security fob
– Optional electronic cruise control
2010 Harley-Davidson Road Glide Custom FLTRX – Specifications
USA MSRP: Solids $18,999, Two-Tones $19,479
Canada MSRP: See Local Canadian Dealer For Pricing
Engine3 Air-cooled, Twin Cam 96™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.25 mm x 111.25 mm)
Displacement3 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass, washable
Lubrication System Pressurized, dry-sump
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
o 1st 9.593
o 2nd 6.650
o 3rd 4.938
o 4th 4.000
o 5th 3.407
o 6th 2.875
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm Mild steel; two-piece drawn and welded section; forged juctions; MIG welded
Front Forks 41.3 mm telescopic, triple circuit damping
Rear Shocks Air-adjustable
Wheels5: Black, Slotted Disc Cast Aluminum
o Front 18 in. x 3.5 in. (457.20 mm x 88.90 mm)
o Rear 16 in. x 5 in. (406.40 mm x 127.0 mm)
o Caliper Type 32 mm, 4-piston fixed front and rear
o Rotor Type (diameter x width): Patented, fixed rotors
o Front (dual) 11.81 in. x .20 in. (299.97 mm x 5.08 mm)
o Rear 11.81 in. x .28 in. (299.97 mm x 7.11 mm)
o Anti-Lock Braking System (option)
Available Suspension Travel:
o Front Wheel 4.60 in. (116.84 mm)
o Rear Wheel 3 in. (76.20 mm)
Engineered for Sidecar Use Available
Engine Torque (per SAE J1349):
o North America 92.60 ft. lbs. @ 3500 rpm (125.55 Nm @ 3500 rpm)
Lean Angle (per SAE J1168):
o Right 32°
o Left 29°
(EPA urban/highway test) 35/54 mpg (6.72/4.36 L/100 km)
Battery (per Battery Council International Rating) Sealed, maintenance-free, 12V, 28-amp/hour, 370 cca
Charging Three-phase, 50-amp system (585W @ 13V, 2000 rpm, 650W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
o Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
o Tail/Stop Lights 8W/28W (5W/21W)
o Turn Signal Lights 28W (21W) self-canceling
o Indicator Lamps High beam, running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system6 (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)
Length 95.0 in. (2413.0 mm)
Overall Width 35.8 in. (909.32 mm)
Overall Height 50.0 in. (1270.0 mm)
o Laden2 26.30 in. (668.02 mm)
o Unladen 29.50 in. (749.30 mm)
Ground Clearance 5.10 in. (129.54 mm)
Rake (steering head) 26°
Fork Angle 29.2°
Trail 6.69 in. (169.93 mm)
Wheelbase 63.50 in. (1612.90 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and rear):
o Front – D408F BW 130/80B18 63H
o Rear – D407 BW 180/65B16 81H
Fuel Capacity 6 gal. (22.71 L) (warning light at approximately 1 gal.)
Oil Capacity (w/filter) 4 qts. (3.78 L)
Transmission Capacity 1 qts. (0.95 L)
Primary Chain Case Capacity 1.40 qts. (1.32 L)
o As Shipped 769 lbs. (348.82 kg)
o In Running Order 805 lbs. (365.19 kg)
o Gross Vehicle Weight Rating 1360 lbs. (616.90 kg)
o Gross Axle Weight Rating
o Front 500 lbs. (226.80 kg)
o Rear 927 lbs. (420.49 kg)
– Vivid Black
– Scarlet Red
– Black Denim
Warranty7 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter
1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive
comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can
occur and complete accuracy cannot be guaranteed. Harley-Davidson may
make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories
described in this catalog may not be available for sale or use in some locations.
Please check with your dealer for complete product details and the latest
information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2.
4 Standard and optional fuel systems may vary by country and region.
5 Standard and optional wheels may vary by country and region.
6 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
7 See motorcycle owner’s manual for complete details.
2010 Harley-Davidson Road Glide Custom FLTRX – Media/Press Releases
NEW HARLEY-DAVIDSON® ROAD GLIDE® CUSTOM IS LOW AND LEAN
This Slammed-and-Stripped Road Glide Model Has a New Hot Rod Attitude
MILWAUKEE (July 25, 2009) – The new Road Glide Custom motorcycle is a tougher, younger vision of the shark-nose Harley-Davidson classic. Here’s a bagger with a frame-mounted fairing that offers a lean, hot-rod look. Road Glide Custom leads with a big 18-inch front wheel draped with a clean FL fender, follows with a 2-into-1 exhaust feeding a long chrome muffler, and exits with a smooth new tail light assembly. Hugging the pavement on a slammed rear suspension, the Road Glide Custom rolls with a cool swagger.
But cool can still tour. That aerodynamic fairing offers outstanding weather and wind protection and holds a cockpit-style array of instruments. Hardshell saddlebags and the 40-watt Advanced Audio System by Harman/Kardon are standard equipment on the new Road Glide Custom model.
Key Road Glide Custom Features
The rear suspension is lowered by one inch, so the Road Glide Custom model appears to hug the highway, a look that is reinforced by the “ground effects” trim at the bottom edge of the rear fender.
An 18-inch Black Slotted Disc cast aluminum front wheel has machined highlights. Combined with a lower-profile, 130/70B18 tire, the new wheel updates the front end styling and offers enhanced steering feedback.
An aerodynamic, frame-mounted fairing incorporates dual headlamps, a cockpit-style instrument display with silver-faced gauges, and two glove-box storage compartments. The frame-mounted fairing offers lighter steering feel than a fork-mounted fairing. New head lamp trim replaces the clear cover used on previous Road Glide models, improving serviceability.
A low-profile dark windshield creates a sleek shape up front.
The new 2-into-1 exhaust feeds a single, four-inch-diameter chrome muffler located below the right saddlebag.
The new tail light assembly joins a pair of red LED brake/tail/turn lamps with a sweeping chrome bracket that doubles as a visor over the low-mounted license plate. This design eliminates the separate tail/stop lamp. Tri-line LED lighting is located at the bottom edge of the rear fender.
The new custom bucket seat has a perforated insert in the rider position.
GTX nylon hard saddlebags have color-matched latches. Inserts fill the spaces between the saddlebags and the rear fender.
Streamliner footboards, brake pedal and passenger pegs feature full chrome pans and three chrome bands inset in the rubber surface.
The 6-speed Cruise Drive® transmission is fitted with a new helical-cut fifth gear for smooth operation.
Tour with Custom Style
The Road Glide Custom model is built on the innovative Touring chassis introduced by Harley-Davidson in 2009, based on a single-spar, rigid backbone frame developed to withstand the demands of long-haul touring riders and today’s more-powerful engines. The cast aluminum wheels were created using finite element analysis for maximal stiffness with minimal weight. The 180/65-16 Dunlop® D407 Multi-Tread rear tire designed specifically for the Harley-Davidson Touring chassis feature a harder center tread compound and softer shoulder compound to enhance handling and extend rear-tire tread life by 25 percent.
Air-adjustable rear shocks accommodate variable passenger and luggage loads. Chassis geometry and suspension calibration work with the dynamics of the frame to deliver a combination of comfort and handling from a touring motorcycle that’s equally at ease rolling down the Interstate or negotiating a tight parking situation.
The Twin Cam 96™ V-Twin engine features Harley-Davidson Electronic Sequential Port Fuel Injection (ESPFI) that delivers crisp response, easy starting cold or hot, and self-adjusts to changing elevation and atmospheric conditions. Electronic Throttle Control (ETC) unclutters the handlebar area and enables an easy upgrade to optional cruise control. The engine is rubber-mounted in the chassis, and mated to a 6-speed Cruise Drive transmission with a tall top gear for quiet, economical highway cruising. The exhaust system is designed to minimize heat exposure to the rider and passenger.
Press Release #2
HARLEY-DAVIDSON ROLLS OUT NINE NEW MODELS FOR 2010
More Performance, Features and Value Across Six Motorcycle Platforms
MILWAUKEE (July 25, 2009) – Harley-Davidson roars into 2010 with nine new motorcycle models, the most expansive new-product introduction in the history of the Motor Company. Across six model platforms, Harley-Davidson achieves a fusion of tradition and technology in a motorcycle product line that offers more power, luxury, and style, and more value.
“This ambitious new motorcycle launch reaches to our riders with the incredible passion that Harley-Davidson has inspired for more than a century,” said Bill Davidson, Harley-Davidson Vice President of Core Customer Marketing. “We are thrilled to offer our customers nine new models and a full selection of products for 2010 that lets their enthusiasm for enjoying great motorcycles continue at full throttle.”
Highlights of the 2010 Harley-Davidson® line include:
As the new king of the Harley-Davidson Touring line, the Electra Glide® Ultra Limited model delivers the performance upgrade of a Twin Cam 103™ engine, and features standard equipment items previously offered only as accessories on regular-production Harley-Davidson Touring models.
The new Road Glide® Custom model looks lean and mean, with a slammed suspension, 18-inch front wheel and a new 2-into-1 exhaust system.
The Wide Glide® returns as an all-new Dyna® model done in old-school chopper style, with black laced wheels, a chopped rear fender, black “wire” sissy bar, 2-1-2 Tommy Gun exhaust and an optional flame paint scheme. Priced starting at $14,499, the Wide Glide is also a great new value.
The new Street Glide® Trike brings stripped-down, hot-rod styling to the three-wheel category, and joins the Tri Glide™ Ultra Classic® in an all new Trike family for 2010.
Dressed in satin chrome and denim black, the new Fat Boy® Lo presents a darker and lower interpretation of the motorcycle that still defines the fat-custom segment.
The 2010 Street Glide® model gets even more hot-rod soul, with updates that include a larger front wheel, slimmed-down exhaust, and a new tail light assembly. Street Glide takes a classic Harley-Davidson Touring profile to a low, light and lean extreme.
No motorcycle on the road today matches the modern street attitude of the three exciting models in the Harley-Davidson VRSC™ family: V-Rod®, Night Rod® Special and V-Rod Muscle®. The explosive performance of the liquid cooled Revolution® V-Twin engine keeps VRSC at the top of the power cruiser food chain in 2010.
The American motorcycle legend that is Harley-Davidson Sportster® features six models for 2010, including the $7,999 Iron 883™ introduced mid-year 2009 and four others priced less than $10,000.
Harley-Davidson Custom Vehicle Operations™ (CVO™), masters of shimmering chrome and bold paint, offers four new limited-production models for 2010. The CVO Softail® Convertible is a versatile urban touring motorcycle, while the CVO Street Glide is a high-performance hot-rod bagger. The CVO Ultra Classic® Electra Glide® and CVO Fat Bob® models are refreshed for 2010 with new paint schemes and styling details. All CVO models are powered by a Twin Cam 110™ engine, the largest displacement V-Twin offered by Harley-Davidson.
