2010 KTM 300XC

Back to 2010 KTM Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

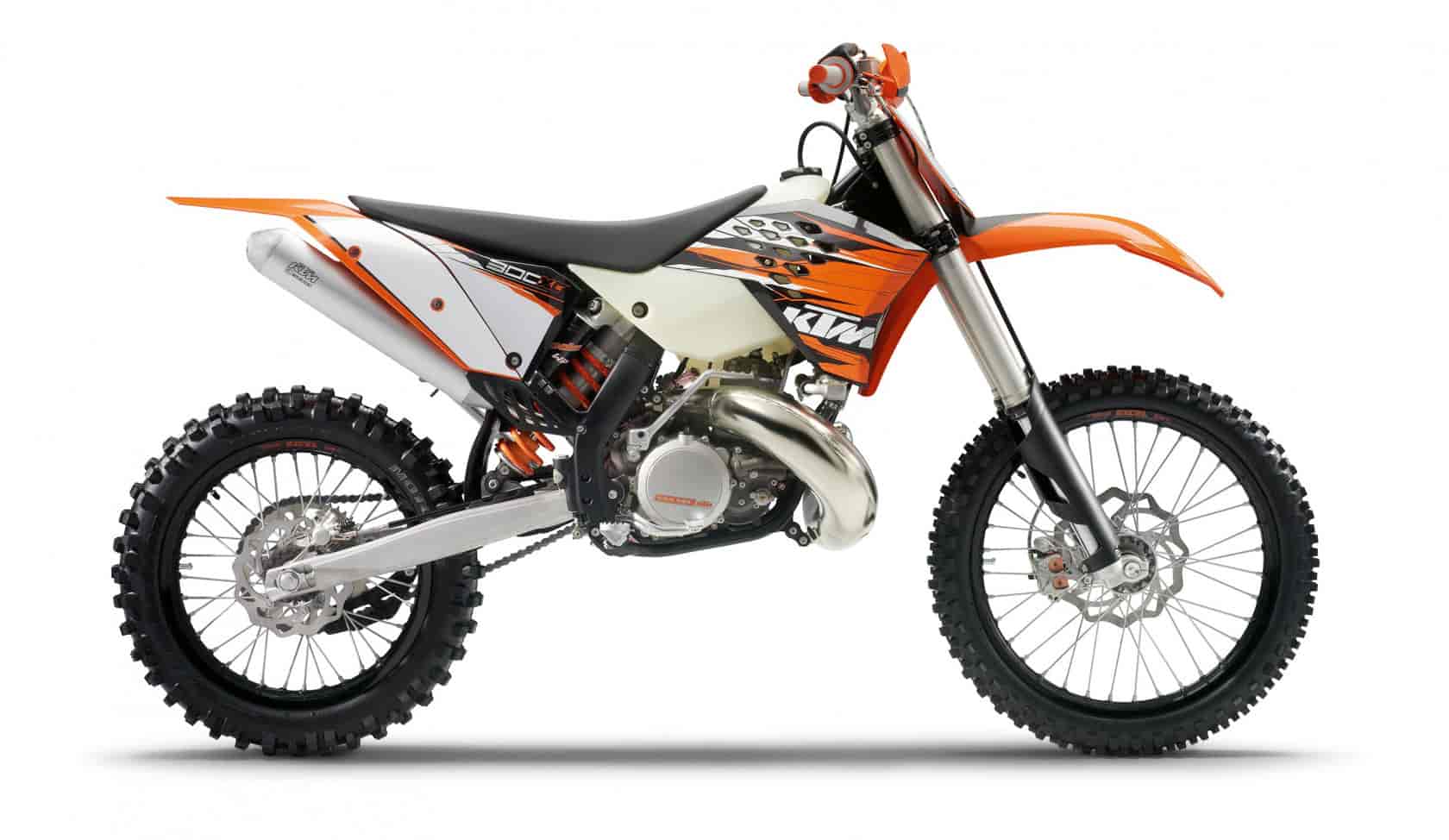

2010 KTM 300XC
2010 KTM 300XC

2010 KTM 300XC
2010 KTM 300XC

2010 KTM 300XC
2010 KTM 300XC



– 2010 KTM 300XC

2010 KTM 300XC

Work horse and miracle of torque all wrapped up in one. That’s probably the best way to describe the mighty authority of this bike. The 300 XC is still cranking its way up the mountains long after the others have boiled over.







2010 KTM 300XC – Specifications
MSRP: See Dealer

Engine type Single cylinder, 2-stroke
Displacement 293 cc
Bore x stroke 72 x 72 mm (2.83 x 2.83″)
Starter Kick start/Electric Start
Transmission 5 gears XC semi-close-ratio
Carburetor Keihin PWK 36 S AG
Control TVC twin valve control
Lubrication Mixture oil lubrication 1:60
Transmission oil 15W50
Primary drive 26:72
Final drive 14:50
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan E


Frame Central double-cradle-type 25CrMo4
Subframe Aluminium, removable
Handlebar Neken Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP monoshock PDS
Suspension travel front/rear 300/335 mm (11.81/13.19″)
Front brake 260 mm (10.24″) disc, Brembo double piston
Rear brake 220 mm (8.66″) disc, Brembo single piston
Rims, front/rear 1.60 x 21″; 2.15 x 18″
Tires, front/rear 80/100-21″; 110/100-18″
Chain X-ring chain 5/8 x 1/4″
Main silencer Aluminium
Steering head angle 63.5°
Wheel base 1475±10 mm (58.07±0.39″)
Ground clearance (unloaded) 385 mm (15.16″)
Seat height 985 mm (38.78″)
Tank capacity approx. 11.5 liters (3.04 gal)
Weight (no fuel) approx. 98 kg (216 lbs)
