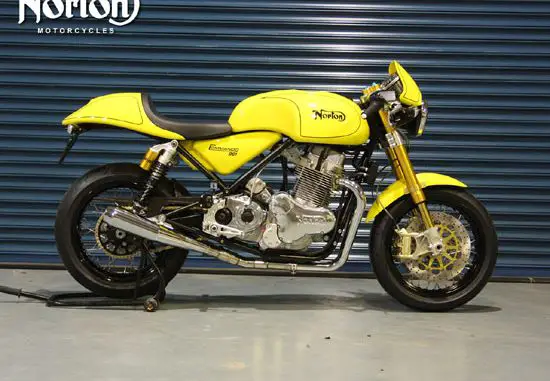

2010 Norton Commando 961 Cafe Racer
2010 Norton Commando 961 Cafe Racer

2010 Norton Commando 961 Cafe Racer
2010 Norton Commando 961 Cafe Racer

2010 Norton Commando 961 Cafe Racer
2010 Norton Commando 961 Cafe Racer

2010 Norton Commando 961 Cafe Racer
2010 Norton Commando 961 Cafe Racer


– 2010 Norton Commando 961 Cafe Racer

2010 Norton Commando 961 Cafe Racer

We are delighted to announce the launch of two new bikes, the Commando 961 Cafe Racer and the Commando 961 Sport, to follow the success of the Commando 961SE.

Please note, the Commando 961 Cafe Racer and the Commando 961 Sport are currently only available in the U.K. and will be made available internationally to purchase from your nearest Norton dealer in the near future.









2010 Norton Commando 961 Cafe Racer – UK Specifications
MSRP: £13,495

Frame
– Frame: Steel tubular with integral oil tank
– Swing arm: Twin-sided steel construction
– Wheelbase: 1420mm (55.9 in)
– Rake: 24.5 degrees
– Trail: 99mm (3.9 in)
– Front suspension: 43mm Ohlins USD – Adjustable preload, compression & rebound damping.
– Rear suspension: Ohlins reservoir-style twin shocks – Adjustable ride height, reload, compression and rebound
– Front wheel: 36 spoke 3.50 x 17” Black Rim
– Rear wheel: 40 spoke 5.0 x 17” Black Rim
– Front tyre: 120/70 x 17”
– Rear tyre: 180/55 x 17”
– Front wheel travel: 115mm (4.53 in)
– Rear wheel travel: 100mm (3.94 in)

Brakes & Hydraulics
– Front brakes: Full Brembo system, twin Brembo 320mm semi-floating hi
carbon stainless steel discs & Brembo 4 piston radial callipers
– Rear brakes: Full Brembo system, single Brembo 220mm disc, Brembo 2 piston “Gold Line” calliper
– Brembo front brake master cylinder, with integral reservoir
– Brembo hydraulic clutch master cylinder, with integral reservoir
– Brembo rear brake master cylinder
– Brembo hydraulic clutch actuation slave cylinder
– Gear box: constant mesh 5 speed
– Final drive: 525 “O” ring chain
– Clutch: Wet multi-plate
– Electric start

Transmission
– Gear box: constant mesh 5 speed
– Final drive: 525 “O” ring chain
– Clutch: Wet multi-plate
– Electric star Power Assembly
– Engine type: Parallel twin with push-rod valve actuation, dry sump
– Displacement: 961cc
– Cooling system: Air
– Valve actuation: Push rod, hydraulic lifter, 2 valves per cylinder
– Bore x stroke: 88mm x 79mm
– Compression ratio: 10.1:1
– Power: 80PS @ 6500RPM
– Torque: 90Nm @ 5200RPM
РExhaust: Caf̩ Racer Sports Exhaust
– Ignition: Crank fired electronic
– Euro 3 compliant with electronic fuel injection and multiple 3 way catalytic converter

Electronics & Controls
– Charging system: 300 watt hi-output charging system
– Instrumentation: Norton electronic analogue speedo & tachometer

Miscellaneous
– Fuel tank capacity: 17 litres (4.5 US gallon)
– Dry weight: 188kg (414.5 lbs)
– Seat height: 813mm (32 in)
– Steering: Black anodised billet yokes
– Handlebars: Clip-on handlebars
РBodywork: Caf̩ Racer Fly-Screen

Colour Options
– Black & Gold
– Red & Gold
– Yellow & Black
– Silver, Red & Black

Price: £13,495
Price shown includes the ‘On the Road’ costs and VAT for the UK.

Specifications are subject to change without notice
