– 2010 Piaggio MP3 500

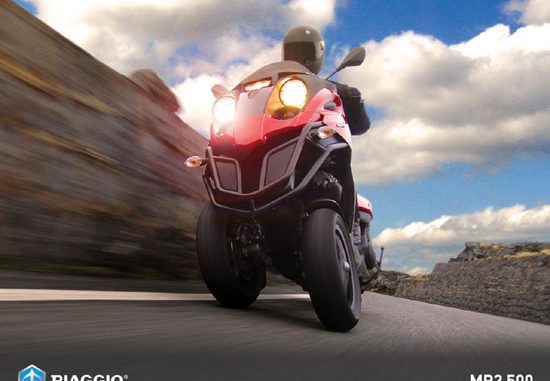

2010 Piaggio MP3 500
The 2010 Piaggio MP3 500, with aggressive styling and performance, is the three-wheeler for people who want to stand out. Riding has never been this easy, enjoyable, secure and fast. When you take 20% less braking distance required, pair it with a lean angle of 40 degrees, you get a perfect machine for impeccable road holding in all riding conditions.
MP3 500 The jaw-dropping adventure. Innovation goes extreme in this MP3, with it’s 500cc,
electronic injection Master engine. The MP3’s revolutionary parallelogram front suspension ensures impeccable road holding in all riding conditions.
2010 Piaggio MP3 500 – Specifications
MSRP: $8,899 USD
ENGINE TYPE Single-cylinder MASTER, four-stroke, four-valve, electronic injection catalysed
BORE x STROKE 94 mm / 71 mm
MAX POWER AT SHAFT 40 hp (29.4 kW) @ 7,250 rpm
MAX TORQUE 42.23 Nm at 5,550 rpm
MAX SPEED 89 mph (143 km/h)
FUEL / TANK CAPACITY Unleaded 3.2 gallons (12 litres)
GAS MILEAGE 55-57 mpg
COOLING SYSTEM Liquid
INGINTION Electronic inductive discharge and variable spark advance in electronic unit with electronic immobilizer
GEARS CVT ‘Twist and go’ automatic CVT with torque server
CHASSIS Double cradle trellis made of high strength steel tubes
FRONT SUSPENSION Parallelogram composed of four aluminum arms supporting two steering tubes, cantilevered suspension – Travel: 85 mm. Electro-hydraulic suspension locking system.
REAR SUSPENSION Oscillating engine fixed to frame with swingarm and two dual effect hydraulic shock absorbers with four-position spring preload. Travel: 110 mm
FRONT BREAK Stainless steel double disk, 240 mm, two-piston caliper
REAR BREAK Stainless steel disk, 280 mm, floating two-piston caliper
FRONT TIRE Tubeless 120 / 70 – 12″
REAR TIRE Tubeless 140 / 70 – 14″
LENGTH 85″ (2159 mm)
WIDTH 30.5″ (775 mm)
WHEELBASE 61″ (1550 mm)
SEAT HEIGHT 30.9″ (785 mm)
DRY WEIGHT 538 lbs lbs (244 kg)
AVAILABLE COLORS Demon Black, Dragon Red, Midnight Blue
