– 2010 Yamaha Raider S (XV1900S)

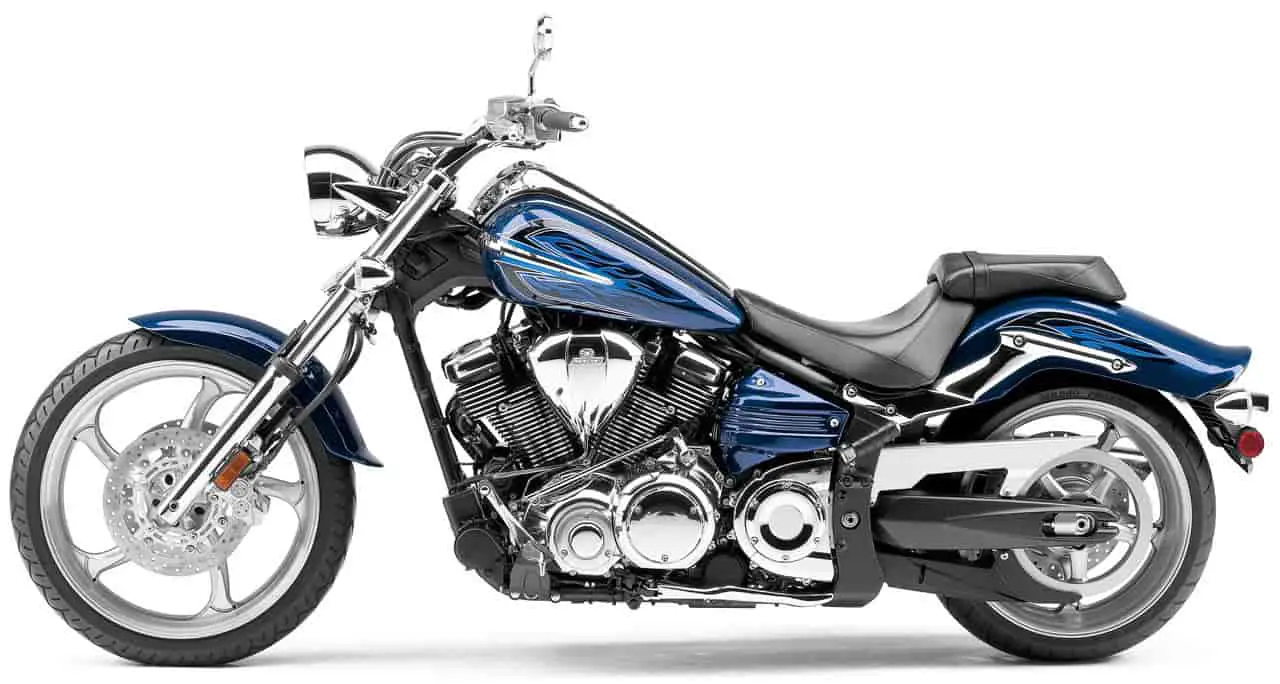

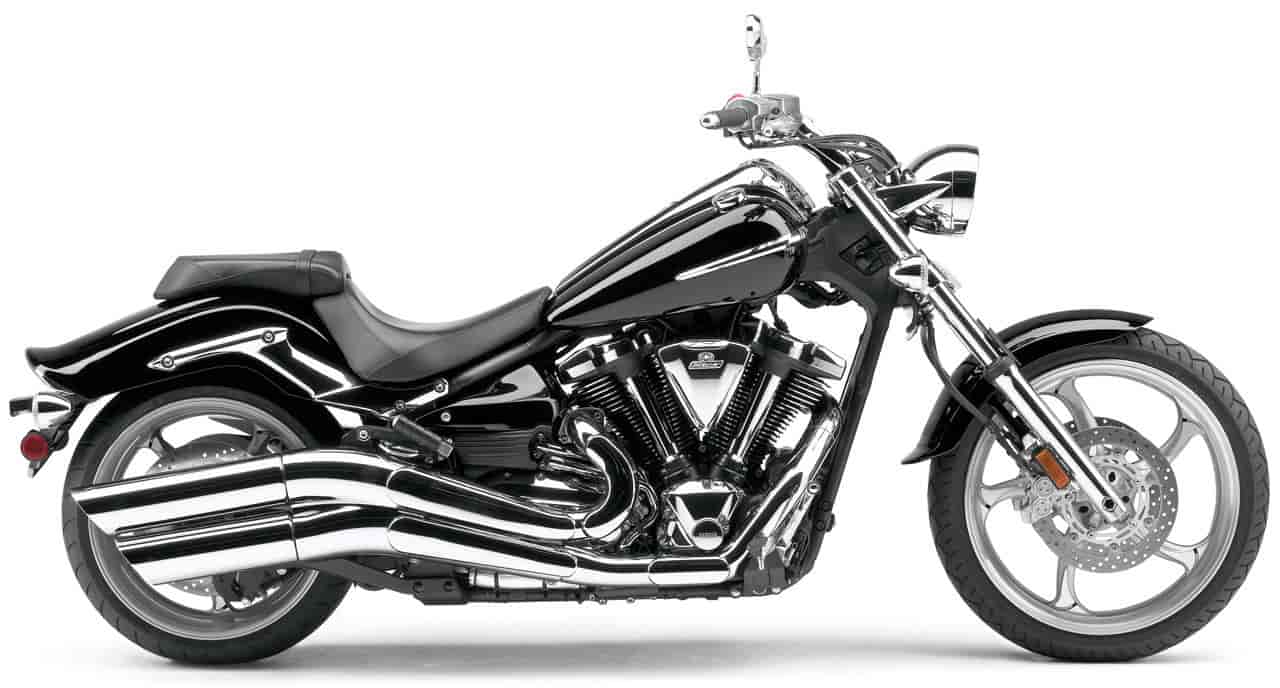

2010 Yamaha Raider S (XV1900S)
Style. Performance. Attitude. And an extra splash of chrome You might as well have it all.
You are looking at a new generation of custom cruisers. A breed that stands apart. Check out the incredible attention to detail. From front to back, the 2010 Raider S is loaded with “custom” inspired parts. Stretched out fork, fat rear tire, low seat and an aggressive, slammed riding position. The 2010 Yamaha Raider S not only looks good… it offers an incredible riding experience too.
Style. Performance. Attitude. You might as well have it all.
If you want totally custom but would rather ride than wrench, have a look at the 2010 Yamaha Star Raider S. The 113 cubic inch fuel injected V-Twin engine that power it takes a back seat to no V-Twin when it comes to power and reliability. And the rest of the chopper-inspired Riader S is pure Star, designed and engineered by the world’s best bike builders. 2010 Raider S adds chrome accents.
When the engineers at Yamaha set out to produce a true custom machine, the easy part was the styling and attention to detail.
The trick was to combine “chopper” inspired styling with a chassis that would offer superior handling. The engineers at Yamaha were not willing to compromise. The Raider S had to deliver great handling and excellent ride quality. Discover the superior quality, styling and all round performance of the Raider S.
Fuel Consumption * 18kpl/51mpg(Imp)
Fuel injected 1854cc V-twin
Superb handling, incredible attention to detail
Features and Benefits (USA):
” “S” model gets even more chrome: chrome triple clamps, fork sliders, air box cover, engine covers, headlight housing, handlebar risers, etc.
” The Raider S was inspired by the custom chopper movement, but since it’s a Star, it had to also handle, stop and go.
” The Star line offers the most diverse line of custom V-twins on the planet.
” 113-cubic-inch (1854cc) air-cooled, OHV with 4 valves per cylinder, pushrod 48-degree V-twin pumps out max torque at just 2500 rpm and max power at 4500 rpm for powerful, relaxed cruising.
” Four pushrod-activated valves and two spark plugs per cylinder provide optimum combustion efficiency along with classically beautiful engine architecture.
” Ceramic-composite plated cylinders for superior heat dissipation with forged pistons cooled by oil jets. Provides outstanding reliability and longer engine life.
” 9.48:1 compression ratio and aggressive cam timing increase power output across the board.
” Computer-controlled, twin-bore, fuel injection monitors multiple engine parameters to calculate perfect mixture under all conditions; wide-angle 12-hole fuel injectors provide excellent atomization.
” A 3.5-liter airbox is hidden in the area behind the fuel tank for great performance and clean styling.
” Two-into-one-into-two exhaust with Exhaust Ultimate Power valve (EXUP®) inside boosts torque in the 2500-3500-rpm range.
” Special custom-machining of the cooling fin edges gives a jewel-like appearance to the engine as light hits it from different angles.
” All-aluminum cast frame is lightweight, rigid and tuned for light, athletic handling. A light, Controlled-Fill, aluminum swingarm casting complements the bike’s lithe style.
” Low, sculpted seat holds the rider in place, and pullback bars reach back to enforce a casual, urban cruising style.
” A 6-degree yoke angle-the first ever on a street-legal Star Motorcycle-makes it possible to achieve that custom look as well as neutral handling and straight-line cruisability: 33-degree rake plus 6 degrees yoke angle gives total rake of 39 degrees and 102mm of trail.
” Custom 5-spoke wheels carry a 120/70-21-inch bias tire up front, and a wide, 210/40-18 radial out back-the tallest and widest ever on a Star.
” 46mm fork tubes serve a sweet appearance and an excellent ride through 5.1 inches of wheel travel.
” A tucked-out-of-sight single shock with adjustable spring preload out back provides a smooth ride under varying loads.
” Flangeless fuel tank carries a full 4.1 gallons of fuel.
” Front brake master cylinder with integrated lever operates a pair of 298mm front discs squeezed by strong monoblock calipers for excellent power and feel, with a 310mm disc out back.
” Strong, light and narrow belt final drive contains embedded carbon fiber for even greater strength.
” Wiring harness uses super-slim wires for compactness, are lighter weight and switchgear wiring is routed inside the handlebar for a clean appearance.
” Left-thumb operated high-beam switch, and right-thumb activated accessory driving light switch for great visibility.
” Jewel-like fit and finish, and Star quality paint, chrome and attention to detail are evident all over the Raider S.
” Cool, tank-mounted instrumentation complements the custom look, and contains analog speedometer and fuel gauge, along with twin digital tripmeters, odometer and self-diagnostics.
” Bright multi-reflector headlight, LED taillight and amber turn signals behind clear lenses give a custom look.
” Oxygen sensor and three-way catalyst reduce emissions.
Features and Benefits (Canada)
” High-performance, 1854cc (113 cubic inch) air-cooled, long-stroke, OHV, 4 valves per cylinder, 48°, V-twin powerplant produces massive torque and class leading acceleration from very low rpms.
” Maximum torque occurs at 2,500 rpm while maximum power occurs at 4,500 rpm, providing exciting acceleration with great pulse / torque feel.
” Traditional pushrod valve actuation keeps engine height down for a lower centre of gravity and ensures more uniform heat dissipation due to absence of a cam chain case. A lower centre of gravity helps to insure light, easy handling.
” Four-valve cylinder heads provide optimal breathing efficiency for great power delivery at all rpms. The two spark plugs per cylinder means faster, more complete combustion for maximum power output.
” Cylinder head design utilizes a pent roof combustion chamber design and features an oil passage near the exhaust valve seat to improve cooling and durability. The heads also feature engine mounting points on each side of the head for increased chassis rigidity for exceptional handling.
” Large size valves increase engine horsepower and torque. The intake valves are 36mm in diameter while the exhaust valves are 31mm.
” Specially designed valve train includes short design intake and exhaust rocker arms that reduce inertia during high-rpm use.
” High performance spec twin, crankcase-mounted, high-lift cams ensure strong torque and class leading acceleration.
” Mechanical centrifugal decompression mechanism located in each of the exhaust camshafts, insures fast, easy starts.
” Hydraulic valve lifters driven by the twin camshafts deliver exceptional performance and significantly reduce maintenance and tune-up requirements.
” The crankshaft is a single pin design, providing that special V-twin sound and pulse feel. Optimized flywheel mass and “damper-less” crankshaft allows the rider to feel the directness of the engine’s power.
” For each rotation of the rear wheel, in 5th gear, the crank spins 3.14 times providing an outstanding rear wheel driving force feeling to the rider.
” Dual balancers reduce vibration for exceptional rider and passenger comfort. The balancers are positioned on either end of the crankshaft to reduce vibration and to minimize the size of the engine cases. The balancer is designed to reduce vibration while still allowing that classic V-twin pulse feel.
” 3-axis crankcase layout means the crankshaft, main axle and drive shaft are specially arranged to minimize the size of the engine cases and centralize mass.
” The dry sump oil lubrication system has been optimized to ensure maximum lubrication and cooling. Special oil nozzles direct oil at the bottom of the pistons to cool and lubricate them. Dry sump system means a more compact engine design since the oil tank is not part of the engine, which lowers the centre of gravity for great handling and a light feel.
” Special “dual chamber” crankcase design. The front section is for the crank assembly while the rear is for the transmission. Two, 3-rotor high capacity oil pumps optimizes oil flow in each of the two main sections of the engine.
” Huge 100mm bore ceramic composite-plated cylinders provide uniform heat dissipation, reduce weight, reduce friction and increase cylinder service life.
” Large-diameter pistons are both durable and lightweight. Yamaha’s exclusive “controlled forged construction” keeps the pistons light for faster response and to accommodate higher-rpm performance with reduced vibration and less reciprocating mass. The pistons feature an Alumite coating to reduce friction.
” Cooling fin thickness and depth is optimized for maximum heat dissipation, thereby eliminating the need for liquid cooling, while maintaining that traditional, stylish air-cooled engine appearance. Each cooling fin is specially polished to create shining highlights that change with the angle of the light.
” 43mm, twin-bore, downdraft throttle body fuel injection (FI) with throttle position sensor (TPS) ensures great throttle response and maximum power throughout the rev range. This system is a “closed loop” system, since it utilizes an oxygen sensor in the exhaust to monitor the concentration of oxygen and adjust the FI system if necessary. The benefits of fuel injection include chokeless operation, increased fuel economy, instant throttle response and reduced emissions.
” The 12-hole, 2-directional Mikuni fuel injectors produce a wide spray pattern for complete cylinder filling. This special spray pattern combined with the dual spark plug head ensures complete combustion for maximum power. An Idle Speed Control (ISC) has been adopted to ensure stable idling performance.
” High capacity electronic fuel pump is located in the sub tank under the seat.
” State-of-the-art Electronic Control Unit (ECU) ensures precisely metered fuel delivery and optimal ignition spark control using 3D transistorized coil ignition mapping for each cylinder.
” 3.5 litre dual inlet airbox features one inlet at the front and one at the rear for maximum breathing efficiency. This design not only maximizes air flow but also reduces weight and allows for a more open appearance at the steering head area. A viscous paper type air filter is used.
” Air Induction System (AIS) injects fresh oxygen at the exhaust port to insure complete combustion thereby reducing harmful exhaust emissions (HC & CO) while a special air cut valve reduces backfiring when decelerating or coasting off throttle.
” High-performance, 2-into-1-into-2 exhaust system features large size header pipes for maximum flow. Dual 3-way honeycomb matrix catalyizers reduce harmful exhaust emissions. The stylish dual muffler helps to boost torque and horsepower while producing a throaty, V-twin growl. Heat shields protect the rider and passenger from hot components.
” The exhaust system also features a lightweight titanium EXUP exhaust power valve most commonly found on high performance sport bikes. The EXUP system not only provides crisp throttle response and eliminates ‘flat spots” but also improves acceleration, reduces fuel consumption and harmful emissions too.
” Smooth-shifting, 5-speed transmission features optimized gear ratios for both strong low rpm acceleration and relaxed highway cruising. 5th gear is an overdrive gear for reduced engine rpms at highway speeds for maximum riding comfort.
” Heavy duty 10 plate clutch is designed to compliment engine power characteristics. This clutch is operated by a hydraulic master cylinder instead of a cable. The hydraulic clutch design is low maintenance, self adjusting and very stylish.
” Low-maintenance belt drive system not only significantly reduce maintenance but is also clean and quiet. A belt drive system uses less power than a shaft drive and reduces unsprung weight for great rear suspension performance.
” Easy access, spin-on type oil filter means fast, easy oil changes.
” High tech, cast aluminium double-cradle frame reduces weight, while balancing strength and rigidity. The engine is rigidly mounted in the frame for added rigidity. The critical head pipe area features box type construction for additional strength. The frame not provides excellent handling characteristics but also compliments the beautiful flowing lines of the entire machine. The open area behind and below the steering head helps to enhance that “chopper inspired” styling image. The main front wire harness is hidden in the head pipe for a clean appearance.
” Important Note: Raked out front fork with lots of trail generally provides good straight line stability but often results in heavy steering. The engineers at Yamaha will not sacrifice handling for styling, so they have developed a 6 degree yoke offset angle combined with a 34 degree steering head for a total fork angle of 40 degrees. The Raider provides light “athletic handling and easy steering” not commonly found on a custom styled bike. This bike was designed to be ridden !! Key numbers: 6 degree yoke offset angle; 34 degree caster angle; 102mm of trail.
” Lightweight C.F. die cast aluminium swingarm offers superb rigidity and ensures excellent stability and handling. The C.F. die casting process allows for beautiful shapes that are both strong and light. This swingarm is a fashion statement in aluminium and compliments the rest of the Raider eye catching styling.
” Rigid 46mm Kayaba front fork offers 130mm (5.1″) of wheel travel for exceptionally stable handling and great ride comfort. The inner fork tubes are protected by stylish chrome chip guards.
” Beefy, cast aluminium, top triple clamp and computer designed lower triple clamp with a 6 degree yoke angle provides excellent handling qualities while maintaining that custom chopper inspired styling.
” Link rear suspension features a spring preload adjustable single rear shock delivering outstanding ride comfort and precise handling. The Kayaba shock is horizontally positioned under the engine for a lower center of gravity and is hidden to provide that classic “hardtail” look. Rear wheel travel is 90mm (3.5″).
” Powerful dual 298mm floating front discs are squeezed by ultra rigid, 4-piston, monoblock calipers to provide sport-bike spec stopping power. Providing exceptional stopping power, these brakes also provide great lever feel and feedback.
” Beautiful custom looking 5-spoke cast aluminium 21″ front wheel provides a special styling highlight. The width is 3.50 inches wide and is fitted with a 120/70 profile tire. The rear wheel is also a custom inspired 5-spoke 18 inch cast aluminium mag design that is 7.5 inches wide. This rear wheel carries the widest rear tire ever installed on a Yamaha motorcycle … it is a 210 / 40 tire. Both wheels are fitted with tubeless tires.
” Large 310mm rear disc is squeezed by a single piston caliper mounted below the swingarm for a lower center of gravity and that customized “hidden look”.
” Low maintenance, clean, quiet belt drive eliminates messy chain splatter while maximizing power output. History has proven that belt drive systems are ultra reliable and rarely need alignment or tensioning. The belt is embedded with carbon fiber for incredible strength.
” Two-piece seat design features a deep notch in the rider seat to give that chopper inspired riding position … more sitting in than sitting on. The rear portion of the rider’s seat also doubles as a backrest / back support for the rider.
” 60/55w headlight with unique custom inspired styling can be adjusted up and down and left or right .
” Steel fenders front and rear can be easily customized or painted to suit personal preferences. Custom styled one piece rear fender mounts.
” Flangeless teardrop style main fuel tank offers 12 litres of capacity. There are no welds visible, providing that clean, custom look. Total fuel capacity is 15 litres thanks to a 3 litre sub tank located low in the frame below the seat. A high pressure electric fuel pump with quick connect fittings provides fuel to the EFI system.
” Large 1.25″ diameter handlebars. All electrical wires are hidden inside the handle bars for that clean custom look. Selected meter functions can be controlled by buttons on the back of RHS switch.
” Classic fuel tank mounted instrument panel. This comprehensive instrumentation includes an analogue speedo, and fuel gauge with low fuel warning light, plus a digital odometer, dual tripmeters, fuel reserve trip counter and clock. Background illumination can be adjusted to suit personal preferences. Reset buttons are located on the instrument panel while the select switch is located on the left hand switch gear so you can tab through the various functions without removing your hands from the handlebars.
” Extra wide, brake and clutch levers provide that quality feel and look.
” Brilliant LED rear tail light not only uses less power but is also more durable than a conventional bulb design.
Special “S” Styling Features:
” Chrome headlight mounts
” Chrome headlight shell
” Chrome turn signals with clear lenses
” Chrome upper & lower triple clamps
” Chrome lower fork legs
” Chrome handlebar clamp
” Chrome engine covers
” Brushed aluminium wheel accents
” Brushed front calipers
” Brushed aluminium handlebar switches
” Brushed aluminium master cylinders (brake & clutch)
” Industry-leading, Star Family fit and finish
” Numerous customized inspired styling highlights (headlight stay, handlebar holders, rear fender stays, mirrors, footpegs etc.) found throughout the Raider create a machine as stunning as it is powerful.
” Self-cancelling chromed turn signals with stylish clear lenses
” Low-fuel warning light (activated with 3 litres of fuel remaining)
” Low maintenance sealed battery
” Steering lock
” Helmet holder
” Upper and lower belt guard
” Many, richly chromed custom accents can be found throughout this flagship motorcycle.
2010 Yamaha Raider S (XV1900S) – USA Specifications
MSRP* $14,790 (Raven) Available from February 2010
$14,990 (Deep Blue) Available from September 2009; CA model February 2010
Type 113-cubic-inch (1854cc) air-cooled V-twin OHV, 4 valves/cylinder
Bore x Stroke 100.0 x 118.0mm
Compression Ratio 9.48:1
Fuel Delivery Twin-Bore electronic fuel injection; throttle position sensor
Ignition TCI: Transistor Controlled Ignition
Transmission 5-speed,multiplate wet clutch
Final Drive Belt
Frame Double cradle
Suspension/Front Telescopic fork; 5.1-in travel
Suspension/Rear Swingarm; 3.5-in travel
Brakes/Front Dual hydraulic disc, 298mm
Brakes/Rear Hydraulic disc, 310mm
Wheels 5-spoke cast
Length 101.2 in
Width 36.4 in
Height 45.9 in
Seat Height 27.4 in
Wheelbase 70.9 in
Fuel Capacity 4.1 gal
Fuel Economy** 42 mpg
Wet Weight*** 730 lb
Warranty 1 Year (Limited Factory Warranty)
2010 Yamaha Raider S (XV1900S) – Canada Specifications
MSRP: $19,999 CDN
Engine Air-cooled, OHV, 8-valve, 48º, V-twin w/EFI
Displacement 1,854 cc
Bore and Stroke 100 x 118 mm
Compression Ratio 9.5:1
Maximum Torque 17.1 kg-m (123.7 ft-lbs.) @ 2,500rpm
Fuel Delivery Dual 43mm cross bore downdraft throttle body FI
Estimated Fuel Consumption* 18kpl / 51mpg (Imp.)
Lubrication Dry sump
Ignition / Starting Digital TCI / Electric
Final Drive Belt
Suspension (Front) 46 mm fork
Suspension (Rear) Adjustable link Monocross
Brakes (Front) 298 mm discs
Brakes (Rear) 310 mm disc
Tires (Front) 120/70-21
Tires (Rear) 210/40R18
Length 2,572 mm (84.6″)
Width 925 mm (36.4″)
Height 1,165 mm (45.9″)
Wheelbase 1,799 mm (70.8″)
Ground Clearance 146 mm (5.7″)
Seat Height 695 mm (27.4″)
Fuel Capacity 15.9 litres (3.5 Imp. gallons)
Wet Weight 331 kg (728.2 lb)
Purplish Metallic Blue
* Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.
Specifications, appearance, and price of product are subject to change without notice.
* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
