– 2010 Yamaha YZF-R1 LE

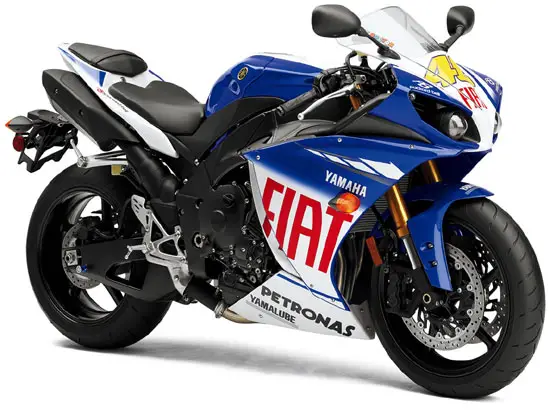

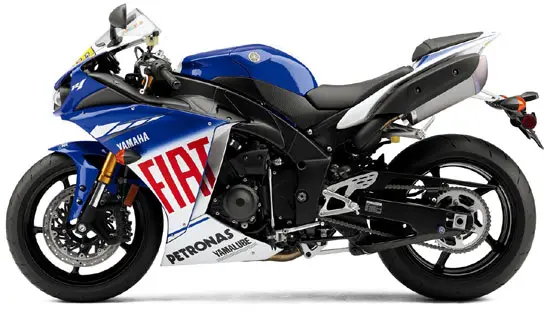

2010 Yamaha YZF-R1 LE
The new YZF-R1 LE sports Valentino Rossi livery just like his YZF-M1 MotoGP bike, but will come in very limited numbers.
MotoGP Technology with looks to match.
The new 2010 Yamaha YZF-R1LE not only gives you much of Valentino Rossi’s championship technology, but also his championship look and style. The R1 is the first ever production motorcycle with a crossplane crankshaft. The Result? Outrageous torque and raw, high-rpm power providing incredibly smooth power delivery out of the corners. While the bold Fiat Yamaha team graphics provide incredibly smooth style.
New for 2010:
” The YZF-R1 LE is a limited edition Valentino Rossi / Fiat Yamaha replica complete with the number “46” and “The Doctor” logos, including a replica of Valentino Rossi’s signature on the fuel tank.
Features and Benefits (USA):
” The YZF-R1 garnered the prestigious award as the 2009 Motorcycle of the Year from Motorcyclist Magazine. The YZF-R1 was chosen for its MotoGP®-inspired engine and chassis technology, and for its luxurious fit and finish.
” Back for 2010, the YZF-R1 is the only production motorcycle with a crossplane crankshaft. Crossplane technology, first pioneered in MotoGP® racing with the M1, puts each piston 90° from the next, with an uneven firing interval of 270° – 180°- 90°- 180°. This uneven order does an amazing thing… it actually lets power build more smoothly. That means smooth roll-on delivery out of the corners, with outstanding tractability, followed by very strong high rpm power. It’s a feeling that’s simply unmatched, like having two engines in one: the low-rpm torquey feel of a twin with the raw, high rpm power of an inline four. This breakthrough technology on the YZF-R1 represents a paradigm shift in both technology and performance.
” This R1 keeps all the technological superiorities developed for its predecessor: YCC-T™ (Yamaha Chip Controlled Throttle) is MotoGP® inspired fly-by-wire technology used to deliver instant throttle response. YCC-I® is Yamaha Chip Controlled Intake which is a variable intake system that broadens the spread of power. The fuel injection system provides optimum air/fuel mixtures for maximum power and smooth throttle response.
” The R1 features Yamaha D-MODE (or drive mode) with rider-selectable throttle control maps to program YCC-T performance characteristics for riding conditions. The standard map is designed for optimum overall performance. The “A” mode lets the rider enjoy sportier engine response in the low- to mid-speed range, and the “B” mode offers response that is somewhat less sharp for riding situations that require especially sensitive throttle operation. Switching maps is as easy as pushing a button on the handlebar switch.
” In keeping with this machine’s exceptional cornering ability and crisp handling, the aluminum frame has been designed to offer exceptional rigidity balance. The rear frame is lightweight Controlled-Fill die-cast magnesium, contributing the optimum mass centralization. Suspension includes SOQI front forks which use one of the tricks developed for our winning MotoGP® bikes: independent damping. The left fork handles compression damping and the right side handles the rebound damping. And the rear shock adopts bottom linkage for optimum suspension characteristics.
” The bodywork does more than add break-away-from-the-crowd styling with its more serious, less busy look. The side fairing is smooth for a sleek appearance. And, instead of the usual four-bulb headlight design, the R1 has only two projector-type bulbs mounted closer to the nose of the bike. This positions ram air ducts closer in for a more compact, smooth look. In addition, the rounded lenses are unique to the supersport industry.
” Crossplane crankshaft technology proven in victory after victory on MotoGP® machines provides a high-tech uneven firing interval. Unlike typical inline-four engine design, where the two outer and two inner pistons move together in pairs with 180° intervals, the crossplane crankshaft has each connecting rod 90° with a unique firing order of 270° – 180° – 90° – 180°. This overcomes the inherent fluctuations in inertial torque during each engine revolution, and the accompanying peaky torque characteristics. Instead, combustion torque continues to build, giving the rider more linear throttle response with awesome power and traction out of the corners.
” To maximize rider comfort as well as power output, the engine adopts a coupling-type balancer that rotates in the opposite direction as the crankshaft.
” This engine features forged aluminum pistons to take maximum advantage of the power characteristics. Titanium intake valves are lightweight.
” A forced-air intake system is adopted to increase intake efficiency by using the natural airflow during riding to pressurize the air in the air box. This contributes to outstanding power delivery characteristics in the high-speed range, while the design also helps to minimize intake noise.
” Slipper-type back torque-limiting clutch greatly facilitates braking/downshifting from high speed.
” The exhaust system is meticulously designed to enhance engine output while, thanks to its three-way catalyst technology, also reducing exhaust emissions. The silencer is a single expansion type, and the sound coming through from the unique crossplane crankshaft- equipped engine is unlike any other inline-four cylinder production supersport.
” This fuel-injected engine takes full advantage of YCC-T (Yamaha Chip Controlled Throttle), the MotoGP®-inspired fly-by-wire technology used to deliver instant throttle response. There’s also YCC-I, Yamaha Chip Controlled Intake, the variable intake system that broadens the spread of power. Fuel injectors have 12 holes for optimum fuel atomization that translates to the most power from every fuel charge.
” Have it your way, thanks to Yamaha D-MODE (or “Drive Mode”) variable throttle control. There are three modes that control how YCC-T responds to throttle input from the rider. The selectable “A” mode puts more emphasis on engine response in low to midrange rpm. “B” mode, on the other hand, provides less sharp response to input for riding situations that require especially sensitive throttle operation. The standard map is designed for optimum overall performance. Selecting the map you want is as easy as pressing a button on the handlebars.
” The frame has a combination of uncompromising rigidity where needed along with carefully achieved flex for the precise rigidity balance this bike needs to give the rider the full benefit of its handling and engine characteristics. It is a sophisticated combination of Controlled-Fill die-cast, stamping, and gravity casting… the exact technology needed for each portion of this advanced frame.
” SOQI front forks take a page from the championship-winning design of our MotoGP® weapon, the M1. Since both forks always move together, compression damping duties can be confined to the left fork, while rebound damping is precisely handled by the right fork, reducing oil cavitation.
” The SOQI rear shock features both high and low speed compression damping plus an easy-to-use screw hydraulic adjustment for preload. This unit also adopts a pillow-ball-type joint for exceptional shock absorption, road hold feeling, and damper response. To achieve maximum performance, a bottom linkage is used to work with the rest of the chassis refinements for brilliant, crisp handling characteristics.
” Factory racers get machines tailored to their preferences. Welcome to the club. R1 has adjustable footrests, with a 15mm height and 3mm front-to-rear adjustment.
” The press-formed fuel tank has a shape developed using 3-D simulation analysis technology. The elongated shape of the tank allows it to fit neatly within the frame in a way that promotes concentration of mass.
” The instrumentation includes everything a rider wants to know, including gear position.
Features and Benefits (Canada)
See YZF-R1 for this model.
2010 Yamaha YZF-R1 LE – USA Specifications
MSRP* $14,500 (Fiat Yamaha Team Graphics) Available from January 2010
Type 998cc, liquid-cooled 4-cylinder DOHC 16 valves (titanium intake valves)
Bore x Stroke 78.0mm X 52.2mm
Compression Ratio 12.7:1
Fuel Delivery Fuel Injection with YCC-T and YCC-I
Ignition TCI: Transistor Controlled Ignition
Transmission 6-speed w/multiplate slipper clutch
Final Drive #530 O-ring chain
Suspension/Front 43mm inverted fork; fully adjustable, 4.7-in travel
Suspension/Rear Single shock w/piggyback reservoir; 4-way adjustable, 4.7-in travel
Brakes/Front Dual 310mm disc; radial-mount forged 6-piston calipers
Brakes/Rear 220mm disc; single-piston caliper
Length 81.5 in
Width 28.1 in
Height 44.5 in
Seat Height 32.8 in
Wheelbase 55.7 in
Rake (Caster Angle) 24.0°
Trail 4.0 in
Fuel Capacity 4.8 gal
Dry Weight 454 lb
Primary Reduction Ratio 65/43 (1.512)
Secondary Reduction Ratio 47/17 (2.765)
Gear Ratio – 1st Gear 38/15 (2.533)
Gear Ratio – 2nd Gear 33/16 (2.063)
Gear Ratio – 3rd Gear 37/21 (1.762)
Gear Ratio – 4th Gear 35/23 (1.522)
Gear Ratio – 5th Gear 30/22 (1.364)
Warranty 1 Year (Limited Factory Warranty)
Gear Ratio – 6th Gear 33/26 (1.269)
2010 Yamaha YZF-R1 – Canada Specifications
MSRP: $16,899 CDN
Engine Liquid-cooled, DOHC, 16-valve, in-line four
Bore and Stroke 78 x 52.2mm
Compression Ratio 12.7:1
Maximum Torque 11.7kg-m (84.6ft-lb) @ 10,000 rpm
Fuel Delivery Mikuni 45mm throttle body FI
Estimated Fuel Consumption* 14kpl / 40mpg (Imp.)
Lubrication Wet sump
Ignition / Starting Digital TCI / Electric
Suspension (Front) Fully adj. 43 inverted fork
Suspension (Rear) Fully adj. Link Monocross
Brakes (Front) Dual 310mm discs
Brakes (Rear) 220mm disc
Tires (Front) 120/70ZR17
Tires (Rear) 190/55ZR17
Length 2,070mm (81.5″)
Width 715mm (30.3″)
Height 1,130mm (44.5″)
Wheelbase 1,415mm (55.7″)
Rake / Trail 24° / 102mm
Ground Clearance 135mm (5.3″)
Seat Height 835mm (32.9″)
Fuel Capacity 18 litres (4 Imp. gal.)
Wet Weight 206kg (453.2lb)
Rossi Special Edition
* Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.
Specifications, appearance, and price of product are subject to change without notice.
* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
