– 2011 Ducati 1198SP

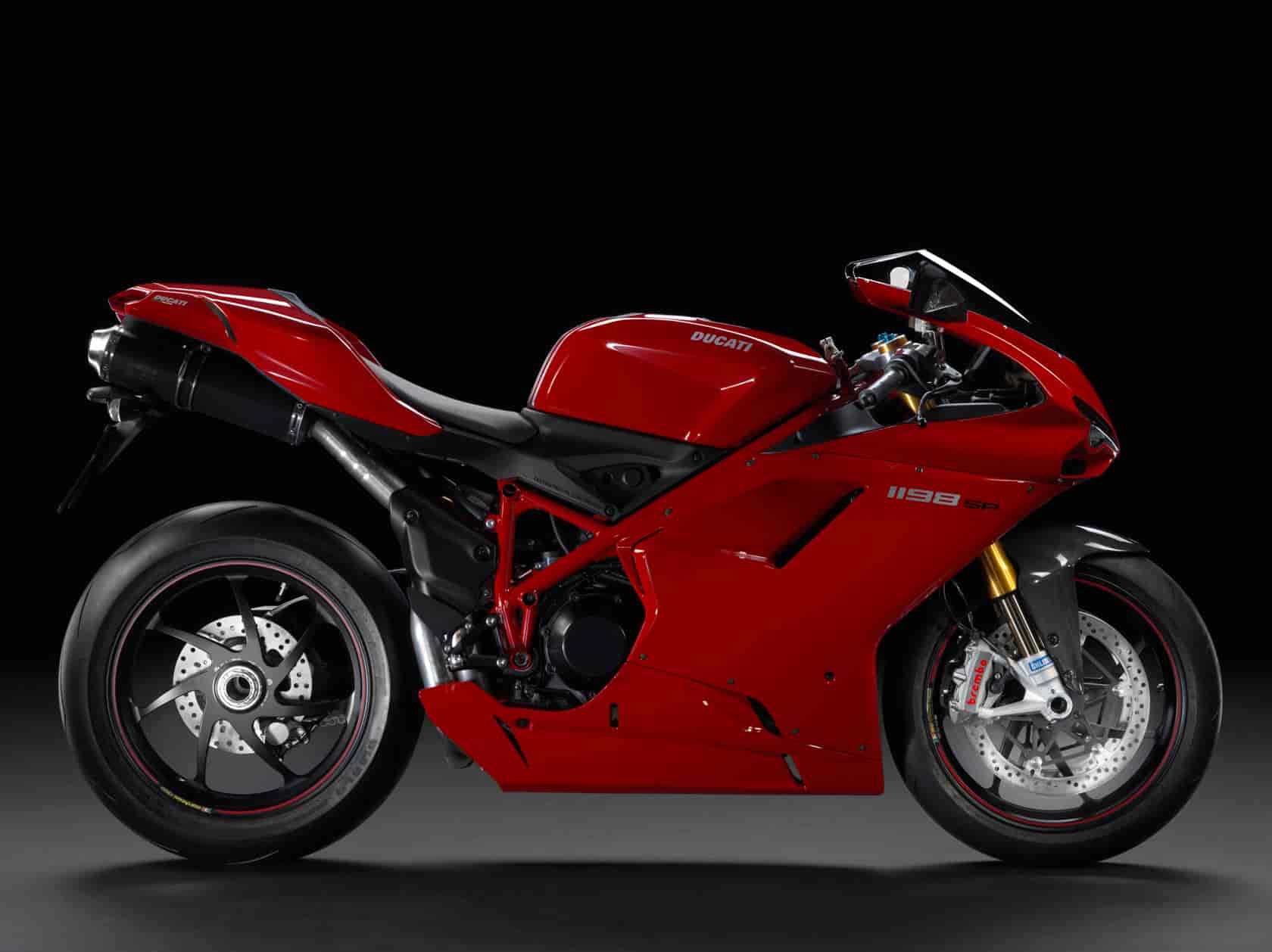

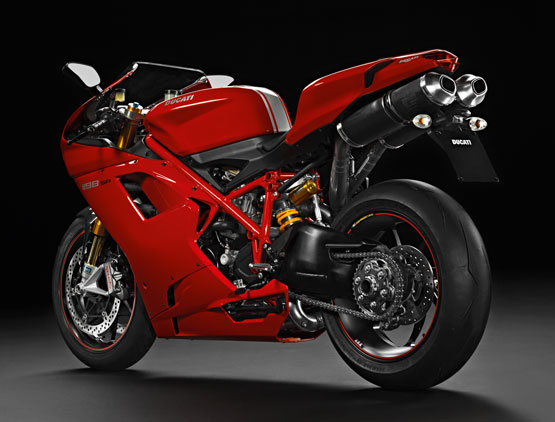

2011 Ducati 1198SP
Track ready
From experience gained on circuits all over the world comes the most exclusive, highest-ever performance 1198 SP ever: aluminium tank, Ducati Quick Shift, slipper clutch, rear Öhlins suspension with TTXR technology, 168 kg dry weight. The 1198 SP is all set for your next track challenge.
Stunning ‘SP’ performance
The 168kg (370.3lb) (dry weight) 1198 SP creates a dream package by taking everything that the 1198 model has, including DTC, DDA and the new DQS systems, and adding top-of-the-range Öhlins suspension, lightweight chassis components, a lightweight factory team-style aluminium fuel tank and slipper clutch.
The high performance, fully adjustable 43mm Öhlins forks, which sport low friction titanium nitride-treated fork sliders, respond effortlessly to every imperfection in the tarmac. Beyond their advanced engineering solutions, one of the most important characteristics of Öhlins forks is their ability to communicate the condition and quality of the tyre-to-road contact patch, a feature that puts every rider in superior control. The suspension set-up at the rear is complemented with a fully adjustable Öhlins TTX rear shock equipped with a ride enhancing top-out spring and mounted to a single-sided swingarm for outstanding drive and traction.
The front-to-rear Öhlins package is completed with a control-enhancing adjustable steering damper.
On any sport or race bike, the most effective area to reduce weight is its ‘unsprung weight’. These are
components like tyres, brakes and wheels. Lighter wheels have a lower ‘moment of inertia’ that is
beneficial with every direction change and application of the brakes. The 1198 SP addresses this important area by mounting 7-spoke Marchesini forged and machined wheels. Both front and rear are super lightweight and their benefit is immediately apparent. The weight saving is further enhanced with the application of a carbon fibre front fender.
The 1198 SP weighs in at 1kg (2.2lb) less than the 2010 1198 S thanks to the beautifully made lightweight fuel tank, which also boosts the bike’s fuel capacity by 2.5 litres (0.66 US gal) to 18 litres (4.75 US gal). The tank is formed in 2mm thick aluminium, brush finished and then painted and clear-coated to create a racing stripe of natural aluminium that accentuates the factory race tank feel.
The 1198 is supplied with the Ducati Data Analysis (DDA), Ducati Traction Control (DTC) and Ducati Quick Shift (DQS) systems as standard equipment. The DDA package enables the retrieval and analysis of data collected from a previous track session or road trip and DTC monitors front and rear wheel speeds to detect rear wheel-spin under acceleration and electronically reduces engine power to restore traction. DQS allows the throttle to remain open when changing-up through the gearbox, helping to save vital seconds in the pursuit of faster lap-times.

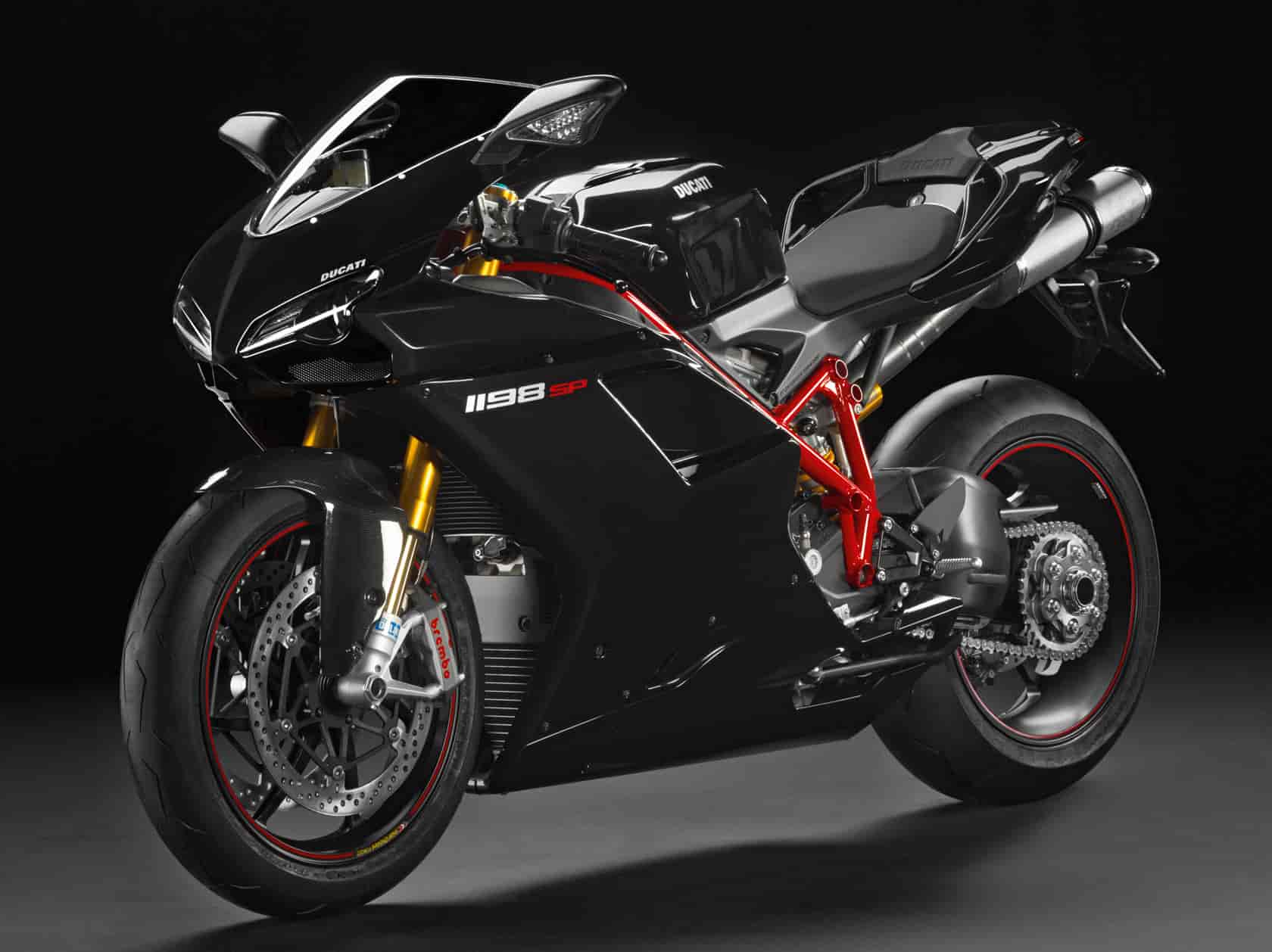

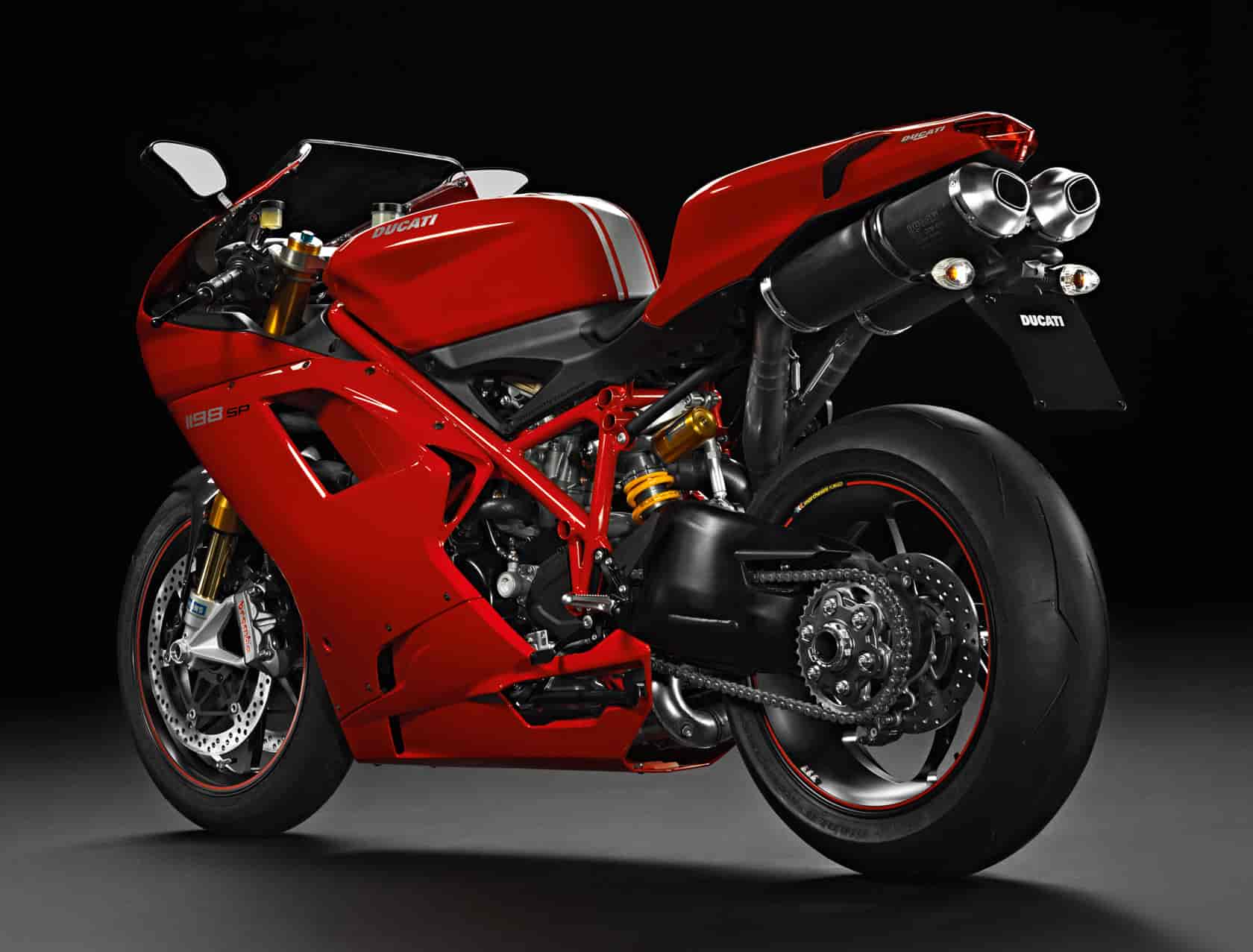

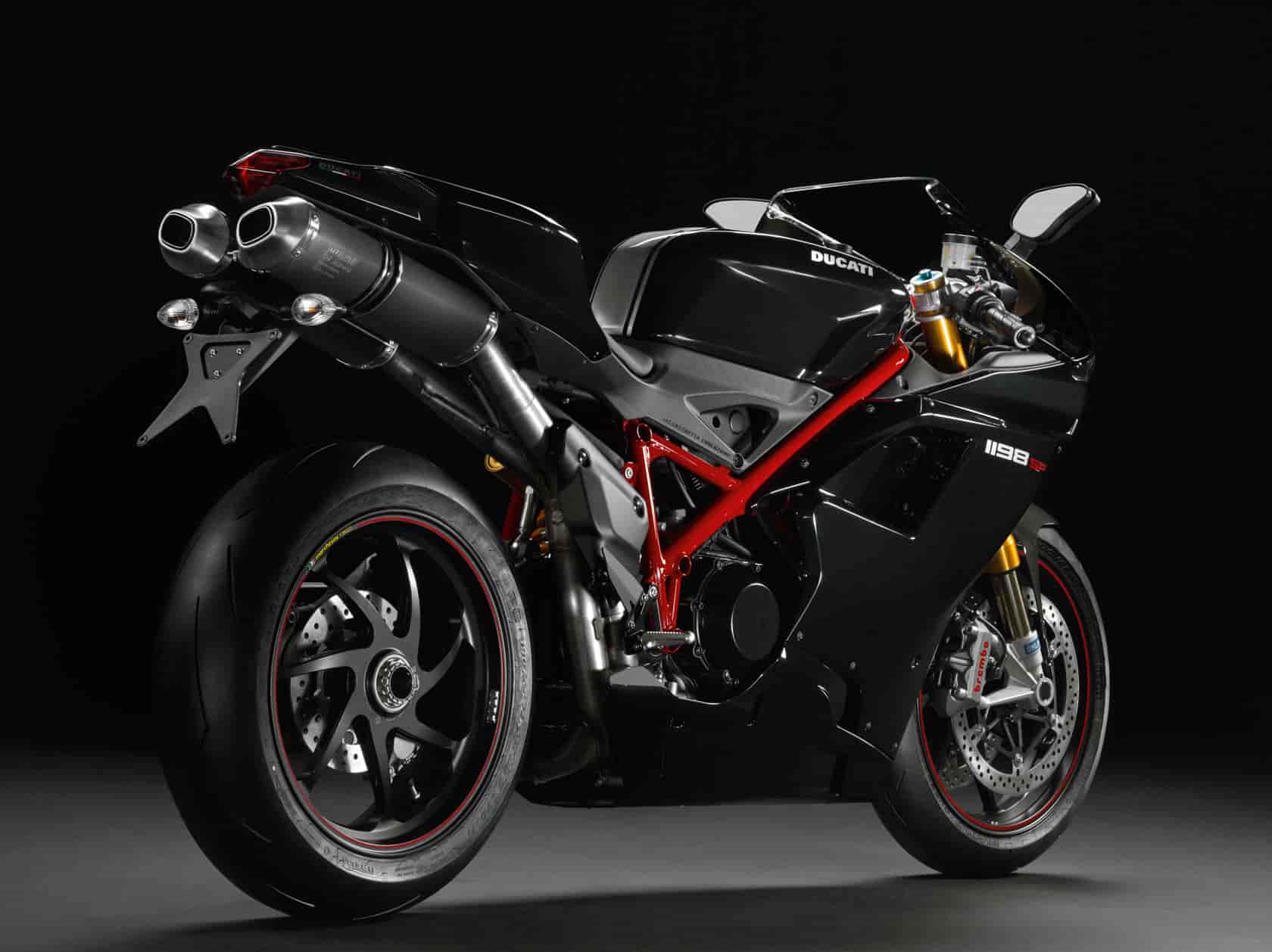

The 2011 1198 SP is available in two colour schemes. The traditional Ducati red is now supported by a new diamond black and completed with red Trellis frames and black wheels with signature red pin-striping.
World Championship-winning technology
The 2011 1198 is supplied with the Ducati Data Analysis (DDA), Ducati Traction Control (DTC) and Ducati Quick Shift (DQS) systems as standard equipment.
The DDA package enables the retrieval and analysis of data collected from a previous track session or road trip and DTC monitors front and rear wheel speeds to detect rear wheel-spin under acceleration and electronically reduces engine power to restore traction. DQS allows the throttle to remain open when changing-up through the gearbox, helping to save vital seconds in the pursuit of faster lap-times.
The 1198 was born to perform and with a colossal 97lb-ft (13.4kgm) of torque from its Testastretta
Evoluzione engine and dry weight of just 171kg (377lb) it always delivers. Its victory-driven technology comes directly from Ducati’s World Championship-winning race bikes – and it’s evident in every detail of the bike.
Fully adjustable Showa front suspension carries radial mountings designed for the awesome stopping
power generated by Brembo Monobloc callipers and 330mm discs. Fully adjustable Showa suspension at the rear and lightweight 10-spoke wheels complete an impressive set-up.
For 2011 the 1198 is available in traditional Ducati red with a racing black frame and graphite grey wheels.
The 1198 Testastretta Evoluzione engine
The Testastretta Evoluzione engine is the crowning glory of Ducati’s development and perfection of the LTwin engine. World Superbike dominance for almost two decades is the result of continual commitment to their twin-cylinder configuration. Ducati share the reward for that commitment with World Championship winning technologies constantly flowing from the factory race team into production engines.
The incredible 1198 and 1198 SP are all powered by a liquid cooled, L-Twin, Desmodromic engine that produces 170hp (125kW) @ 9,750rpm and a class-beating 97lb-ft (13.4kgm) of torque @ 8,000rpm.
The 1198 achieves its capacity by using exactly the same 106 x 67.9 bore and stroke as the factory race bike. Volumetric efficiency through the four valves per cylinder is optimised with valve diameters at 43.5mm for the inlet and 35.5mm for the exhaust. They are actuated by racing-type rocker arms, ‘superfinished’ for reduced friction and fatigue, and double overhead camshafts with radical profiles.
The incredible valve performances achieved are only possible because of Ducati’s unique Desmodromic system, where valve closure is activated mechanically. At high rpm it would be almost impossible for the valve to follow the steep closure profile of the cam lobe if it were relying upon a normal valve spring. With the Desmo system, the valve is closed mechanically with the same accuracy as it is opened, enabling steep cam profiles and radical cam timings. This system is used on every single Ducati motorcycle including their world-beating Superbike and Desmosedici MotoGP bikes.
To keep Ducati’s highly efficient Testastretta cylinder heads breathing to their full potential, the injection system uses racing size elliptical throttle bodies, which are an equivalent diameter of 63.9mm.
The race-designed 1198 pistons have a distinctive double-ribbed undercrown to achieve high strength and reduced friction by using minimal piston wall surface area. Using technology developed for the
Desmosedici MotoGP project, the design enables reliable operation of the 106mm diameter pistons when performing at high rpm.
The 1198 Testastretta Evoluzione engines are the lightest ever used in Ducati Superbikes, thanks to
Vacural® technology, a crankcase vacuum die-cast manufacturing process yielding weight reductions of 3kg (6.5lbs) compared to the first generation 1098 cases. The vacuum die-cast process ensures consistent and precise wall thickness and increased strength from absolute material purity. The weight-saving cam covers in magnesium-alloy are evident by their gold colour, while the alloy outer clutch and generator covers sport a black finish.
The 1198 gears are machined from the same high-strength steel used in Ducati Corse race applications and are subjected to a shot-peening treatment that further ensures their strength and reduced fatigue.
Specifically for the track-ready 1198 SP, a dry, multiplate competition-style ‘slipper’ clutch is used to reduce the destabilising effect of aggressive downshifting and to provide the fine control required during extreme corner entry on the track.
The 1198, 1198 SP feature a beautiful and efficient exhaust system. Incredibly lightweight, it has been
engineered with a power-increasing symmetrical 2-1-2 layout that uses 52mm-57mm diameter tubing with a wall thickness of 0.8mm (.030in). It is equipped with a catalytic converter and two lambda probes for optimum engine mapping and Euro3 conformity. The system terminates with Ducati’s trademark twin under-seat silencers, delivering that unmistakable signature sound of the big bore Desmo 90° L-Twin.
Sportbike perfection
The 2011 Superbike model line-up presents the exciting new 848EVO with 140hp, Brembo Monobloc callipers, steering damper and stunning new arctic white silk colour scheme with red frame and red wheels and dark stealth finish with black frame and black wheels. The 1198 now comes equipped with Ducati Traction Control (DTC), Ducati Quick Shifter (DQS) and Ducati Data Analyser (DDA) as standard equipment while the brand new, track-ready 1198 SP rolls out with DTC, DQS, DDA, Ohlins TTX rear suspension, slipper clutch and lightweight aluminium fuel tank.
The application of DTC to the standard model 1198 underlines Ducati’s intention to broaden the use of tried and tested race-derived electronics to its high-powered range, while the introduction of DQS to the 1198 and 1198 SP marks the first time in history that “quick-shift” electronics have been fitted to a production Ducati.
Engineered by the stopwatch
The Ducati 848EVO, 1198 and 1198 SP Superbikes are the product of a team of designers and engineers who have combined their Ducati MotoGP and World Superbike technologies to create the finest sportbikes in the world. From race-level engine specifications to World Championship-winning traction control and quickshift electronics, the results are pure excellence. The Ducati Traction Control (DTC) system further confirms Ducati’s technology flow from racing to production and demonstrates how solutions developed for the track can be applied to enhance safer performance on the road.
Designed by the race track Ducati Superbikes are race bikes, pure and simple. Their striking aerodynamic shapes create a natural riding position, confirmed by Ducati development and factory team riders as the optimum for speed and agility.
Performance is first and foremost in every detail.
Trademark Ducati features like the high tail section and compact front end combine with twin under-seat silencers and single-sided swingarm to express the sheer engineering beauty of aerodynamics and agility.
Add the Testastretta Evoluzione engines as the hearts of the machines and the result is all-out performance Ducati Superbikes that look fast even when parked.
Superbike Chassis
The 848EVO, 1198 and 1198 SP chassis and suspension are the result of a ‘performance-first’ priority approach to development, in which the goal is always to further reduce weight and increase strength and rigidity to manage the high-powered Testastretta Evoluzione engines.
Trellis frame
Developed in cooperation with Ducati Corse, the lightweight Trellis frame features 34mm main section
tubes with a material thickness of 1.5mm. The result is an incredibly rigid construction that remains one of Ducati’s lightest frame solutions ever. Adding style to performance, the three colour versions for the 848EVO use frames finished in red and racing black while the 1198 is in racing black and both schemes of the 1198 SP are finished in red.
Front suspension
Both the 848EVO and 1198 feature fully adjustable 43mm Showa forks, with an additional special low friction titanium oxide treatment applied to the sliders of the 1198, while spectacular 43mm Öhlins with low friction titanium nitride-treated sliders are used on the 1198 SP. Both front suspension solutions have radial brake calliper mountings providing superior road holding and incredible feedback to give every rider more confidence and control.
Rear suspension
The lightweight Trellis frame and single-sided swingarm enable a compact and weight-saving rear
suspension linkage system that features separate lower pick-up points for the push-rod and suspension
unit. This ‘tandem’ design effectively reduces stress around the linkage pick-up area of the Trellis frame.
Working together with this highly efficient linkage is a fully adjustable Showa single shock for the 848EVO and 1198, and an incredible Öhlins unit for the 1198 SP with TTX twin tube technology providing totally separate damping adjustment in compression and rebound. The system uses experience gained in MotoGP to minimise friction and reduce the risk of cavitation under extreme conditions. The 1198 and 1198 SP rear suspension system has an adjustable rear ride-height, independent of spring pre-load and other suspension settings – valuable when seeking the perfect set-up for personal riding style or track conditions.
Single-sided swingarm
The dual construction technique used for the single-sided swingarm allows the main operational
components to use individual aluminium castings so as to ensure strength around the pivot points, wheel hub and suspension links, while lightweight, fabricated aluminium sections are used to complete the construction into a single, beautifully engineered component. The 848EVO, 1198 and 1198 SP all have singlesided swingarms finished in black.
Race-bred brakes
Ducati Superbikes have always been famous for their incredible, track-derived braking performance and the 2011 model line-up is no exception.
The 1198, 1198 SP and now the 848EVO all use Brembo’s incredibly powerful Monobloc calliper racing technology. Machined from a single piece of alloy, the callipers achieve a higher rigidity and resistance to distortion during extreme braking. The resulting increase in hydraulic efficiency not only delivers incredible braking power, but also provides an enhanced and precise ‘feel’ at the brake lever.
The twin Monobloc callipers each have four 34mm pistons that grip 320mm discs on the 848EVO and huge 330mm discs on the 1198 and 1198 SP to achieve spectacular braking performance.
Super lightweight wheels
The lightweight front wheels used on all Ducati Superbike models substantially reduces the moment of
inertia, enabling a faster change of direction and enhanced acceleration and braking performances. The
848EVO is equipped with Y-shaped, 5-spoke wheels by Enkei which are finished in black while the 1198 rides on 10-spoke wheels finished in a subtle graphite grey, also by Enkei. The 1198 SP goes to the next specification level by rolling out on beautiful black 7-spoke lightweight, forged-aluminium, machine-finished wheels by Marchesini.
The 848EVO 1198 and 1198 SP models are all fitted with Pirelli Diablo Supercorsa SP tyres, at 120/70 ZR17 for the front, 180/55 ZR17 for the rear of the 848EVO and 190/55 ZR17 for the rear of both 1198 models. These high-performance tyres have shoulder areas that maximize the contact patch and carcasses specially designed for stiffness under heavy braking and precision during high speed cornering. This precision in tyre construction enabled Ducati technicians to create extremely fine programs for the Ducati Traction Controls systems used on the 1198 and 1198 SP.
Magnesium subframe
Producing a front subframe in magnesium underlines the attention to weight-saving detail in the Ducati
Superbike range. Its construction provides secure support for the headlamp, instruments and fairing, and the weight-saving around this high, forward position contributes considerably to overall ‘feel’ and control of the machine.
Aerodynamic bodywork
Carefully designed for aerodynamic efficiency and to hug the sleek lines of the chassis, the Superbike
bodywork enables the rider to blend effortlessly into the correct riding position.
Its race-developed fairing design ensures perfect integration with the cooling system by providing efficient flow through the advanced, large surface area coolant radiator, which is assisted by lightweight, high flow electric fan assemblies and oil coolers. Aerodynamically shaped air ducts positioned just below the headlamps are precisely calculated to provide ample air delivery to the pressurised airbox.
The lightweight bodywork contributes considerably to overall performance by reducing weight, protecting the Testastretta Evoluzione engine’s power output, and assisting the rider to effortlessly ‘tuck in’ from the wind stream and reduce drag to achieve maximum straight-line track speeds.
Instrumentation
This pure racing digital instrumentation originating from Ducati’s MotoGP project has no switches or
buttons to compromise its clean, minimalist lines. Instead, information additional to the default read-outs is managed from the left-hand handlebar-mounted switch gear, allowing the rider to scroll through and select from various menus. The display, which has a bright white LED back lighting presents rpm and speed, with the former displayed across the screen in a progressive bar graph. Optionally, the rpm and speed can be displayed in numeric values. Additionally, it displays lap times, DTC level selected (if activated on 1198 and 1198 SP) time, air temperature, coolant temperature, battery voltage, two trips and a trip that automatically starts as the fuel system goes onto reserve. Warning lights illuminate to signify neutral, turn signals, highbeam, rev-limit, low oil pressure, fuel reserve, DTC intervention (if activated on 1198 and 1198 SP) and scheduled maintenance. The instrument display is also used as the control panels for the DDA (supplied as standard equipment with the 1198 and 1198 SP), DTC and DQS systems as well as listing lap times recorded by using the high-beam flash button as a stopwatch.
Superbike lights and indicators
The horizontal twin headlamps, a signature Ducati style from the iconic 916, are modernised with the latest lighting technology. Two polyellipsoidal units light the way with a powerful beam while maintaining an aggressive look to the front of the machine in pure Ducati Superbike tradition.
The rear light employs a specially designed strip of LEDs enhanced by a high diffusion lens shaped into the sleek lines of the tailpiece. The same LEDs are intensified for brake lights.
The directional indicators also use the latest in LED technology for illumination. The frontal indicators are beautifully integrated into the rear view mirrors, which come with an optional spacer kit enabling an
extension of 30mm over the standard mirror stem length.
Ducati Quick Shift
The Ducati Quick Shift (DQS) system is the first time that a race-style electronic quick-shift has been
supplied as original equipment on a production Ducati. Normally used specifically for racing, the system allows the rider to keep the throttle open when changing-up through the gearbox, helping to save vital seconds in the pursuit of faster lap-times. The system not only saves time when changing gear, but also enables the possibility of uninterrupted air flow through the throttle bodies throughout the upward gearchanging process.
The system consists of a micro-switch built into the linkage of the gear change lever, which when actuated in the direction of selecting a higher gear, sends a signal to the main ECU. The ECU instantly understands which gear the motorcycle is in by calculating the rpm and vehicle speed and then reads the amount of throttle opening before applying a pre-programmed cut in fuel injection and ignition measured in milliseconds. This spilt-second electronic interruption in drive is programmed precisely to allow the next gear to be selected without having to actuate the clutch or close the throttle.
The DQS system can be deactivated by entering the control panel in the motorcycle’s instrumentation and is reactivated by default the next time the ignition is turned on. As the system only functions for a matter of milliseconds, the 1198 and 1198 SP can still be ridden using a normal gear-changing style.
Ducati Traction Control
Ducati were the first manufacturer to introduce a true competition-level traction control system on a
production motorcycle and for 2011 the highly successful system is now integrated into both the 1198 and 1198 SP electronics as standard equipment. The Ducati Traction Control (DTC) system further underlines Ducati’s technology flow from racing to production and demonstrates how solutions developed for the track can be applied to enhance performance safety on the road.
DTC uses the same software logic developed and used by Ducati Corse for their World Championshipwinning MotoGP and World Superbike motorcycles and offers a choice of eight settings developed by their professional test riders and racers.
Accessible from the left-hand switchgear and displayed on the digital instrumentation, the system offers a choice of eight profiles, each one programmed with a wheel-spin tolerance matched to progressive riding levels of skill graded from one to eight. While level eight administers a confidence-building, high level of interaction from the system by activating upon the slightest amount of wheel-spin, level one offers a much higher tolerance and, therefore, much less intervention for highly competent riders.
When the level is selected and DTC activated, the level is displayed on the instrumentation.
When the profile that best suits the combination of road or track conditions and riding style has been
selected and the DTC system activated, front and rear wheel sensors compare speed differential to sense when rear traction is being broken (wheel-spin). DTC then decides the best combination of two different types of instant electronic adjustment, calculated with data supplied from multiple sources.
The first ‘soft’ stage of system interaction is executed by high speed software that makes instant electronic adjustment to the ignition timing, administering varying amounts of ignition retardation to reduce the engine’s torque. During this initial stage of DTC interaction, up to three red lights – normally used to signify the over-rev limiter – illuminate to indicate the amount of DTC being applied.
If the DTC software detects that the first ‘soft’ stage of system interaction is inadequate to control the
wheel-spin, it continues to administer ignition retardation and, in addition, instructs the engine ECU to
initiate a pattern of constantly increasing injection cuts until, if necessary, full injection cut. During this
second stage of interaction, all four warning lights fully illuminate to signify that DTC has also initiated
injection cuts. As soon as the system recognises the gradual return of equal wheel speeds, it incrementally re-establishes normal power delivery. This seamless interaction is key to the super-smooth operation of the system.
The real innovative thinking behind the DTC system is how the various range of sensitivity levels decide precisely how to react to excessive wheel-spin by understanding the bike’s exact ‘dynamic situation’. From slow mid-corner acceleration with considerable vehicle inclination to high speed corner exits while almost upright, this ‘system intelligence’ is achieved by processing a mass of data in a matter of milliseconds. This technology exists thanks to the thousands of laps and hours spent testing, programming and earning Ducati Corse race victories on the track. It represents just part of Ducati’s latest road-bike technology and provides considerable increase in performance safety during mid-corner acceleration.
Data acquisition
The Ducati Data Analyser (DDA) – complete with PC software, a USB-ready data retrieval card and
instructions – evaluates the performances of the bike and its rider, and makes comparisons between
various channels of information. The DDA is available for the 848EVO from Ducati Performance, and is supplied as standard equipment with the 1198 and 1198 SP.
Normally only available on race bikes, DDA records numerous channels of data including throttle opening, vehicle speed, engine rpm, engine temperature, distance travelled, laps and lap times. The system also automatically calculates engine rpm and vehicle speed data so as to display gear selection as an extra channel of information. An additional channel of information is now dedicated to recording the DTC index which can then be viewed as a graphic trace and indicates the amount of DTC interaction during wheelspin.
At the end of a ride or track session, an upgraded 4mb of data can be downloaded to a PC ready to
compare, analyse and get an inside view of the performance of the rider and motorcycle.
Data can be analysed in graphic form with options to zoom into detail of specific sections. Dragging a trace along a timeline to reveal individual values of the above listed channels enables the user to analyse performance in the same way that data technicians can in factory teams. The software allows data to be compared with that from a completely separate session and for pages of data to be printed off easily.
2011 Ducati 1198SP Technical Details
ENGINE
High-effieciency cooling
Its race-developed fairing design ensures perfect integration with the cooling system by providing efficient flow through the advanced, large surface area coolant radiator, which is assisted by lightweight, high flow electric fan assemblies and oil coolers.
Power & torque curves
The 1198 engine produces 170hp (125kW) @ 9,750rpm and a class-beating 97lb-ft (13.4kgm) of torque @ 8,000rpm.
Exhaust system
Incredibly lightweight, the exhaust system has been engineered with a power-increasing symmetrical 2-1-2 layout that uses 52mm-57mm diameter tubing with a wall thickness of 0.8mm (.030in). It is equipped with a catalytic converter and two lambda probes for optimum engine mapping and Euro3 conformity. The system terminates with Ducati’s trademark twin under-seat silencers, delivering that unmistakable signature sound of the big bore Desmo 90° L-Twin.
Crankshaft
The 1198.4 capacity is achieved using exactly the same 106mm x 67.9mm bore and stroke as the factory race bike.
Desmodromics
The incredible valve performances of our engines are only possible because of Ducati’s unique Desmodromic system, where valve closure is activated mechanically. At high rpm it would be almost impossible for the valve to follow the steep closure profile of the cam lobe if it were relying upon a normal valve spring. With the Desmo system, the valve is closed mechanically with the same accuracy as it is opened, enabling steep cam profiles and radical cam timings. This system is used on every single Ducati power unit including our world-beating Superbike and Desmosedici MotoGP engines.
1198 Testastretta Evoluzione
The Testastretta Evoluzione engine is the crowning glory of our development and the perfection of the L-Twin engine. World Superbike dominance for almost two decades is the result of continual commitment to our twin-cylinder configuration. We now share the reward for that commitment with World Championship-winning technology constantly flowing from the factory race team into our production engines.
Volumetric efficiency through the four valves per cylinder is optimised with valve diameters at 43.5mm for the inlet and 35.5mm for the exhaust.
Magnesium alloy covers
The weight-saving cam covers in magnesium-alloy are evident by their gold colour.
Vacural® crankcases
The 1198 Testastretta Evoluzione engines are the lightest ever used in Ducati Superbikes, thanks to Vacural® technology, a crankcase vacuum die-cast manufacturing process yielding weight reductions of 3kg (6.5lbs) compared to the 1098 Superbike cases. The process ensures consistent and precise wall thickness and increased strength from absolute material purity.
Elliptical throttle bodies
To keep the highly efficient Testastretta cylinder heads breathing to their full potential, the injection system uses MotoGP-derived elliptical throttle bodies with an equivalent diameter of 63.9mm.
Race-derived detail
The 1198 engines all share the same attention to race-derived details.
Race-designed 1198 pistons have a distinctive double-ribbed undercrown to achieve high strength and reduced friction by using minimal piston wall surface area. Using technology developed for the Desmosedici MotoGP project, the design enables reliable operation of the 106mm diameter pistons when performing at high rpm.
Racing-type rocker arms are ‘super-finished’ for reduced friction and fatigue at high rpm.
The gearbox’s carefully calculated specification allows the use of a high ratio 6th gear, fully enabling the speed increase achieved from additional performance modifications (suggested for track use only). Also with performance in mind and because of its high resistance to fatigue, the gears are machined from the same high-strength steel used in Ducati Corse race applications and are subjected to a shot-peening treatment that further ensures their strength.
CHASSIS
Magnesium front sub-frame
Producing a front subframe in magnesium underlines the attention to weight-saving detail in the Ducati Superbike range. Its construction provides secure support for the headlamp, instruments and fairing, and the weight-saving around this high, forward position contributes considerably to overall ‘feel’ and control of the machine.
Superbike aerodynamics
Carefully designed for aerodynamic efficiency and to hug the sleek lines of the chassis, the Superbike bodywork enables the rider to blend effortlessly into the correct riding position.
Its race-developed fairing design ensures perfect integration with the cooling system by providing efficient flow through the advanced, large surface area coolant radiator, which is assisted by lightweight, high flow electric fan assemblies and oil coolers. Aerodynamically shaped air ducts positioned just below the headlamps are precisely calculated to provide ample air delivery to the pressurised airbox.
The lightweight bodywork contributes considerably to overall performance by reducing weight, protecting the Testastretta Evoluzione engine’s power output, and assisting the rider to effortlessly ‘tuck in’ from the wind stream and reduce drag to achieve maximum straight-line track speeds.
Trellis frame
Developed in cooperation with Ducati Corse, the lightweight Trellis frame features 34mm main section tubes with a material thickness of 1.5mm. The result is an incredibly rigid construction that remains one of Ducati’s lightest frame solutions ever.
Through decades of racing and development, Ducati has proven that innovative chassis engineering and evolutionary frame advancements win races. The tubular Trellis frame, used on every Ducati motorcycle, is a signature design element.
This unique Ducati frame is light, rigid and beautiful thanks to its ingenious Trellis design and use of high quality ALS 450 tubing. Each tube is mitred and micro-fusion welded in a complex triangulated pattern and our incredibly strong L-Twin engine cases are functional ‘stressed members’ of the chassis.
Brembo Monobloc brakes
Machined from a single piece of alloy, Brembo’s powerful Monobloc callipers achieve a higher rigidity and resistance to distortion during extreme braking. The resulting increase in hydraulic efficiency not only delivers incredible braking power, but also provides an enhanced and precise ‘feel’ at the brake lever. The twin Monobloc callipers each have four 34mm pistons that grip huge 330mm discs to help achieve spectacular brake performance. The weight of the discs has been kept to a minimum by employing racing-style narrow braking surfaces.
Marchesini 7-spoke wheels
The lightweight front wheels used on all Ducati Superbike models substantially reduces the moment of inertia, enabling a faster change of direction and enhanced acceleration and braking performances.
The ‘SP’ and ‘R’ rides on beautiful black 7-spoke lightweight, forged-aluminium, machine-finished wheels by Marchesini, and are fitted with Pirelli Diablo Supercorsa SC at 120/70 ZR17 for the front and 190/55 ZR17 for the rear. These tyres have shoulder areas that maximize the contact patch and carcasses specially designed for stiffness under heavy braking and precision during high speed cornering. This precision in tyre construction enabled Ducati technicians to create extremely fine programs for the Ducati Traction Controls systems used on the bike.
Ohlins steering damper
The front-to-rear Öhlins suspension package is completed with a control-enhancing Öhlins adjustable steering damper.
Single-sided swingarm
The dual construction technique used for the single-sided swingarm allows the main operational components to use individual aluminium castings so as to ensure strength around the pivot points, wheel hub and suspension links, while lightweight, fabricated aluminium sections are used to complete the construction into a single, beautifully engineered component. The swingarm is colour finished in black.
Ohlins forks
The high performance, fully adjustable 43mm Öhlins forks, which sport low friction titanium nitride-treated fork sliders, respond effortlessly to every imperfection in the tarmac. Beyond their advanced engineering solutions, one of the most important characteristics of Öhlins forks is their ability to communicate the condition and quality of the tyre-to-road contact patch, a feature that puts you in superior control.
Aluminium fuel tank
The new beautifully formed aluminium fuel tank boosts the bike’s fuel capacity by 2.5 litres (0.66 US gal) to 18 litres (4.75 US gal). The tank is formed in 2mm thick aluminium and proudly displays the new Ducati Corse livery on top.
EQUIPMENT
Single-seat cover
All 1198 models are fitted with a passenger seat which can easily be changed in seconds with a single-seat cover supplied with the bike. The colour-matched part gives the bike an instant racing-style rear-end.
GP-derived instruments
This pure racing digital instrumentation originating from Ducati’s MotoGP project has no switches or buttons to compromise its clean, minimalist lines. Instead, information additional to the default read-outs is managed from the left-hand handlebar-mounted switch gear, allowing the rider to scroll through and select from various menus. The display, which has a bright white LED back lighting, presents rpm and speed, with the former displayed across the screen in a progressive bar graph. Optionally, the rpm and speed can be displayed in numeric values. Additionally, it displays lap times, DTC level selected (if activated on 1198) time, air temperature, coolant temperature, battery voltage, two trips and a trip that automatically starts as the fuel system goes onto reserve. Warning lights illuminate to signify neutral, turn signals, high-beam, rev-limit, low oil pressure, fuel reserve, DTC intervention (if activated on 1198 S, 1198 S Corse and 1198 R Corse) and scheduled maintenance. The instrument display is also used as the control panels for the DDA (DDA kit supplied as standard on 1198 S, 1198 S Corse and 1198 R Corse) and DTC systems as well as listing lap times recorded by using the high-beam flash button as a stopwatch.
Mirror extension kit
All Superbike mirrors come with an optional spacer kit enabling an extension of 30mm over the standard mirror stem length.
Lighting
The horizontal twin headlamps, a signature Ducati style from the iconic 916, are modernised with the latest lighting technology. Two polyellipsoidal units light the way with a powerful beam while maintaining an aggressive look to the front of the machine in pure Ducati Superbike tradition. The rear light employs a specially designed strip of LEDs enhanced by a high diffusion lens shaped into the sleek lines of the tailpiece. The same LEDs are intensified for brake lights. The directional indicators also use the latest in LED technology for illumination. The frontal indicators are beautifully integrated into the rear view mirrors.
DTC
Ducati were the first manufacturer to introduce a true competition-level traction control system on a production motorcycle. The Ducati Traction Control (DTC) system further underlines Ducati’s technology flow from racing to production and demonstrates how solutions developed for the track can be applied to enhance performance safety on the road.
DTC uses the same software logic developed and used by Ducati Corse for their World Championship-winning MotoGP and World Superbike motorcycles and offers a choice of eight settings developed by their professional test riders and racers.
Accessible from the left-hand switchgear and displayed on the digital instrumentation, the system offers a choice of eight profiles, each one programmed with a wheel-spin tolerance matched to progressive riding levels of skill graded from one to eight. While level eight administers a confidence-building, high level of interaction from the system by activating upon the slightest amount of wheel-spin, level one offers a much higher tolerance and, therefore, much less intervention for highly competent riders.
DDA
The Ducati Data Analyser (DDA), which includes PC software, a USB-ready data retrieval card and instructions, enables you to review and analyse your performance and that of the bike’s, and to make comparisons between various channels of information. The system records numerous channels of data including throttle opening (A), vehicle speed (B), engine rpm (C), engine temperature (D), distance travelled (E), laps and lap times. It also automatically calculates engine rpm and vehicle speed data, enabling it to display gear selection (F) as an additional channel of information. An additional channel of information is now dedicated to recording the DTC index (G) which can then be viewed as a graphic trace and indicates the amount of DTC interaction during wheel-spin. (Subject to model) At the end of a ride or track session, up to 4mb of data can be downloaded ready to compare, analyse and get an inside view of the performance of both you and the bike.
Stopwatch
The digital display is programmed with a stopwatch function that, when enabled, can be triggered by using the high-beam flash button and each recorded time stored in a memory. After your journey or track session, the times or lap times can be recalled from the memory and scrolled through by using the instrumentation buttons on the left-hand switchgear.
Controls
Ducati Superbikes are equipped with adjustable levers that operate Brembo radial-type master cylinders with remote reservoirs. Add easy-to-use switchgear with stopwatch function and DTC and DDA management (where applicable) and it becomes clear that functionality plays a major role alongside performance.
Carbon fibre
Weight saving is further enhanced with the application of a carbon fibre front fender.
Ducati Quick Shift
Generally used in racing, this device allows the rider to change gears without having to use the clutch while keeping the throttle open, thus minimising shift times and significantly reducing lap times.
The DQS features a micro-switch inserted in the gear shift-rod unit.
When acting on the gear lever during up-shifts the DQS sends a signal to the engine control unit. The latter – following instant analysis of factors such as current gear, engine revs and throttle aperture – cuts both ignition and injection for a time lasting mere thousandths of a second.
CONCEPT
SP Philosophy
The “SP” (Sport Production) logo is once again emblazoned on the fairing of a Ducati SBK. It was first introduced on the legendary Ducati 851 to identify versions that were used as a basis for development of bikes competing in the Sport Production championship, the forerunner of the current Super Stock. Now as then, “SP” identifies standard production models that are kitted out to make them “track ready”.
Now, from unparalleled experience acquired on tracks all over the world, comes the 1198 SP, more exclusive and higher-performing than ever before: the aluminium tank, Ducati Quick Shift, slipper clutch, Ohlins suspension with TTXR technology at the rear and a dry weight of 168 kg make the 1198 SP ready for any track challenge.
The Ohilins fork, lightened chassis components and the exceptional DTC (Ducati Traction Control) system complete what is already an extremely well equipped motorcycle.
Superbike heritage
Ducati Superbikes, designed, engineered and built in Bologna, Italy, have always represented the pinnacle of Ducati motorcycle technology and racing success. For Ducati, racing and winning are a way of life and a way of thinking for our designers, engineers and everyone at the factory. Our unique engineering solutions are proven on the race track, where the only way to win is to have technical superiority and dependable performance.
Ducati have dominated World Superbike racing, winning more Riders’ and more Manufacturers’ World Championship titles and more individual races than any other manufacturer. Add these unequalled performances to the historic achievement of winning the MotoGP World Championship, and the results speak for themselves.
Engineered by the stopwatch
Ducati Superbikes are the most advanced, most powerful twin-cylinder motorcycles ever built. They are the product of a team of designers and engineers who have combined their Ducati MotoGP and World Superbike technologies to create the finest sportbikes in the world. From race-level engine specifications to World Championship-winning traction control, the results are pure excellence. The Ducati Traction Control (DTC) system further underlines our technology flow from racing to production and demonstrates how solutions developed for the track can be applied to enhance safer performance on the road.
Designed by the race track
Ducati Superbikes are race bikes, pure and simple. Their striking aerodynamic shapes create a natural riding position, confirmed by our development and factory team riders as the optimum for speed and agility. Performance is first and foremost in every detail.
Trademark Ducati features like the high tail section and compact front end combine with twin under-seat silencers and single-sided swingarm to express the sheer engineering beauty of aerodynamics and agility. Add the Testastretta Evoluzione engines as the hearts of the machines and the result is all-out performance Ducati Superbikes that look fast even when parked.
2011 Ducati 1198SP – North American Specifications
USA MSRP – $21,995 USD
Chassis
FRAME
Tubular steel Trellis frame in ALS 450
WHEELBASE
1430mm (56.3in)
RAKE
24°30′
FRONT SUSPENSION
Öhlins 43mm fully adjustable usd forks with TiN
FRONT WHEEL TRAVEL
120mm (4.7in)
FRONT WHEEL
7-spoke in forged light alloy 3.50 x 17
FRONT TYRE
Pirelli Diablo Supercorsa SP 120/70 ZR17
REAR SUSPENSION
Progressive linkage with fully adjustable Öhlins TTX monoshock with top-out spring. Aluminium single-sided swingarm
REAR WHEEL TRAVEL
127mm (5in)
REAR WHEEL
7-spoke forged light alloy 6.00 x 17
REAR TYRE
Pirelli Diablo Supercorsa SP 190/55 ZR17
FRONT BRAKE
2 x 330mm semi-floating discs, radially mounted Brembo Monobloc calipers 4-piston, 2-pad
REAR BRAKE
245mm disc, 2-piston calliper
FUEL TANK CAPACITY
18l – 4.75 gallon (US)
DRY WEIGHT
168kg (370.3lb)
INSTRUMENTS
Digital MotoGP derived unit with displays for: Speed, rev counter, lap times, time, air temp, coolant temp, battery voltage, A & B trips, fuel reserve trip, DTC level selected (if activated) scheduled maintenance. Warning lights for: Neutral, turn signals, high-beam, rev-limit, DTC intervention, oil pressure, fuel reserve. Plus: Integrated immobilizer system and management of DDA, DQS and DTC
WARRANTY
2 years unlimited mileage
BODY COLOUR (FRAME/WHEEL)
Red (red / black) – Diamond black (red / black)
VERSIONS
Dual seat
SEAT HEIGHT
820mm (32.2in)
DDA
DDA
Standard equipment
DTC
DTC
Standard equipment
ABS
ABS
Not available on this model
Engine
TYPE
L-Twin cylinder, 4 valve per cylinder Desmodromic, liquid cooled
DISPLACEMENT
1198.4cc
BORE X STROKE
106×67.9mm
COMPRESSION RATIO
12.7:1
POWER
170hp (125kw) @ 9750rpm
TORQUE
97lb-ft 131.4Nm @ 8000rpm
FUEL INJECTION
Marelli electronic fuel injection, elliptical throttle bodies
EXHAUST
Lightweight 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers
Transmission
GEARBOX
6 speed
RATIO
1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25
PRIMARY DRIVE
Straight cut gears, Ratio 1.84:1
FINAL DRIVE
Chain; Front sprocket 15; Rear sprocket 38
CLUTCH
Dry multiplate with hydraulic control slupper clutch
Emissions
STANDARD
follows the US Federal Regulation
2011 Ducati 1198SP – UK Specifications
UK MSRP – Starting from £TBC (Prices quoted are SRP’s including VAT)
Chassis
FRAME
Tubular steel Trellis frame in ALS 450
WHEELBASE
1430mm (56.3in)
RAKE
24°30′
FRONT SUSPENSION
Öhlins 43mm fully adjustable usd forks with TiN
FRONT WHEEL TRAVEL
120mm (4.7in)
FRONT WHEEL
7-spoke in forged light alloy 3.50 x 17
FRONT TYRE
Pirelli Diablo Supercorsa SP 120/70 ZR17
REAR SUSPENSION
Progressive linkage with fully adjustable Öhlins TTX monoshock with top-out spring. Aluminium single-sided swingarm
REAR WHEEL TRAVEL
127mm (5in)
REAR WHEEL
7-spoke forged light alloy 6.00 x 17
REAR TYRE
Pirelli Diablo Supercorsa SP 190/55 ZR17
FRONT BRAKE
2 x 330mm semi-floating discs, radially mounted Brembo Monobloc calipers 4-piston, 2-pad
REAR BRAKE
245mm disc, 2-piston calliper
FUEL TANK CAPACITY
18l – 4.75 gallon (US)
DRY WEIGHT
168kg (370.3lb)
INSTRUMENTS
Digital MotoGP derived unit with displays for: Speed, rev counter, lap times, time, air temp, coolant temp, battery voltage, A & B trips, fuel reserve trip, DTC level selected (if activated) scheduled maintenance. Warning lights for: Neutral, turn signals, high-beam, rev-limit, DTC intervention, oil pressure, fuel reserve. Plus: Integrated immobilizer system and management of DDA, DQS and DTC
WARRANTY
2 years unlimited mileage
BODY COLOUR (FRAME/WHEEL)
Red (red / black) – Diamond black (red / black)
VERSIONS
Dual seat
SEAT HEIGHT
820mm (32.2in)
DDA
DDA
Standard equipment
DTC
DTC
Standard equipment
ABS
ABS
Not available on this model
Engine
TYPE
L-Twin cylinder, 4 valve per cylinder Desmodromic, liquid cooled
DISPLACEMENT
1198.4cc
BORE X STROKE
106×67.9mm
COMPRESSION RATIO
12.7:1
POWER
170hp (125kw) @ 9750rpm
TORQUE
97lb-ft 131.4Nm @ 8000rpm
FUEL INJECTION
Marelli electronic fuel injection, elliptical throttle bodies
EXHAUST
Lightweight 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers
Transmission
GEARBOX
6 speed
RATIO
1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=22/25
PRIMARY DRIVE
Straight cut gears, Ratio 1.84:1
FINAL DRIVE
Chain; Front sprocket 15; Rear sprocket 38
CLUTCH
Dry multiplate with hydraulic control slupper clutch
Emissions
STANDARD
Euro 3
2011 Ducati 1198SP PRESS RELEASE
Updates for Superbike, Monster and Streetfighter
With an impressive exhibition presence of approximately 400m2, stand D-040 in hall 8 of Cologne’s INTERMOT 2010 show now plays host to exciting new arrivals in the Superbike family in addition to new colours and updates for both the Streetfighter and Monster range. With new models, accessories and apparel, the Italian motorcycle manufacturer from Bologna is showing a wide range of new 2011 products at this major international show.
“We decided to consolidate our presence here in Cologne because we believe in the importance of this exhibition event, which opens the European motor show season,” stated Gabriele Del Torchio, President of Ducati Motor Holding, during the opening press conference. “Our presence at the show is proof of our commitment to customers in Germany and northern Europe, and underlines our aim to expand in Germany, which is the second most important market in Europe for Ducati. For this reason we decided to preview here some of the new products scheduled for 2011, such as the new additions to the Superbike family with the 848EVO and 1198 SP, and new liveries for the Monster and Streetfighter models.”
Gabriele Del Torchio also commented on the results of the first eight months of 2010: “Despite a shrinking global motorcycle market, we have used Ducati’s product policy and the quality of its distribution network to improve both our market share, now at 8.5%, and also to increase our sales by 5% compared to this period 2009.”
A huge attendance is expected at the German show and visitors to the Ducati stand are sure to admire the innovative and ground-breaking Multistrada 1200, which made an immediate impact on the market upon debut in March 2010. The current model will not undergo any changes for 2011, confirming its proven design and high standard of quality. INTERMOT is also the first European event to celebrate the Multistrada’s victory at the “Pike’s Peak International Hillclimb”, the famous annual race held high in the Colorado mountains, where riders have to quickly adapt to changing road surfaces. The Multistrada on which American, Greg Tracy, took victory has been specially flown in to Cologne from the US so that fans can share in this major celebration and see further proof of the Multistrada 1200’s incredible versatility.
Important additions to the Ducati Superbike family are on show in an exclusive preview of the 2011 range, including the new 848EVO which boasts 140hp and is equipped with Brembo Monobloc callipers and steering damper. The performance-enhanced model celebrates the INTERMOT show by revealing a stunning new “arctic white” livery with sporty red wheels and red frame.
The standard 1198 is also ready to satisfy an ever more demanding market, with the addition of Ducati Traction Control (DTC), the Ducati Data Analyser (DDA) and the brand new Ducati Quick Shift (DQS) fitted as standard equipment on all versions. For 2011, the improved 1198 is joined by the exciting new 1198 SP, which enhances the previous ‘S’ version by rolling out equipped with DTC, DQS, DDA, Ohlins TTX rear suspension, slipper clutch and aluminium fuel tank in addition to the usual Ohlins front suspension, forged Marchesini wheels and lightweight carbon fibre components.
The 2011 848 EVO looks impressive in its new colour schemes of red with red frame or diamond black with racing black frame, both with black wheels. A black radiator cover on all versions completes the Streetfighter’s aesthetic updates.
Enhanced comfort and safety, in addition to new colour schemes, headline the main updates to Ducati’s naked icon, the Monster. The entry level 696 gets new 43mm Marzocchi forks and enhanced ergonomics, including 20mm higher handlebars and a new rear sub-frame designed to accept the user-friendly passenger grab-rail kit available as a Ducati Performance accessory. The Monster 696 presents the two new colour schemes of “dark stealth” and “stone white”, perfectly complementing the new matte chrome handlebar finish. The Monster 796, which was launched in April 2010 as an early entry model year 2011, also adopts Marzocchi front suspension and continues its incredible success. Along with the Monster 1100, the 696 and 796 complete the 2011 range, confirming the family’s status as a style and design icon, backed-up by 17 years of Ducati Monster heritage.
INTERMOT will be open to the public until Sunday, 10 October.
Be the first to comment
