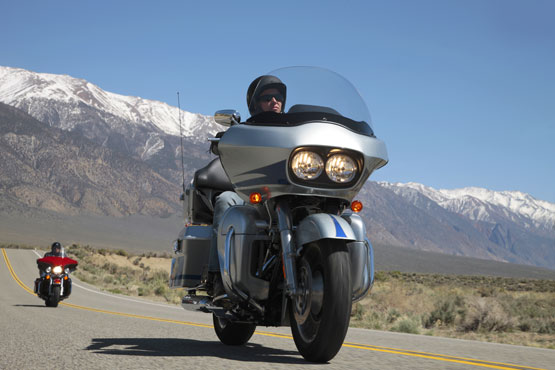

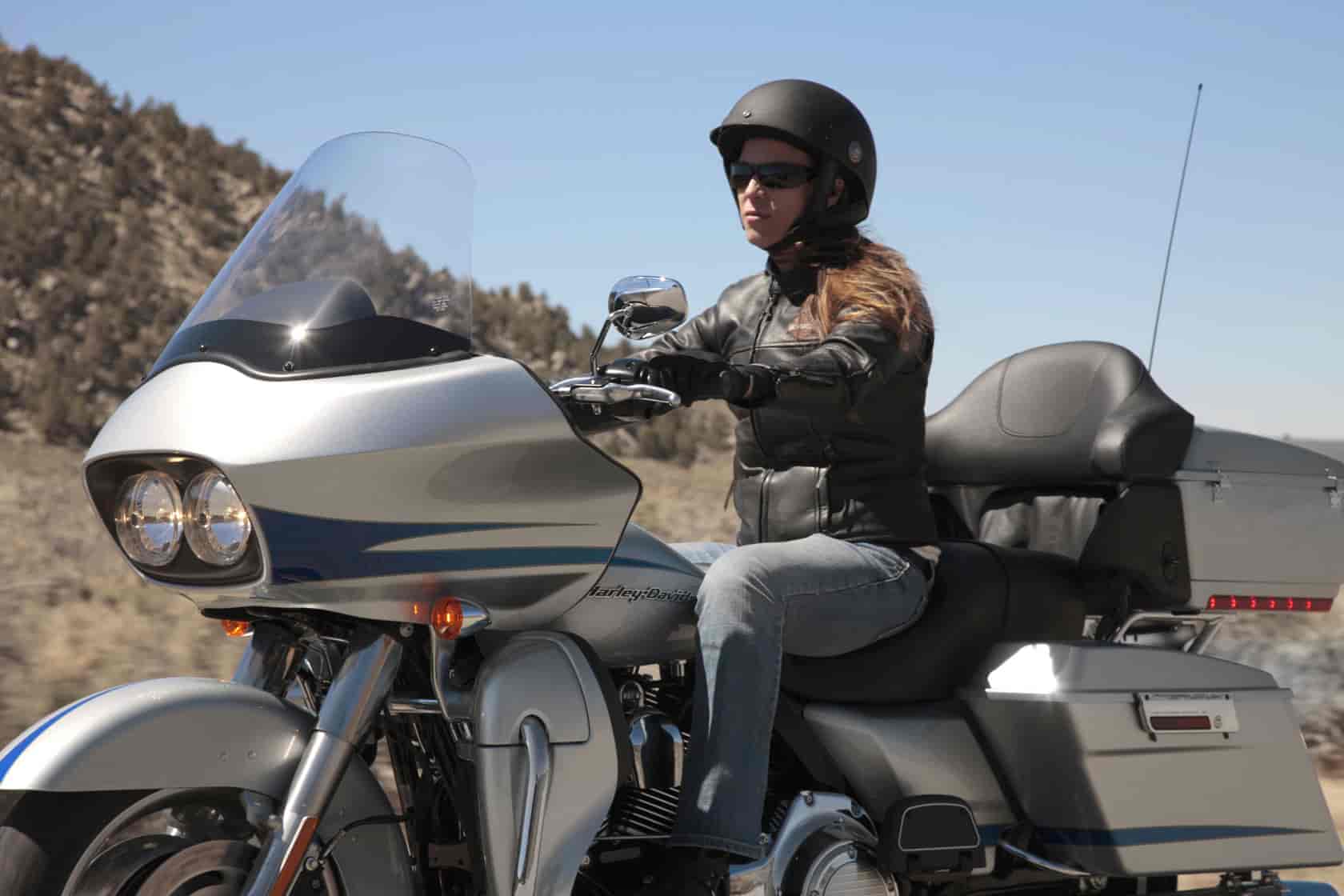

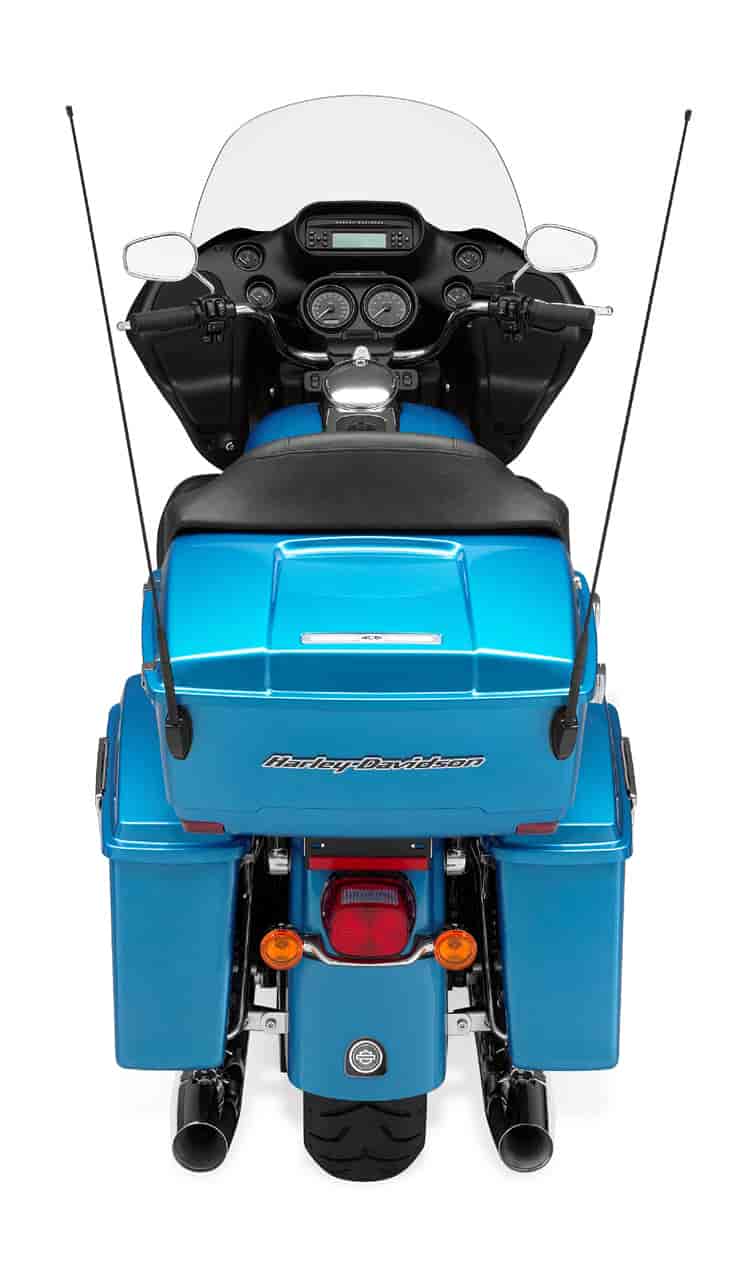

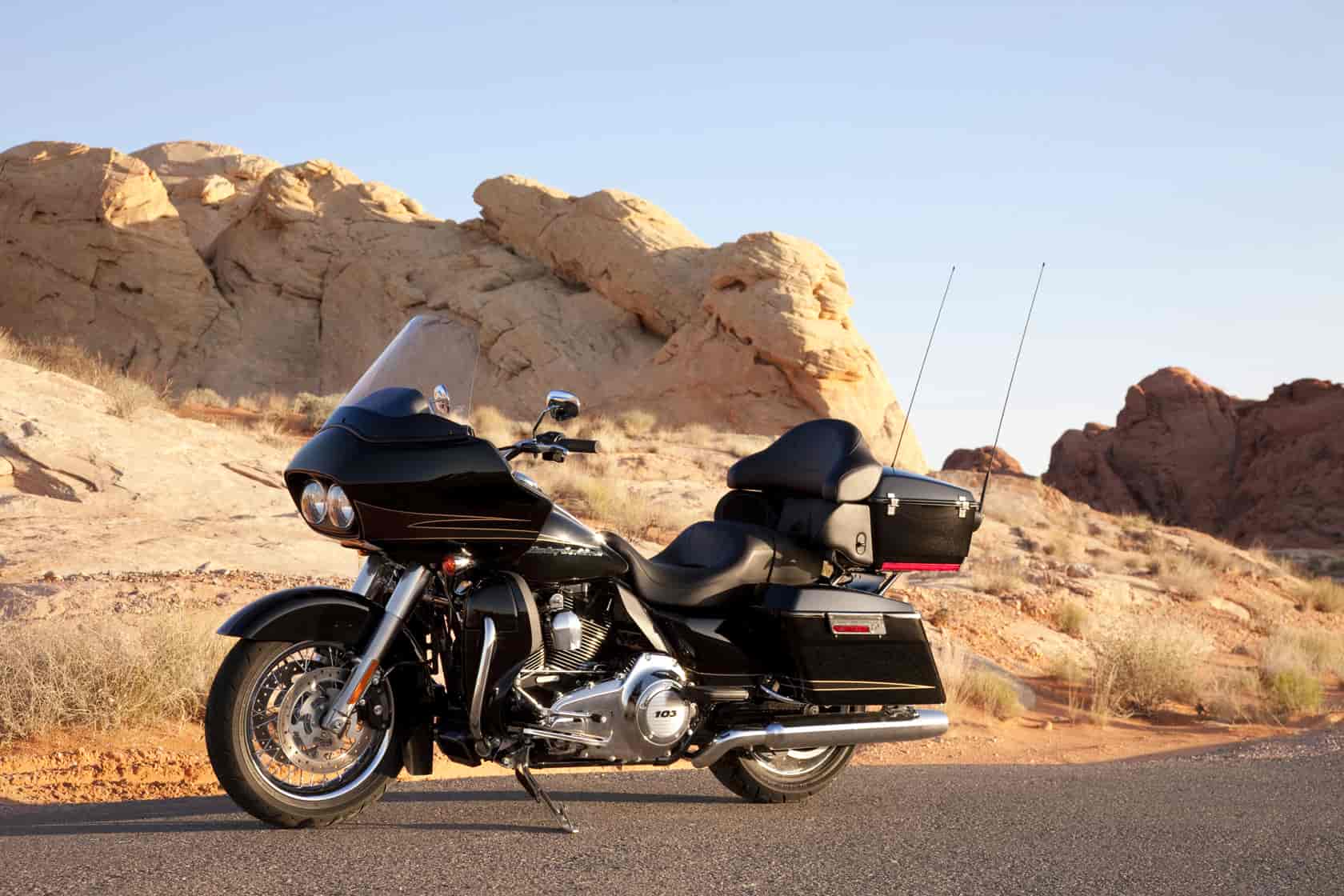

2011 Harley-Davidson FLTRU Road Glide Ultra
2011 Harley-Davidson FLTRU Road Glide Ultra

2011 Harley-Davidson FLTRU Road Glide Ultra
2011 Harley-Davidson FLTRU Road Glide Ultra

2011 Harley-Davidson FLTRU Road Glide Ultra
2011 Harley-Davidson FLTRU Road Glide Ultra

2011 Harley-Davidson FLTRU Road Glide Ultra
2011 Harley-Davidson FLTRU Road Glide Ultra

2011 Harley-Davidson FLTRU Road Glide Ultra
2011 Harley-Davidson FLTRU Road Glide Ultra

2011 Harley-Davidson FLTRU Road Glide Ultra
2011 Harley-Davidson FLTRU Road Glide Ultra




– 2011 Harley-Davidson FLTRU Road Glide Ultra

2011 Harley-Davidson FLTRU Road Glide Ultra

The Road Glide® Ultra combines the light handling and wind-splitting aerodynamics of a frame-mounted fairing with a full complement of touring appointments for the devoted long distance rider and passenger. The innovative Harley-Davidson® Touring chassis is based on a single-spar, rigid backbone frame and a stout swingarm developed to withstand the demands of long-haul touring riders and today’s powerful engines.



Harley-Davidson FLTRU Road Glide Ultra Model Highlights

NEW PowerPak setup with large, 1690 cc, Twin Cam 103™ engine, Anti-lock Braking System (ABS), and Harley-Davidson® Smart Security System with hands-free fob
NEW Injection Molded King Tour-Pak® with soft luggage liners, storage pockets and wrap-around rear tail/brake lights; 2.26 cu. ft. volume
NEW Vented lower fairings with integral storage compartments
NEW 80-watt, four-speaker Harmon/Kardon® Advanced Audio with CD/MP3 player, and CB/Intercom
NEW One-piece, two-up Electra Glide® classic comfort stitch seat shaped to improve rider leg reach to the ground, and to provide better lower back support
o Aerodynamic, frame-mounted fairing incorporates clear Lexan windshield, dual headlamps and a cockpit-style instrument display
o Black powder-coated powertrain with chrome covers
o Chrome, 2-1-2 dual exhaust with tapered mufflers
o Black, 28-spoke Cast Aluminum wheels
o Mid-frame air deflectors
o Chrome, low-profile fuel tank console
o Deep FL front fender
o Stainless steel, classic touring handlebar
o Passenger backrest with wrap-around armrests
o Injection-molded GTX saddlebags; 2.26 cu. ft. volume
o Electronic speedometer and tachometer plus fuel, voltage, oil pressure and ambient air temperature gauges
o Combination stop/turn/tail lights
o Clean rear fender with low mount license plate module and LED illumination









Key Harley-Davidson FLTRU Road Glide Ultra Key Features

The Road Glide® Ultra combines the light handling and wind-splitting aerodynamics of a frame-mounted fairing with a full complement of touring appointments for the devoted long-distance rider and passenger.

The innovative Harley-Davidson® Touring chassis is based on a single-spar, rigid backbone frame and a stout swingarm developed to withstand the demands of long-haul touring riders and today’s powerful engines.

o Frame-mounted Twin Cam™ 103 V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI) and Electronic Throttle Control (ETC)
o 6-Speed Cruise Drive® transmission with integrated Isolated Drive System (IDS)
o Anti-lock braking system (ABS)
o Dunlop® “Multi-Tread” rear tire construction extends tire life by 25 percent
o Brembo® 4-piston front and rear caliper with dual front rotor brake system
o Air-adjustable rear shocks
o Full-length rider footboards
o Height-adjustable passenger footboards
o Six-gallon fuel tank
o Harley-Davidson® Smart Security System with hands-free security fob
o Optional electronic cruise control
o Optional Chrome, Aluminum Profile laced wheels








2011 Harley-Davidson FLTRU Road Glide Ultra – USA Specifications
U.S. MSRP – Vivid Black $22,499. Solids $23,059

DIMENSIONS
Length 98.7 in. (2507 mm)
Overall Width 36.2 in. (919 mm)
Overall Height 55.0 in. (1397 mm)
Seat Height:
– Laden2 27.3 in. (693 mm)
– Unladen 29.1 in. (739 mm)
Ground Clearance 5.1 in. (130 mm)
Rake (steering head) 26°
Fork Angle 29.2°
Trail 6.7 in. (170 mm)
Wheelbase 63.5 in. (1613 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and rear):
– Front – D408F
– Rear – D407
BW 130/80B17 65H
BW 180/65B16 81H
Fuel Capacity 6.0 gal. (22.7 L)
(warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 4.0 qts. (3.8 L)
Transmission Capacity 1.0 qts.
Primary Chain
Case Capacity3 1.4 qts.
Weight:
– As Shipped 850 lbs. (385.6 kg)
– In Running Order 888 lbs. (402.8 kg)
– Gross Vehicle Weight Rating 1360 lbs. (616.9 kg)
– Gross Axle Weight Rating
– Front 500 lbs. (226.8 kg)
– Rear 927 lbs. (420.5 kg)



ENGINE
Engine4 Air-cooled, Twin Cam 103™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.875 in. x 4.38 in. (98.4 mm x 111.3 mm)
Displacement 103 cu. in. (1690 cc)
Compression Ratio 9.6:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass, washable
Lubrication System Pressurized, dry-sump with oil cooler



DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
– 1st 9.593
– 2nd 6.65
– 3rd 4.938
– 4th 4.0
– 5th 3.407
– 6th 2.875


CHASSIS
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Forks 41.3 mm telescopic, triple-circuit damping
Rear Shocks Air-adjustable
Wheels5 (Chrome, Profile Tubeless Laced Aluminum):
– Front Black, 28-spoke Cast Aluminum 17 in. x 3 in. (432 mm x 76 mm)
– Rear Black, Slotted Disc Cast Aluminum 16 in. x 5 in. (406 mm x 127 mm)
Brakes:
– Caliper Type 32 mm, 4-piston fixed front and rear
– Rotor Type (diameter x width): Patented, fixed rotors
– Front (dual) 11.81 in. x .2 in. (300 mm x 5 mm)
– Rear 11.81 in. x .28 in. (300 mm x 7 mm)
– Anti-lock Braking System (option) Available
Suspension Travel:
– Front Wheel 4.6 in. (117 mm)
– Rear Wheel 3 in. (76 mm)
Engineered for Sidecar Use Available



PERFORMANCE
Engine Torque6 (per SAE J1349):
– North America 102 ft. lbs. @ 3500 RPM (138 Nm @ 3500 RPM)
Lean Angle:
– Right 33°
– Left 31°
Fuel Economy7
(EPA urban/highway test)
35/54 mpg (6.70/4.40 L/100 km)



ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 28-amp/hour, 270 cca
Charging Three-phase, 50-amp system (585W @ 13V, 2000 RPM, 650W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
– Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
– Tail/Stop Lights 8W/28W (5W/21W)
– Turn Signal Lights 28W (21W) self-canceling
– Indicator Lamps – High beam, running lights, directional, light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system8 (optional), 6-speed, low fuel warning, cruise control,
ABS (optional)



COLOR OPTIONS
Solids

– Vivid Black
– Brilliant Silver Pearl
– Cool Blue Pearl
– Merlot Sunglo



WARRANTY
Warranty9 24 months 0(unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter



1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive
comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can
occur and complete accuracy cannot be guaranteed. Harley-Davidson may
make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories
described in this catalog may not be available for sale or use in some locations.
Please check with your dealer for complete product details and the latest
information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Primary case oil fill is 45 oz. or as needed to fill to bottom of diaphragm.
4 Recommended 91 octane or higher fuel (R+M)/2.
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance may vary by country and region.
7 Estimated from fuel economy tests on a sample motorcycle from the
corresponding family conducted by Harley-Davidson under ideal laboratory
conditions. Not all motorcycle models undergo fuel economy testing. Fuel
economy and mileage may vary among motorcycle models within a family. Your
mileage may vary depending on your personal riding habits, weather conditions,
trip length, vehicle condition and vehicle configuration and other conditions.
Break-in mileage may vary.
8 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
9 See motorcycle owner’s manual for complete details.






2011 Harley-Davidson FLTRU Road Glide Ultra – Canada Specifications
Canadian MSRP – See your local retailer for pricing information.


DIMENSIONS Metric Units
Length 2525 mm
Seat Height
Laden 1
Unladen 1 740 mm
Ground Clearance 125 mm
Rake Steering Head
Trail 170 mm
Wheelbase 1630 mm
Fuel Capacity 22.7 L
Oil Capacity 3.8 L
Weight
Dry Weight 400 kg
Running Order 413 kg
Luggage Capacity
Volume
Weight



POWERTRAIN
Engine 2 Air-cooled, Twin Cam 103™Air-cooled, Twin Cam 103™
Displacement 1690 cc
Bore x Stroke in. / in.98.4 mm / 111.1 mm
Engine Torque J1349
Engine Torque 3 ft. lbs. @ rpm135 Nm @ 3250 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.6:1
Primary Drive Chain, 34/46 ratioChain, 34/46 ratio
Fuel Economy
Fuel Economy City 5 6.72 l/100km
Fuel Economy Hwy 5 4.36 l/100km
Gear Ratio (Overall)
1st 9.594
2nd 6.65
3rd 4.939
4th 3.999
5th 3.407
6th 2.875



WHEELS / TIRES
Wheels
Front 6 Black, 28-Spoke Cast AluminumBlack, 28-Spoke Cast Aluminum
Wheel Option 6 Chrome, Aluminum Profile LacedChrome, Aluminum Profile Laced
Rear 6 Black, 28-Spoke Cast AluminumBlack, 28-Spoke Cast Aluminum
Tire Size
Front
Rear



ELECTRICAL
Instruments Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator light; Tachometer with fuel, voltage, oil pressure and ambient air temperature gaugesFairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator light; Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges
Indicator Lamps 7 High beam, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), ABS (optional), cruise control (optional), 6-speed, low fuel warningsHigh beam, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), ABS (optional), cruise control (optional), 6-speed, low fuel warnings

CHASSIS
Brakes 32mm, 4-piston fixed front and rear32mm, 4-piston fixed front and rear
Parking Brake
Lean Angle
Exhaust System Chrome, 2-1-2 dual exhaust with slash-up mufflersChrome, 2-1-2 dual exhaust with slash-up mufflers



COLOR OPTIONS
Vivid Black
Brilliant Silver Pearl
Cool Blue Pearl
Merlot SungloVivid Black
Brilliant Silver Pearl
Cool Blue Pearl
Merlot Sunglo



1 Measurement reflects 180 lb. (81.7 kg) operator weight.
2 Recommended 91 octane or higher fuel (R+M)/2.
3 Values shown are nominal. Performance may vary by country and region.
4 Standard and optional fuel systems may vary by country.
5 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6 Standard and optional wheels may vary by country and region.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner’s manual for complete details.

Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.





Harley-Davidson Press Release



HARLEY-DAVIDSON OFFERS THREE NEW MODELS FOR 2011
Plus New PowerPak Touring Combo and Available ABS for Softail® models
MILWAUKEE (July 27, 2010) – Harley-Davidson introduces the new SuperLow™, XR1200X and Road Glide® Ultra models with its expansive line of 2011-model-year motorcycles. With 32 models including urban brawlers, long-haul touring machines, contemporary customs drenched in chrome, dark retro-style bobbers, exhilarating sport roadsters and inviting standards, Harley-Davidson offers a motorcycle to match the desires of almost any street rider. Each rolls to the sound track of the American road, a syncopated V-Twin cadence that is the pulse of every Harley-Davidson® motorcycle.

Highlights of the 2011 Harley-Davidson line include:

The new SuperLow combines revised front end geometry, new wheels and tires with a reshaped seat and handlebars to achieve well-balanced handling and comfort that will inspire confidence in new riders and exhilarate those with experience.
The qualities of a frame-mounted fairing and luxury touring accommodations come together in the new Road Glide Ultra. Powered by a Twin Cam 103™ engine, this long-haul beauty comes equipped with a King Tour-Pak® luggage carrier, vented fairing lowers, ABS (anti-lock braking system), Harley-Davidson Smart Security System, cruise control, and a four-speaker, 80-watt Harman/Kardon Advanced Audio System.
The new XR1200X is Harley-Davidson Sportster® performance honed to its finest edge, with adjustable front and rear suspension, floating front brake rotors and the surging power of a high-compression 1200cc Evolution® V-Twin engine.
Select Touring models gain power and technology with the new Harley-Davidson PowerPak, which bundles the Twin Cam 103™ engine with ABS (anti-lock braking system) and the H-D® Smart Security System. PowerPak is a standard feature on the 2011 Road King® Classic, Electra Glide® Ultra Limited, and Road Glide® Ultra models, and will be available as a factory-installed option on the 2011 Street Glide® and Road Glide® Custom models.
2011 Harley-Davidson Softail models except Cross Bones® are newly available with optional ABS. New hand controls add features, convenience and cleaner styling.
The 2011 VRSC™ power-cruisers are available with a new Security Package option, which bundles ABS with a Smart Security System for greater value. Michelin® Scorcher™ tires and new colors and graphics round out changes to the Night Rod® Special and the V-Rod Muscle™.
The four 2011 Dyna® models project pure attitude. Built with the rawest styling of all the Big Twin motorcycles, Dyna models are a customizer’s dream. Each is offered in new colors.
Harley-Davidson Custom Vehicle Operations (CVO™) offers four premium, limited-production motorcycles for 2011.

The new CVO Road Glide Ultra features a Road Tech® zumo® 660 GPS navigation system, upgraded Harman/Kardon Advanced Audio system with BOOM! Bagger speakers and an 8GB iPod® nano® and dock, and a two-up suspended touring seat with dual heat controls.
The CVO Street Glide rolls on a new 19-inch Agitator™ front wheel, and new ventilated fairing lowers house two of the six speakers that are part of a 100-watt-per-channel audio system that incorporates an 8GB iPod nano with dock.
The CVO Softail Convertible has a new audio system that integrates 3.5-inch speakers and a 20-watt-per-channel amplifier into a redesigned inner fairing. Music is delivered by an 8GB iPod nano stored in a protective pouch. Also new is a 1.25-inch welded mini-ape handlebar, Electronic Throttle Control (ETC), cruise control, keyless ignition and ABS.
The CVO Ultra Classic® Electra Glide® has a new suspended, heated, two-up seat with leather inserts. Dual mufflers feature new chrome billet end caps with black spears, and new mirrors are finished in mirror chrome.
Harley-Davidson Motor Company produces heavyweight custom, cruiser and touring motorcycles and offers a complete line of Harley-Davidson motorcycle parts, accessories, riding gear and apparel, and general merchandise. For more information, visit Harley-Davidson’s Web site at www.harley-davidson.com.

About Michael Le Pard 872 Articles

“Mr. Totalmotorcycle”. Owner and Founder of Total Motorcycle. Supporting Motorcyclists and Motorcycling for 18 great years.

Be the first to comment

Leave a Reply
