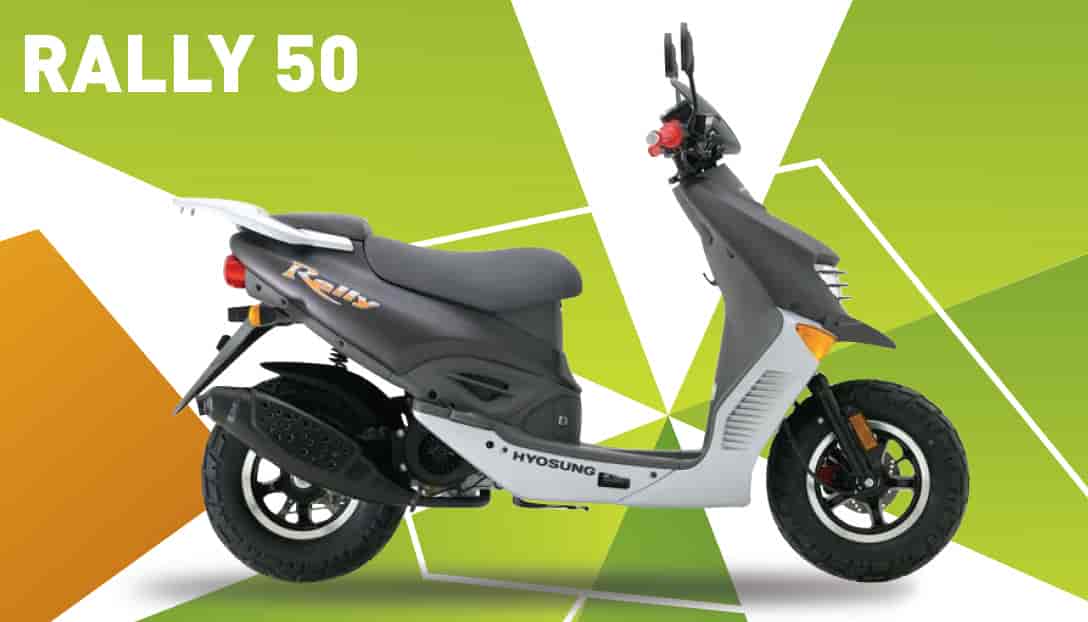

2011 Hyosung Rally 50
2011 Hyosung Rally 50



– 2011 Hyosung Rally 50

2011 Hyosung Rally 50

We all love to have fun, but traffic snarls aren’t fun, are they? Hyosung’s rugged Rally 50 provides the perfect antidote to an increasingly difficult problem. Moreover, its chunky 10-inch tyres are the masters of grip, and will even maintain a strong foothold heading up grandpa’s gravel driveway. The Rally’s nifty flat-floor design allows plenty of room to carry cargo, and the off-road style cockpit and handlebars reek of sturdiness. Commuting’s no longer a chore, and parking is about position, not handing over your hard-earned to parking attendants. The Rally 50: a journey of discovery.

Easy on fuel and big on fun. The Rally’s 50cc 2-Stroke and CVT auto transmission provides outstanding performance. The Rally is as confident off road as it is on.





2011 Hyosung Rally 50 Features:

High-capacity muffler, with enhanced exhaust efficiency and beautiful external appearance, heightens high grade in design.

Telescopic forks offer superior dampening to provide you with a comfortable ride
on or off road.

The SF50R’s has plenty of room to carry cargo

Headlight guard for off road riding.









2011 Hyosung Rally 50 – North American Specifications
MSRP – See Dealer for current pricing.

Chassis Overall Length (inch) 72.6
Overall Height (inch) 46.7
Overall Width (inch) 26.8
Wheel Base (inch) 50.6
Ground Clearance (inch) 5.5
Seat Height (inch) 29.7
Brake (Front) 162Ø Single disc, 1 piston caliper
Brake (Rear) Drum
Suspension (Front) Conventional Telescopic
Suspension (Rear) Mono Shock Absorber (Preload adjustable)
Tire (Front) 120/90 -10 66J
Tire (Rear) 130/90 -10 70J
Fuel Tank Capacity (gal) 1.25
Dry Mass 194 lbs

Engine Type Forced Air cooled 2-stroke Single cylinder
Displacement (cc) 49
Bore x Stroke 41 x 37.4
Compression Ratio 7.2 : 1
Max Power 5 HP
Max Torque 2.77 lb/ft @ 6500 RPM
Fuel System Carburetor

Transmission Clutch Centrifugal automatic clutch
Gear Box CVT

Warranty Year 2







2011 Hyosung Rally 50 – International Specifications
MSRP – See Dealer for current pricing.

Dimensions & Dry Mass
Overall Length (mm)1,845
Overall Width (mm)680
Overall Height (mm)1,185
Wheel Base (mm)1,285
Dry Mass (kg)95
Seat Height (mm)810
Ground Clearance (mm)140

Engine
Type Air-cooled, two-stroke, single-cylinder
Fuel System Single 14mm carburettor
Displacement (cc)49
Starting System Electric and kick

Capacity
Fuel Tank (litres)4.8
Transmission Type V-belt fully automatic
Clutch Dry centrifugal

Chassis
Front Suspension Telescopic forks
Rear Suspension Coil spring
Front Tyre 120/90-10
Rear Tyre 130/90-10
Front Brake Disc
Rear Brake Drum

Warranty
Warranty Two-year, unlimited kilometres
Model year is identified by the 10th digit in the VIN code

Hyosung Notes : Specifications and pricing are subject to change without notice. Images for illustration purpose only.
