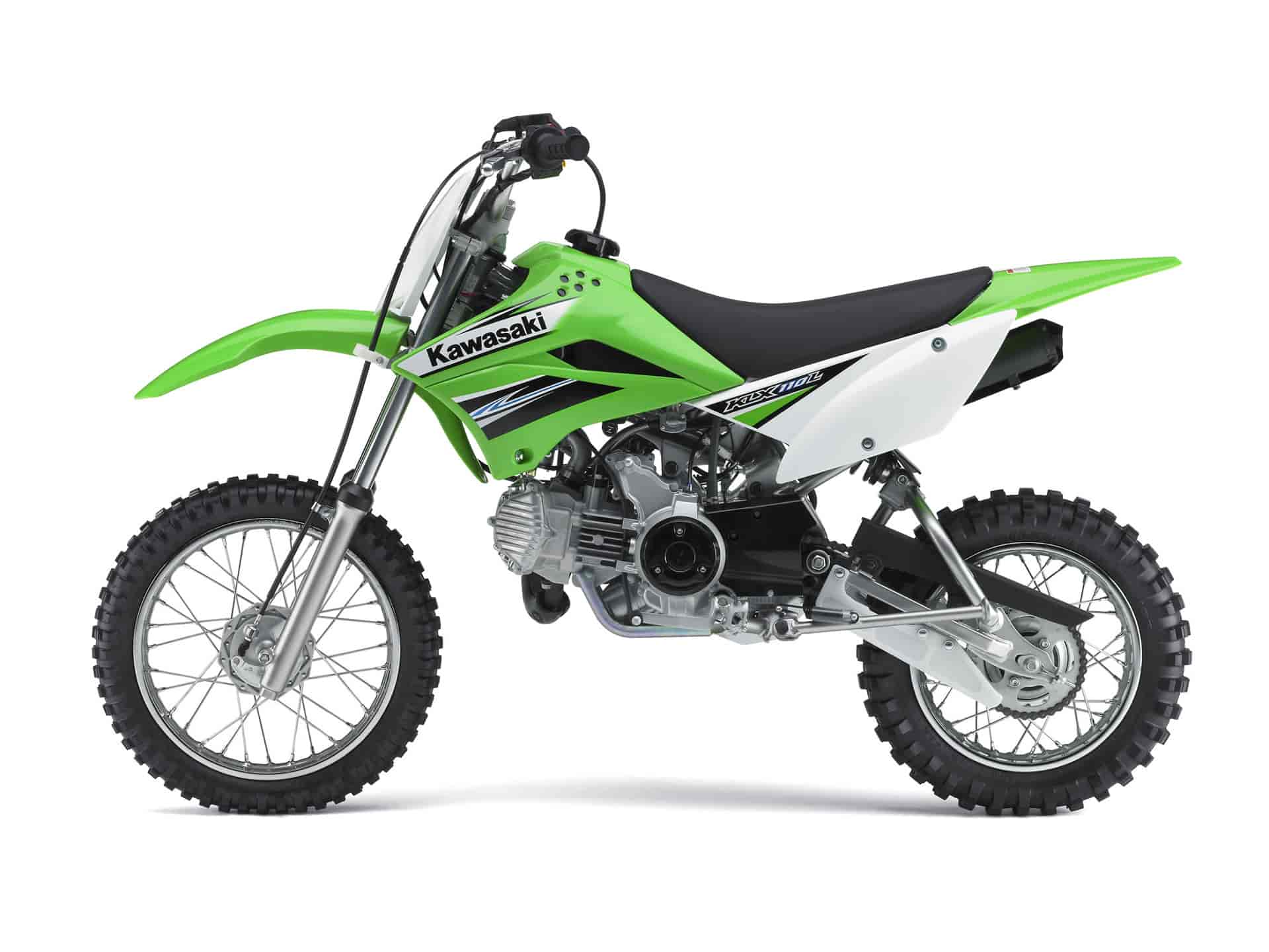

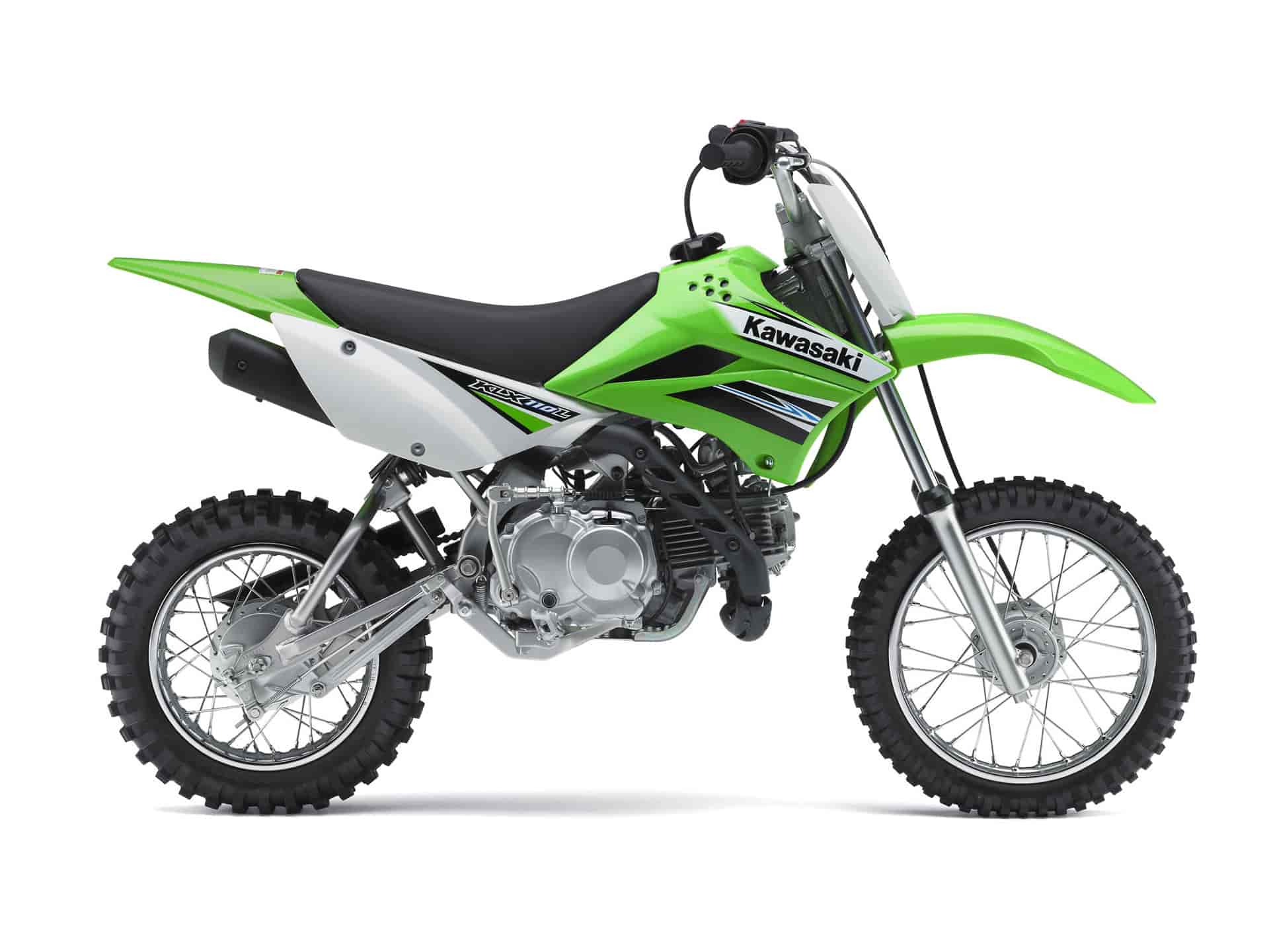

2011 Kawasaki KLX 110L
2011 Kawasaki KLX 110L

2011 Kawasaki KLX 110L
2011 Kawasaki KLX 110L

2011 Kawasaki KLX 110L
2011 Kawasaki KLX 110L

2011 Kawasaki KLX 110L
2011 Kawasaki KLX 110L

2011 Kawasaki KLX 110L
2011 Kawasaki KLX 110L

2011 Kawasaki KLX 110L
2011 Kawasaki KLX 110L


– 2011 Kawasaki KLX 110L

2011 Kawasaki KLX 110L

Kawasaki’s Legendary Minibike Experiences a Growth Spurt

The old adage “don’t mess with a good thing” is usually sage advice. But in Kawasaki’s case, “messing” with its legendary KLX™110 minibike is a very good thing. You already know the standard KLX110 – with its reliable four-stroke engine, automatic-clutch drivetrain and electric, push-button starter – is much-loved by kids, beginners and adults for its unreal fun-factor and riding ease. But to expand the KLX110’s envelope a bit – make it even more accessible to even more riders – Kawasaki developed the KLX110L, which incorporates features designed to appeal to a slightly larger, slightly more advanced rider – along with all those adults who love riding the little green bikes.

These features begin with the L-model’s taller stature, which results from a 2.4-inch longer fork with 5.5 inches of travel and a longer shock out back, which offers 5.2 inches of wheel travel. The result is a seat height of 28.7 inches – nearly 2 inches higher than that of the standard KLX110. Of course, those new suspension components carry optimal spring and damping settings, so those larger riders can push as hard as they choose.

More experienced riders often demand the superior control of a manual clutch, so the KLX110L gets one to compliment its four-speed gearbox. This combination lets more aggressive riders wring every drop of performance from the 111cc four-stroke engine. Convenient push-button electric starting helps make the KLX110L easily accessible to a wide range of riders.

The Kawasaki design team outfitted the KLX110L with a fuel tank, seat, side panels, shrouds and fenders that mimic the race winning KX™450F’s. An MX-style seat is part of the package, along with a handlebar shape optimized to provide excellent comfort and control to a wide variety of riders. In other words, this one’s for kids of all ages.

The KLX110L can be customized with Authentic Kawasaki Accessories available at Kawasaki dealers.







Kawasaki KLX 110L model Highlights

Details & Features
– Air-cooled, Four-stroke 111cc Engine
– All 2011 KLX 110 and 110Ls feature valve timing, free-flowing muffler and ignition system for up to 15 percent more power and torque than pre-2010 KLX110 models
– Push-button electric starting makes it easier than ever to get rolling, while a reshaped kickstarter is included as a back-up
– Starter button and kill switch are located on the left handlebar for easy access
– KACR (Kawasaki Automatic Compression Release) keeps one exhaust valve open for easy starting
– KLX’s compact, lay-down engine design is ideal for engine cooling and a low center of gravity
– An ignition timing inspection hole allows easy maintenance
– Choke knob on the 18mm carburetor is easy to grab with gloves on

Four-speed Transmission
– Four ratios are spaced to help exploit engine power: While the overall top-gear ratio is nearly the same as pre-2010 KLX110s, that extra gear is combined with a short final drive ratio to effectively tighten the gaps between each gear, while also widening the available range of operating speeds
– A manual clutch makes it easier to squeeze maximum performance out of the powerful little engine
– Shift drum cam groove and positioning spring result in optimal shift feel and positive gear engagement under all conditions

Safety Features and Parental Controls
– For added safety, the KLX110L will only start in neutral
– The engine-off switch is within easy reach on the left handlebar
– A screw-type throttle limiter allows adult supervisors to control kids’ speed while they learn

Expanded Performance Envelope
– 30mm telescopic fork with 5.5 inches of travel is tuned for optimal wheel and chassis control
– Tapered roller bearings in the lower steering stem add durability
– The 110L’s handlebar shape suits a wide variety of rider sizes
– Stiffer spring and damping rates on the longer rear shock control the rear wheel through 5.2 inches of more firmly controlled travel, with greater resistance to bottoming
– 14-inch front and 12-inch rear knobby tires on strong, steel rims provide great off-road traction and durability, and keep seat height low
– Rigid rear brake rod allows excellent braking and pedal feel

Big KX Style, Built to Last
– The high-tensile steel backbone frame is strong, lightweight and built to take years of abuse
– Four strategically placed heat shields provide protection from the exhaust pipe
– A 28.7-inch seat height accommodates a broad range of riders
– KX450F-style fuel tank, seat, shrouds, side panels and fenders look fast even sitting still
– KX-style half-waffle grips provide better control and comfort
– A convenient side stand makes life easier

Additional Features
– A U.S. Forest Service-approved spark arrester comes as standard equipment
– The KLX110L meets California “Green Sticker” requirements for year-round riding fun






Kawasaki KLX 110L model Highlights

Engine

MINI-MOTO MANIA: TWO FUN NEW OFF-ROAD PLAYBIKES FOR YOUNGSTERS AND MINI-MOTO ENTHUSIASTS

Removed from the hustle and bustle of the city, even simple bikes can offer a great deal of fun. Kawasaki recognizes this, and proudly introduces two new playbikes based on the KLX110. Designed for youngsters aged 13 and above, and mini-moto enthusiasts, the new KLX110 and KLX110L can handle rider weights up to 70 kg.

Numerous upgrades make the KLX110/L even more fun to ride. Revised settings for the 112 cc SOHC Single result in a more powerful engine. A new 4-speed transmission means even more gear selection. Revised rear suspension offers increased bottoming performance, and roomier ergonomics accommodate a wider range of riders.

Compounding the fun, riders now have two models from to choose from. The “standard” KLX110, featuring all the improvements listed above, comes equipped with a centrifugal clutch, enabling clutchless shifting. The KLX110L features a manual clutch enabling sportier riding for those who want to enjoy greater control, and longer-travel suspension that offers superior rough-road performance.

And with the addition of handy new features like electric start and KACR (Kawasaki Automatic Compression Release), access to fun is easier than ever. Revised pedal and lever design further facilitate operation.

Both models are wrapped in sporty factory-style bodywork emulating Kawasaki’s flagship motocrosser, the KX450F.

The KLX110 and KLX110L – Small bikes. Big fun.


Engine

MORE FUN
Revised engine settings, a new transmission, revised suspension and roomier ergonomics make the KLX110/L more fun to ride than ever.

Powerful engine
Air-cooled 112 cc SOHC engine pumps out plenty of responsive low- rpm torque. Revised valve-timing results in an engine more powerful at all rpm’s than its predecessor.

Revised carburettor settings match the revised power characteristics and offer more stable performance when riding on rough roads.

Revised silencer internals offer improved flow and deliver a bold exhaust note while maintaining noise levels.

Reduced piston ring tension offers reduced mechanical friction, also contributing to the increased performance.

MORE CHOICES
Riders now have two models with different characteristics to choose from. The KLX110 features a centrifugal clutch, making it ideal for those looking to enjoy simply playing on two wheels; the KLX110L offers a manual clutch and longer-travel suspension for those looking to enjoy greater control and even more off-road performance.


Clutch: centrifugal or manual
New electric starter offers hassle-free starting. Gear pattern is N-1-2-3-4.

Manual clutch (KLX110L only) offers the rider additional control. Gear pattern is 1-N-2-3-4.

Muffler comes equipped with a spark arrester, meaning the KLX110/L can access designated off-road public riding areas.

Digital DC-CDI ensures quick starts and low maintenance.

Ignition timing inspection hole added to the left side of the engine facilitates maintenance.

Efficiently designed airbox is compact and easy to service.

Other
Neutral-only starting (KLX110 only) prevents the bike from being started in gear.

Adjustable throttle allows performance to be limited.

Three separate heat shields are mounted on the exhaust system.

Sprocket-style chain drive roller (KLX110L only) helps smooth engine braking by reducing the effect of driveline lash when the rider gets off the gas quickly and play in the lower side of the chain suddenly tightens. The additional control facilitates corner entry.

Long lower chain guard encloses the bottom and hub-side of the chain, making it difficult for fingers to get trapped.


Easy starting
New electric starter offers hassle-free starting.

KACR (Kawasaki Automatic Compression Release) (using the intake valve) provides easy starting for both the electric starter and kick starter.


Transmission

4-speed transmission

New transmission features 4 gears (increased from 3-speed).

Gear ratios were reviewed accordingly. While the overall ratio in top gear (now 4th gear) is about the same, 1st gear is much taller and the gearbox has a wider range, which contributes to smoother transition, making riding more fun and more aggressive riding possible. Final ratio is now 38/13 (2.923) (Ilustration A)

Redesigned shift drum cam groove and positioning spring and a smoother cam surface result in improved shift feel and positive gear engagement under all riding conditions.

Manual transmission (KLX110L only) enables sportier riding for those wishing to enjoy greater control.


Suspension

Rear suspension
Higher rear shock spring rates, increased damping and new rubber damper material offer increased bottoming performance.

Swingarm pivot lowered to accommodate the longer rear shock units.

Suspension: short or long-stroke
The KLX110 and KLX110L feature different suspension lengths and strokes.

KLX110 KLX110L
Front: Length 616 mm 677 mm
Stroke 110 mm 140 mm

Rear: Length 260 mm 288 mm
Stroke 55 mm 68 mm
Wheel Travel 110 mm 132 mm
Spring Rate 55 N/mm 42 N/mm

Corresponding to the different suspension, rider height varries:

KLX110 26.8″ (680mm)
KLX110L 28.7″ (730mm)

The longer suspension of the KLX110L also offers increased handling performance and increased rough-road capability.



Brakes & Tires

New high-traction IRC off-road tires (F: 2.50-14 4PR; R: 3.00-12 4PR) offer increased performance.

Rear brake rod with revised offset and lever ratios offers a more positive brake pedal feel .


ErgonomicsRevised handlebar bend offers greater freedom of movement and accommodates a wider range of riders.

New grip design featuring a raised waffle pattern on half of the surface offers improved grip and comfort.

Increased seat height more easily accommodates taller riders.



Chassis

FACTORY STYLING
Factory styling gives the KLX110 and KLX110L the look of true motocrossers.

Bodywork
New shrouds, tank, number plate, side covers and fenders have a sharp new design modelled after our flagship motocross racer, the KX450F.

Sturdy high-tensile steel backbone frame and high-tensile steel braced swingarm contribute to the excellent handling characteristics of the KLX110 and KLX110L.

Tapered roller bearing (previously a ball bearing) used at the bottom of the steering stem offers increased durability.

Steel rims measure 14 x 1.40 (front) and 12 x 1.60 (rear).

Sealed-type 12 V battery supplies power for the electric starter.

Convenient side stand eases maintenance chores.

Easy operation
Revised shape for the shift pedal, brake pedal and kick start pedal offer easier operation and minimize unintended actuation.

Starter and kill switch are both located at the left handle grip, allowing the rider to operate the throttle with one hand while starting or stopping the engine with the other.

EASIER TO USE
With the choice of kick start or the newly added electric start, access to fun is easier than ever. Redesigned pedals facilitate operation and keep them out of the way when not in use.



Colours

Lime Green






2011 Kawasaki KLX 110L – USA Specifications
MSRP: $2,299 USD

ENGINE
Four-stroke, SOHC, two-valve single
Displacement: 111cc
Bore x Stroke: 53.0 x 50.6mm
Compression ratio: 9.5: 1
Cooling System: Air
Carburetion: Mikuni PB18
Ignition: CDI
Transmission: Four-speed
Final drive: Chain
Frame Type: Backbone frame, high-tensile steel
Rake/Trail: 24.2 degrees / 1.9 in.
Front suspension / wheel travel: 30mm hydraulic telescopic fork / 5.5 in.
Rear suspension / wheel travel: Swingarm with single hydraulic shock / 5.2 in.
Front Tire Size: 2.50×14
Rear Tire Size: 3.00×12
Front brakes / rear brakes: Mechanical Drum / Mechanical drum
Overall length: 61.4 in.
Overall width: 25.6 in.
Overall height: 39
Ground clearance: 10.4 in.
Seat height: 28.7 in.
Curb weight: 168 lbs.
Wheelbase: 42.3 in.
Fuel capacity: 1.0 gal.
Color Choices: Lime Green
Warranty: 6 months
Good Times™ Protection Plan: 12, 24 or 36 months





2011 Kawasaki KLX 110L – Canada Specifications
MSRP: $TBD CDN

ENGINE
Type Air-cooled, 4-stroke Single
Displacement 112 cc
Bore and Stroke 53.0 x 50.6 mm
Compression Ratio 9.5:1
Valve System SOHC, 2 valves
Fuel System Carburettor: PB18 (Keihin)
Ignition Digital DC-CDI
Starting Kick & Electric
Lubrication Forced lubrication, wet sump

DRIVETRAIN
Transmission 4-speed, return
Final drive Chain
Primary Reduction Ratio 3.409 (75/22)
Gear Ratios: 1st 3.000 (36/12)
2nd 1.938 (31/16)
3rd 1.350 (27/20)
4th 1.087 (25/23)
Final Reduction Ratio 2.923 (38/13)
Clutch Wet multi-disc, manual

FRAME
Type Steel backbone
Wheel Travel: Front 140 mm
Wheel Travel: Rear 132 mm
Tires: Front 2.50-14 4PR
Tires: Rear 3.00-12 4PR
Caster (Rake) 24.2°
Trail 47 mm
Steering angle (left/right) 45° / 45°

SUSPENSION
Front: Type 30 mm telescopic fork
Rear: Type Single shock
BRAKESFront Type Drum ( ø90 mm)
Rear Type Drum ( ø110 mm)

DIMENSIONS
Overall Length 1,560 mm (61.4 in.)
Overall Width 650 mm (25.6 in.)
Overall Height 990 mm (39 in.)
Wheelbase 1,075 mm (42.3 in.)
Ground Clearance 265 mm (10.4 in.)
Seat Height 730 mm (28.7 in.)
Curb mass (without saddlebags) 76 kg (167.6 lbs.)
Fuel Capacity 3.8 litres (0.8 gal.)

PERFORMANCE
Maximum Power 5.4 kW {7.3 PS} / 7,500 rpm
Maximum Torque 8.0 N·m {0.82 kgƒ·m} / 4,000 rpm

DETAILS
MSRP* TBA
Colour Lime Green
Warranty 6 months

ADDITIONAL COST OPTIONS
Good Times Protection Plan 24 or 36 months (Kawasaki GTPP coverage begins after the standard limited warranty expires)



* The Manufacturer’s Suggested Retail Price does not include freight, pre-delivery inspection or applicable taxes. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice.

The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We intend only to give a fair description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Kawasaki Heavy Industries, Ltd. reserves the right to alter specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets. Available colours may vary by market.
