– 2011 Yamaha V-Star 1300

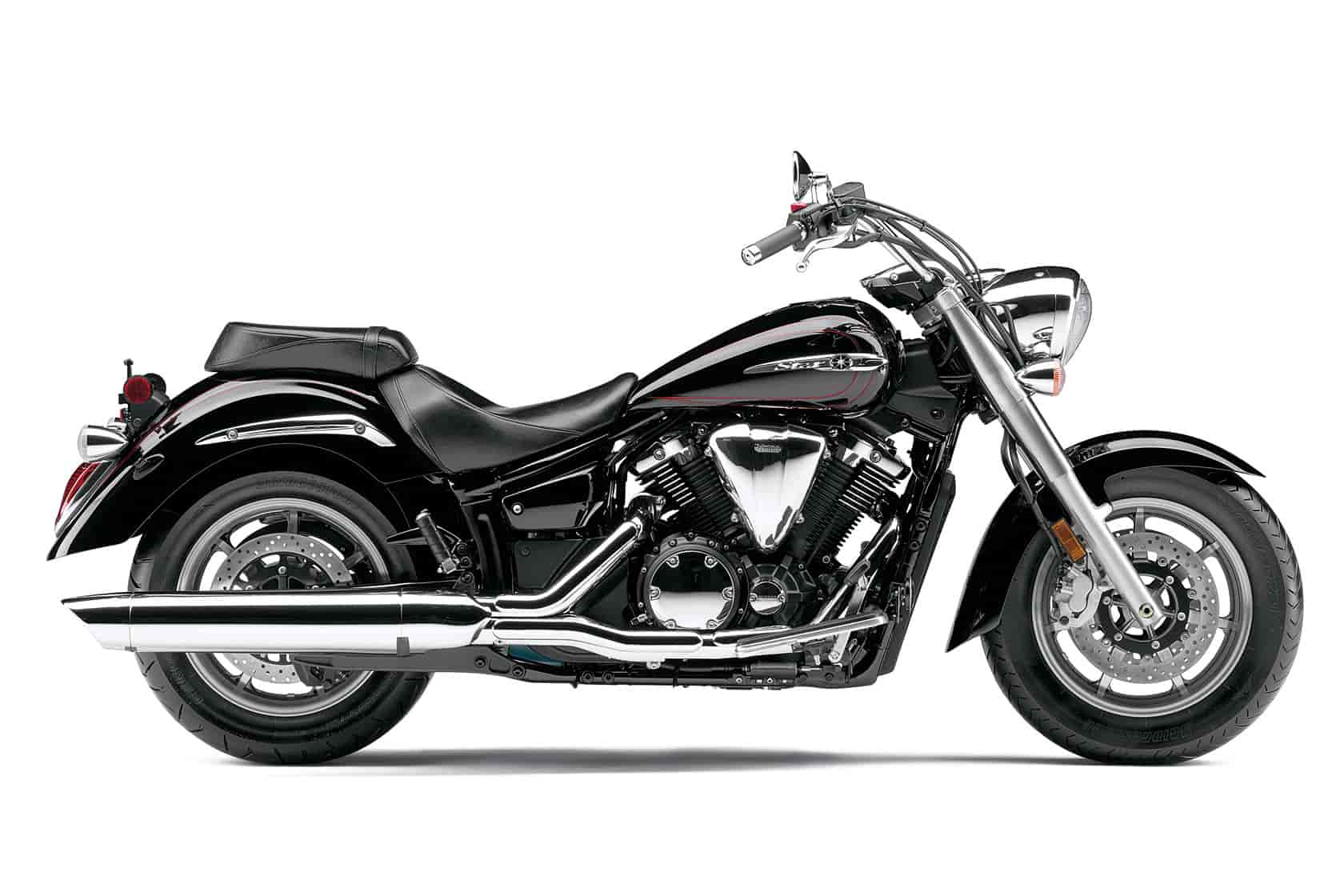

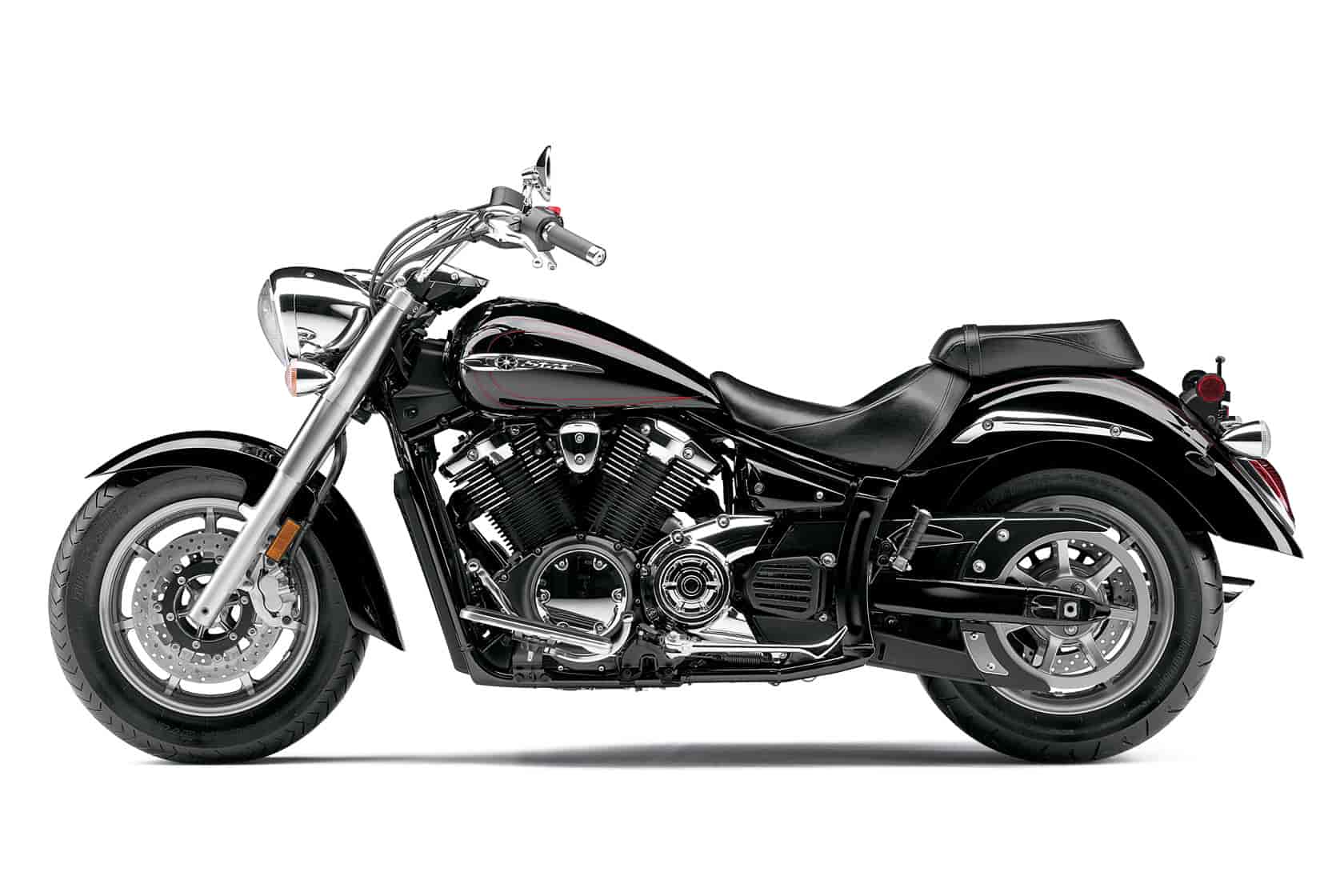

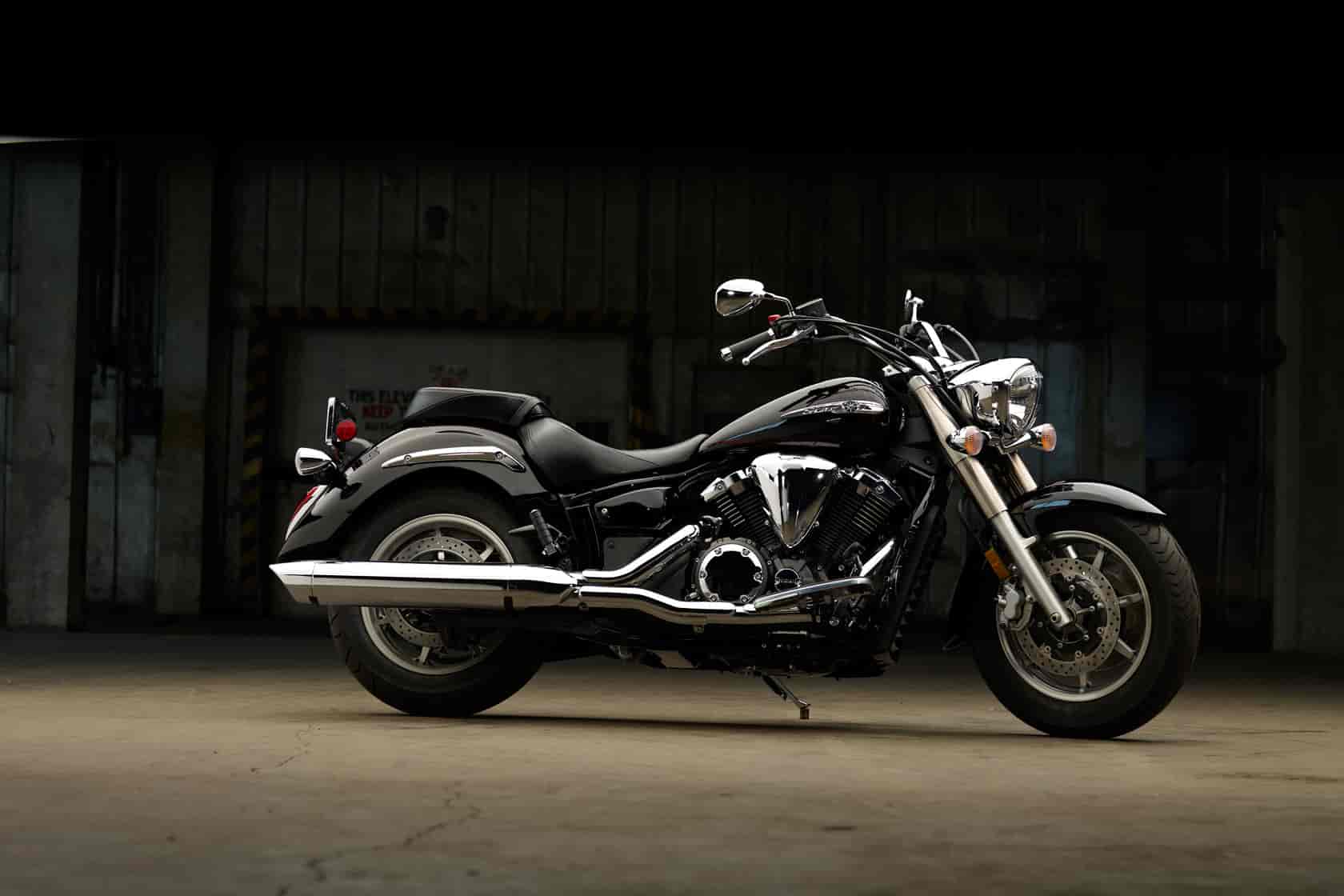

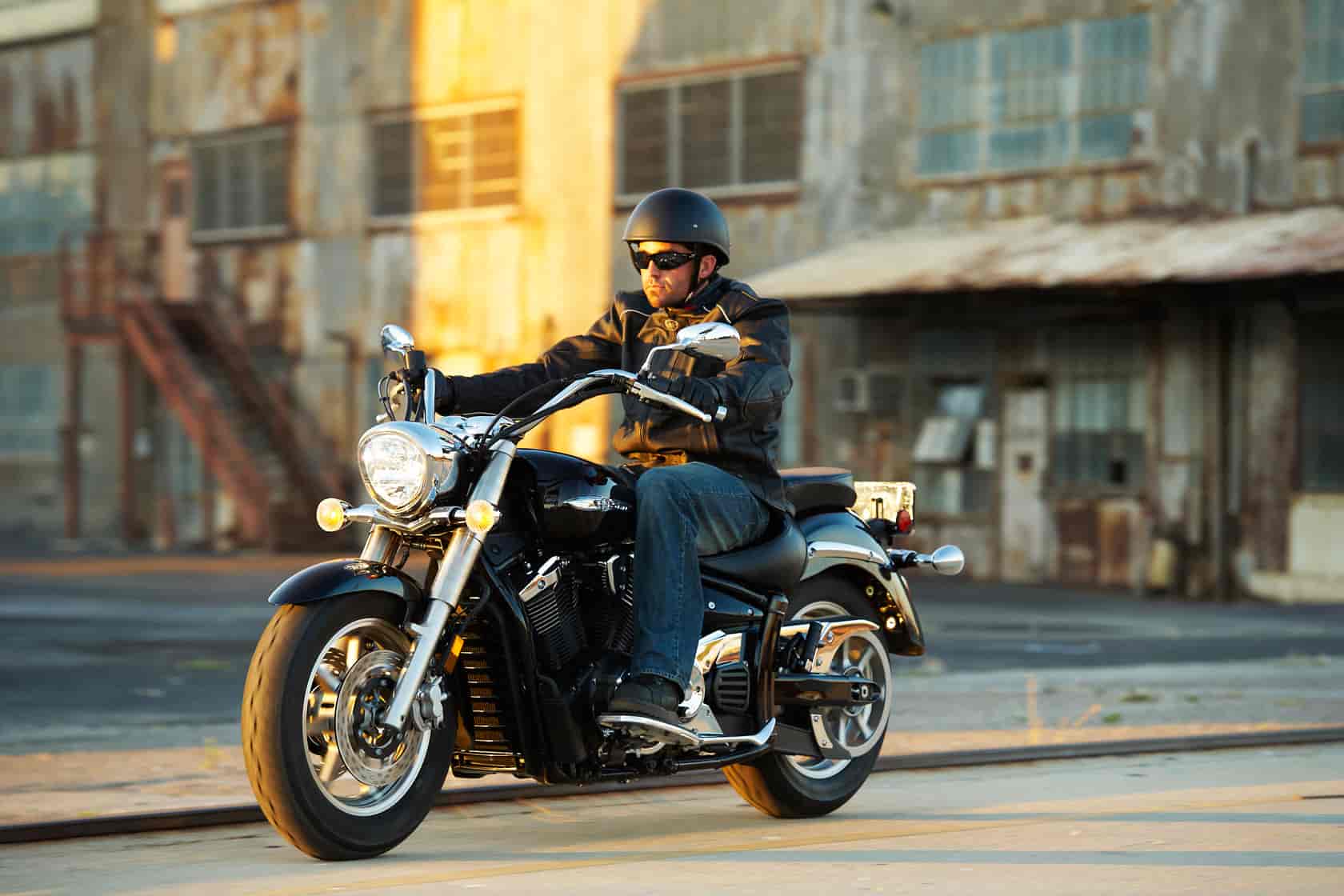

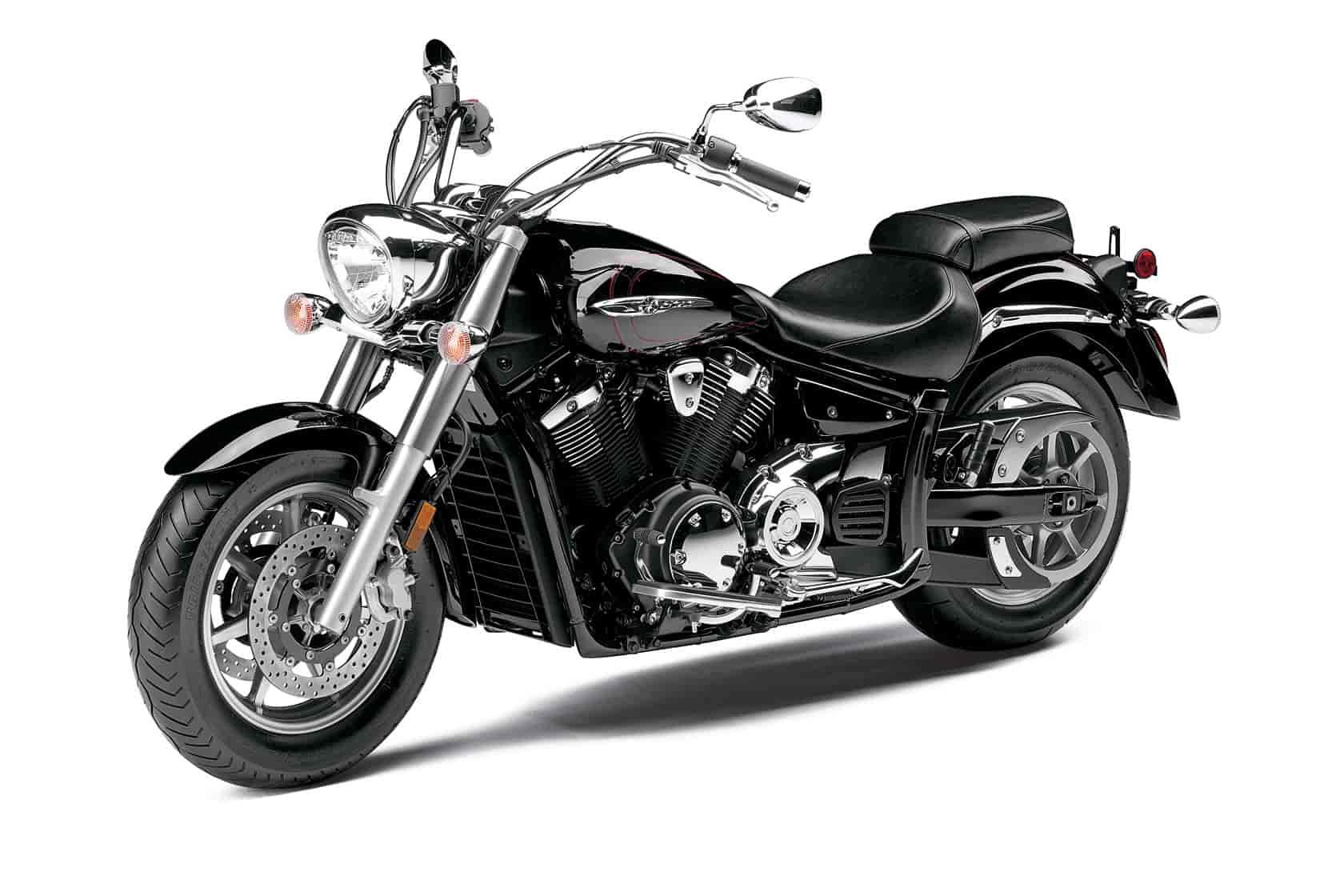

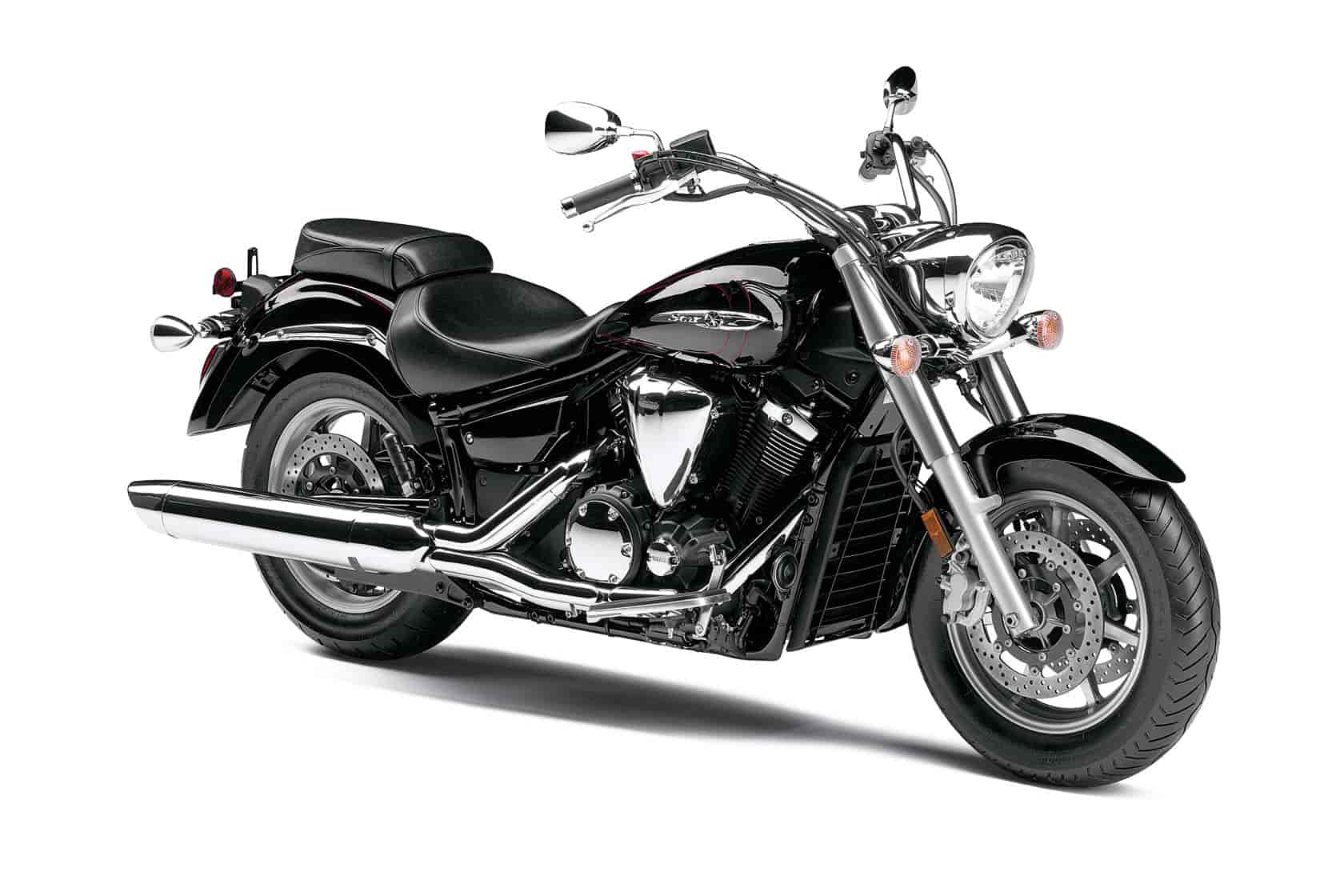

2011 Yamaha V-Star 1300
Newly improved for 2011, the V Star 1300 is more comfortable, thanks to a new handlebar with more relaxed riding position and a new lower seat.
Powered by a sporty 1304cc, fuel injected, liquid-cooled, V-Twin powerplant; the 2011 Yamaha V-Star 1300 boasts class leading performance, handling and comfort. Easy to ride and easy to touch the ground, we finished off this midsize cruiser with a little steamlined style and plenty of Yamaha Star quality and durability.
The perfect Star.
Not too big and not too small but with a personality all its own. That’s the 2011 Yamaha V Star 1300 with its belt drive, powerful 80-inch V-twin, steel fenders and flangeless fuel tank. Star quality from stem to stern and the looks to turn heads all in a package that is designed to navigate the urban maze in style.
Solid performance. Great looks
Yamaha has taken the traditional cruiser into a bold new territory with the eye catching V-Star 1300. Traditional yet modern, classic yet avant-garde. From the throaty exhaust note to the pulse feel of the fuel injected V-twin engine, the V-Star 1300 offers something we call “sensual performance”. The perfect blend of soul stirring power, handling and comfort highlights the Man-Machine relationship which is so important to owner satisfaction.
2011 Yamaha V-Star 1300 model Features
Fuel Consumption * 18kpl/51mpg(Imp)
1304cc, liquid-cooled, V-twin
throttle body fuel injection
1304cc (80 cubic inch), liquid-cooled, short stroke, SOHC, 8-valve, 60° V-twin powerplant pumps out incredible amounts of class leading power and torque for unparalleled acceleration and cruising performance.
Electric starting system features a mechanical centrifugal decompression device in the exhaust camshafts for easy, no-hassle starting.
Liquid-cooling not only allows for higher state of tune because it maintains more stable operating temperatures, but also reduces mechanical noise for a quieter engine.
In an effort to maintain the classic air-cooled appearance of the engine, cooling fins have been added as a styling touch and the rad is “hidden” between the frame down tubes.
The short stroke engine design reduces the “height” of the engine, while the 60 degree “V” makes the engine more compact thereby centralizing mass and lowering the center of gravity for lighter more responsive handling.
Classic V-twin “pulse feeling” and engine character highlight this powerplant while annoying vibration has been eliminated.
One-piece cylinder heads feature 4-valves per cylinder to provide optimum breathing efficiency for maximum power output. Each head is fitted with a single long reach spark plug.
Stylish chromed cylinder head covers.
The SOHC valve train features 36mm intake and 32mm exhaust valves with single springs for great power and torque. Valves angles are set at 20 degrees from centre. Specially designed roller rockers activate the valves. The rocker system allows a greater amount of valve lift without producing excessive camshaft wear and friction. The slipper portion of the rocker arm features a needle bearing to further reduce wear and slide resistance. The camshafts have been specially designed for use with roller rockers.
Optimized squish area forces the fuel / air mixture toward the centre of the combustion chamber for more complete combustion and hence improved power and cleaner emissions.
The radiator is mounted between the front frame down tubes to minimize its appearance especially when viewing the machine from the side. Even the rad hoses have been discreetely placed for a cleaner appearance. An electric fan aids in cooling in stop and go traffic. Special cooling louvers direct air to the rad.
Automatic hydraulic cam chain tensioners reduces mechanical noise and extend engine life.
Ceramic composite-plated cylinders reduce weight, increase cylinder life and provide uniform heat dissipation. The cylinders have a tapered “V” appearance to highlight the V-twin design. Cylinder bore is 100mm.
Forged pistons offer great durability and reduced weight for faster engine response.
Crankshaft features a single crank pin design. The crankshaft turns counter clockwise. This specially designed crank helps to enhance the pulse feeling and engine character.
Forged connecting rods ride on a single crank pin for that true V-twin sound and feel.
Single axis, left and right dual engine counter balancers reduce vibration to a minimum while maximizing rider comfort.
Crankcase design features internal oil and coolant lines for a clean, air-cooled engine appearance. There are special piston coolers that spray oil at the under side of the pistons.
Easy access, spin on type oil filter is located under the engine. There is no need to remove any parts to access the oil filter.
Classic side mounted 3.7 liter airbox houses a high-flow viscous paper-type filter and adds that special styling touch too.
Mikuni dual bore, 40mm throttle body fuel injection system with TPS (Throttle Position Sensor) and ISC (Idle Speed Control) . This is a “closed loop” system that utilizes an oxygen sensor. The oxygen sensor feeds back info to the ECU which in turn adjusts the fuel/air mixture for maximum power with minimum emissions. The oxygen sensor is located before the mufflers, so the use of slip-ons will not affect this system. Each injector features 12 holes and a dual spray pattern for better fuel atomization and more complete combustion chamber filling. There is one injector per cylinder. Fuel injection benefits include improved fuel economy, chokeless operation, reduced emissions, and smoother running.
High pressure fuel pump is located in a separate sub fuel tank below the seat.
2 into 1 exhaust system features a 3-way honeycomb catalyzier at the entry point to the muffler. The catalyzier reduces harmful exhaust emissions, while the muffler produces a throaty V-Twin growl. The rear portion of the muffler features a “slash cut” end
Smooth-shifting, 5-speed transmission with 5th gear overdrive delivers outstanding cruising performance and reduced rpms at highway speeds. The engine is spinning at 3,400 rpm at 110 km/hr.
Clean, quiet belt drive system is extremely low maintenance and simplifies customization. The belt is unique to the XVS1300 and features carbon cords for strength.
The 7-spoke rear pulley has been styled to match the cast wheels.
Air Induction System (A.I.S.) reduces harmful exhaust emissions (CO & HC).
One piece classic heel-and-toe shifter adds versatility and enhances the overall cruising experience.
Double cradle steel frame offers roomy ergonomics, a low seat height and great handling. This frame utilizes a rigid engine mounting system to optimize the overall rigidity balance for superior handling. The rake is 32 degrees, while the lean angle is a sporty 36 degrees.
Steel swingarm matches the frame and provides superior performance in a wide variety of conditions, while also making a bold styling statement.
Long 1,690mm (66.5″) wheelbase creates a long, low retro profile and stable handling. This chassis is longer than the XVS1100 by 45mm and offers a 48% / 52 % front to rear weight distribution.
The long low design means spacious ergonomics with lots of leg room, which maximizes both rider and passenger comfort.
41mm KYB front fork features stylish large-diameter brushed-finished fork covers. Wheel travel is 130mm (5.1″) for a smooth, comfortable ride.
Monocross style, spring preload-adjustable, single-shock, link rear suspension centralizes mass for agile handling. The linkage system provides a rising rate effect that provides excellent compliance on both small and large bumps. There are 9 positions of spring preload adjustability to suit rider preference.
Rear shock is vertically mounted behind the engine and is tucked out of sight for that classic, hardtail look. Rear wheel travel is 110mm (4.3″).
Dual 298 mm, floating front discs are squeezed by compact twin piston front calipers.
298 mm rear disc brake is squeezed by single piston caliper mounted to the underside of the swingarm. This design not only helps to hide the caliper but also lowers the center of gravity for excellent handling.
Lightweight 7-spoke cast aluminum wheels are fitted wide tubeless tires. The “mag” style wheels are both easy to clean and never require maintaince. The rear drive pulley matches the rear wheel design.
Full-size, “tapered” floating-type rider floorboards are roomy and comfortably positioned while also helping to reduce vibration. There is a replaceable “scraper” area on the lower edge of the footboard.
1 inch, rubber mounted handlebars are easy to reach and help to reduce vibration as well.
Front and rear fenders are steel for easy customization and painting if desired.
18.5 liter teardrop shaped fuel tank with flush mounted filler cap. Fuel tank seam is hidden for that clean, custom look. Reserve portion is 4.5 litres.
Generous rider and passenger seats offer plenty of room and support for all day riding comfort. Seat height is only 690mm or 27.2 inches off the ground.
Handlebar-mounted chromed instrument features a stylish design. Readouts include: analog speedometer, digital odometer, dual tripmeters, low fuel tripmeter, clock and low fuel warning light. Stylish red background illumination.
Handlebar switch gear allows the operator to change instrument functions via buttons on the back of the RHS handlebar switch, thereby eliminating the need to remove hands off the bars to adjust the main instrument functions.
60/55 watt high intensity halogen headlight emphasizes the “wild streamline”, mass forward styling design. The chromed headlight body is adjustable up and down plus left and right via remote adjusters. There are also two 35 watt accessory light connectors inside the headlight shell for accessory passing lamps.
Industry-leading Star family fit and finish features rich, lustrous paint and extensive chrome accents creating a machine as stunning as it is powerful.
3D fuel tank emblems enhance quality and attention to detail.
Extra wide front brake and clutch levers provide a quality feel.
Steering lock is integrated into the main ignition switch for extra convenience.
Handy, under seat helmet holder
Low-maintenance, sealed battery ensures fuss-free, dependable starting.
Self-cancelling turn signals feature stylish clear lenses.
High output 460 watt generator
Chromed belt cover
2011 Yamaha V-Star 1300 – USA Specifications
MSRP: $10,890 (Raven) Available from February 2011/CA model March 2011
Type 80-cubic-inch (1304cc) liquid-cooled V-twin; SOHC, 4 valves/cylinder
Bore x Stroke 100.0 mm x 83.0 mm
Compression Ratio 9.5:1
Fuel Delivery Fuel injection
Ignition TCI: Transistor Controlled Ignition
Transmission 5-speed; multiplate wet clutch
Final Drive Belt
Frame Double Cradle
Suspension / Front Telescopic fork; 5.3-in travel
Suspension / Rear Single shock; 4.3-in travel
Brakes / Front Dual hydraulic disc, 298mm
Brakes / Rear Hydraulic disc, 298mm
Tires / Front 130/90-16M/C 67H
Tires / Rear 170/70B-16M/C 75H
Wheels 7-spoke aluminum
Length 98.0 in
Width 38.6 in
Height 43.9 in
Seat Height 28.1 in
Wheelbase 66.5 in
Fuel Capacity 4.9 gal
Fuel Economy** 42 mpg
Wet Weight*** 668 lb
Warranty 1 Year (Limited Factory Warranty)
2011 Yamaha V-Star 1300 – Canada Specifications
MSRP: $12,599 CDN
Engine Liquid-cooled, SOHC , 8-valve, 60°, V-twin
Displacement 1,304 cc (80 cubic inch)
Bore and Stroke 100 x 83 mm
Compression Ratio 9.5:1
Maximum Torque 11.3 kg-m (81.8 ft-lb) @ 4,000 rpm
Fuel Delivery Mikuni dual bore 40 mm F.I.
Estimated Fuel Consumption* 18kpl / 51mpg (Imp.)
Ignition / Starting TCI / Electric
Final Drive Belt
Suspension (Front) 41mm fork
Suspension (Rear) Adjustable link Monocross
Brakes (Front) Dual 298 mm discs
Brakes (Rear) 298 mm disc
Tires (Front) 130/90-16
Tires (Rear) 170/70-16
Length 2,490 mm (98″)
Width 1000 mm (39.3″)
Height 1145 mm (45.1″)
Wheelbase 1,690 mm (66.5″)
Seat Height 690 mm (27.2″)
Fuel Capacity 18.5 litres (3.7 imp. gallons)
Wet Weight 303 kg (666.6 lb)
Colour(s) Metallic Black
* Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.
Specifications, appearance, and price of product are subject to change without notice.
* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
