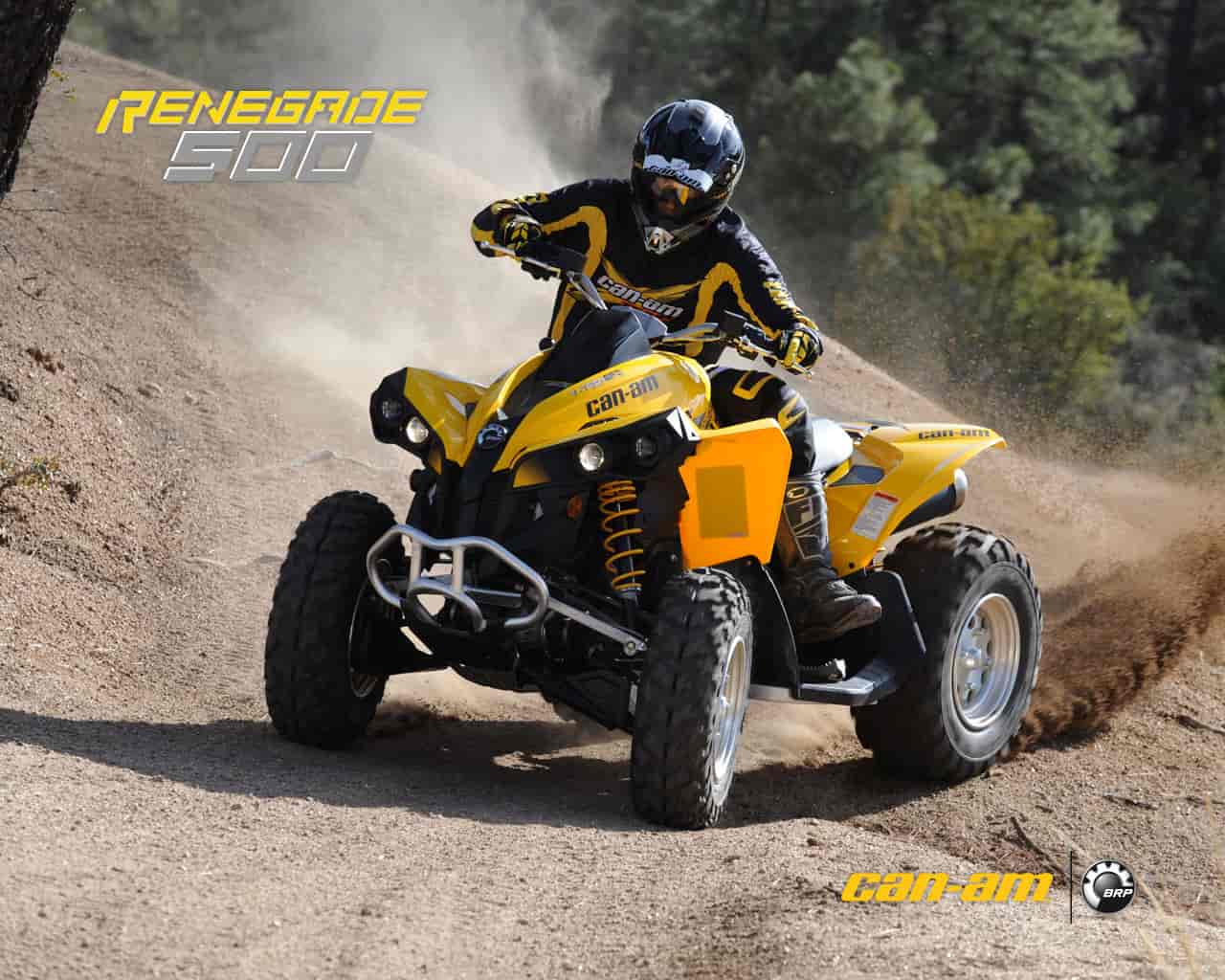

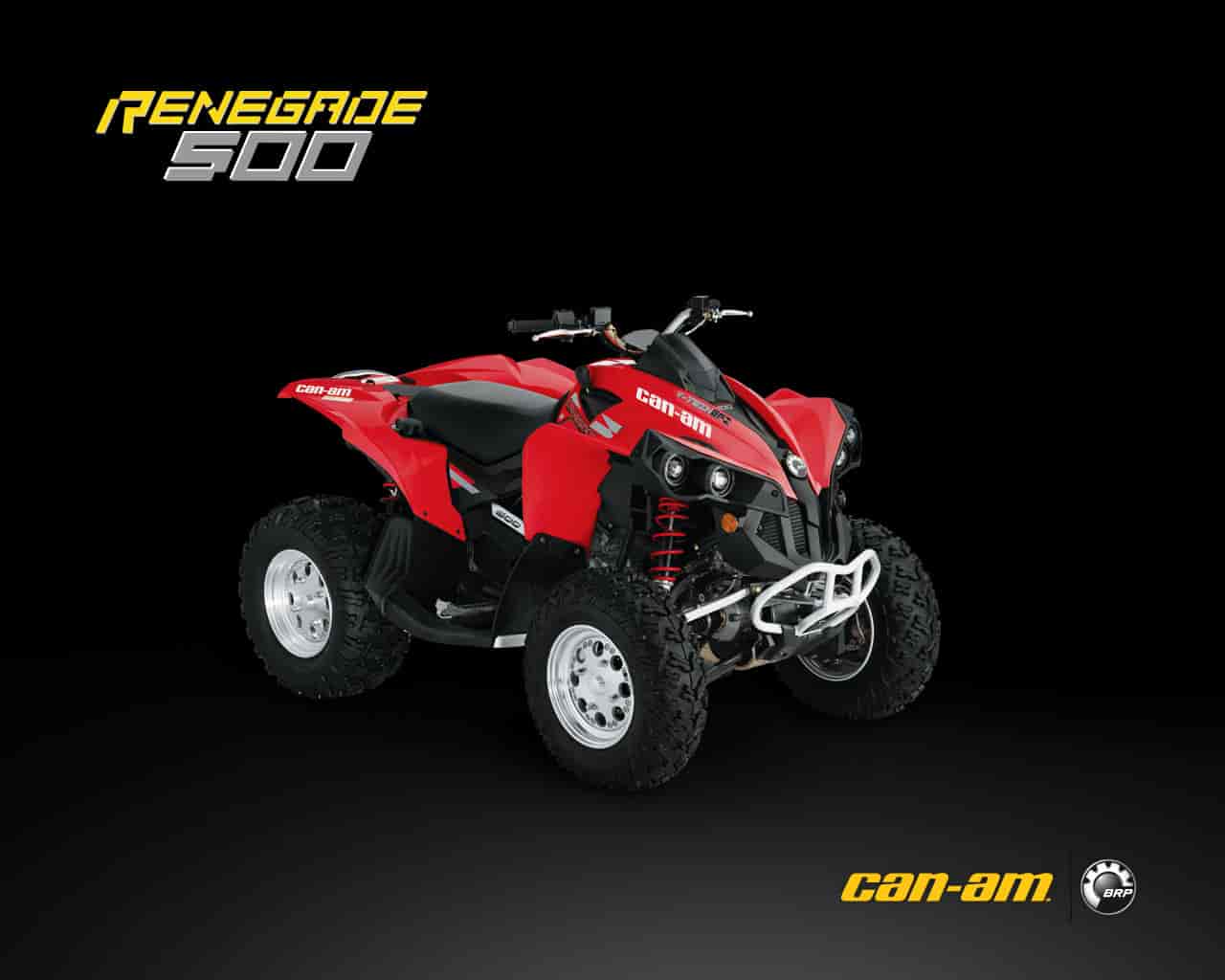

2009 Can-Am Renegade 500 EFI
2009 Can-Am Renegade 500 EFI
– 2009 Can-Am Renegade 500 EFI
2009 Can-Am Renegade 500 EFI
IF ANY ATV DESERVES ONE OF THOSE LONG GLOWING REPORTS YOU USUALLY THINK IS BS, THIS IS IT.
Key Features:
RENEGADE 500 EFI FEATURES
Rotax V-Twin 499,6cc EFI engine RS-type TTI rear suspension Visco-Lok 4×4 Front Differential RS-type double A-arm front suspension Multi-function digital gauge Front and rear brake controls Motion control front and rear shocks
OTHER FEATURES
Electronic anti-theft system (D.E.S.S.) Center-cast aluminum wheels with ITP Holeshot ATR sport radial tires Four 60W projector beam lights Full floorboards with kick-up aluminum pegs
2009 Can-Am Renegade 500 EFI – Specifications
American MSRP $7,799 USD
Canadian MSRP $9,249 CDN
Engine
Type : 499.6cc, V-twin, liquid-cooled, SOHC, 8-valve (4-valve / cyl)
Bore & Stroke : 82 x 47 mm
EFI System/Carburetor : 46mm Throttle Body, 2 Siemens VDO injectors
Starting System : Electric
Transmission : CVT, sub-transmission with high, low, park, neutral & reverse, Standard Engine braking
Drive Train : Selectable 2w/4w shaft driven with Visco-lok† front differential
Chassis
Frame : SST
Front Suspension Type : RS-Type Double A-arm, forged aluminum upper arm/ Motion Control Shocks
Travel : 8.5 in (216 mm)
Rear Suspension Type : RS-Type TTI independent, Motion Control shocks
Travel : 9 in (229 mm)
Front Brake : 2 inboard hydraulic discs
Rear Brake : 1 inboard hydraulic disc
Tires/Front : ITP Holeshot ATR – 25 x 8 x 12 in. ITP Holeshot ATR – 635 x 203 x 305 mm
Tires/Rear : ITP Holeshot ATR – 25 x 10 x 12 in. ITPHoleshotATR – 635 x 254 x 305 mm
Wheels : Center Cast Aluminum
Dimensions
L x W x H (in) : 86 x 46 x 45 in
L x W x H (mm) : 2.184 x 1.168 x 1.143 mm
Wheelbase : 51 in (1.295 mm)
Seat Height : 34.5 in (877 mm)
Ground Clearance : 11 in (279 mm)
Dry Weight : 607 lbs (275 kg)
Towing Capacity : 1300 lbs (590 kg)
Rack Capacity : 35 lbs (16 kg)
Storage : Rear storage 1 US gal (3.7L)
Fuel Capacity : 5.3 US gal. (20 L)
Features
Instrumentation : Speedometer, tachometer, odometer, trip and hourmeters, fuel, gear position, 4×4 indicator, diagnostics, auto shut off.
Anti-Theft : D.E.S.S. (Digital Encoded Security System)
Electrical : Prewired for winch
Lighting : 4 fender mounted Projector Beam headlamps (60W) with tail light/brake light
DC Outlet : Lighter type in console, standard connector in the back (15A)
Color(s) available : Yellow, Viper Red
