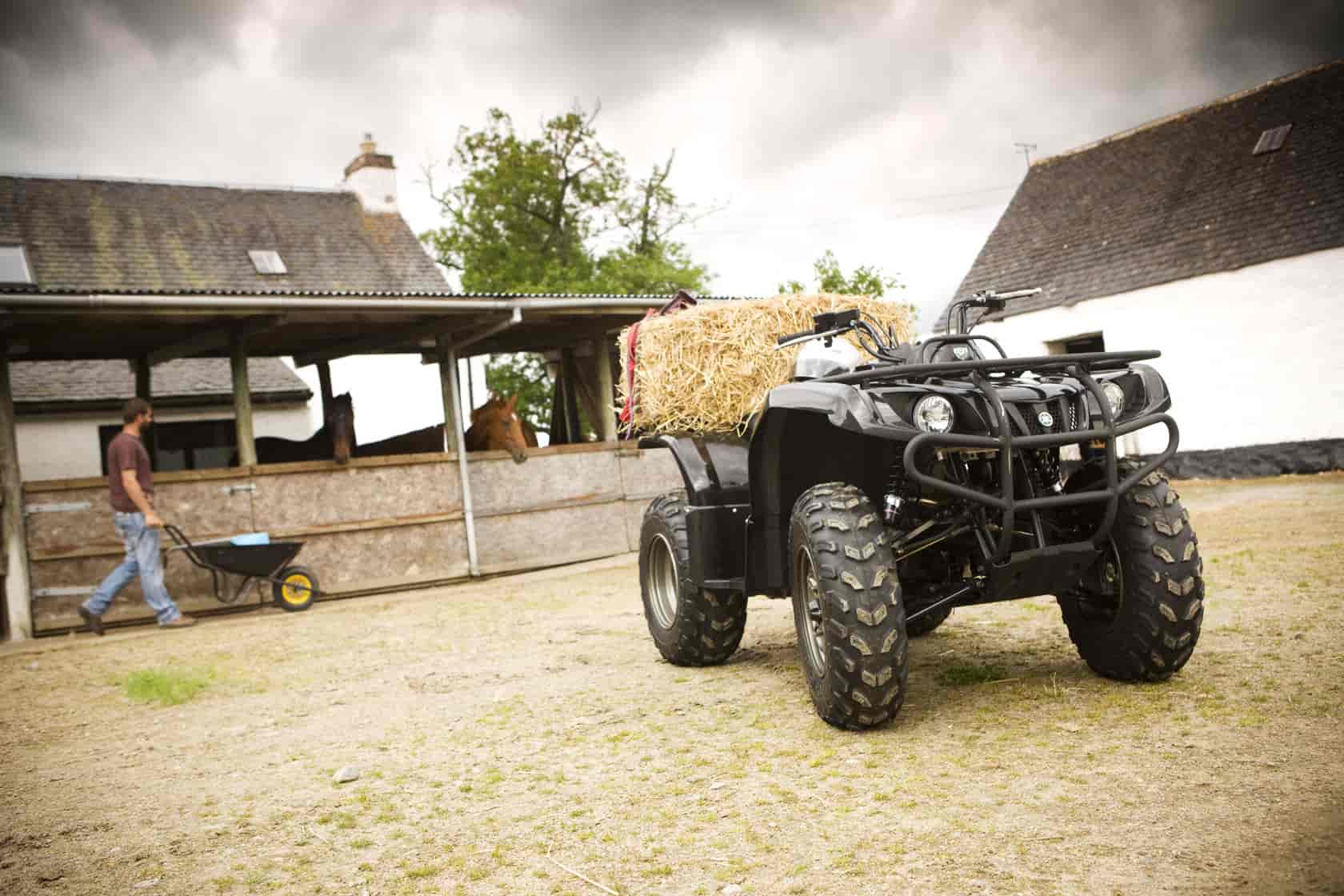

2009 Yamaha Grizzly 350 2WD

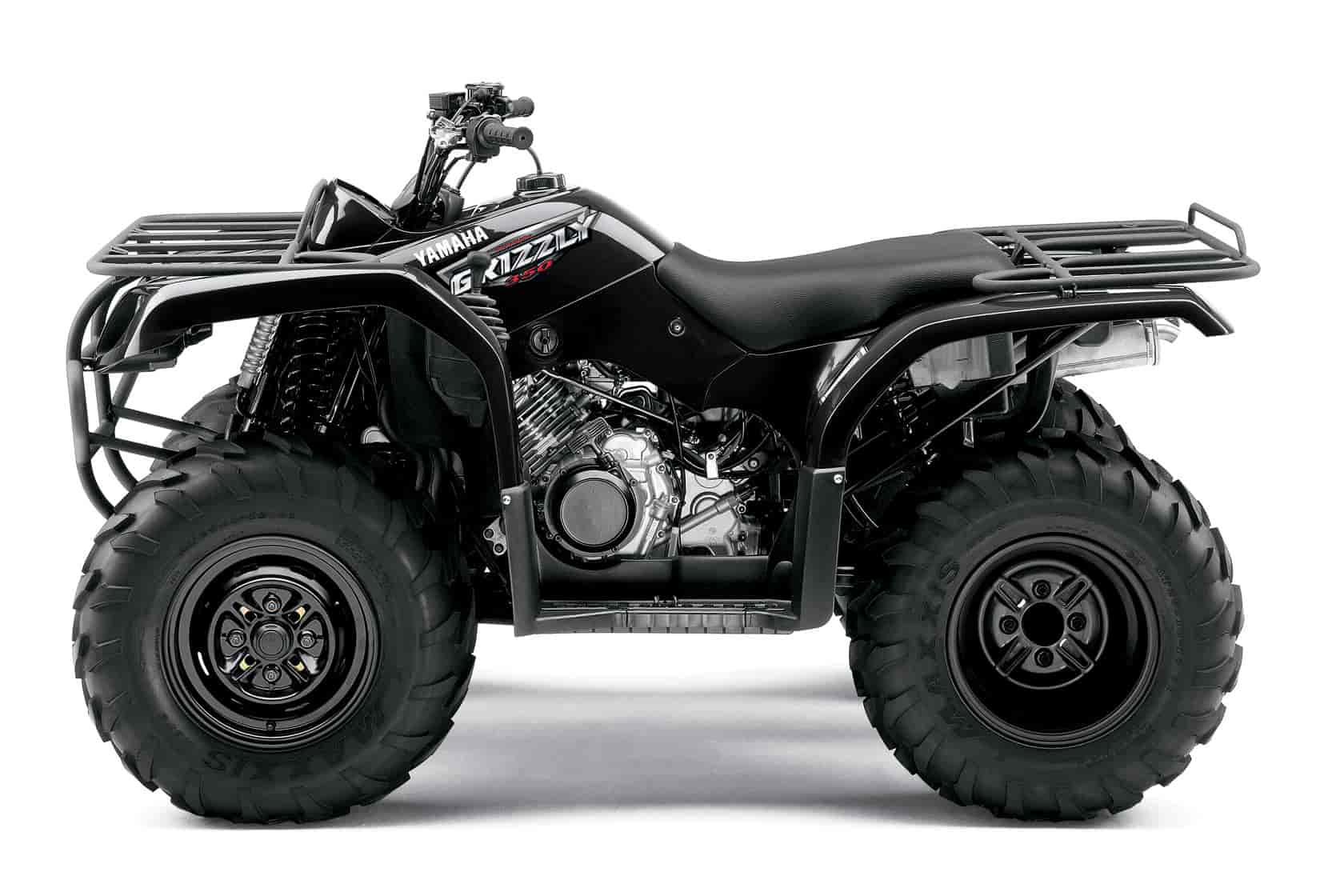

2009 Yamaha Grizzly 350 2WD
2009 Yamaha Grizzly 350 2WD
2009 Yamaha Grizzly 350 2WD
– 2009 Yamaha Grizzly 350 2WD
2009 Yamaha Grizzly 350 2WD
An ATV with a proven engine and rugged chassis, providing great performance in an affordable package.
There is more than one bear in the forest. A mid-size 2WD ATV with out exclusive fully automatic Ultramatic transmission, disc break and more.
Features and Benefits:
Key Features:
The power-packed, full-featured Grizzly 350 Automatic 2WD carries a lot of advanced Yamaha ATV technology in an affordable package.
Fully automatic Ultramatic® transmission is the most advanced drive system in ATV-ing, with an automatic centrifugal clutch that maintains constant belt tension for reduced wear, instant response and downhill engine braking.
Light weight and advanced design produce an ATV with light steering and a class-leading* turning radius, for excellent maneuverability and nimble handling.
Left-side–mounted F/N/R shift lever is easily accessible.
Engine:
Tough-as-nails 348cc air-/oil-cooled SOHC, four-stroke single produces stump-pulling bottom-end power and loves to rev.
Semi-oval slide 33mm Mikuni® carburetor and high-output DC-CDI ignition deliver excellent throttle response and engine performance at all rpm.
Fully sealed drive case keeps out water and debris to minimize belt slippage.
Pushbutton electric starter is backed up by auxiliary recoil starter.
Stainless steel muffler and header design provides superior power characteristics, exhaust sound and unmatched durability.
Automatic cam chain tensioner reduces engine maintenance.
Chassis/Suspension:
Lightweight CAD-designed chassis features outstanding durability with superior rigidity for class-leading agility and handling.
9.7 inches of ground clearance and high-impact plastic skidplate improve maneuverability and undercarriage protection.
Light steering and a class-leading turning radius combine for increased comfort and incredible maneuverability.
Reliable, low-maintenance shaft drive.
32.6-inch seat height creates enhanced handling.
Independent double-wishbone front suspension has five-way preload-adjustable shocks and 6.3 inches of travel.
Sturdy steel swingarm is controlled by a single rear shock with five-way adjustable preload and 7.1 inches of travel.
Aggressive 25×8-12 front and 25×10-12 rear tires further boost ground clearance while providing plenty of traction and responsive handling.
Heavy-duty front carry bar.
Additional Features:
Steel cargo racks with special, extra-durable wrinkle paint finish feature a combined cargo capacity of 264 pounds (88 front, 176 rear).
Specially designed drive system air intake vent prevents overheating and keeps water and mud from entering drive case.
Easy-access, tool-free air filter box.
Standard, center-mounted trailer hitch can hook up more than 1100 pounds of payload.
Large front and rear fenders with inner guards offer excellent mud/splash protection.
Water-resistant, large-capacity underseat storage box provides added convenience.
Plush, specially designed seat is contoured for incomparable rider comfort.
Large-capacity, 3.8-gallon fuel tank has an easy-to-reach petcock.
Rear brake/taillight.
Maintenance-free 12-amp-hour battery provides reliable all-weather starting power.
Easy-access underseat marine-spec electrical components ensure maximum protection from the elements.
Dual, bright, multi-reflector 30-watt Krypton bulb headlights with high and low beams.
Easy, handlebar-mounted choke lever.
Built in Newnan, GA, USA.
*Includes four-stroke, 300-350cc models.
2009 Yamaha Grizzly 350 2WD – USA Specifications
MSRP* $4,299 (Hunter Green) Available from August 2008
$4,299 (Black Metalic) Available from August 2008
Engine
Type 348cc, 4-stroke, air-/oil-cooled single; SOHC
Bore x Stroke 83.0mm x 64.5mm
Compression Ratio 9.2:1
Carburetion Mikuni 33mm BSR
Ignition DC-CDI
Starting System Electric w/auxiliary pull
Transmission Yamaha Ultramatic® V-belt withrear-wheel engine braking/F, N, R
Drive Train 2WD; shaft drive
Chassis
Suspension/Front Independent double wishbone; 5-way preload adjustment, 6.3-in travel
Suspension/Rear Swingarm; 5-way preload adjustment, 7.1-in travel
Brakes/Front Dual hydraulic discs
Brakes/Rear Fully sealed drum
Tire/Front AT25x8-12
Tire/Rear AT25x10-12
Dimensions
L x W x H 78.1 x 42.7 x 44.1 in
Seat Height 32.6 in
Wheelbase 48.5 in
Turning Radius 118 in
Ground Clearance 9.7 in
Fuel Capacity 3.8 gal
Dry Weight 507 lb
Rack Capacity 88 lb Fr./176 lb Rr.
Towing Capacity 1102 lb
Other
Instrumentation None
Lighting Dual 30W Krypton multi-reflector headlights & 21/5W brakelight
Warranty 6 Month (Limited Factory Warranty)
2009 Yamaha Grizzly 350 2WD – Canada Specifications
Canadian MSRP $0
Model not available in Canada
