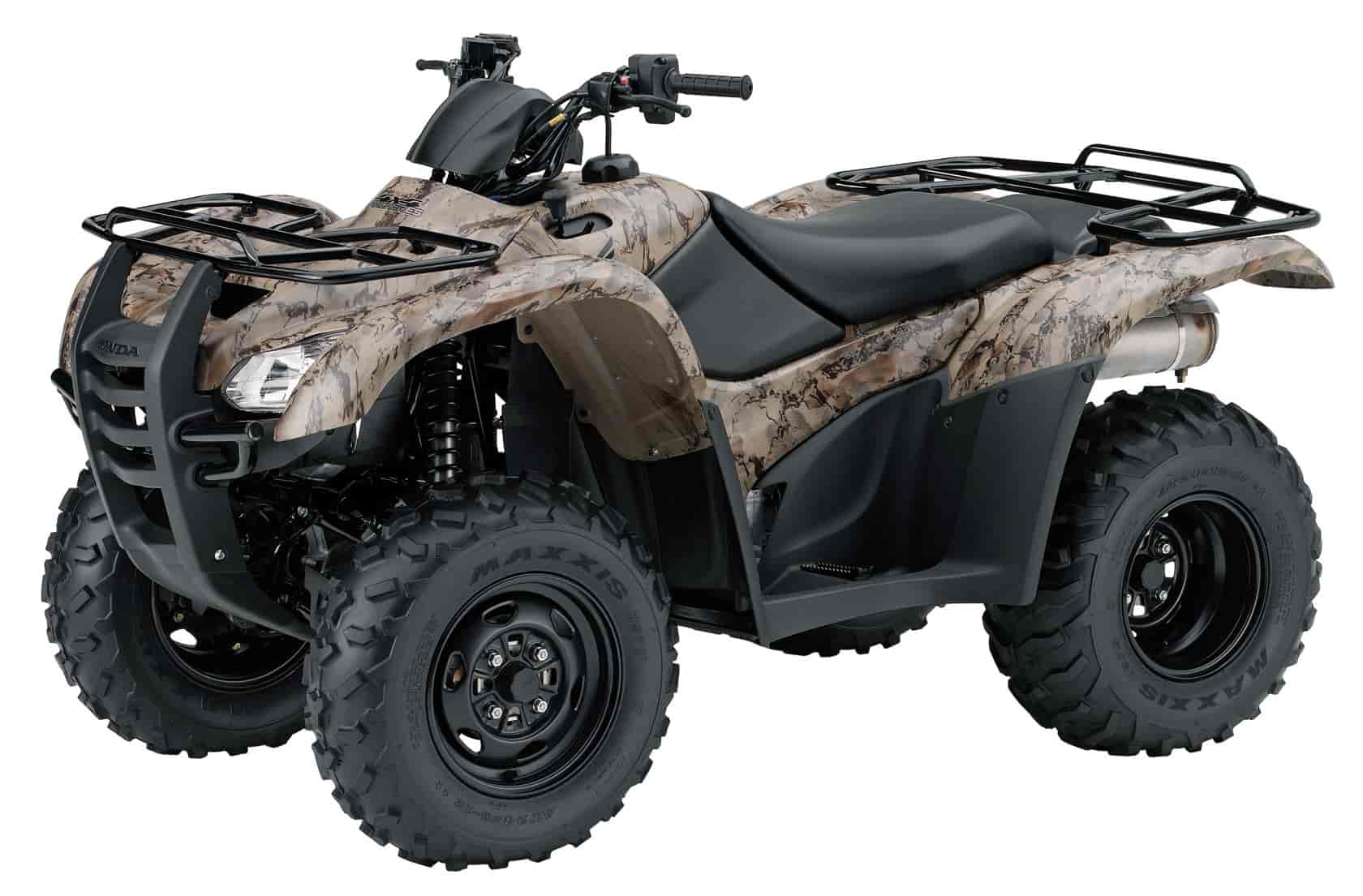

2011 Honda FourTrax Rancher 4X4 ES TRX420FE
2011 Honda FourTrax Rancher 4X4 ES TRX420FE
– 2011 Honda FourTrax Rancher 4X4 ES TRX420FE
2011 Honda FourTrax Rancher 4X4 ES TRX420FE
Talk about a winning ATV that comes factory-loaded with plenty of gotta-have-it features: The FourTrax® Rancher® 4×4 ES brings to riders Honda’s remarkable Electric Shift Program (ESP®) that makes gear shifts as easy as touching a button, selectable 4WD/2WD TraxLok®, a torque-sensitive front differential and fuel injection.
FourTrax Rancher
Features & Options
– Programmed Fuel Injection (PGM-FI)
– America’s favorite ATV
– Five-speed manual transmission with reverse
FourTrax Rancher ES
Features & Options
– Programmed Fuel Injection (PGM-FI)
– Electric Shift Program
– Fully sealed rear driveshaft
FourTrax Rancher 4×4
Features & Options
– Programmed Fuel Injection (PGM-FI)
– TraxLok 2WD/4WD
– Five-speed manual transmission with reverse
FourTrax Rancher 4×4 ES
Features & Options
– Programmed Fuel Injection (PGM-FI)
– TraxLok 2WD/4WD
– Electric Shift Program
FourTrax Rancher 4×4 with Power Steering
Features & Options
– 420cc single-cylinder four-stroke
– Revolutionary Electric Power Steering
FourTrax Rancher 4×4 ES with Power Steering
Features & Options
– 420cc single-cylinder four-stroke
– TraxLok 2WD/4WD with 5-speed transmission and Electric Shift Program
Important Safety Information
Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner’s manual thoroughly.
2011 Honda FourTrax Rancher 4X4 ES TRX420FE Features:
2011 Honda FourTrax Rancher 4X4 ES TRX420FE – Specifications
American MSRP: See Dealer for Details
Canadian MSRP: See Dealer for Details
Model: TRX420FE
Engine Type: 420cc liquid-cooled OHV wet-sump longitudinally mounted single-cylinder four-stroke
Bore and Stroke: 86.5mm x 71.5mm
Induction: Keihin 34mm throttle-body fuel-injection system
Ignition: Full transistor with electronic advance
Starter: Electric with optional auxiliary recoil
Clutch: Automatic
Transmission: ESP five-speed with Reverse
Driveline: Direct front and rear driveshafts
Suspension
Front: Independent double-wishbone; 6.3 inches travel
Rear: Swingarm with single shock; 6.3 inches travel
Brakes
Front: Dual hydraulic disc
Rear: Sealed mechanical drum
Tires
Front: 24 x 8-12
Rear: 24 x 10-11
Length: 80.9 inches
Width: 46.1 inches
Height: 45.1 inches
Seat Height: 32.4 inches
Ground Clearance: 6.5 inches
Wheelbase: 49.2 inches
Turning Radius: 10.5 feet
Fuel Capacity: 3.5 gallons, including 1.0-gallon reserve
Colors: Red, Olive, Natural Gear® Camouflage
Curb Weight*: 586 pounds
*Includes all standard equipment, required fluids and full tank of fuel–ready to ride.
Meets current EPA and CARB off-road emissions standards.
Recommended for riders 16 years of age and older.
