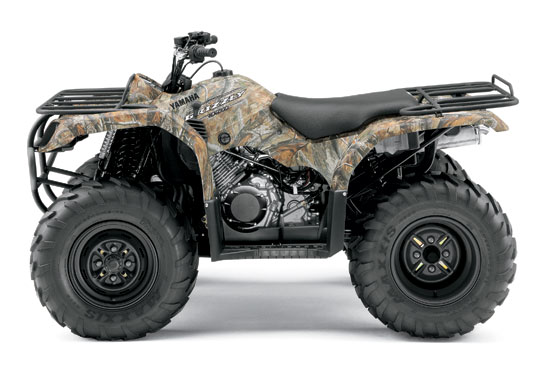

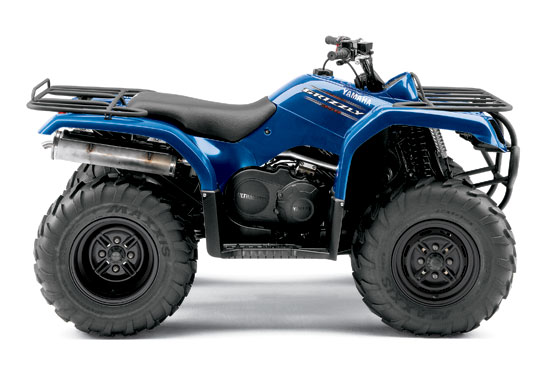

2011 Yamaha Grizzly 350 4x4
2011 Yamaha Grizzly 350 4×4

2011 Yamaha Grizzly 350 4x4
2011 Yamaha Grizzly 350 4×4

2011 Yamaha Grizzly 350 4x4
2011 Yamaha Grizzly 350 4×4

– 2011 Yamaha Grizzly 350 4×4

2011 Yamaha Grizzly 350 4×4

This high-value, solid rear axle Grizzly 350 offers up reliability and function at a great price.

Mid-size performance meets grizzly tough.

A mid-size 4WD ATV with our exclusive fully automatic Ultramatic transmission, On-command 2WD/4WD, solid rear axle, front disc brakes and more.

Key Features:

” The power-packed, full-featured Grizzly 350 Automatic 4×4 solid axle carries a lot of advanced Yamaha ATV technology in an affordable package.
” Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATV-ing. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and sprag clutch for all-wheel downhill engine braking in 4WD mode.
” Class-exclusive On-Command® 4WD means switching from 2WD to 4WD is as simple as pushing a handlebar-mounted button.
” Light weight and advanced design produce an ATV with light steering and a class-leading turning radius, for excellent maneuverability and nimble handling-even in 4WD.
” Left-side-mounted F/N/R shift lever keeps throttle hand free while shifting.
” Wide, fully integrated floorboards help keep feet dry, and serrated footpegs provide extra grip in wet conditions.
” Class-exclusive large-diameter ventilated hydraulic dual front disc and single rear drum brakes deliver tremendous stopping power in a variety of conditions.
” Aggressive 25×8-12 front and 25×10-12 rear tires further boost ground clearance while providing plenty of traction and responsive handling.

” Rugged and reliable 348cc air/oil-cooled, SOHC four-stroke single produces stump-pulling bottom-end power and loves to rev.
” Semi-oval slide 33mm Mikuni® carburetor and high-output DC-CDI ignition deliver excellent throttle response and engine performance at all rpm.
” Pushbutton electric starting is backed up by an auxiliary recoil starter.
” Stainless steel muffler and header design provides superior power characteristics, exhaust sound and unmatched durability.
” Sealed drive case keeps out water and debris to minimize belt slippage, and a no-tools side cover drain makes it a snap to get rid of what little does sneak in.
” Automatic cam chain tensioner reduces engine maintenance.

” Lightweight CAD-designed chassis features outstanding durability with superior rigidity for class-leading agility and handling.
” 9.7 inches of ground clearance and high-impact plastic skidplate improve maneuverability and undercarriage protection.
” Direct front shaft drive eliminates U-joint for greater durability and more efficient power transfer when engaged in 4WD.
” 32.6-inch seat height for great handling.
” Independent double-wishbone front suspension features five-way preload-adjustable shocks and 6.3 inches of travel.
” Sturdy steel swingarm and single rear shock feature five-way adjustable preload and 7.1 inches of travel.
” Heavy-duty front carry bar and CV joint guards help prevent damage to boot covers.

Additional Features:
Steel cargo racks with special, extra-durable wrinkle paint finish feature a combined cargo capacity of 264 pounds (88 front, 176 rear).
” Standard, center-mounted trailer hitch can hook up more than 1100 pounds of payload.
” Large front and rear fenders with inner guards offer excellent mud/splash protection.
” Water-resistant, large-capacity underseat storage box provides added convenience.
” Plush, specially designed seat is widely contoured for incomparable rider comfort.
” Large-capacity, 3.8-gallon fuel tank has an easy-to-reach petcock valve.
” Specially designed drive system air intake vent prevents overheating and keeps water and mud from entering drive case.
” Easy-access, tool-free air filter box allows for quick maintenance.
” Rear brake/taillight.
” Maintenance-free 12-amp-hour battery provides reliable cold-weather starting power.
” Easy-access underseat marine-spec electrical components ensure maximum protection from the elements.
” Dual, bright, multireflector 30-watt Krypton bulb headlights with high and low beams.
” Easy, handlebar-mounted choke lever.
” Assembled in Newnan, GA, U.S.A.





2011 Yamaha Grizzly 350 4×4 – USA Specifications
MSRP* $5,949 (Realtree AP Camo) Available from June 2010
$5,599 (Hunter Green) Available from July 2010
$5,599 (Steel Blue) Available from July 2010

Type 348cc, 4-stroke, air/oil-cooled single; SOHC

Bore x Stroke 83.0mm x 64.5mm

Compression Ratio 9.2:1

Fuel Delivery Mikuni® 33mm BSR

Ignition DC – CDI

Starting System Electric w/auxiliary pull

Transmission Yamaha Ultramatic® V-belt with front/rear-wheel engine braking/F, N, R

Drive Train Yamaha On-Command® pushbutton; 2WD, 4WD; shaft drive

Suspension/Front Independent double wishbone; 5-way preload adjustment, 6.3-in travel

Suspension/Rear Swingarm; 5-way preload adjustment, 7.1-in travel

Brakes/Front Dual hydraulic discs

Brakes/Rear Fully sealed drum

Tires/Front AT25x8-12

Tires/Rear AT25x10-12

L x W x H 78.1 x 42.7 x 44.1 in

Seat Height 32.6 in

Wheelbase 48.5 in

Turning Radius 118 in

Ground Clearance 9.7 in

Fuel Capacity 3.8 gal

Wet Weight 568 lb

Rack Capacity 88 lb Fr./176 lb Rr.

Towing Capacity 1102 lb

Instrumentation None

Lighting Dual 30W Krypton multireflector headlights & 21W/5W brakelight

Warranty 6 Month (Limited Factory Warranty)



2011 Yamaha Grizzly 350 4×4 – Canadian Specifications
Canadian MSRP* $NA

Model not available in Canada

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
