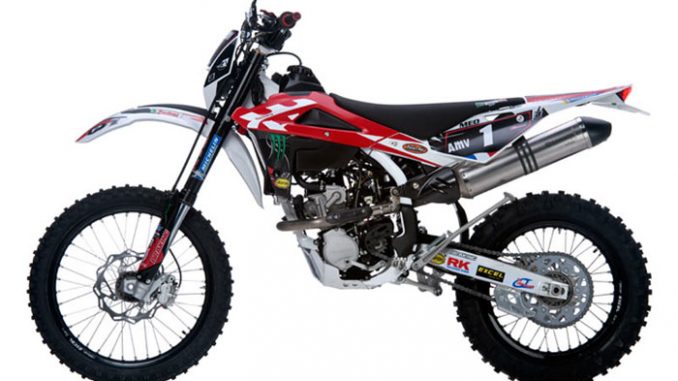

2012 Husqvarna TE250 Meo Replica
2012 Husqvarna TE250 Meo Replica

2012 Husqvarna TE250 Meo Replica
2012 Husqvarna TE250 Meo Replica

2012 Husqvarna TE250 Meo Replica
2012 Husqvarna TE250 Meo Replica

2012 Husqvarna TE250 Meo Replica
2012 Husqvarna TE250 Meo Replica


– 2012 Husqvarna TE250 Meo Replica Review

2012 Husqvarna TE250 Meo Replica

The Husqvarna TE 250 has won the world title in the Enduro class E1, with Antoine Meo in the saddle. The championship was dominated by the Frenchman, who won eight out of the 16 day trials. The TE 250 Meo Replica adopts all the technical modifications that have been tried, tested and awarded laurels during the championship season. A racing bike available only in a limited edition of 100, for an exclusive group of connoisseurs and collectors.

The look features all the “race replica” graphic design used by Meo – on front and rear mudguards, front fork, swing arm, reg. plate holder and radiator guards.

The exhaust system has been designed by LeoVince, in collaboration with the CH racing team. It is entirely made of titanium with muffler skid plate and carbon fibre heat shield protector. In terms of mechanics, the Kayaba forks with close cartridge, (same forks as MX Husqvarna models) are mounted in machined-from-solid triple clamps with adjustable offset. The aluminium footrests are also machined-from-solid, and wider, allowing greater support surface for the foot.

The engine and chassis undercarriage are protected by a sturdy aluminium sump guard, particularly useful in extreme Enduro events.
The bike has numerous special features, such as the aluminium oil filler with O-ring, fuel tank cap made of ergal, Selle Dalla Valle saddle with non-slide upholstery, and hand guards.







2012 Husqvarna TE250 Meo Replica Features and Benefits

The perfect reproduction of the victorious bike ridden by Antoine Meo. Only 100 units available.

To ride the legend “Antoine Meo” Racing Stickers Kit
Leo Vince Titanium Exhaust System with Carbon Heat protection and carbon end cap
Front Forks with Twin Chamber Closed Cartridge
Cnc Triple clamps
Cnc foot steps with wider section
Aluminium skid plate
Aluminium fuel tank cap
Aluminium engine oil cap
Dalla Valle seat with non-slide cover
Handle bar protection







2012 Husqvarna TE250 Meo Replica – North American Specifications/Technical Details
MSRP Price: $NA

Model not available in North America.






2012 Husqvarna TE250 Meo Replica – Australian Specifications/Technical Details
AU MSRP Price: See dealer for pricing.

Engine
Type Single cylinder, 4-stroke, DOHC, 4 valve
Bore 79.0 mm
Stroke 50.9 mm
Displacement 249.5 cc
Compression ratio 13.6 : 1
Starting Electric and Kick
Cooling Liquid-cooled
Radiator 2
Lubrication Wet sump with oil pump, cartridge and net filters
Ignition Electronic, inductive discharge, with adjustable advance
Spark plug type NGK CR 8EB
Spark plug gap 0.7 – 0.8 mm
Fuel systen Electronic injection feed, throttle body MIKUNI D42
Clutch Wet, multi-plate type, hydraulic control
Driving disc number 7
Driven disc number 6
Chassis
Type Steel single tube cradle (round, rectangular and ellipsoidal tubes); rear frame in light alloy
Front suspension KAYABA USD telescopic hydraulic fork with advanced axle, compression and rebound stroke adjustment
Fork leg diameter 48 mm
Fork travel 300 mm
Rear suspension KAYABA Progressive Soft Damp type with single hydraulic shock absorber, spring pre-load adjustment. Compression and rebound adjustment (compression stroke – double adjustment)
Rear wheel travel 296 mm
Front brake 260 mm BREMBO fixed disc “wave” type with hydraulic control and floating caliper
Rear brake 240 mm BREMBO fixed disc with hydraulic control and floating caliper
Rim front 1.60″ x 21″, light alloy
Rim rear 1.85″ x 19″, light alloy
Tyre front 80/100-21″ PIRELLI 51R-MT 32A
Tyre rear 100/90-19″ PIRELLI NHS(57)-MT 32






2012 Husqvarna TE250 Meo Replica – Specifications/Technical Details
MSRP Price: See dealer for pricing.

Model not available
