2013 KTM 200XC-W

Back to 2013 KTM Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

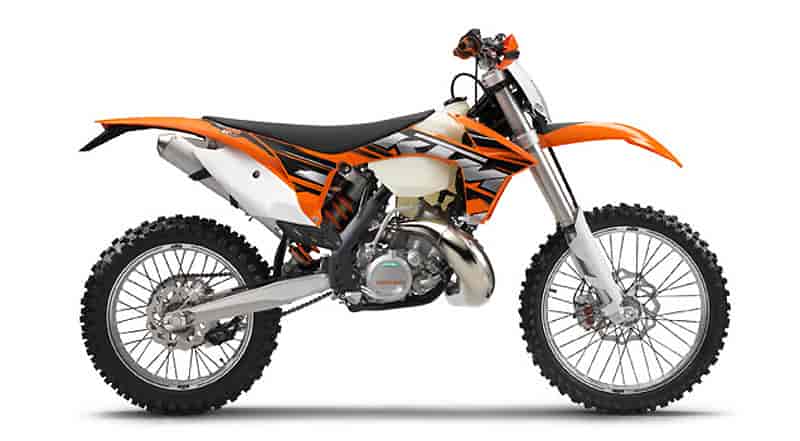

2013 KTM 200XC-W
2013 KTM 200XC-W

2013 KTM 200XC-W
2013 KTM 200XC-W



2013 KTM 200XC-W Review

2013 KTM 200XC-W

Perfect union: the playful handling of a 125 coupled with engine power that comes close to that of a 250. The KTM 200 XC-W redefines user-friendliness in 2013: electric starter, new cylinder head and new carburetor jets! As a result, it’s the first choice for all those seeking the best handling, comfort and power for entry level enduro racing.



2013 KTM 200XC-W Features and Benefits

AIRBOX

The airbox on the KTM 200 XC-W model year 2013 allows maximum air to pass through, but minimal dust and spray. Replacement of the Twin-Air filter takes approx. 15 seconds, without any tools. Absolutely “READY TO RACE”.

NEW CYLINDER HEAD

KTM 2-stroke technology is updated and refined year after year. The newly developed cylinder head delivers smooth and more even responsiveness in MY 2013. At the same time, new jets tuned to the modified cylinder head ensure even better rideability. Power-Valve exhaust control, 6-speed transmission and electric-starter are a tried and tested KTM standard for 250/300 cm³ (250/300 cu in). From MY 2013, for the KTM 200 XC-W as well!

ADDITIONAL ELECTRIC STARTER

The 200 XC-W is equipped with both kick and electric-starters in MY 2013. This simplifies starting the bike in all situations. With its patented placement in a longitudinal direction above the ignition, the compact starter system is optimally protected and provides a decisive advantage in hard offroad use.

INDIVIDUAL SUSPENSION SETTING

The KTM 200 XC-W has its own individual suspension setting in MY 2013, optimally tuned to weight and engine.

BRAKES

Sensitive: Brakes from Brembo® are standard equipment on the KTM offroaders and, together with steel-braided brake lines and lightweight wave-type brake discs, they are recognized as the measure of all things in terms of application and brake performance. The further refined rear brake cylinder has a new internal mechanism. This leads to less wear at the rubber seal and results in a longer service life in tough offroad use.

FRAME

The high-quality, chrome-molybdenum steel frame excels with even greater lateral stiffness. It is also better at absorbing jolts introduced by the suspension system, thereby, boosting the bike’s playful handling and comfort.

OPTIMIZED SWINGARM

The KTM 200 XC-W’s lightweight, cast aluminum swingarm accommodates the shock absorber centrally in order to load the arms evenly. The PDS shock absorber, featuring adjustable rebound and high/low-speed compression damping and new settings, is installed more flatly to provide better progression.

TELESCOPIC FORK, NEW SETTING

The latest generation of fully adjustable 48 mm (1.89 in) open-cartridge fork “Made in Austria” by WP Suspension provides the highest level of responsiveness with more constant damping characteristics. Not least due to the use of a new fork oil and new SKF fork seal rings.

BODYWORK

The KTM 200 XC-W has bodywork with extremely slim ergonomics and excellent contact points between rider and machine. It provides unlimited freedom of movement. Newly styled graphics give the models a fresher appearance in 2013.










2013 KTM 200XC-W – USA Specifications/Technical Details
US MSRP Price: $7,499 USD

ENGINE
Design 1-cylinder 2-stroke engine, water-cooled, with reed intake and exhaust control
Displacement 193 cm³ (11.78 cu in)
Bore 64 mm (2.52 in)
Stroke 60 mm (2.36 in)
Starting aid Kick starter and electric starter
Gearbox 6-gear, claw shifted
Primary transmission 23:73
Secondary ratio 14:48
Clutch Multidisc clutch in oil bath/hydraulically activated
Ignition Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan
CHASSIS
Frame Central tube frame made of chrome molybdenum steel tubing
Fork WP Suspension Up Side Down 4860 MXMA PA
Shock absorber WP Suspension PDS 5018 DCC
Suspension travel Front 300 mm (11.81 in)
Suspension travel Rear 335 mm (13.19 in)
Brake system Disc brakes, brake calipers on floating bearings
Brake discs – diameter Front 260 mm (10.24 in)
Brake discs – diameter Rear 220 mm (8.66 in)
Chain 5/8 x 1/4″
Steering head angle 63.5°
Wheelbase 1,471±10 mm (57.91±0.39 in)
Ground clearance unloaded 355 mm (13.98 in)
Seat height unloaded 960 mm (37.8 in)
Total fuel tank capacity, approx. 10 l (2.6 US gal)
Super unleaded gasoline, mixed with 2-stroke engine oil (1:60)
Weight without fuel, approx. 95 kg (209 lb.)






2013 KTM 200XC-W – Canadian Specifications/Technical Details
Canada MSRP Price: $8,149.00 CDN

ENGINE
Design 1-cylinder 2-stroke engine, water-cooled, with reed intake and exhaust control
Displacement 193 cm³ (11.78 cu in)
Bore 64 mm (2.52 in)
Stroke 60 mm (2.36 in)
Starting aid Kick starter and electric starter
Gearbox 6-gear, claw shifted
Primary transmission 23:73
Secondary ratio 14:48
Clutch Multidisc clutch in oil bath/hydraulically activated
Ignition Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan
CHASSIS
Frame Central tube frame made of chrome molybdenum steel tubing
Fork WP Suspension Up Side Down 4860 MXMA PA
Shock absorber WP Suspension PDS 5018 DCC
Suspension travel Front 300 mm (11.81 in)
Suspension travel Rear 335 mm (13.19 in)
Brake system Disc brakes, brake calipers on floating bearings
Brake discs – diameter Front 260 mm (10.24 in)
Brake discs – diameter Rear 220 mm (8.66 in)
Chain 5/8 x 1/4″
Steering head angle 63.5°
Wheelbase 1,471±10 mm (57.91±0.39 in)
Ground clearance unloaded 355 mm (13.98 in)
Seat height unloaded 960 mm (37.8 in)
Total fuel tank capacity, approx. 10 l (2.6 US gal)
Super unleaded gasoline, mixed with 2-stroke engine oil (1:60)
Weight without fuel, approx. 95 kg (209 lb.)

Prices and specifications subject to change without notice.



2013 KTM 200XC-W – UK/Europe Specifications/Technical Details
UK/European MSRP Price: £NA GBP.

Model not available

Prices and specifications subject to change without notice.




2013 KTM 200XC-W – Australian Specifications/Technical Details
AU MSRP Price: See dealer for Pricing AUD

Model Not Available

Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
