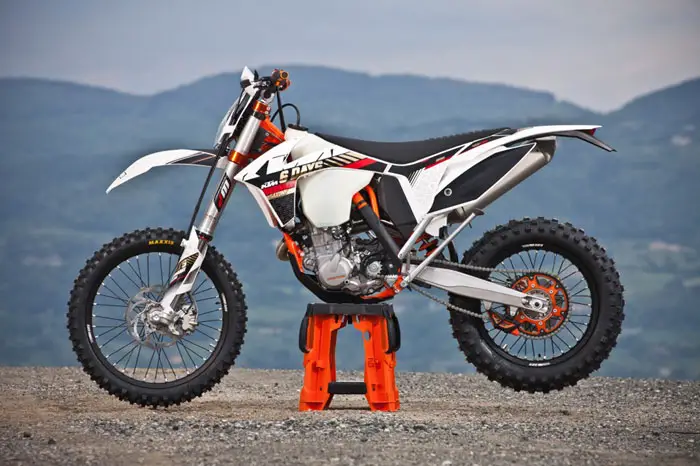

2013 KTM 250EXC-F Six Days
2013 KTM 250EXC-F Six Days

2013 KTM 250EXC-F Six Days
2013 KTM 250EXC-F Six Days

2013 KTM 250EXC-F Six Days
2013 KTM 250EXC-F Six Days



2013 KTM 250EXC-F Six Days Review

2013 KTM 250EXC-F Six Days

The 250 EXC-F is “READY TO RACE” for the world’s largest enduro competition, the “International Six Days Enduro”. Six days in succession, over a thousand offroad kilometres, 40 hours in the saddle – a gruelling test, not only for the rider. A whole package of high-quality special options makes the KTM 250 EXC-F 2013 fit for this ruthless contest, in which more than half the starters bank on KTM every year. 250 EXC-F Six Days – only authentic with the orange powder-coated frame of the KTM Factory Team.



2013 KTM 250EXC-F Six Days Features and Benefits

NEW AIRBOX

The redesigned airbox on the 2013 KTM 250 EXC-F Six Days allows maximum air to pass through, but minimal dust and spray. Replacement of the twin-air filter takes approx. 15 seconds, without any tools. Absolutely “READY TO RACE”.

VALVE TRAIN

Alongside the very small, lightweight (only 8 g) cam followers with DLC (diamond-like carbon) coating, the DOHC cylinder head is equipped with four ultra-light titanium valves, allowing very high engine speeds of up to 12,000 1/min. Compared with the SX-F power unit, the camshafts are designed less for maximum power and more enduro-specifically for a broad usable rev range.

TRANSPARENT PLASTIC TANK

The fuel level can be seen directly from the outside on the 9.5 l, transparent plastic tank. A micro-filter in the fuel line keeps even the smallest of particles away from the injection nozzle and now sits in the fuel line’s quick-release coupling between tank and injection valve. Therefore, replacing it is child’s play. 13 l fuel tanks are available for all models from the PowerParts range. The tried and tested bayonet filler cap – including safety mechanism to prevent unintentional twisting – allows the fuel tank to be opened and closed quickly with only a quarter turn.

ENGINE MANAGEMENT

The EMS from Keihin is state-of-the-art. Along with electronic fuel injection and a 42 mm throttle body, it delivers spontaneous, powerful responsiveness and handling. Automatic temperature and altitude compensation are also to be found on board. With the optional map-select switch (PowerParts), a variety of different engine characteristics can be selected. Thanks to the user setting tool from the PowerParts range, the EFI mapping on the KTM 250 EXC-F Six Days can be changed and individually tuned from a laptop. This guarantees maximum performance at all times.

LIGHTWEIGHT ENGINE CASE

Slimmed down: Die-cast instead of sand-cast engine case! This noticeably reduces wall thickness with no reduction in stability. A lighter engine and therefore better handling are the result. A special, high-strength aluminium alloy provides maximum resistance to damage.

TELESCOPIC FORK

The KTM Six Days models are equipped with a completely redesigned, 48 mm closed-cartridge fork from WP Suspension. The new 4-chamber technology (4CS) patented by WP not only provides a key benefit in terms of responsiveness and consistent damping characteristics, it is also lighter and oil services prove to be far simpler than on the conventional closed-cartridge versions. This fork overcomes extremely rutted tracks and other such major obstacles with the greatest of ease. Another benefit: The fork can be adapted to track and rider in a matter of clicks at the top of the fork: compression damping on the left-hand shaft, rebound damping on the right.

INDIVIDUAL SUSPENSION SETTING

Each EXC model has its own individual suspension settings, optimally tuned to weight and engine. At the rear, a PDS shock absorber from WP Suspension works with a direct linkage to the upper side of the swingarm. The wide range of setting options for rebound damping and high- and low-speed compression damping are standard on KTM bikes.

TRIPLE CLAMP

Meticulously finished triple clamps machined from a solid block are fitted to all Six Days models. Not only do they look classy in anodised orange; above all, they are designed in such a way that they support the responsiveness and sliding behaviour of the new fork and ultimately have a positive effect on the entire handling.

HIGH QUALITY WHEELS

High quality, CNC-machined hubs are standard on all KTM wheels. The new, extremely stable, 7050 aluminium rims from GIANT now bear exclusive 6Days lettering. New MAXXIS FIM tyres – specially developed for KTM – provide excellent traction, very precise directional control and a long service life.

BODYWORK

The 2013 250 EXC-F Six Days has bodywork with extremely slim ergonomics and excellent contact points between rider and machine. It provides unlimited freedom of movement. For MY 2013, the bike stands out with newly styled graphics in the colours of the ISDE in Germany.

HANDLEBAR

Tapered, extremely stable aluminium handlebars from Neken are paraded on the 2013 enduro bikes. For the 2013 model year, new 2-component grips with KTM logo deliver excellent feeling and improved grip.

SIX DAYS EQUIPMENT

• New generation 4CS closed-cartridge fork from WP Suspension

• Frame with high quality orange coating

• CNC-machined triple clamps, orange anodised

• Black anodised handlebar with KTM Six Days logo

• Supersprox 2-piece rear sprocket with steel outer ring and aluminium star

• Full rear brake disc (no slots/holes)

• Camel SXS seat

• Skid plate

• Radiator guard

• Radiator fan

• Exhaust silencer with Six Days anodising (anthracite) and Six Days logo

• Wheels featuring high quality, black anodised rims made by GIANT with Six Days logo and black spokes

• Quick-release spindle at the front

• Orange radiator grille

• Orange chain guide

• Exclusive Six Days graphics








2013 KTM 250EXC-F Six Days – USA Specifications/Technical Details
US MSRP Price: See dealer for pricing.

Model Not Available








2013 KTM 250EXC-F Six Days – Canadian Specifications/Technical Details
Canada MSRP Price: See dealer for pricing. CDN

Model not available

Prices and specifications subject to change without notice.



2013 KTM 250EXC-F Six Days – UK/Europe Specifications/Technical Details
UK/European MSRP Price: £7,495.00 GBP.

ENGINE
Design 1-cylinder 4-stroke engine, water-cooled
Displacement 248.60 cm³
Bore 76 mm
Stroke 54.80 mm
Starting aid Electric starter/Kickstarter
Engine lubrication Forced oil lubrication with 2 Eaton pumps
Primary gear ration 22:68
Secondary ratio 14:50 (13:50)
Cooling system Liquid cooling system, continuous circulation of cooling liquid with water pump
Clutch Wet multi-disc clutch / hydraulically operated
Ignition system Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan
CHASSIS
Frame Central tube frame made of chrome molybdenum steel tubing
Suspension travel Front 292 mm
Suspension travel Rear 335 mm
Brake system Disc brakes, brake calipers on floating bearings
Brake discs – diameter Front 260 mm
Brake discs – diameter Rear 220 mm
Chain 5/8 x 1/4″
Steering head angle 63.5°
Wheelbase 1,482±10 mm
Ground clearance, unloaded 345 mm
Seat height, unloaded 970 mm
Total fuel tank capacity, approx. Unleaded premium fuel (95 RON)
Weight without fuel, approx. 107.5 kg

Prices and specifications subject to change without notice.




2013 KTM 250EXC-F Six Days – Australian Specifications/Technical Details
AU MSRP Price: See dealer for Pricing AUD

Engine
Engine Type1-cylinder 4-stroke engine, liquid-cooled
Displacement248.6cm³
Bore / Stroke76/54.8mm
Compression Ratio13.2:1
Starter / BatteryKick & Electric Start / 12V 4Ah
Transmission6 gear, claw shifted
Fuel ManagementKeihin EFI, flow restrictor 42mm
Control4 V / DOHC with finger followers
LubricationPressure lubrication with 2 oil pumps
Primary Ratio22:68
Final Drive14:50
CoolingLiquid cooling system
ClutchWet multi-disc clutch / hydraulically operated
IgnitionKeihin EMS

Chassis
FrameCentral tube frame of chrome molybdenum steel tubing
Sub-Frame aluminium
HandlebarNeken aluminium
Front SuspensionWP Suspension USD 4860 4CS
Rear SuspensionWP Suspension PDS 5018 DCC
Suspension Travel – Front / Rear292/335mm
Front / Rear BrakesDisc brake 260mm front / 220mm rear
Front / Rear Rims1.60 x 21″ / 2.15 x 19″ Giant
Front / Rear Tyres90/90-21″ / 120/90-18″
Chain5/8 x 1/4″
Silenceraluminium
Steering Head Angle63.5º
Wheel Base1482 ± 10mm
Ground Clearance345mm
Seat Height970mm
Tank Capacity approx.9.5l
Weight Without Fuel approx.107.5kg

Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
