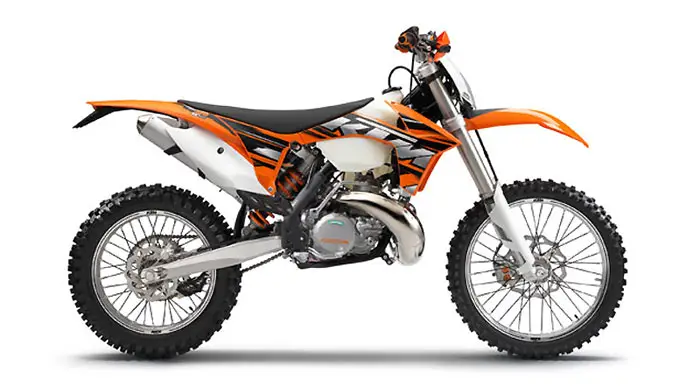

2013 KTM 300XCW
2013 KTM 300XCW

2013 KTM 300XCW
2013 KTM 300XCW



2013 KTM 300XCW Review

2013 KTM 300XCW

The KTM 300 XC-W is renowned for its massive 2-stroke performance and torque. The revolutionary KTM DDS clutch feels fantastically light and smooth. This machine is equipped with the same technical features as its 250cc brother. Its tried and tested chassis is tailor-made for extremely tough tracks. It carries on where others climb off.



2013 KTM 300XCW Features and Benefits

NEW AIRBOX

The redesigned airbox on the 2013 300 XC-W allows maximum air to pass through, but minimal dust and spray. Replacement of the Twin-Air filter takes approx. 15 seconds, without any tools. Absolutely “READY TO RACE”.

NEW CYLINDER HEAD

KTM 2-stroke technology is updated and refined year after year. The newly developed cylinder head delivers smooth and responsive power. At the same time, new jets tuned to the modified cylinder head ensure better rideability. Power-Valve exhaust control, 6-speed transmission and electric starter are a tried and tested KTM standard for 250/300 cm³ (250/300 cu in). From MY 2013, for the KTM 300 XC-W as well!

ADDITIONAL ELECTRIC-STARTER

The KTM 300 XC-W is equipped with both kick and electric-starters in 2013. This simplifies starting the bike in all situations. With its patented placement in a longitudinal direction above the ignition, the compact starter system is optimally protected and provides a decisive advantage in hard offroad use.

ADJUSTABLE IGNITION CURVE

By opening and closing a plug connection, the choice can be made in 2013 between the standard ignition curve and a softer version. Those who prefer even greater convenience can buy a switch for the KTM 300 XC-W from the PowerParts range.

LINEAR POWER DEVELOPMENT

Plenty of power from the bottom up and controllable rideability throughout the rev range. The response of the exhaust control system can be individually tuned by means of different springs. This way, everyone can very easily vary the power development of their XC-W (also combinable with the two ignition curves) between “soft” and “aggressive” in a matter of seconds. And the new reed valve block on the 2013 300 XC-W delivers perceptibly better acceleration and more homogeneous power development.

INDIVIDUAL SUSPENSION SETTING

The KTM 300 XC-W has its own individual suspension setting in MY 2013, optimally tuned to weight and engine. At the rear, a PDS shock absorber from WP Suspension works with a direct linkage to the upper side of the swingarm. The wide range of setting options for rebound damping and high- and low-speed compression damping are standard on KTM bikes.

HIGH QUALITY WHEELS

High quality, CNC-machined hubs are standard on all KTM wheels. The now black coated spokes increase corrosion resistance and center the new, extremely stable, 7050 aluminum rims from GIANT. Dunlop GEOMAX MX51 tires – provide excellent traction, very precise directional control and a long service life.

BODYWORK

The 300 XC-W model has bodywork with extremely slim ergonomics and excellent contact points between rider and machine. It provides unlimited freedom of movement. Newly styled graphics give the models a fresher appearance in 2013.

HANDLEBAR

Tapered, extremely stable aluminum handlebars from Neken are standard equipment on the 2013 enduro bikes. For the 2013 model year, new 2-component grips with KTM logo deliver excellent feeling and improved grip.

ENGINE POWER AND WEIGHT

The understandable technology of the two-stroke engine has indisputable advantages, including a high power/displacement ratio and low weight. In terms of power-to-weight ratio, the 2013 300 XC-W is practically unbeatable. Unrivalled performance and playful handling are the results.








2013 KTM 300XCW – USA Specifications/Technical Details
US MSRP Price: $8,299 USD

ENGINE
Design 1-cylinder 2-stroke engine, water-cooled, with reed intake and exhaust control
Displacement 293 cm³ (17.88 cu in)
Bore 72 mm (2.83 in)
Stroke 72 mm (2.83 in)
Starting aid Kick starter and electric starter
Gearbox 6-gear, claw shifted
Primary transmission 26:72
Secondary ratio 13:50
Clutch Multidisc clutch in oil bath/hydraulically activated
Ignition Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan
CHASSIS
Frame Central tube frame made of chrome molybdenum steel tubing
Fork WP Suspension Up Side Down 4860 MXMA PA
Shock absorber WP Suspension PDS 5018 DCC
Suspension travel Front 300 mm (11.81 in)
Suspension travel Rear 335 mm (13.19 in)
Brake system Disc brakes, brake calipers on floating bearings
Brake discs – diameter Front 260 mm (10.24 in)
Brake discs – diameter Rear 220 mm (8.66 in)
Chain 5/8 x 1/4″
Steering head angle 63.5°
Wheelbase 1,482±10 mm (58.35±0.39 in)
Ground clearance unloaded 355 mm (13.98 in)
Seat height unloaded 960 mm (37.8 in)
Total fuel tank capacity, approx. 10 l (2.6 US gal)
Super unleaded gasoline, mixed with 2-stroke engine oil (1:60)
Weight without fuel, approx. 102 kg (225 lb.)






2013 KTM 300XCW – Canadian Specifications/Technical Details
Canada MSRP Price: $9,149.00 CDN

ENGINE
Design 1-cylinder 2-stroke engine, water-cooled, with reed intake and exhaust control
Displacement 293 cm³ (17.88 cu in)
Bore 72 mm (2.83 in)
Stroke 72 mm (2.83 in)
Starting aid Kick starter and electric starter
Gearbox 6-gear, claw shifted
Primary transmission 26:72
Secondary ratio 13:50
Clutch Multidisc clutch in oil bath/hydraulically activated
Ignition Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan
CHASSIS
Frame Central tube frame made of chrome molybdenum steel tubing
Fork WP Suspension Up Side Down 4860 MXMA PA
Shock absorber WP Suspension PDS 5018 DCC
Suspension travel Front 300 mm (11.81 in)
Suspension travel Rear 335 mm (13.19 in)
Brake system Disc brakes, brake calipers on floating bearings
Brake discs – diameter Front 260 mm (10.24 in)
Brake discs – diameter Rear 220 mm (8.66 in)
Chain 5/8 x 1/4″
Steering head angle 63.5°
Wheelbase 1,482±10 mm (58.35±0.39 in)
Ground clearance unloaded 355 mm (13.98 in)
Seat height unloaded 960 mm (37.8 in)
Total fuel tank capacity, approx. 10 l (2.6 US gal)
Super unleaded gasoline, mixed with 2-stroke engine oil (1:60)
Weight without fuel, approx. 102 kg (225 lb.)

Prices and specifications subject to change without notice.



2013 KTM 300XCW – UK/Europe Specifications/Technical Details
UK/European MSRP Price: £NA GBP.

Model not available

Prices and specifications subject to change without notice.




2013 KTM 300XCW – Australian Specifications/Technical Details
AU MSRP Price: See dealer for Pricing AUD

See above specifications

Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
