2013 KTM 990 Adventure

Back to 2013 KTM Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

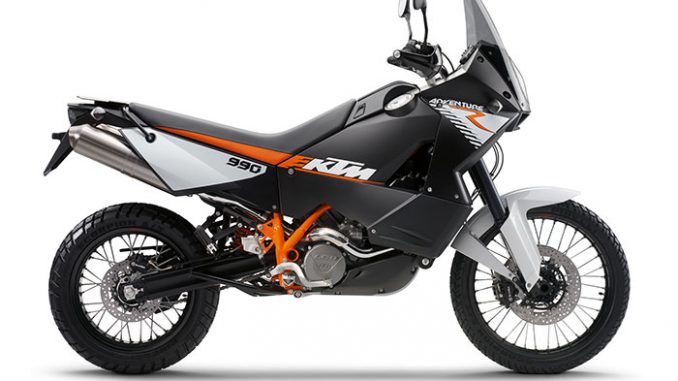

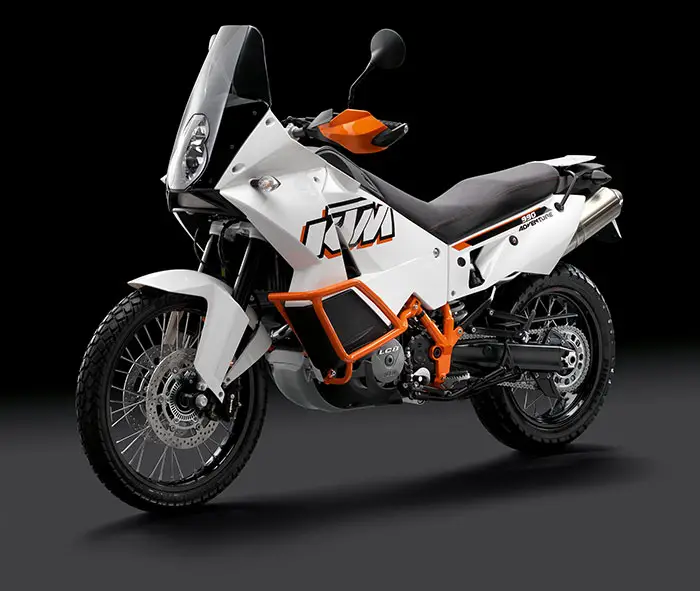

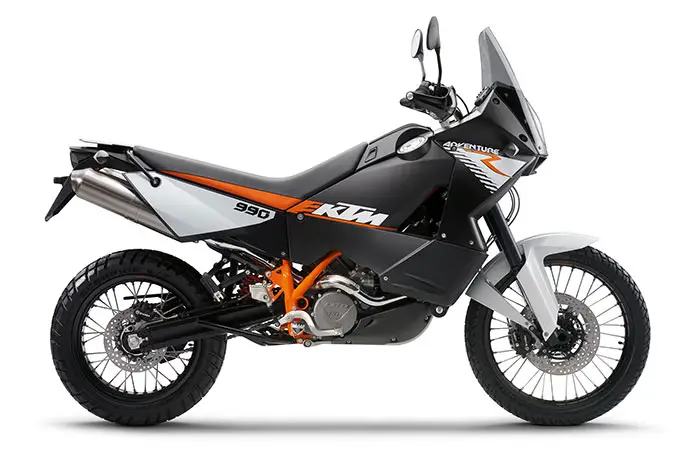

2013 KTM 990 Adventure
2013 KTM 990 Adventure

2013 KTM 990 Adventure
2013 KTM 990 Adventure

2013 KTM 990 Adventure
2013 KTM 990 Adventure



2013 KTM 990 Adventure Review

2013 KTM 990 Adventure on Total Motorcycle

THE PERFECT BRIDGE BETWEEN TWO WORLDS

Launching the Adventure series, in 2003 KTM presented its vision of a modern, long-distance dualsport motorcycle. Balking neither at tough terrain nor quick flicks through the twisties nor even at extended desert exploration thanks to its genuine rally DNA, the Adventure series has since been continuously enhanced.

A rigid trellis frame, fully adjustable, longstroke WP suspension and a powerful braking system prove their value on any short trip as well as on the longest of journeys. A standard, two-channel Bosch ABS sets new safety standards with its sensitive brake control.

Ambitious off-road riders also welcome the option of disengaging it as needed. At 115 hp and 100 Nm of torque, the dynamic, 75° V-twin now has even more power to eat up the miles, also with a pillion. The powerful engine, the low weight and the fantastic
agility make the Adventure a truly great ride.

The comprehensive, sensible equipment includes a practical storage compartment, an immobilizer, hazard warning lights and a 12 V accessory socket.






2013 KTM 990 Adventure Totalmotorcycle.com Features and Benefits

– Powerful LC8 4-stroke V-Twin, electronic fuel injection, balancer shaft, hydraulic multi-disc wet clutch, 6-speed gearbox

– Increased power: 85 kW/115 hp, max.torque 100 Nm, emissions: Euro 3

– ABS (can be disengaged)

– Orange trellis frame, load-bearing engine

– Fully adjustable WP suspension front and rear

– Swingarm, rear subframe, footrest mountings, callipers and other components coated black

– Integrated multi-functional cockpit

– New 2K Handguards

– Lockable storage compartment between the tanks

– Immobilizer and hazard warning lights

– 12 V accessory socket

– A ttractive new graphics and colours

ENGINE 2-CYLINDER, 4-STROKE, V 75° · DISPLACEMENT 999 CC
STARTER ELECTRIC STARTER · TRANSMISSION 6 GEARS · TANK CAPACITY APPROX. 19.5L
WEIGHT (READY TO RACE) APPROX. 209 KG (WITHOUT FUEL)









2013 KTM 990 Adventure – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: See dealer for pricing in USD

ENGINE

Displacement
Bore/stroke
Power
Torque
Compression ratio
Starter/battery
Transmission
Fuel system
Control
Lubrication
Engine oil
Primary drive
Final drive
Cooling
Clutch
Engine management/ignition



CHASSIS

Frame
Subframe
Handlebar
Front suspension
Rear suspension
Suspension travel front/rear
Font brake
Rear brake
ABS
Wheels front/rear
Tires front/rear
Chain
Silencer
Steering head angle
Trail
Wheel base
Ground clearance
Seat height
Tank capacity
Weight (ready to race)



2-cylinder, 4-stroke, V 75°
999 cc, 101/62.4 mm
85 kW (115 hp) @ 8750 rpm
100 Nm @ 6750 rpm
11.5:1
Electric starter/12V 11.2Ah
6 gears
Keihin Electronic fuel injection
4 V/DOHC
Pressure lubrication
Motorex, SAE 10W-50
35:67
16:42
Liquid cooling
Wet multi-disc clutch, hydraulically operated
Keihin EMS





Chromium-Molybdenum trellis frame, powder-coated
Aluminium
Aluminium, tapered, Ø 28/22 mm
WP-USD Ø 48 mm
WP-PDS shock absorber with hydraulic spring pre-load
210/210 mm
2 x Brembo two piston, floating caliper, floating brake disc Ø 300mm
Brembo two piston, floating caliper, floating brake disc Ø 240 mm
Bosch two channel ABS
2.15 x 21”; 4.25 x 18”
90/90-21”; 150/70 R 18″
X-Ring 5/8 x 5/16″
Twin stainless steel silencer with regulated catalytic converter
63.4°
119 mm
1,570 ± 10 mm
261 mm
860 mm
approx. 19.5 litres/4 litres reserve
approx. 209,5 kg (without fuel)








2013 KTM 990 Adventure – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: See dealer for pricing in CDN

ENGINE

Displacement
Bore/stroke
Power
Torque
Compression ratio
Starter/battery
Transmission
Fuel system
Control
Lubrication
Engine oil
Primary drive
Final drive
Cooling
Clutch
Engine management/ignition



CHASSIS

Frame
Subframe
Handlebar
Front suspension
Rear suspension
Suspension travel front/rear
Font brake
Rear brake
ABS
Wheels front/rear
Tires front/rear
Chain
Silencer
Steering head angle
Trail
Wheel base
Ground clearance
Seat height
Tank capacity
Weight (ready to race)



2-cylinder, 4-stroke, V 75°
999 cc, 101/62.4 mm
85 kW (115 hp) @ 8750 rpm
100 Nm @ 6750 rpm
11.5:1
Electric starter/12V 11.2Ah
6 gears
Keihin Electronic fuel injection
4 V/DOHC
Pressure lubrication
Motorex, SAE 10W-50
35:67
16:42
Liquid cooling
Wet multi-disc clutch, hydraulically operated
Keihin EMS





Chromium-Molybdenum trellis frame, powder-coated
Aluminium
Aluminium, tapered, Ø 28/22 mm
WP-USD Ø 48 mm
WP-PDS shock absorber with hydraulic spring pre-load
210/210 mm
2 x Brembo two piston, floating caliper, floating brake disc Ø 300mm
Brembo two piston, floating caliper, floating brake disc Ø 240 mm
Bosch two channel ABS
2.15 x 21”; 4.25 x 18”
90/90-21”; 150/70 R 18″
X-Ring 5/8 x 5/16″
Twin stainless steel silencer with regulated catalytic converter
63.4°
119 mm
1,570 ± 10 mm
261 mm
860 mm
approx. 19.5 litres/4 litres reserve
approx. 209,5 kg (without fuel)




Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
