2013 Suzuki Hayabusa Limited Edition

Back to 2013 Suzuki Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

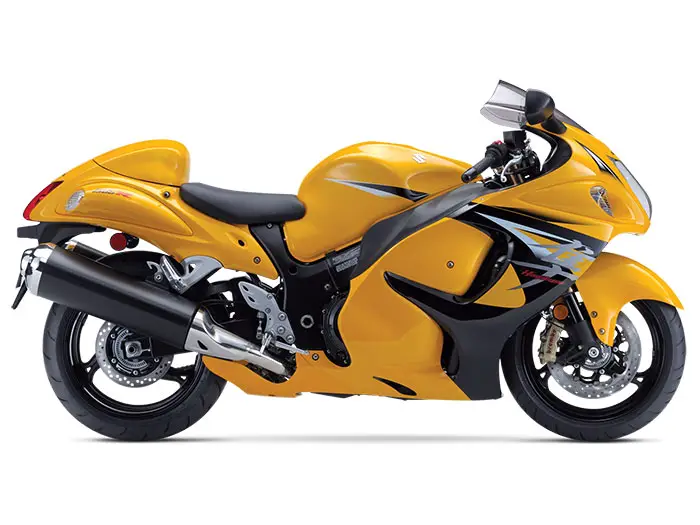

2013 Suzuki Hayabusa Limited Edition
2013 Suzuki Hayabusa Limited Edition


2013 Suzuki Hayabusa Limited Edition Review

2013 Suzuki Hayabusa Limited Edition

The Suzuki Hayabusa Limited Edition, quite simply, isn’t for everyone. With performance credentials that have established it as the most exciting sportbike on the planet, it’s designed for serious sport riders who will settle for nothing less than the best. If that’s you, and if you choose to ride the Hayabusa, you’ll be rewarded with a riding experience you’ll never forget. Its combination of unsurpassed power, crisp handling and superb aerodynamics creates the ultimate sport bike.

The 2013 Hayabusa Limited Edition is available in new Marble Daytona Yellow / Glass Sparkle Black!





2013 Suzuki Hayabusa Limited Edition Key Features

Key Features

Lighter and more rigid than conventional bolt-together calipers, the Hayabusa’s top-of-the-line radial-mount Brembo Monobloc front brake calipers deliver better feedback to the rider. Piston diameter was enlarged from 32-30mm to 32-32mm. Larger pistons help apply greater force to the brake disc, which results in increased initial bite and a more controlled feeling

New, standard equipment Antilock Brake System (ABS) unit features a lightweight, compact design. The ABS enhances brake performance by helping prevent, to a certain extent, wheel locking due to changes in road conditions or excessive braking, by matching stopping power to available traction.

*The ABS is a supplemental device for brake operation, not a device for shortening stopping distance. Always remember to reduce speed sufficiently before approaching curves

The refined 2013 Hayabusa Limited Edition will be available in the following color combination: Marble Daytona Yellow / Glass Sparkle Black




2013 Suzuki Hayabusa Limited Edition Features and Benefits

Engine

A 1340cc in-line 4-cylinder fuel injected, DOHC liquid-cooled engine with 16-valves and Twin Swirl Combustion Chambers (TSCC) provides phenomenal power and broad torque delivering breath taking acceleration.

Lightweight aluminum alloy pistons with a compression ratio of 12.5:1 are used for maximum performance in all connditions. Hard, smooth chrome-nitride Physical Vapor Deposition (PVD) coating on the upper compression and oil control rings on each piston reduces friction while improving cylinder sealing.

Suzuki Composite Electrochemical Material (SCEM) cylinder plating improves heat transfer, durability and ring seal.

Lightweight titanium valves allow the use of light valve springs and high lift while maintaining accurate valve control. Iridium spark plugs are used for high combustion efficiency.

Curved radiator with a compact, dense-core design and engine-management-computer-controlled two ring-type electric fans mounted on the rear of the radiator, increasing the control accuracy and keeping engine temperature stable.

The Hayabusa’s engine is fed by tapered, 44mm double barrel Suzuki’s SDTV (Suzuki Dual Throttle Valve) throttle bodies utilizing dual 12-hole, fine-spray injectors per cylinder and ram air intake with large volume airbox. This precise, carefully controlled system improves combustion efficiency results in improved power delivery and a more linear response.

Idle Speed Control (ISC) system improves cold starting and helps maintain stable engine idle under various conditions.

Suzuki Pulsed-secondary AIR-injection (PAIR) system ignites unburned hydrocarbons and reduces carbon monoxide emissions.

S-DMS (Suzuki Drive Mode Selector) allows the rider to choose from three different engine settings depending on riding conditions or rider preferences.



Transmission Features

An optimized 6-speed transmission features oil spray to the 4th, 5th, and 6th gears to reduce wear and mechanical noise during highway cruising.

Suzuki Clutch Assist System (SCAS) serves as back-torque-limiting system for smooth downshifts and also contributes to a light clutch pull.



Chassis Features
A lightweight and rigid twin-spar aluminum frame minimizes weight while maintaining high torsional strength.

KYB inverted cartridge forks feature a Diamond-Like Carbon (DLC) coating surface treatment on the 43mm stanchion tubes to reduce friction and increase reaction to small surface irregularities. Spring preload, compression damping and rebound damping are fully adjustable.

A bridged aluminum alloy swingarm features a cross-sectional shape for increased rigidity, which also helps cope with improved rear tire grip and increased engine output. The Hayabusa’s fully adjustable rear shock absorber has a 43mm piston and 14mm rod diameter.

Large 310mm (12.2 inch) dual-floating-disc front brakes with efficient, race-proven aluminum-piston, radial-mount Brembo calipers, and 260mm (10.2 inch) single-disc rear brake with single-piston brake caliper work together with a new ABS system offering superior braking performance



Additional Features

The Hayabusa’s instrument cluster features four analog meters for speedometer, tachometer, fuel gauge and water temperature with an S-DMS mode indicator, gear position indicator and adjustable engine-rpm indicator.

Vertically stacked twin headlights provide increased light intensity, improved light distribution and match the elegant flow of the Hayabusa styling.

Advanced aerodynamics offering superb wind protection both for normal and completely tucked-in seating positions.

The tire’s profile and compound were developed through a variety of testing to achieve a high level of stability and handling.








2013 Suzuki Hayabusa Limited Edition – USA Specifications/Technical Details
US MSRP Price: $14,599 USD

Engine
Engine 1340cc, 4-stroke, Liquid-cooled, 4-cylinder, DOHC
Bore x Stroke 81.0 mm x 65.0 mm (3.19 in x 2.56 in)
Compression Ratio 12.5 : 1
Fuel System Suzuki Fuel Injection
Starter Electronic
Lubrication Wet sump
DriveTrain
Transmission 6-speed, constant mesh
Final Drive Chain
Chassis
Suspension Front Inverted telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Brembo, Disc, twin
Brakes Rear Disc
Tires Front 120/70ZR17M/C (58W), tubeless
Tires Rear 190/50ZR17M/C (73W), tubeless
Fuel Tank Capacity 5.5 US
Color Marble Daytona Yellow / Glass Sparkle Black
Electrical
Ignition Electronic ignition (Transistorized)
DimensionsandCurbWeight
Overall Length 2190 mm (86.2 in)
Overall Width 735 mm (28.9 in)
Wheelbase 1480 mm (58.3 in)
Ground Clearance 120 mm (4.7 in)
Seat Height 805 mm (31.7 in)
Curb Weight TBA
Warranty
Warranty 12 month unlimited mileage limited warranty.


All information is subject to change without notice. At Total Motorcycle, we want every ride to be safe and enjoyable. So always wear a helmet, eye protection and protective clothing. Never ride under the influence of alcohol or other drugs. Avoid excessive speeds. Never engage in stunt riding. Study your owner’s manual and always inspect your Suzuki before riding. Take a riding skills course or the course nearest you call the Motorcycle Safety Foundation at 1-800-446-9227.

Suggested Starting Price shown does not include tax, title, or destination charge. Dealer prices may vary.








2013 Suzuki Hayabusa Limited Edition – Canadian Specifications/Technical Details
Canada MSRP Price: $NA

See Hayabusa model




2013 Suzuki Hayabusa Limited Edition – UK/Europe Specifications/Technical Details
UK MSRP Price: £NA

See Hayabusa model

All specifications subject to change without notice by Suzuki.




2013 Suzuki Hayabusa Limited Edition – Australian Specifications/Technical Details
Australia MSRP Price: NA

See Hayabusa model
