2013 Suzuki RM-Z250

Back to 2013 Suzuki Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

2013 Suzuki RM-Z250
2013 Suzuki RM-Z250

2013 Suzuki RM-Z250
2013 Suzuki RM-Z250

2013 Suzuki RM-Z250
2013 Suzuki RM-Z250

2013 Suzuki RM-Z250
2013 Suzuki RM-Z250

2013 Suzuki RM-Z250
2013 Suzuki RM-Z250

2013 Suzuki RM-Z250 Review

2013 Suzuki RM-Z250

For 2013, the Championship-caliber Suzuki RM-Z250 is more potent than ever. It features a long list of engine modifications designed to increase the mid- to top-end performance and provide smoother power delivery. The result is performance that lets you blast out of turns and blow by the competition on the straights. The RM-Z250 also features a redesigned chassis and suspension, including an all-new Separate Function front Fork (SFF) from Showa. It provides crisper, more stable handling so you can carve up the tightest tracks on your way to the top of the podium!

Race wins deliver great memories, trophies, even championship recognition. For Suzuki, racing success yesterday means championships today and tomorrow.

From years of experience helping racers around the world reach the top of the podium, Suzuki understands that the power of high-performance engineering is often in the detail which is why for 2013 the engineers have refined, tweaked and improved the RM-Z250 from top to bottom.

Champions Choose Suzuki…and Suzuki supports future champions! In addition to all the high-tech features and race-winning performance of the 2013 RM-Z models, Suzuki offers the best amateur racing program around!

Look deep and you’ll see the championship-inspired upgrades Suzuki made to the 2013 RM-Z450 and RM-Z250. From years of experience helping racers around the world reach the top of the podium, Suzuki understands that the power of high-performance engineering is often in the details. A new piston. Upgraded ignition. Redesigned transmission. Suspension changes and more. Inside and out, Suzuki RM-Z motorcycles are a sight to behold. Beauty is skin deep. But power and performance goes all the way to the core.



2013 Suzuki RM-Z250 Features and Benefits

Engine Design Concept

For race-winning performance, a motocrosser’s engine needs to be durable, efficient and powerful. To win championships, that engine needs the powerful engineering heritage that comes from Suzuki. The RM-Z250 features a fuel-injected engine powered by Suzuki’s advanced technology. Suzuki’s fuel-injection expertise has delivered national and world championships in Superbike racing as well as in Motocross and Supercross . High-performance heritage like this serves as the platform for the technological improvements of the RM-Z250 delivering increased acceleration, faster throttle response, and broader mid-range power and torque. That means motorcycles that are more competitive and more practical performers to win those bar-to-bar battles.

Exhaust

Increasing the exhaust pipe’s length by 40mm for the RM-Z250 has resulted in a better tuned engine to deliver stronger low-end and mid-range power output. A new silencer has a redesigned construction with inner pipes that meet FIM-enforced sound control regulations without jeopardizing engine power output.

Piston

Based on racing data and on-track experience, Suzuki redesigned the piston of RM-Z250 . With a new shape – designed through Finite Element Method ( FEM ) analysis used in factory racing – new piston is 3% lighter than in the previous model while retaining rigidity. It has slightly thinner skirt walls, a shorter piston pin and narrower piston pin boss to help cut weight but not sacrifice performance and durability. A reinforcing rib on the intake underside adds rigidity; the exhaust underside is left alone for best lubrication and cooling efficiency.

Transmission & Shift Cam

RM-Z racers will enjoy smoother and more precise shifting on the 2013 RM-Z250 as it has been upgraded with an all-new 5-speed transmission and the shape of the shift cam has been changed to deliver shifting precision plus a smoother shift feel.

Electrical

Suzuki updated the electronics that help control the battery-less fuel-injection system. The new ECM on now has a higher-performance processor for more powerful engine management. This component upgrade increases response all the way from the rider’s throttle input to the fuel delivery through the multiple hole fuel injector. And since the ECMs are now waterproof, they resist damage from water and mud, and that helps keep racers at the front of the pack. The electrical systems also has a new magneto with increased power-generating performance for easier starting. And with revised settings in the ignition coil, the RM-Z250 delivers strong roll-on power and increased throttle response.

Camshafts

Both intake and exhaust cam profile are changed on RM-Z250 . The nose angle and lift curve of intake camshaft is increased and exhaust cam timing is revised to achieve higher balance between high performance and ease of power control.

Radiator

The RM-Z250’s cooling efficiency is increased thanks to a redesigned radiator fin and revised water hose routing, making the bike’s high-performance power output more stable, even in the most demanding conditions. The RM-Z250 also features a new by-pass hose routing to simplify occasional radiator maintenance.

Chassis Design Concept

Racers know that, in and out of a corner, precision cornering and race-track stability has always been a prime feature of Suzuki’s motocross bikes. But that doesn’t mean engineers left “good enough” alone. For 2013, the team focused on making the RM-Z250 even more maneuverable, while retaining the bike’s top-notch performance tracking and race-speed stability. With enhanced engine performance as well as refined handling control, the RM-Z250 will continue to be the choice of champions, and of those soon-to-become champions.

Frame

To ensure the frame’s rigidity is well balanced, engineers reviewed and refined the shape and construction of the frame and the seat rail. The result is an ideal balance of nimble handling for technical sections and straight-line stability for high-speed sections.

Front Fork

The RM-Z250 now uses the new Showa Separate Function front Fork ( SFF ). The SFF works by separating the damper in left leg from the spring housed in the right leg. Dividing the fork’s functions allows for lighter overall construction with reduced friction, resulting in improved damping performance and ride control. The forks’ inner tubes are now 48mm in diameter; the larger size gives higher stability. Spring pre-load is adjustable, by gold-anodized adjuster, allowing a wider range of adjustment settings overall.

Rear Suspension

To maintain the RM-Z250’s renowned handling performance, the rear suspension features to option for setting changes and adjustments to best match the increased engine performance and front fork changes. Overall, the design allows enhanced suspension performance for a wider variety of riders.






2013 Suzuki RM-Z250 Key Features

In 2010 Suzuki revolutionized race-day tuning with the introduction of a fuel-setting adjustment system. The RM-Z250 uses this innovative design, which consists of three couplers that allow you to quickly adjust the fuel setting to suit riding conditions. One coupler contains the stoc

All-new Showa Separate Function front Fork (SFF) separates spring and damping functions. The right leg holds the spring, while the left leg incorporates the cartridge assembly to manage damping. The SFF design reduces friction, increased absorption performance and is lighter weight resulting in remarkably smooth performance over a variety of track conditions.

The frame and seat rail have been refined for optimized rigidity balance. The result is an ideal balance of nimble handling and stability.

A new transmission provides smoother and crisper shifting. The clutch’s cam release has also been modified for lighter operation and enhanced feel.

Riders can now track engine-operating time and better manage maintenance intervals using the optional FI indicator (Part #: 36380-28H00)



Engine Features

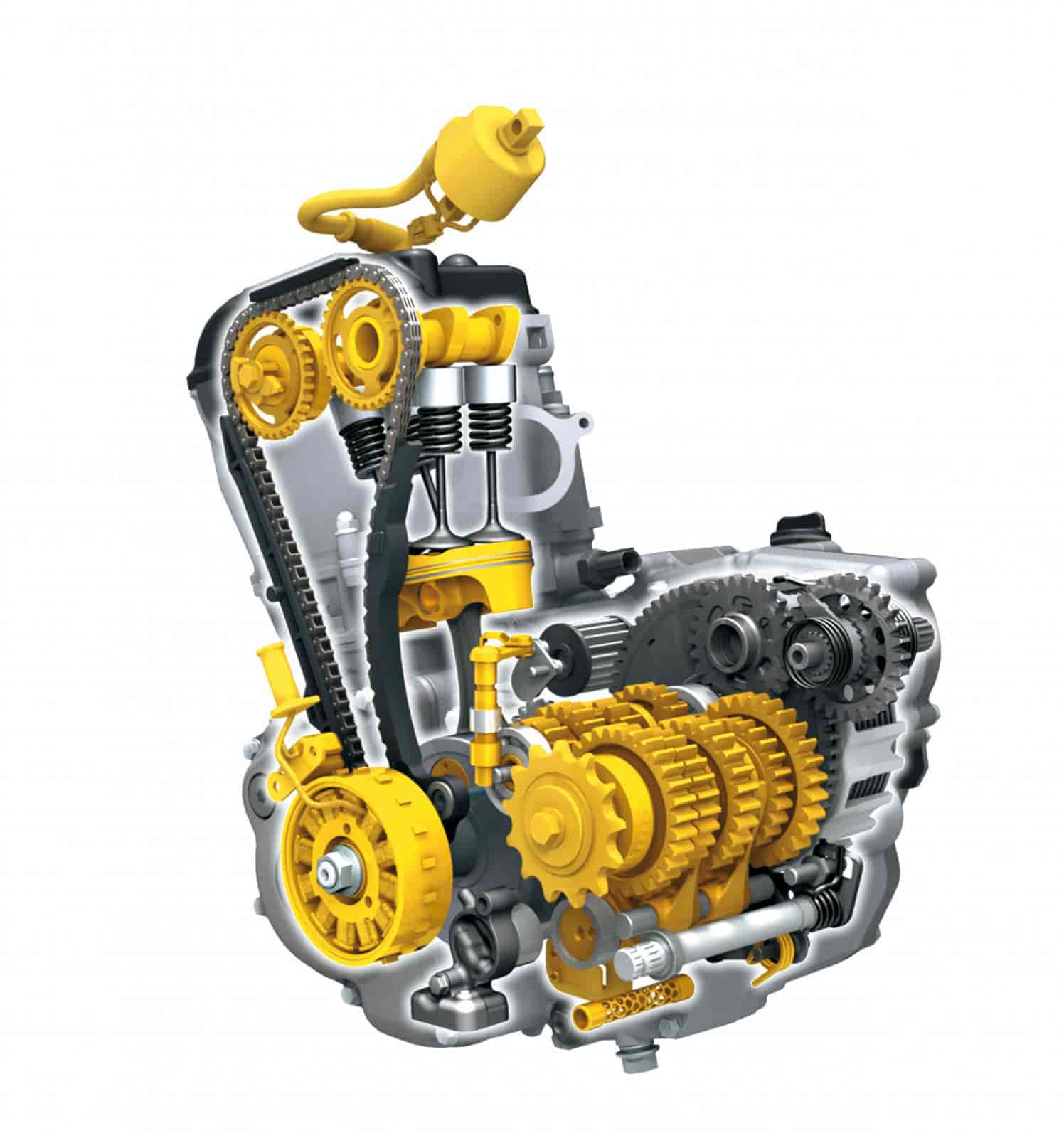

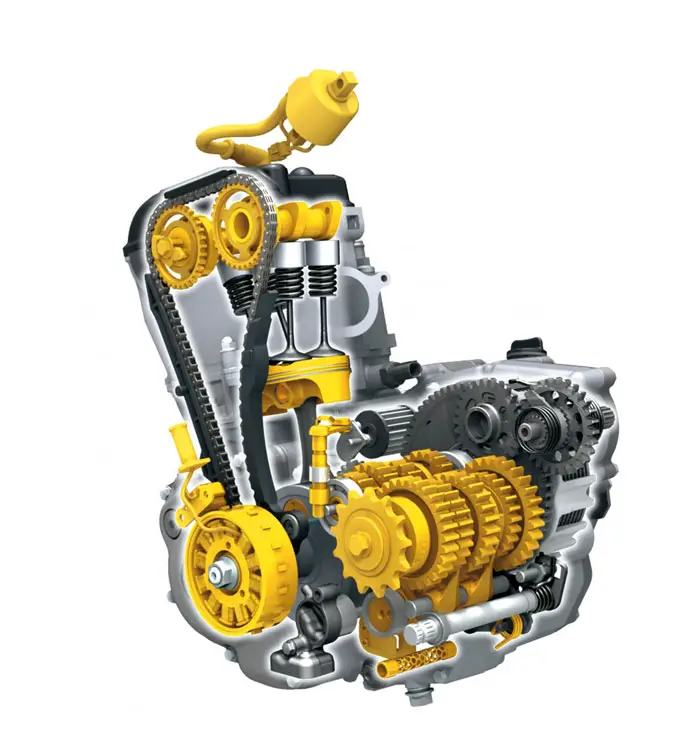

Compact and lightweight 4-stroke, 249cc, fuel-injected, DOHC engine is modified for increased reliability. It provides outstanding performance across an incredibly wide powerband.

A newly designed piston and piston pin was developed using Finite Element Method (FEM) analysis. The new piston is 3% lighter without any compromise to strength and integrity.

The crankcase reed valve has been revised for more efficient lubrication. The new oil strainer has a stronger magneto to capture contaminants from the engine oil. Together these changes contribute to better throttle response and smoother power delivery.

An advanced battery-less fuel-injection (FI) system features a 44mm throttle body with progressive throttle linkage and a 16-bit computer for instant throttle response.

Aluminum cylinder, with Suzuki Composite Electrochemical Material (SCEM) coating, is designed for durability, light weight and efficient heat transfer.

Redesigned exhaust system meets new FIM sound limits while increasing mid- to high-rpm power and delivery. The new muffler body now uses conventional bolts in end cap instead of rivets to simplify the replacement of the glass wool packing in the muffler.

A new ECM with higher processing performance and a new high power ignition coil optimize combustion efficiency for increased roll-on performance.

The RM-Z250’s cooling efficiency is increased thanks to a redesigned radiator fin and revised water hose routing, making the bike’s high performance power output more stable, even in the most demanding conditions. RM-Z250’s also features a new by-pass hose routing to simplify occasional radiator maintenance.



Transmission Features

A new transmission provides smoother and crisper shifting. The clutch’s cam release has also been modified for lighter operation and enhanced feel.



Chassis Features

The frame and seat rail have been refined for optimized rigidity balance. The result is an ideal balance of nimble handling and stability.

The front fork inner tube diameter has been increased from 47mm to 48mm further improving stability and absorption. The spring pre-load is now adjustable, which allows a wider range of adjustment for any level of rider.

New Dunlop MX51 series front and rear tires provide enhanced traction.

The high-quality Renthal handlebars feature a tapered design and are fixed to the triple clamp on a rubber mount.

To maintain the RM-Z’s renowned handling performance, each bike’s rear suspension features a Showa Piggyback shock with setting changes and adjustments to best match with the increased engine performance and front forks changes. The design allows enhanced suspension performance for a wider variety of riders.








2013 Suzuki RM-Z250 – USA Specifications/Technical Details
US MSRP Price: $TBA

Chassis
Overall Length 2170 mm (85.4 in)
Overall Width 830 mm (32.7 in)
Overall Height 1270 mm (50.0 in)
Wheelbase 1475 mm (58.1 in)
Ground Clearance 345 mm (13.6 in)
Seat Height 955 mm (37.6 in)
Curb Weight 106.5 kg (235 lbs)
Transmission 5-speed constant mesh
Final Drive Chain, DID520DMA4, 114 links
Suspension Front Inverted telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc brake
Brakes Rear Disc brake
Tires Front 80/100-21 51M, tube type
Tires Rear 100/90-19 57M, tube type
Fuel Tank Capacity 6.5 L (1.7 US gallons)
Color Champion Yellow

Engine
Engine 249cc, 4-stroke, liquid-cooled, single cylinder, DOHC
Bore Stroke 77.0mm (3.0 in) x 53.6mm (2.1 in)
Compression Ratio 13.5:1
Fuel System Fuel Injection
Starter Primary kick
Lubrication Semi-dry sump
Ignition Electronic ignition (CDI)

Warranty
Warranty No Warranty








2013 Suzuki RM-Z250 – Canadian Specifications/Technical Details
Canada MSRP Price: TBA

Chassis
Overall Length 2170 mm (85.4 in)
Overall Width 830 mm (32.7 in)
Overall Height 1270 mm (50.0 in)
Wheelbase 1475 mm (58.1 in)
Ground Clearance 345 mm (13.6 in)
Seat Height 955 mm (37.6 in)
Curb Weight 106.5 kg (235 lbs)
Transmission 5-speed constant mesh
Final Drive Chain, DID520DMA4, 114 links
Suspension Front Telescopic inverted, coil spring, oil damped
Suspension Rear Swingarm, link type, coil spring, oil damped
Brakes Front Disc brake
Brakes Rear Disc brake
Tires Front 80/100-21 51M, tube type
Tires Rear 100/90-19 57M, tube type
Fuel Tank Capacity 6.5 L (1.7 US gallons)
Color Champion Yellow

Engine
Engine 249cc, 4-stroke, liquid-cooled, single cylinder, DOHC
Fuel System Fuel injection
Starter Primary kick
Lubrication Suzuki Advanced Sump System (SASS)
Ignition Electronic ignition (CDI)

Warranty
Warranty No warranty



2013 Suzuki RM-Z250 – UK/Europe Specifications/Technical Details
UK MSRP Price: £6,399RRP (Arriving September 2012).

DIMENSIONS AND WEIGHTS

Overall length: 2170mm (85.4in)
Overall width: 830mm (32.7in)
Overall height: 1270mm (50in)
Wheelbase: 1475mm (58.1in)
Seat height: 955mm (37.6in)
Kerb Mass: 107kg (235.9lbs)
Fuel capacity: 6.5litres (1.4 UK gallons)

ENGINE SPECIFICATIONS

Engine capacity: 249cc
Engine: 4-stroke, liquid-cooled, DOHC
Bore: 77.0 x 53.6 mm
Compression ratio: 13.5:1
Lubrication: Semi-dry sump
Ignition: Electronic Ignition (CDI)
Fuel system: Fuel injection
Transmission: 5-speed constant mesh
Drive: Chain

CHASSIS SPECIFICATION

Front suspension: Inverted telescopic, coil spring, oil damped
Rear suspension: Link type, coil spring, oil damped
Front brakes: Disc
Rear brakes: Disc
Front tyres: 80/100-21 51M, tube type
Rear tyres: 100/90-19 57M, tube type



All specifications subject to change without notice by Suzuki.
