2014 BMW K1300S

Back to 2014 BMW Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

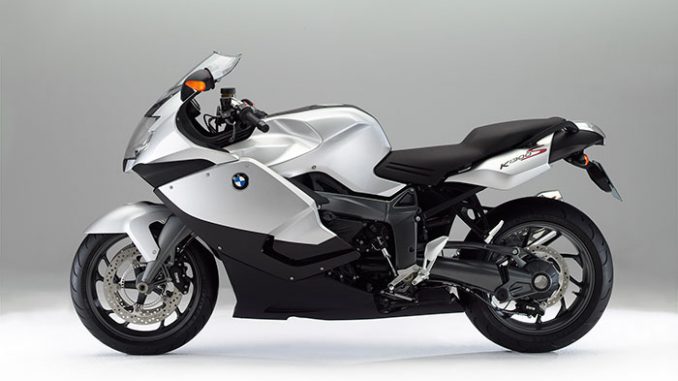

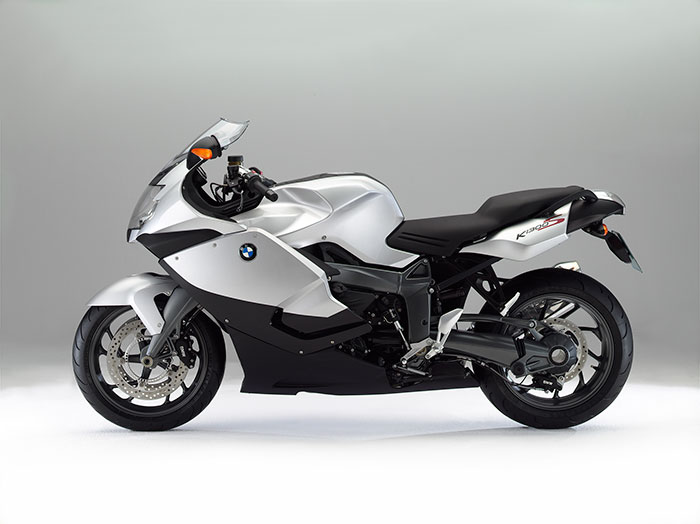

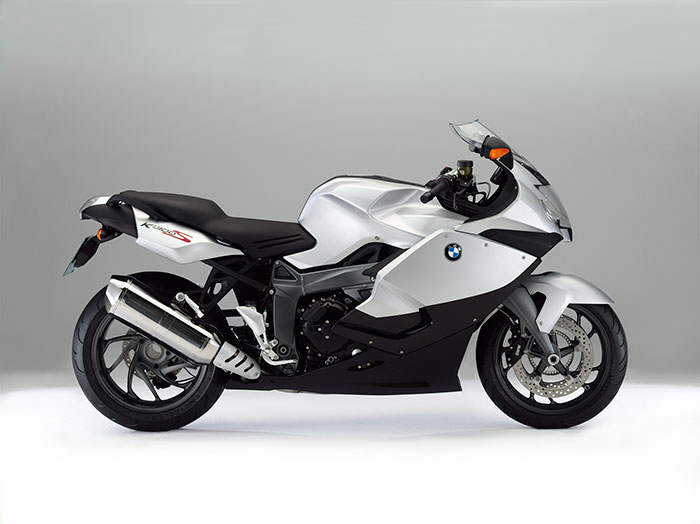

2014 BMW K1300S
2014 BMW K1300S

2014 BMW K1300S
2014 BMW K1300S

2014 BMW K1300S
2014 BMW K1300S



2014 BMW K1300S Review

2014 BMW K1300S on Totalmotorcycle.com

DYNAMIC PERFORMANCE, ELEGANCE, AND SHEER POWER.

The interceptor. The athlete. Aerodynamic, avant-garde. Do you know of another sporty bike with this profile? A bike that develops such pulling power with 175 hp that it take the heat out of many a 200 hp bike? But a bike you can still take out on a quick trip simply because it has great everyday suitability? At the same time a technological treat?

The reasons: 103 ft-lb of torque from 1,293 cc – and at 8,250 rpm too. With a throaty sound from a cool, hexagonal tube. With catalytic converter and exhaust valve. And with fuel consumption and exhaust emission values which would suit many a machine with half the dynamic performance.

With this jet, the whole concept of speed moves into a new dimension. This in-line 4-cylinder delivers its power in such a way that you can almost feel it when standing still. That’s because within the engine speed ranges in which you move more than 80% of the time – i.e. the lower and medium speed ranges – it delivers performance from the first yard. The real thing. And in terms of safety features, this machine is unique: ABS as standard with ASC and ESA optional. And the extras are amazing: race through the gears with the gear shift assistant, pure racing in view with the 2D HP dashboard.

The BMW K 1300 S: supreme power with the sportiest of understatement. Why not try it out right away!

Extreme power. Thrilling acceleration. Instant responses across the rev range. Welcome to the ultimate sports tourer – the new BMW K 1300 S.




2014 BMW K1300S Totalmotorcycle.com Key Features

Engine/Driveline
4 Cylinder in line engine, mounted across the frame and inclined at 55 Deg.
4 Valve cylinder heads
6 Speed gearbox
Stainless steel exhaust system
Digital engine management
Closed loop 3 way catalytic converter with oxygen sensor
Shaft drive
Running Gear
Prop stand with starter inhibit
Continuously adjustable rear rebound damping
BMW Motorrad duolever front suspension and paralever (EVO) rear suspension
Cast Aluminium wheels
Twin disk front brake (EVO, 320mm dia.)
Cast Aluminium single swing arm
Single disk rear brake
Sports wheel, 190/55 ZR17
Hydraulic rear spring preload adjuster

Electronics
Info flat screen (digital clock, gear indicator, fuel gauge, coolant temperature and cruising range indicator, total and 2 trip odometers, service interval indicator)
Power socket
Hazard warning flasher
Permanent headlamp beam
Free-form surface headlights
Electronic immobiliser
Equipment
Adjustable handbrake and clutch lever
Integral ignition switch and steering lock
One piece seat
One key system for ignition, steering, fuel filler cap and seat lock
Storage compartment with tool kit





2014 BMW K1300S Totalmotorcycle.com Features and Benefits

Its styling alone promises speed and performance. And with an output of 175hp and 140Nm of torque, speed and performance is exactly what you get. Your heart races with the engine all the way up to 11,000 rpm. And yet you remain completely calm, thanks­ to a highly practical design, outstanding safety features and a chassis that is a marvel of precision engineering. If you want to be the best, there’s no room for half measures.

The designers of the BMW K 1300 S were very clear about their aims: even more power, even more performance. The result is a machine that combines the excitement of a track bike with the practical features needed for long-distance riding on the road, such as the famous BMW Motorrad Duolever and BMW Motorrad ABS.

The K 1300 S is also available with ESA II Electronic Suspension Adjustment as an option, allowing you to modify the suspension set-up depending on the load you are carrying.









2014 BMW K1300S – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $15,750 USD


Engine

Type
Water-cooled 4-stroke in-line four-cylinder-engine, four valves per cylinder, two overhead camshafts, dry sump lubrication

Bore x stroke
80 mm x 64,3 mm

Capacity
1.293 ccm

Rated output
175 hp (129 KW) at 9,250 rpm

Max. torque
103 ft-lb (140 Nm) at 8,250 rpm

Compression ratio
13.0 : 1

Mixture control / engine management
Electronic intake pipe injection/digital engine management including knock sensor (BMS-K)

Emission control
Closed-loop 3-way catalytic converter, emission standard EU-3


Performance / fuel consumption

Maximum speed
Over 125 mph

Fuel consumption per 100 km at constant 90 km/h
50 mpg, at a constant 55 mph

Fuel consumption per 100 km at constant 120 km/h

Fuel type
Unleaded premium only.


Electrical system

Alternator
three-phase alternator 580 W

Battery
12 V / 12 Ah, maintenance-free


Power transmission

Clutch
Multiple-disc clutch in oil bath, hydraulically operated

Gearbox
Constant mesh 6-speed gearbox

Drive
Shaft drive


Chassis / brakes

Frame
Bridge-type frame, cast aluminum, load-bearing engine

Front wheel location / suspension
BMW Motorrad Duolever; central spring strut

Rear wheel location / suspension
Cast aluminum single-sided swing arm with BMW Motorrad Paralever; central spring strut with lever system, spring pre-load adjustable hydraulically (continuously variable) at handwheel, adjustable rebound damping

Suspension travel front / rear
4.5/5.3 inches (115 mm/135 mm)

Wheelbase
62.4 inches (1,585 mm)

Castor
4.1 inches (104.4 mm)

Steering head angle
60,4°

Wheels
Cast aluminum

Rim, front
3,50 x 17″

Rim, rear
6,00 x 17″

Tyres, front
120/70 ZR 17

Tyres, rear
190/55 ZR 17

Brake, front
Twin disc, floating brake discs, diameter 320 mm, 4-piston fixed calipers

Brake, rear
Single disc brake, diameter 265 mm, double-piston floating caliper

ABS
STANDARD (part integral, can be switched off)


Dimensions / weights

Length
85.9 inches (2,182 mm)

Width (incl. mirrors)
35.6 inches (905 mm)

Height (excl. mirrors)
48 inches (1,221 mm)

Seat height, unladen weight
32.3 inches Standard; optional seat height 31.1 inches (available as accessory and/or factory option, see an authorized BMW Motorrad dealer)

Inner leg curve, unladen weight
71.3 inches Standard; optional inner leg curve (inseam) 68.9 inches (seat available as accessories and/or factory option, see an authorized BMW Motorrad dealer)

Unladen weight, road ready, fully fuelled 1)
560 lbs (254 kg)

Dry weight 2)
503 lbs (228 kg)

Permitted total weight
1,014 lbs (460 kg)

Payload (with standard equipment)
573 lbs (206 kg)

Usable tank volume
5 gallons (19.0 liters)

Reserve
Approx. 1 gallon (4.0 liters)









2014 BMW K1300S – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $18,300 CDN


Engine

Type
Water-cooled 4-stroke in-line four-cylinder-engine, four valves per cylinder, two overhead camshafts, dry sump lubrication

Bore x stroke
80 mm x 64,3 mm

Capacity
1.293 ccm

Rated output
129 kW (175 hp) at 9,250 rpm

Max. torque
140 Nm at 8,250 rpm

Compression ratio
13,0 : 1

Mixture control / engine management
Electronic intake pipe injection/digital engine management including knock sensor (BMS-K)

Emission control
Closed-loop 3-way catalytic converter, emission standard EU-3


Performance / fuel consumption

Maximum speed
Over 200 km/h

Fuel consumption per 100 km at constant 90 km/h
4,7 l

Fuel consumption per 100 km at constant 120 km/h
5,3 l

Fuel type
Unleaded premium, octane number 98 (RON), automatic knock control permits operation with minimum octane number 95 (RON).


Electrical system

Alternator
three-phase alternator 580 W

Battery
12 V / 12 Ah, maintenance-free


Power transmission

Clutch
Multiple-disc clutch in oil bath, hydraulically operated

Gearbox
Constant mesh 6-speed gearbox

Drive
Shaft drive


Chassis / brakes

Frame
Bridge-type frame, cast aluminium, load-bearing engine

Front wheel location / suspension
BMW Motorrad Duolever; central spring strut

Rear wheel location / suspension
Cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring strut with lever system, spring pre-load adjustable hydraulically (continuously variable) at handwheel, adjustable rebound damping

Suspension travel front / rear
115 mm / 135 mm

Wheelbase
1.585 mm

Castor
104,4 mm

Steering head angle
60,4°

Wheels
Cast aluminium

Rim, front
3,50 x 17″

Rim, rear
6,00 x 17″

Tyres, front
120/70 ZR 17

Tyres, rear
190/55 ZR 17

Brake, front
Twin disc, floating brake discs, diameter 320 mm, 4-piston fixed calipers

Brake, rear
Single disc brake, diameter 265 mm, double-piston floating caliper

ABS
Standard equipment: BMW Motorrad Integral ABS (part-integral)


Dimensions / weights

Length
2.182 mm

Width (incl. mirrors)
905 mm

Height (excl. mirrors)
1.221 mm

Seat height, unladen weight
820 mm (low seat: 790 mm)

Inner leg curve, unladen weight
1,810 mm (low seat: 1,750 mm)

Unladen weight, road ready, fully fuelled 1)
254 kg

Dry weight 2)
228 kg

Permitted total weight
460 kg

Payload (with standard equipment)
206 kg

Usable tank volume
19 litres

Reserve
approx. 4.0 litres









2014 BMW K1300S – Totalmotorcycle.com European/UK Specifications/Technical Details
UK/European MSRP Price: £12,375.00 GBP (On The Road)

Engine
Displacement cc 1170
Bore/stroke mm 101/73
Output kW/hp 81/110 at rpm 7550
Torque lb/ft 88 at rpm 6000
Type air/oil-cooled twin cylinder boxer engine
No. of cylinders 2
Compression/fuel 12.0:1, premium unleaded (95-98 RON)
Valve actuation DOHC
Valves per cylinder 4
Ø Intake/outlet mm 39/33
Ø Throttle valve mm 50
Engine management BMS-K+
Emission control closed-loop 3-way catalytic converter

Electrical system
Alternator W 600
Battery V/Ah 12/14 maintenance-free
Headlight W H7
Starter kW 1.2

Power transmission ? gearbox
Clutch hydraulically actuated dry clutch
Gearbox constant mesh 6-speed gearbox
Primary ratio 1.737
Transmission ratios I 2.375
II 1.696
III 1.296
IV 1.065
V 0.939
VI 0.848
Rear wheel drive cardan shaft
Transmission ratio 2.91

Chassis
Frame construction type tubular steel bridge frame, engine self-supporting
Suspension, front upside-down telescopic fork, Ø 46 mm
Suspension, rear BMW Paralever with central strut
Spring travel, front/rear in (mm) 4.7/4.7 (120/120)
Wheel castor in (mm) 4.04 (102.5)
Wheelbase in (mm) 58.1 (1476)
Steering head angle ° 64.5

Brakes
front hydraulically actuated twin-disc brake Ø 320 mm
rear single-disc brake Ø 265 mm
ABS BMW Motorrad ABS

Wheels wire-spoke wheels
front 3.5 x 17″
rear 5.5 x 17″

Tires
front 120/70 ZR17
rear 180/55 ZR17

Dimensions and weights
Total length in (mm) 87.4 (2220)
Total width with mirrors in (mm) 35.0 (890)
Seat height in (mm) 30.9 (785)
DIN unladen weight, road ready lbs (kg) 489 (222)
Permitted total weight lbs (kg) 948 (430)
Fuel tank capacity gal (l) 4.8 (18)

Performance figures
Fuel consumption
55 mph mpg 52
75 mph mpg 41
Acceleration
0-100 km/h (62 mph) s 3.6
Maximum speed mph >125



Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
