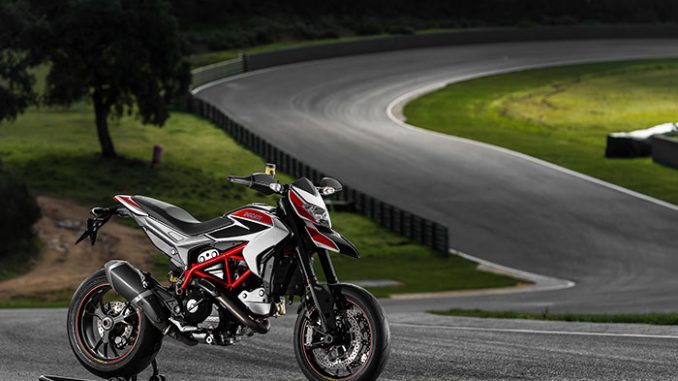

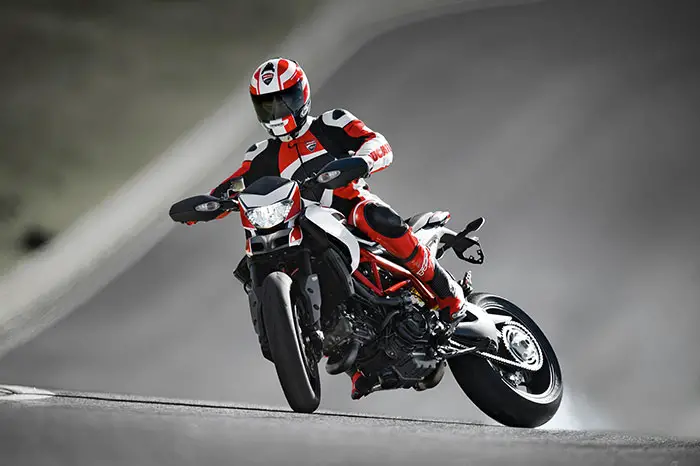

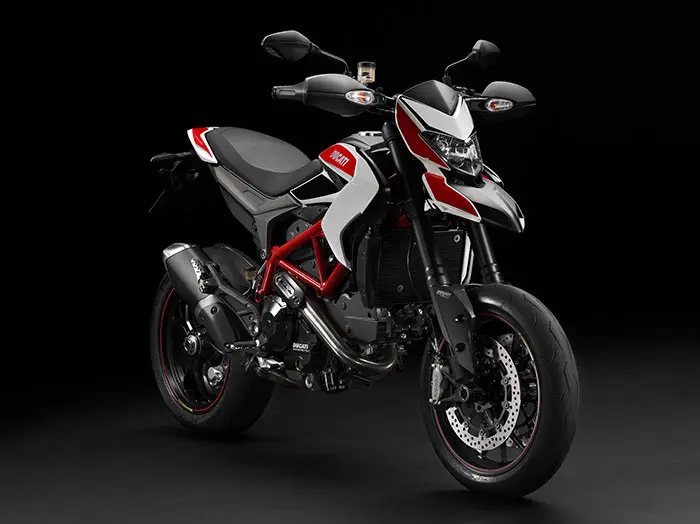

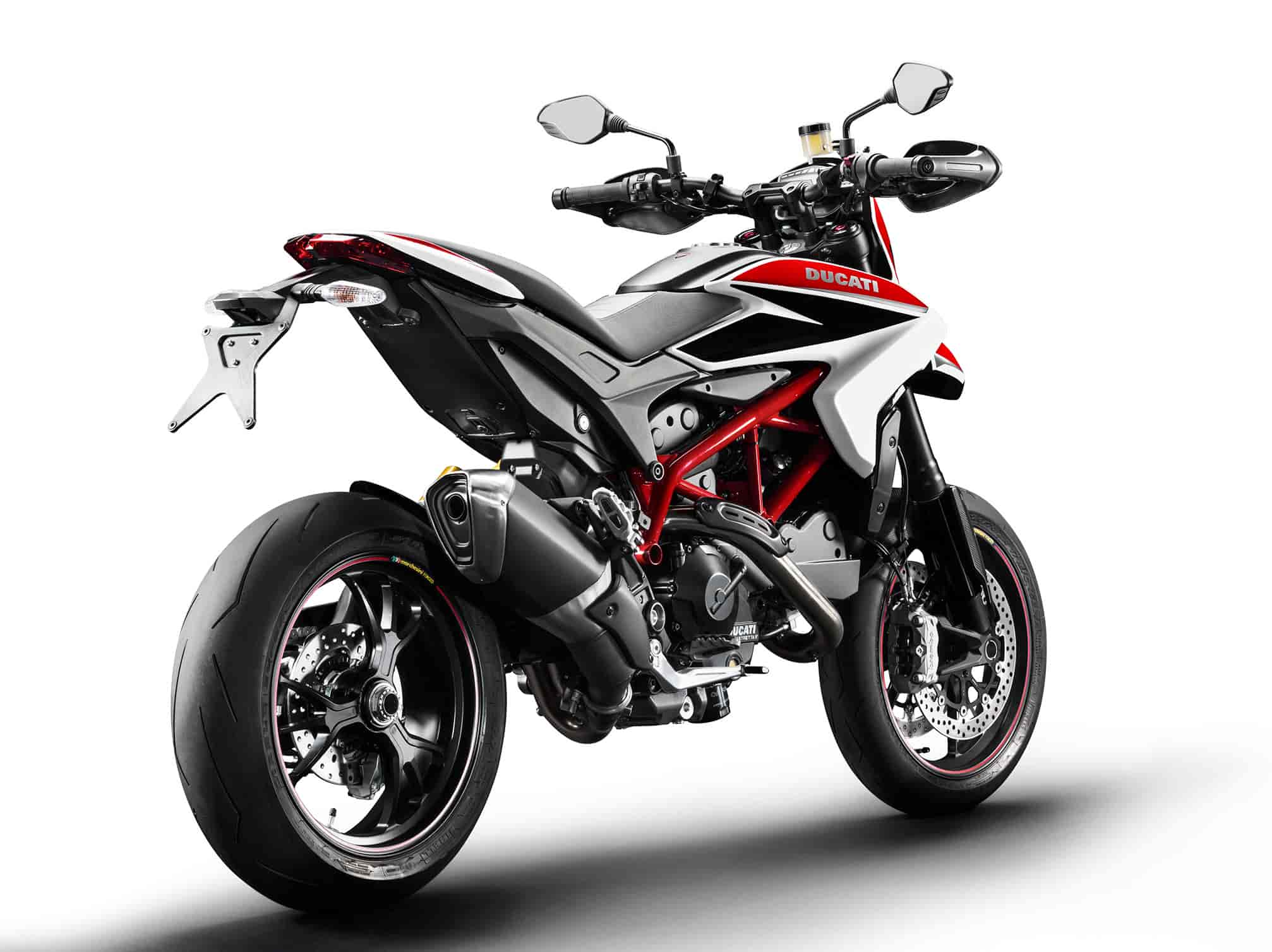

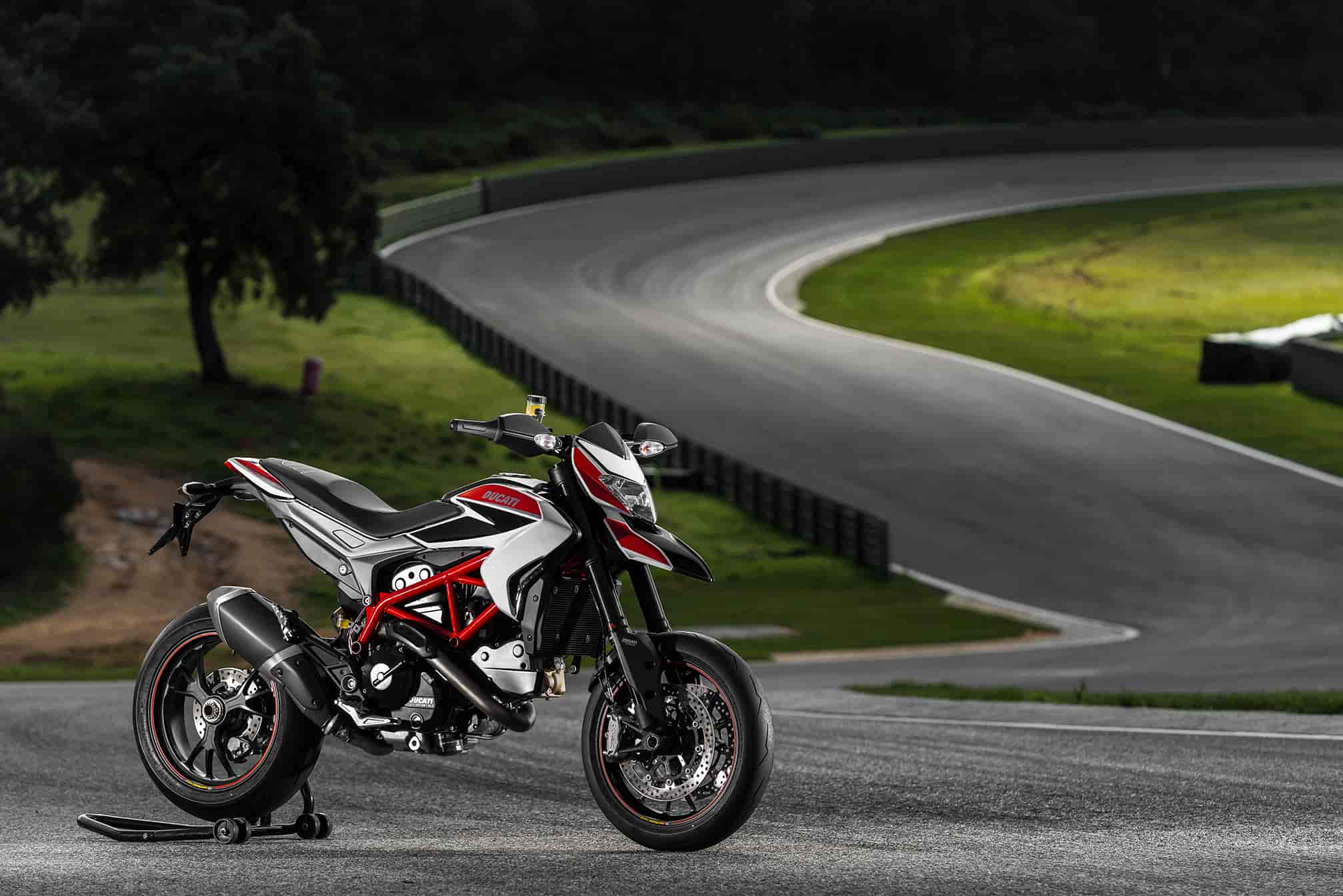

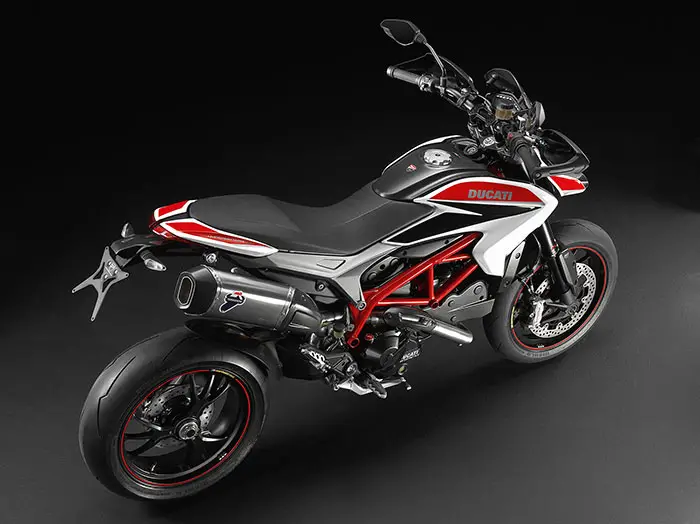

2014 Ducati Hypermotard SP
2014 Ducati Hypermotard SP

2014 Ducati Hypermotard SP
2014 Ducati Hypermotard SP

2014 Ducati Hypermotard SP
2014 Ducati Hypermotard SP

2014 Ducati Hypermotard SP
2014 Ducati Hypermotard SP

2014 Ducati Hypermotard SP
2014 Ducati Hypermotard SP



2014 Ducati Hypermotard SP Review

The 2014 Ducati Hypermotard SP on Totalmotorcycle.com

Hyper Adrenaline…

A raised set-up, forged Marchesini rims, fully adjustable suspensions with an ultralight Marzocchi aluminium yoke and Öhlins rear shock absorber for an extraordinary dry weight of 171 kg. ABS and Ducati Traction Control as standard, so you can concentrate on having a good time. And the incredible Ducati Corse livery underlines the fact that the Hypermotard SP is an uncompromisingly sporty bike, ready to face any challenge.

The spectacular, track-ready Hypermotard SP takes everything offered by the Hypermotard and raises its technical specification for accomplished riders who enjoy a full performance-oriented ride. In true competition style, the SP gets the 1199 Panigale Riding Modes of Race (110hp – High), Sport (110hp – Medium) and Wet (75hp – Low) while longer travel, top-of-the-range suspension gives a true supermotard stance, increasing ground clearance to 210mm (8.3in) and enabling a thrilling 47.5° of available lean-angle for maximum enjoyment. The Hypermotard SP is additionally equipped with the Ducati Safety Pack combination of Panigale-style 3-level ABS and 8-level Ducati Traction Control.

The SP is equipped with fully adjustable, pressurised Marzocchi usd forks that feature hard-anodised aluminium sliders. The state-of-the-art lightweight forks provide professional, precise and high-performance handling with an increased stroke of 185mm (7.3in) as well as excellent feed-back through the aluminium, tapered handle bars. The rear suspension is equally as high-end with a stunning, fully adjustable Öhlins rear shock with integrated “piggy back” reservoir providing 175mm (6.9in) of rear wheel travel.
Naturally, the Hypermotard “SP” is fitted with Pirelli Diablo Supercorsa “SP” tyres in 120/70 x 17 for the front and 180/55 x 17 for the rear and is equipped with super lightweight 1199 Panigale S-style triple three-spoke forged aluminium wheels by Marchesini, further underlining the SP’s focus on high performance.

Additional components special to the SP are front mudguard and cam-belt covers in carbon fibre, radial front master cylinder with 5-point adjustable lever and dedicated seat with specially textured surface and horizontally stitched panels for enhanced grip. This impressive specification combines to achieve a dry weight of just 171kg (377lb) and the competition-like set-up gives the Hypermotard SP a seat height of 890mm (35in) with an accessory seat offering a reduction of 20mm (0.78in) if required. The Hypermotard SP is finished in the Ducati Corse livery of red white and black with grey separating features and a red Trellis frame.

The Marchesini wheels are in black and sport the signature red-pin stripe.

The thrilling Hypermotard, Hypermotard SP and the stylish and practical mid-range tourer, the Hyperstrada, combine Ducati’s latest technologies with outstanding Italian design and engineering to continue the innovative and exciting Hypermotard story.

While the Hypermotard and Hypermotard SP deliver a thrilling and fun filled experience, whether on the daily commute or ripping-up the track asphalt, the Hyperstrada awaits long distance adventure, enabling practical, everyday motorcycling in absolute Ducati style.

The models introduced the new 110hp Ducati 821cc Testastretta 11° engine in a new Trellis frame equipped with top-of-the range chassis components. The Hypermotard and Hypermotard SP use sharp and sleek styling to maintain that essential Supermotard look, while the Hyperstrada is factory-accessorised with full touring-oriented specification. Combine these two worlds of performance with excellent ergonomics and the Ducati Safety Pack of latest generation 2 and 3-level ABS, 8-level Ducati Traction Control and integrated Riding Modes, and the new range takes on a relevance that makes perfect sense in modern motorcycling.

High ground-clearance combined with a thin waistline and commanding riding positions gives the rider an instant Supermotard feeling, with the added luxury of latest street bike comfort and component quality.

While the Hyperstrada is ideal for dominating the every-day urban or long distance commute, the Hypermotard and track-ready Hypermotard SP are intended for the extreme rider who demands the very highest performance.

The range takes the Hypermotard concept forward with refined design and user-friendly technologies that enhance its enjoyment for a wider range of riders.






2014 Ducati Hypermotard SP Totalmotorcycle.com Key Features

Hypermotard SP
• Colours
1. Body | Frame | Wheels: Red/white/black | red | black
• Equipment
o Ducati Safety Pack (ABS, DTC)
o Riding Modes (Race | Sport | Wet)
o 50mm aluminium Marzocchi forks
o Öhlins rear suspension
o Marchesini forged wheels
o Aluminium tapered handlebars
o Radial front brake pump
o Carbon fibre:
• Front mudguard
• Cam-belt covers





2014 Ducati Hypermotard SP Totalmotorcycle.com Features and Benefits

Design

The Hypermotard prototype was an instant success when first shown in 2005 and soon became a top seller when its production started in 2007. Since then, its unique design has excited riders around the world and praise for this thrilling and versatile model has never stopped – and neither has its development.

The introduction of the next generation design, embraced the original “thrill bike” character and enhanced its adventurous dirtbike-inspired look with visibly high ground-clearance, sharp and high tail-piece and thin waistline – design elements that characterise this type of motorcycle whether used for the daily commute, track day or touring.

Attention to the detail of flowing lines has resulted in maintaining the essential, minimalist image of the family, even with the complexity of packaging a liquid-cooled engine. Proportion, ergonomics and practicality shape the Hypermotard family and the integration of Ducati’s latest technologies, such as second generation Testastretta 11° engine, Ducati Safety Pack, Riding Modes and LED illumination, underlines its absolute Ducati character.

Chassis

The Hypermotard has a 34mm diameter tubular steel Trellis frame with 25.5° of rake and trail and offset of 104mm (4.1in) and 30mm (1.2) respectively, providing a sure-footed, stable “feel” without compromising the Hypermotard’s character-forming agility. The frame marries to a die-cast sub-frame and incorporates a Multistrada-like techno-polymer mid-section as part of the assembly.
The Hypermotard has a highly manoeuvrable 70° of lock-to-lock steering movement, and a wheelbase of 1500mm (59in) to enhance the Hypermotard’s stability at speed.

The fuel tank has a capacity of 16 litres (4.2 US gal), enhancing the overall autonomy of the Hypermotard while maintaining its thin waistline and compact silhouette.

Instrumentation

The Hypermotard’s compact instrumentation console has been designed with warning lights across the upper section, which illuminate for neutral, turn signals, high-beam, rev-limit, oil pressure and fuel reserve and an LCD screen with dot matrix area below for all other information.

The screen presents data for speed, rpm, total mileage, trip1/trip2, engine coolant temperature and ambient air temperature and time.

Additionally, the display also presents current fuel consumption, average fuel consumption, average speed, and journey time.

The display constantly shows the selected Riding Mode, including the associated ABS and DTC level programmed, with all three Riding Modes easily changed, while stationary or in motion, by simply scrolling through displayed modes using the indicator cancel button.

When stationary, buttons on the left-hand switchgear can be used to enter a setting menu from where adjustments to the various functions can be made including personalised ABS (1-3+OFF), DTC (1-8+OFF) and power delivery via Ride-by-Wire (Low-Medium-High). All settings are saveable in the instrumentation’s memory and can easily be returned to factory settings with a simple default function.

The system can also memorise and list the last 30 recorded lap times by using the high-beam flash button as a stopwatch, each lap time also memorising the lap number and the corresponding maximum speed and rpm during that lap. The instrumentation is also system-ready to accept the heated grips Ducati accessory, which then produces its own control menu, selectable by scrolling through with the engine starter button.

Lighting

The headlamp uses a very compact and lightweight assembly, which employs a single parabola for high and low beam functions using a blue vision bulb and LED positioning light. For the rear, a specially designed strip of LEDs, enhanced by a high diffusion lens shaped into the sleek lines of the tailpiece, acts for both rear light and brake lights. Front directional indicators are stylishly integrated into the handguards, keeping the lines of the Hypermotard as clean as possible. All Hypermotard models are equipped with a hazard light function, which is activated by holding the left-turn signal button on for four seconds.

Controls

The Hypermotard’s full Ride-by-Wire introduces a new and compact electronic twist-grip, perfectly matching the minimalist styling of the model’s slim-line switch bodies. They house easy-to-use switches and buttons, and feature a unique weapons-like ‘trigger catch’ that slides down to cover the starter button when the kill-switch is activated. All models use a conventional control cable actuation for the clutch and 4-point adjustable levers for the front brake, 5-point on the SP. Black finished footpeg supports are formed in high pressure die-cast aluminium with integrated heel guards and support rear brake and gear shift pedals in forged aluminium.

Ducati Safety Pack (DSP)

Ducati’s Riding Mode technology, incorporates a competition-style 3-level ABS (2-level for the Hyperstrada) and 8-level DTC to introduce the Ducati Safety Pack (DSP) concept to the Hypermotard family, further underlining the focus on performance safety.

Ducati Riding Modes

Ducati’s industry-changing Riding Modes effectively offer optimised settings appropriate to rider and environment by selecting from a choice of three pre-set modes according to model. Each Riding Mode is pre-programmed to instantly change engine character, ABS and DTC intervention – even while riding. The modes are made possible by combining a number of class-leading technologies.
An electronic Ride-by-Wire (RbW) system administers different mappings to regulate power delivery, while the Ducati Traction Control system (DTC) uses eight levels of system interaction to enhance control by reducing rear wheel-spin and the ABS processor provides pre-programmed levels of anti-lock braking.

Hypermotard and Hyperstrada Riding Modes

Sport
The Sport Riding Mode provides 110hp, delivered with a “High” RbW throttle response, level-3 DTC system intervention and level-1 ABS of sport-oriented braking performance with reduced rear-end lift-up prevention.

Touring
The Touring Riding Mode provides 110hp, delivered with a “Medium” RbW throttle response, level-4 DTC system intervention and level-2 ABS with maximum safety and braking stability and increased rear-end lift-up prevention.

Urban
The Urban Riding Mode provides 75hp, delivered with a “Low” RbW throttle response, level-6 DTC system intervention and level-2 ABS with maximum safety and braking stability and increased rear-end lift-up prevention.

Hypermotard SP Riding Modes

Race
The Race Riding Mode provides 110hp, delivered with a “High” RbW throttle response, level-2 DTC system intervention and level-1 ABS of front only ABS with no lift-up prevention.

Sport
The Sport Riding Mode provides 110hp, delivered with a “Medium” RbW throttle response, level-3 DTC system intervention and level-2 ABS of high braking performance with reduced lift-up prevention.

Wet
The Wet Riding Mode provides 75hp, delivered with a “Low” RbW throttle response, level-7 DTC system intervention and level-3 ABS with maximum braking stability and lift-up prevention.

Ride-by-Wire (RbW)

The Ride-by-Wire (RbW) system is an electronic interface between the twistgrip and the engine which decides the ideal power response depending on the Riding Mode selected and according to the rider’s throttle input. The twistgrip no longer uses a throttle cable to control the throttle body butterflies, but instead delivers a signal to a control unit, which in turn operates the butterfly opening. The RbW system enables the use of three different mappings to regulate the power delivery. The three maps offer 110hp with a “high” sports-type delivery, 110hp with a “medium” progressive delivery suitable for touring and 75hp with a “low” reduced delivery for city or rain use.

Ducati Traction Control (DTC)

The Ducati Traction Control is an intelligent system which acts as a filter between the rider’s right hand and the rear tyre. Within milliseconds, DTC is able to detect and then control rear wheel-spin, considerably increasing the bike’s active safety and performance and forming an important component of the Ducati Safety Pack (DSP). The new Hypermotard uses the very latest DTC software, optimised with seamless intervention to ignition timing only.

The system offers eight ‘levels of sensitivity’, each programmed with a level of rear wheel-spin tolerance in line with progressive levels of riding skills classified from one to eight. Level one is programmed to offer the least amount of interaction while level eight uses the most amount of interaction. DTC is an integral part of the pre-programmed Riding Modes on all Hypermotards.

DTC levels are factory pre-set in each of the three Riding Modes, but can be individually customised and saved to suit the rider by accessing the set-up menu within each mode. A ‘Default’ option is available to easily return all settings to factory pre-sets.

Bosch Brembo Braking system with 3-level ABS

Included as an integral part of the Ducati Safety Pack (DSP), all Hypermotards are equipped with the Bosch ABS 9MP controlled Brembo braking system, an impressive combination of state-of-the-art security and proven performance. Shorter stopping distances with enhanced stability are vital prerequisites for all motorcycles, but adding full Riding Mode intergration takes Hypermotard braking to the next level.

The Hypermotard and Hyperstrada use a 2-level system, where level-1 provides a sport-oriented ABS interaction with reduced rear-end lift-up prevention, and Level-2 delivers maximum safety ABS interaction with enhanced stability and increased rear-end lift-up prevention.

The Hypermotard SP uses the full 3-level system, where level-1 enables a track-oriented front only ABS and level-2 delivers high braking performance with reduced rear lift-up prevention for sport-oriented road use, while level-3 provides the most braking stability with maximum lift-up prevention.

The front brakes use twin radially-mounted Brembo, four piston, Monobloc M4-32 callipers actuated by a master cylinder with a 4-point adjustable lever on the Hypermotard and Hyperstrada and 5-point on the high performance radial master cylinder of the SP. The fronts grip 320mm discs, while a single 245mm disc on the rear is gripped by a single Brembo calliper. Typical of all Ducatis, these components ensure high performance braking and set the standard in this segment.

All Hypermotard models are fitted with the Bosch-Brembo ABS system as standard equipment, delivering outstanding braking performances in all conditions and providing a major contribution towards performance safety. An option to disable the ABS in each individual Riding Mode is available via the instrumentation, and the system allows the setting to be saved and memorised at the next ignition-on.

Ducati 821cc Testastretta 11°

When developing the new power unit for the Hypermotard family, engineers analysed capacity and bore/stroke ratio to create the optimum combination of tractability and Hyper performance. The 821cc Testastretta 11° engine delivers all-round performance producing 110hp (80.9kW) @ 9,250rpm with a wide and ride-enhancing 65.8lb-ft (9.1kgm) of torque @ 7,750rpm that underlines its pure Ducati character.

The four valve per cylinder, liquid-cooled engine has a compression ratio of 12.8:1 and displaces 821cc from an 88mm x 67.5mm bore and stroke, which provides a wide range of torque and an impressive and practical peak horsepower value. The engine, which is cooled by a high efficiency radiator mounted with twin electric fans, breathes through two 52mm, full Ride-by-Wire throttle bodies which integrate three maps into the Riding Modes.

The 821cc Testastretta 11° uses a number of operation-enhancing features, including optimised fuel injector spray targets and a secondary air system. The system enables a smoother cycle-to-cycle engine operation with increased fuelling during specific engine operations. This optimisation of fuel-mapping without compromising emissions is achieved by completing the oxidisation of unburned hydrocarbons, which reduces HC and CO levels. The system is activated when the engine ECU recognises specific conditions in the engine’s operation via the lambda and throttle opening sensors. It then opens a valve enabling a flow of clean air from the main airbox to a reed valve situated in each cylinder head, which enables one-way flow into an air gallery exiting into the exhaust port close to the exhaust valve. Entering the hottest point of the exhaust gasses, the fresh charge of air enhances the burn environment, eliminating any unburned fuel that escapes during the exhaust cycle under certain conditions.

For increased user-friendliness, Engineers used a valve over-lap of just 11° instead of the 40°, typical in Ducati’s performance-intended engines that constantly operate at high RPM. This reduced peak horsepower slightly, but enhanced mid-range and overall smoothness – perfect prerequisites for the extreme versatility of the new Hypermotards.

The overlap angle is defined as the interval of crankshaft rotation, measured in degrees, during which both the intake and exhaust valves are open at the same time. This overlap occurs between the end of the exhaust stroke and the start of the intake stroke. On the Testastretta 11° engine, this angle has been reduced and the fresh inlet flow less compromised by the exiting exhaust gases, resulting in a much smoother combustion, improved fuel economy and lower exhaust emissions. Unburnt hydrocarbon emissions (pre-catalyser) and specific fuel consumption (and consequent CO2 emissions) are considerably reduced.

The engine is equipped with an APTC, oil bath clutch with ‘slipper’ function and light feel at the lever. Its design uses a progressive self-servo mechanism that presses the plates together when under drive from the engine, enabling the reduction of the clutch spring rates and achieving an even lighter clutch lever at the handlebar, ideal in stop-start traffic or long journeys. When the drive force is reversed (over-run), the same mechanism reduces the pressure on the clutch plates, enabling them to provide a race-like ‘slipper’ action, which reduces the destabilizing effect of the rear-end under aggressive down-shifting and provides a much smoother feeling when closing the throttle or down-shifting under normal riding conditions.

The completely new 2-1 exhaust system runs through 50mm headers, and is controlled by an exhaust valve before passing into the new single silencer, black finished with a polished stainless steel end-cap. The system uses new sound-absorbing technology to achieve such a compact layout and is completed with catalytic converter and two lambda probes for optimum Euro 3 emissions management.

30,000km between major services

The 821cc Testastretta 11° engine reaches another milestone in Ducati’s constant investment in quality by enabling the distance between major service intervals (valve clearance check) to be set at an owner-friendly 30,000 kilometres (18,641 miles).









2014 Ducati Hypermotard SP – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $14,995 USD

Engine Type
Testastretta 11°, L-Twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled
Displacement
821.1cc
Bore x Stroke
88 x 67,5 mm
Compression ratio
12,8:1
Power
110hp (81kW) @ 9250rpm
Torque
89 Nm (65.8 lb-ft) @ 7750 rpm

Technical data referring to power and torque was measured on an engine test stand at Ducati.
Fuel injection
Electronic fuel injection system. Throttle bodies with full Ride by Wire system
Exhaust
Single stainless steel muffler with catalytic converter and two lambda probes.

Transmission

Gearbox
6 speed
Primary drive
Straight cut gears, Ratio 1.85:1
Ratio
1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final drive
Chain, Front sprocket 15, Rear sprocket 45
Clutch
Slipper and self-servo wet multiplate clutch mechanically operated

Chassis

Frame
Tubular steel Trellis frame
Front suspension
Marzocchi 50 mm pressurized and fully adjustable usd fork with hard anodized aluminium lightweight slider
Front wheel
3-spoke in forged light alloy 3.50×17
Front Tyre
Pirelli Diablo Supercorsa SP 120/70 ZR17
Rear suspension
Progressive linkage with fully adjustable Ohlins monoshock. Aluminium single-sided swingarm
Rear wheel
3-spoke forged light alloy 5.50×17
Rear tyre
Pirelli Diablo Supercorsa SP 180/55 ZR17
Front wheel travel
185 mm (7.3 in)
Rear wheel travel
175 mm (6.9 in)
Front brake
2 x 320 mm semi-floating discs, radially mounted Monobloc Brembo calipers, 4-piston 2-pad, axial pump with adjustable lever, ABS 9MP as standard
Rear brake
245 mm disc, 2-piston caliper, ABS 9MP as standard
Instrumentation
Multifunction digital dashboard with white backlight, composed of LCD segments for rev counter and a Dot-Matrix area for all other information: odometer (total, trip 1 and trip2), speedometer, clock, coolant temperature, selected riding mode, current fuel consumption, average fuel consumption, average speed, air temperature, trip time, maintenance intervals indicator (Km), errors detection (diagnosis), setup menu and customization functions. Interface for the management of Riding Modes (ABS, throttle response power, traction control). Lights: oil pressure, neutral N, fuel warning, turn signal, EOBD (diagnosis), high beam, DTC intervention (Traction Control) and deterrent immobilizer (in Key-Off). Headlight control: auto switching-off during engine start, auto turning-off after 60 seconds from Key-On without starting the engine, hazard lights. The key management of the various function menus are integrated in the left and right switch controls.

Dimensions and weight

Dry weight
171kg (377lb)

Weight data refers to the dry weight of the motorcycle without battery, lubricants and coolants for liquid-cooled models.
Wet weight (KERB)
194 kg (428 lb)

Kerb weights indicate total bike weight with all operating consumable liquids and a fuel tank filled to 90% of capacity (as per EC standard 93/93).
Seat height
890mm (35.0in)
Wheelbase
1.505 mm (59.3 in)
Rake
25,5°
Trail
104mm (4.1In)
Fuel tank capacity
16l – 4.2gallon (US)
Number of seats
Dual seat

Equipments

Standard Equipment
Riding Modes, Power Modes, Ducati Safety Pack (ABS + DTC), RbW. Marchesini forged rims, tapered aluminium handlebars, carbon fibre components: front mudguard, cam belt covers. Ready for anti-theft system, heated grips, sat-nav

Warranty

Warranty
2 years unlimited mileage
Maintenance service intervals
15,000 km (9,000 mi)/12 months
Valve clearance check
30,000 km (18,000 mi)

Emissions and Consumption

Standard
follows the US Federal Regulation






2014 Ducati Hypermotard SP – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $15,995 CDN

Engine Type
Testastretta 11°, L-Twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled
Displacement
821.1cc
Bore x Stroke
88 x 67,5 mm
Compression ratio
12,8:1
Power
110hp (81kW) @ 9250rpm
Torque
89 Nm (65.8 lb-ft) @ 7750 rpm

Technical data referring to power and torque was measured on an engine test stand at Ducati.
Fuel injection
Electronic fuel injection system. Throttle bodies with full Ride by Wire system
Exhaust
Single stainless steel muffler with catalytic converter and two lambda probes.

Transmission

Gearbox
6 speed
Primary drive
Straight cut gears, Ratio 1.85:1
Ratio
1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final drive
Chain, Front sprocket 15, Rear sprocket 45
Clutch
Slipper and self-servo wet multiplate clutch mechanically operated

Chassis

Frame
Tubular steel Trellis frame
Front suspension
Marzocchi 50 mm pressurized and fully adjustable usd fork with hard anodized aluminium lightweight slider
Front wheel
3-spoke in forged light alloy 3.50×17
Front Tyre
Pirelli Diablo Supercorsa SP 120/70 ZR17
Rear suspension
Progressive linkage with fully adjustable Ohlins monoshock. Aluminium single-sided swingarm
Rear wheel
3-spoke forged light alloy 5.50×17
Rear tyre
Pirelli Diablo Supercorsa SP 180/55 ZR17
Front wheel travel
185 mm (7.3 in)
Rear wheel travel
175 mm (6.9 in)
Front brake
2 x 320 mm semi-floating discs, radially mounted Monobloc Brembo calipers, 4-piston 2-pad, axial pump with adjustable lever, ABS 9MP as standard
Rear brake
245 mm disc, 2-piston caliper, ABS 9MP as standard
Instrumentation
Multifunction digital dashboard with white backlight, composed of LCD segments for rev counter and a Dot-Matrix area for all other information: odometer (total, trip 1 and trip2), speedometer, clock, coolant temperature, selected riding mode, current fuel consumption, average fuel consumption, average speed, air temperature, trip time, maintenance intervals indicator (Km), errors detection (diagnosis), setup menu and customization functions. Interface for the management of Riding Modes (ABS, throttle response power, traction control). Lights: oil pressure, neutral N, fuel warning, turn signal, EOBD (diagnosis), high beam, DTC intervention (Traction Control) and deterrent immobilizer (in Key-Off). Headlight control: auto switching-off during engine start, auto turning-off after 60 seconds from Key-On without starting the engine, hazard lights. The key management of the various function menus are integrated in the left and right switch controls.

Dimensions and weight

Dry weight
171kg (377lb)

Weight data refers to the dry weight of the motorcycle without battery, lubricants and coolants for liquid-cooled models.
Wet weight (KERB)
194 kg (428 lb)

Kerb weights indicate total bike weight with all operating consumable liquids and a fuel tank filled to 90% of capacity (as per EC standard 93/93).
Seat height
890mm (35.0in)
Wheelbase
1.505 mm (59.3 in)
Rake
25,5°
Trail
104mm (4.1In)
Fuel tank capacity
16l – 4.2gallon (US)
Number of seats
Dual seat

Equipments

Standard Equipment
Riding Modes, Power Modes, Ducati Safety Pack (ABS + DTC), RbW. Marchesini forged rims, tapered aluminium handlebars, carbon fibre components: front mudguard, cam belt covers. Ready for anti-theft system, heated grips, sat-nav

Warranty

Warranty
2 years unlimited mileage
Maintenance service intervals
15,000 km (9,000 mi)/12 months
Valve clearance check
30,000 km (18,000 mi)

Emissions and Consumption

Standard
follows the US Federal Regulation






2014 Ducati Hypermotard SP – Totalmotorcycle.com United Kingdom Specifications/Technical Details
British MSRP Price: £ 11,850 GBP

Engine Type
Testastretta 11°, L-Twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled
Displacement
821.1cc
Bore x Stroke
88 x 67,5 mm
Compression ratio
12,8:1
Power 110hp (81kW) @ 9250rpm
Torque 89 Nm (65.8 lb-ft) @ 7750 rpm

Technical data referring to power and torque was measured on an engine test stand at Ducati.
Fuel injection
Electronic fuel injection system. Throttle bodies with full Ride by Wire system
Exhaust
Single stainless steel muffler with catalytic converter and two lambda probes.
Transmission
TOP
Gearbox
6 speed
Primary drive
Straight cut gears, Ratio 1.85:1
Ratio
1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final drive
Chain, Front sprocket 15, Rear sprocket 45
Clutch
Slipper and self-servo wet multiplate clutch mechanically operated

Chassis

Frame
Tubular steel Trellis frame
Front suspension
Marzocchi 50 mm pressurized and fully adjustable usd fork with hard anodized aluminium lightweight slider
Front wheel
3-spoke in forged light alloy 3.50×17
Front Tyre
Pirelli Diablo Supercorsa SP 120/70 ZR17
Rear suspension
Progressive linkage with fully adjustable Ohlins monoshock. Aluminium single-sided swingarm
Rear wheel
3-spoke forged light alloy 5.50×17
Rear tyre
Pirelli Diablo Supercorsa SP 180/55 ZR17
Front wheel travel
185 mm (7.3 in)
Rear wheel travel
175 mm (6.9 in)
Front brake
2 x 320 mm semi-floating discs, radially mounted Monobloc Brembo calipers, 4-piston 2-pad, axial pump with adjustable lever, ABS 9MP as standard
Rear brake
245 mm disc, 2-piston caliper, ABS 9MP as standard
Instrumentation
Multifunction digital dashboard with white backlight, composed of LCD segments for rev counter and a Dot-Matrix area for all other information: odometer (total, trip 1 and trip2), speedometer, clock, coolant temperature, selected riding mode, current fuel consumption, average fuel consumption, average speed, air temperature, trip time, maintenance intervals indicator (Km), errors detection (diagnosis), setup menu and customization functions. Interface for the management of Riding Modes (ABS, throttle response power, traction control). Lights: oil pressure, neutral N, fuel warning, turn signal, EOBD (diagnosis), high beam, DTC intervention (Traction Control) and deterrent immobilizer (in Key-Off). Headlight control: auto switching-off during engine start, auto turning-off after 60 seconds from Key-On without starting the engine, hazard lights. The key management of the various function menus are integrated in the left and right switch controls.

Dimensions and weight

Dry weight
171kg (377lb)

Weight data refers to the dry weight of the motorcycle without battery, lubricants and coolants for liquid-cooled models.
Wet weight (KERB)
194 kg (428 lb)

Kerb weights indicate total bike weight with all operating consumable liquids and a fuel tank filled to 90% of capacity (as per EC standard 93/93).
Seat height
890mm (35.0in)
Wheelbase
1.505 mm (59.3 in)
Rake
25,5°
Trail
104mm (4.1In)
Fuel tank capacity
16l – 4.2gallon (US)
Number of seats
Dual seat

Equipments

Standard Equipment
Riding Modes, Power Modes, Ducati Safety Pack (ABS + DTC), RbW. Marchesini forged rims, tapered aluminium handlebars, carbon fibre components: front mudguard, cam belt covers. Ready for anti-theft system, heated grips, sat-nav

Warranty

Warranty
2 years unlimited mileage
Maintenance service intervals
15,000 km (9,000 mi)/12 months
Valve clearance check
30,000 km (18,000 mi)

Emissions and Consumption

Standard
Euro 3

*GBP Prices quoted are SRP’s including 20% VAT and the cost of pre-delivery inspection.

Specifications, features and prices to change by manufacturer without notice. Information from Total Motorcycle.com; All information correct as of posted date.

About Michael Le Pard 872 Articles

“Mr. Totalmotorcycle”. Owner and Founder of Total Motorcycle. Supporting Motorcyclists and Motorcycling for 18 great years.

Be the first to comment

Leave a Reply
