2014 Honda CRF125FB

Back to 2014 Honda Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

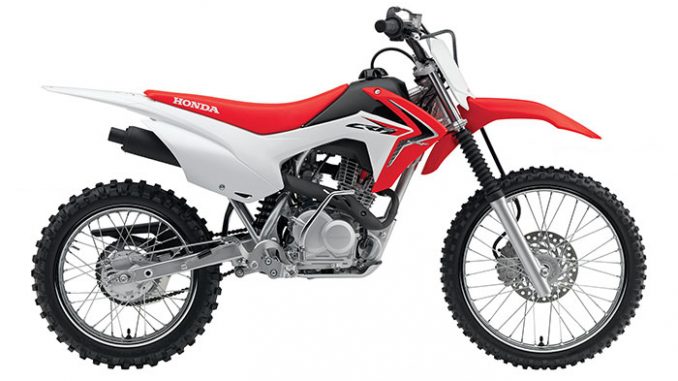

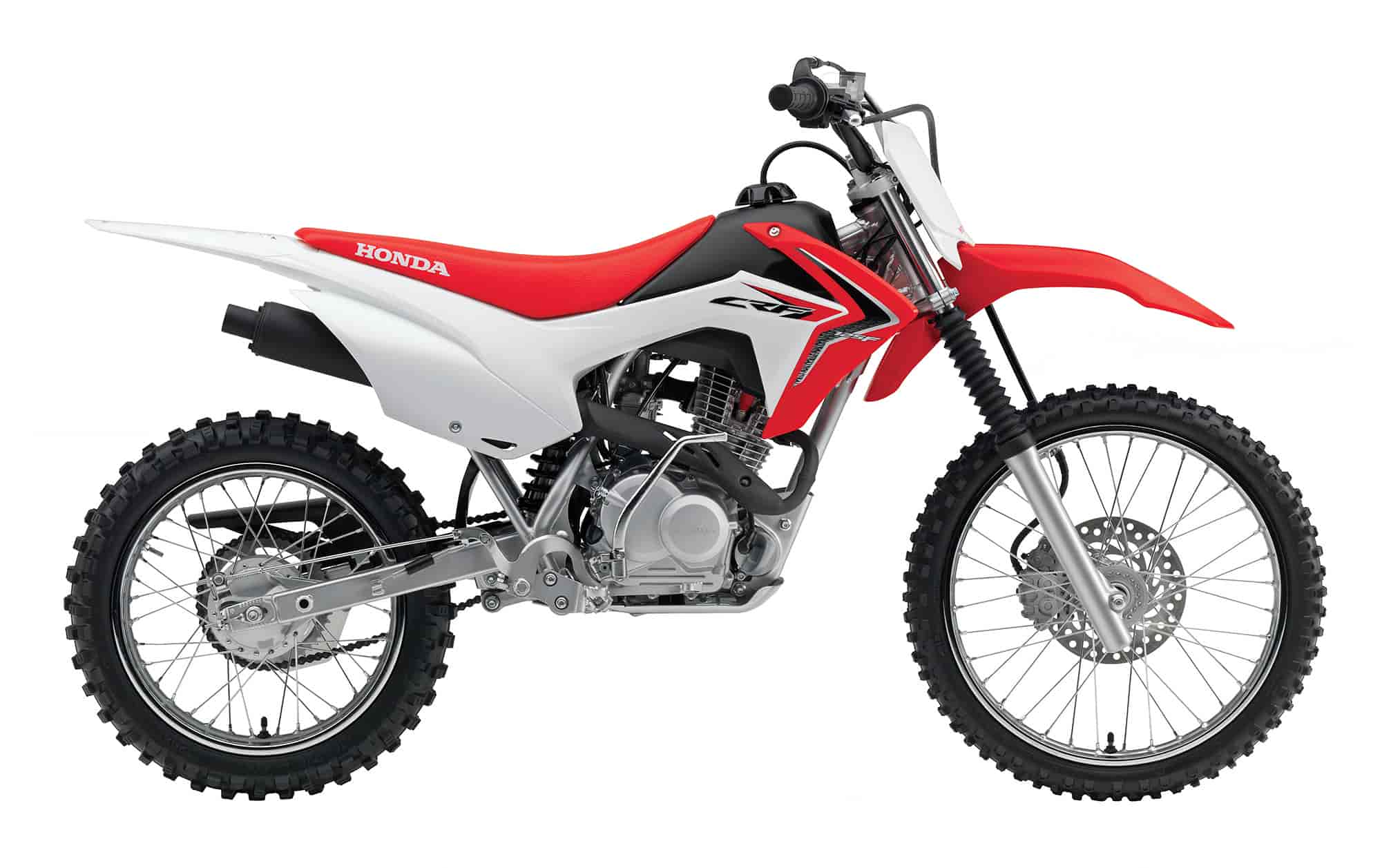

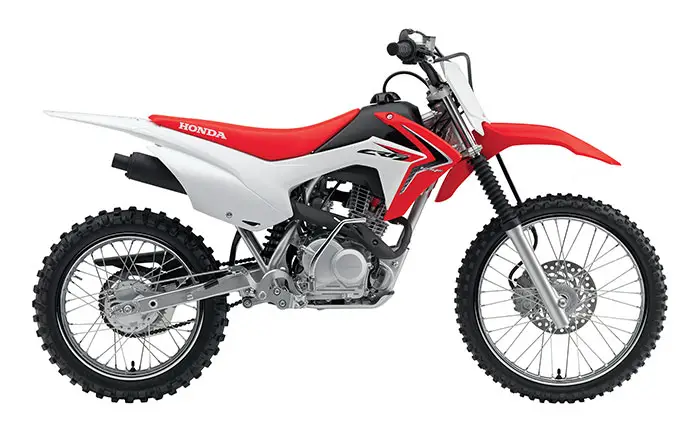

2014 Honda CRF125FB
2014 Honda CRF125FB



2014 Honda CRF125FB Review

2014 Honda CRF125FB on Totalmotorcycle.com

Bigger Riders Need Bigger Bikes…

Honda’s all-new CRF125FB (Big Wheel) is going to be a great choice for a wide range of riders. Basically, it’s the same great machine as our new CRF125F, but with bigger wheels and a two-inch taller seat height. You’ll find it’s perfect for teens and smaller adults who just want to get out on the trails and have fun. Loaded with features, we’re especially proud of its reliability (nothing can match a Honda for that), so you get to concentrate on having a good time rather than fussing with a temperamental machine.

Rugged, simple and easy to maintain, it offers styling cues that match our CRF450R and CRF250R motocross bikes. Its electric starter makes it easy to get underway, while a four-speed transmission gives you all the control of a full-sized bike.

Off-road riding should be fun. And for 2014, the new CRF125F (Big Wheel) offers as much fun as bikes twice its size.

Be A Responsible Rider
Parents need to consider their youngster’s age, size, ability and maturity before allowing them to ride. See owner’s manual for additional safety and supervisory information. Designed exclusively for off-road operator-only use. Always wear a helmet, eye protection and protective clothing whenever you ride. Never ride under the influence of drugs or alcohol.

In 2013 the CRF110F replaced the immensely popular CRF70F within Honda’s family of fun, entry-level off-road bikes. Now, two new larger-displacement 2014 CRF125F models enter the lineup, allowing consumers more choices in this market segment. The two CRF125F models offer unique wheel sizes that allow them to replace the CRF80F and CRF100F. With a seat height of 28.9 inches, the small-wheel CRF125F seat is the same height as the CRF80F it replaces, while the CRF125F Big Wheel features the same seat height-30.9 inches-as the CRF100F it replaces. This seat-height option allows riders to pick the CRF125F that fits best. Featuring an all-new electric-start 125cc single-cylinder OHC four-stroke engine tuned for loads of low-end grunt plus plenty of pull throughout the powerband, the CRF125Fs also feature a four-speed gearbox. Add a new rolling chassis with upgraded suspension components front and rear plus styling just like Honda’s CRF® motocross bikes, and you have a great addition to Honda’s off-road line of family machines with a bike for all riders-young to old, beginner to expert.

One of the great things about Honda’s line of off-road trail bikes is they seem to have something for everyone, case in point the CRF125F (Big Wheel). Essentially the same as the standard CRF125F the “Big Wheel” version is fitted with 2” larger wheels at each end with a corresponding increase in seat height, ground clearance and wheelbase. Of course it has all the same great features as the regular CRF125F, only with a bit more room. Just getting into motorcycling, or moving up from something smaller, the CRF125F (Big Wheel) may be exactly the right size for you.

And Honda’s legendary durability means that if you outgrow it, you can count on relatively high, retained value at trade in time.

CRF125FB (Big Wheel) – a little bit more





2014 Honda CRF125FB Totalmotorcycle.com Key Features


Electric Starter.

Turn a key, push a button—that’s all it takes to get the new CRF125F Big Wheel going. Add in a generous dose of Honda reliability and you’ll find the CRF125F Big Wheel is super easy to own.

Sized Right For Fun.

With its 125cc single-overhead-cam engine, air-cooled and four-speed transmission, the new CRF125F Big Wheel will fit a wide range of riders. It also features bigger front and rear wheels than our regular CRF125F to better fit taller riders.

Stopping Power.

Just because it’s a small bike doesn’t mean we scrimped on the details—just the opposite, in fact: the front disc brake is a perfect example. It’s a big-bike feature that’s pure Honda.

– The CRF125F replaces the CRF80F and shares the same seat height of 28.9 inches, while the CRF125F Big Wheel replaces the CRF100F and offers the same 30.9-inch seat height.

– With two models to choose from, the CRF125F/FB can be sized appropriately to fit riders of varying heights.

– The 125cc SOHC engine is tuned for strong bottom-end torque that builds in a linear fashion through the midrange up to the top end.

– The four-speed gearbox is well matched to the CRF125F/FB’s broad power spread.

– New electric starter adds convenience over the kick-start only CRF80F and CRF100F models.

– 31mm fork provides enhanced front suspension action.

– Pro-Link® single-shock rear suspension features a more sophisticated rear shock for better, more consistent rear suspension action.

– New hydraulic front disc brake with 220mm rotor and 95mm rear drum brake provide strong stopping power.

– Front brake lever is adjustable to suit the rider’s hand size.

– Styling follows that of the race-winning CRF250R and CRF450R.







2014 Honda CRF125FB Totalmotorcycle.com Features and Benefits

Engine/Drivetrain

Durable, simple, low-maintenance, 124.9 cc air-cooled single-cylinder four-stroke engine develops the smooth, tractable power that’s ideal for beginners..
Ultra-reliable electronic ignition simplifies maintenance..
20mm carb with light throttle action..
Closed crankcase vent system safeguards against engine oil contamination..
Primary kickstarting for easy starts in any gear..
Lightweight, upswept, competition-type exhaust system utilizes a quiet muffler/spark arrester..
Durable, smooth-shifting four-speed transmission..
Heavy-duty manual clutch with light, smooth, progressive engagement..
Convenient electric starter makes starting a breeze..

Chassis/Suspension

Lightweight, high-tensile steel frame is rigid, durable and offers ideal geometry for recreational off-road riding..
31mm leading-axle front fork offers 150mm (5.9 inches) of compliant suspension travel..
Pro-Link, single-shock rear suspension with box-section swingarm offers 150mm (5.9 inches) of wheel travel..
Knobby tires fitted to 19” front and 16″ rear rims offer excellent grip and long life..
Lightweight, screw-type drive chain adjusters simplify maintenance..
Powerful front disc and lightweight rear drum brakes are easy to modulate..

Additional Features

CRF-R-inspired graphics..
Durable body components..
Large-capacity fuel tank and thrifty four-stroke engine for extended range..
Generous ground clearance and rugged skidplate for undercarriage protection..
High-quality controls feature comfortable grips, and adjustable front brake lever..
Fork boots help protect stanchion tubes and fork seals..
Durable steel sprockets.









2014 Honda CRF125FB – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $3,199 USD

ENGINE


Engine Type
124.9cc air-cooled single-cylinder four-stroke

Bore And Stroke
52.4mm x 57.9mm

Compression Ratio
9.0:1

Valve Train
SOHC; two-valve

Induction
20mm piston-valve carburetor

Ignition
DC-CDI

DRIVE TRAIN


Transmission
Four-speed

Final Drive
13T/49T

CHASSIS / SUSPENSION / BRAKES


Front Suspension
31mm telescopic fork; 5.9 inches of travel

Rear Suspension
Pro-Link single-shock; 5.9 inches of travel

Front Brake
220mm hydraulic disc

Rear Brake
Drum

Front Tire
70/100-19

Rear Tire
90/100-16

DIMENSIONS


Rake
27°30′ (Caster Angle)

Trail
94mm (3.7 inches)

Wheelbase
49.4 inches

Seat Height
30.9 inches

Curb Weight
194 pounds (Includes all standard equipment, required fluids and full tank of fuel-ready to ride)

Fuel Capacity
1.1 gallons, including 0.2-gallon reserve

Ground Clearance
10.4 Inches

OTHER


Emissions
Meets current California Air Resource Board (CARB) and EPA off-road emissions standards.

Available Colors
Red

Model Id
CRF125FB

FACTORY WARRANTY INFORMATION


Duration
Six Months transferable limited warranty; extended warranty available with a Honda Protection Plan.









2014 Honda CRF125FB – Totalmotorcycle.com Canada Specifications/Technical Details
Canadian MSRP Price: See dealer for pricing in CDN


Engine Type
Air-cooled, single-cylinder, four stroke

Displacement
124.9cc

Bore & Stroke
52.4mm x 57.9mm

Compression Ratio
9.0:1

Valve Train
SOHC; two-valve

Fuel Delivery
20mm piston-valve carburetor

Transmission
Four-speed

Final Drive
Chain, 13T/49T

Front Suspension
31mm leading-axle fork; 150mm (5.9″) travel

Rear Suspension
Pro-Link single shock; 150mm (5.9″) travel

Tires
Front;: 70/100-19, Rear: 70/100-16

Brakes
Front: 220mm hydraulic disc, Rear: Drum

Ground Clearance
264mm (10.4 in.)

Seat Height
785mm (30.9″)

Wheelbase
1255mm (49.4″)

Curb Weight
88kg (194 lbs)

Fuel Capacity
4.2 litres

Colour
Red









2014 Honda CRF125FB – Totalmotorcycle.com UK/European Specifications/Technical Details
European MSRP Price: £ GBP

Specifications to come






2014 Honda CRF125FB – Totalmotorcycle.com Australia Specifications/Technical Details
Australian MSRP Price: $ AUD

Specifications to come



Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
