2014 Suzuki DR-Z125L

Back to 2014 Suzuki Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

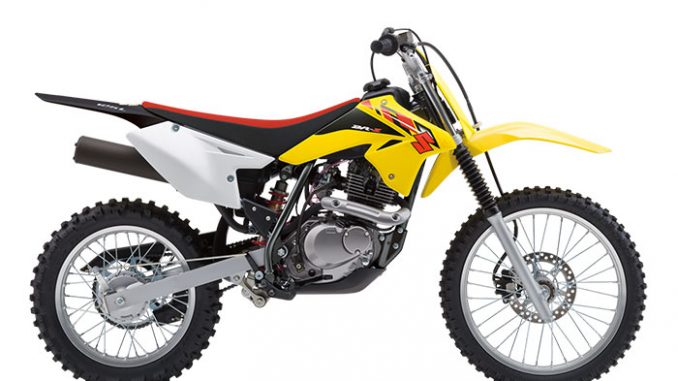

2014 Suzuki DR-Z125L

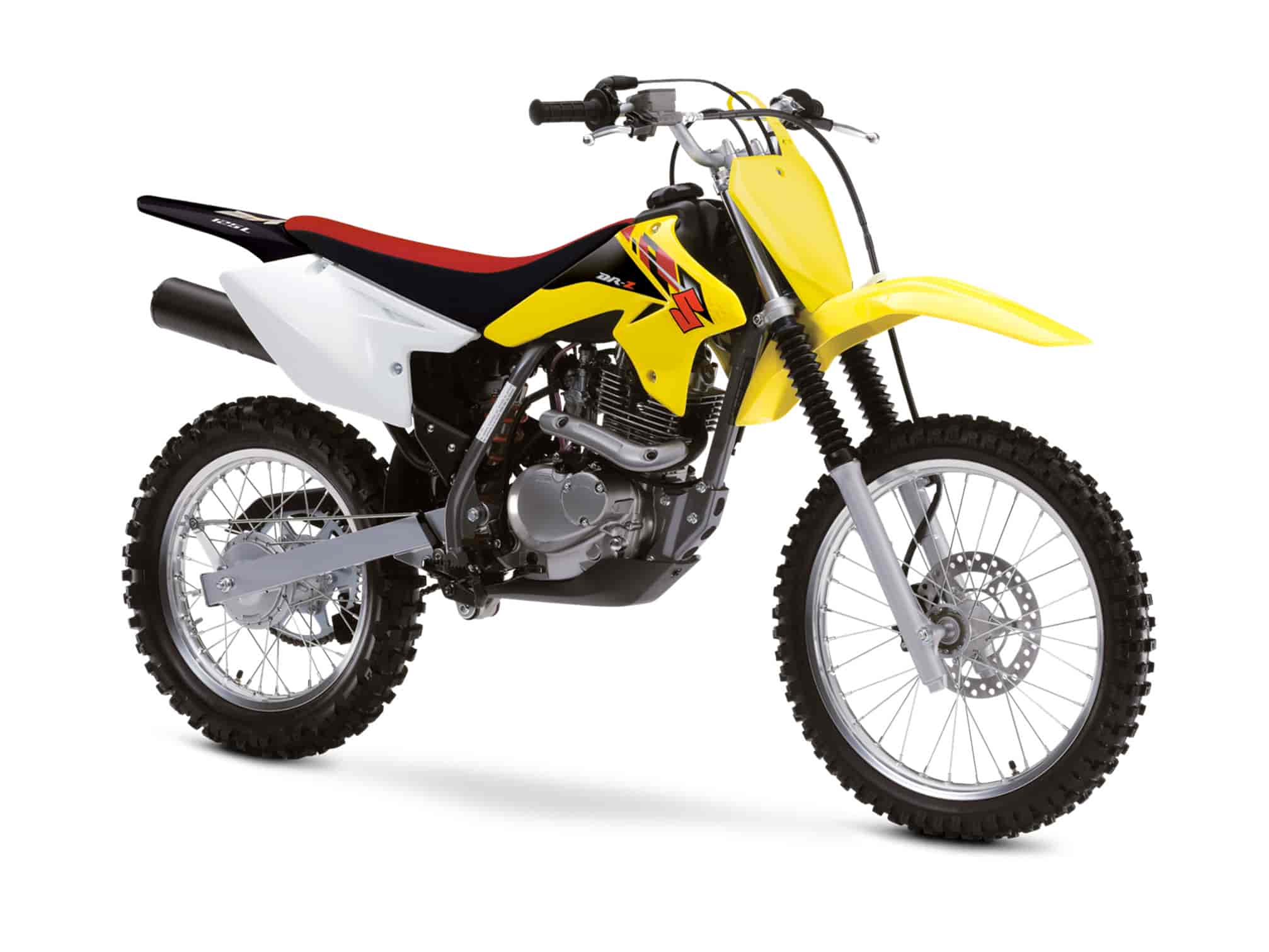

2014 Suzuki DR-Z125L

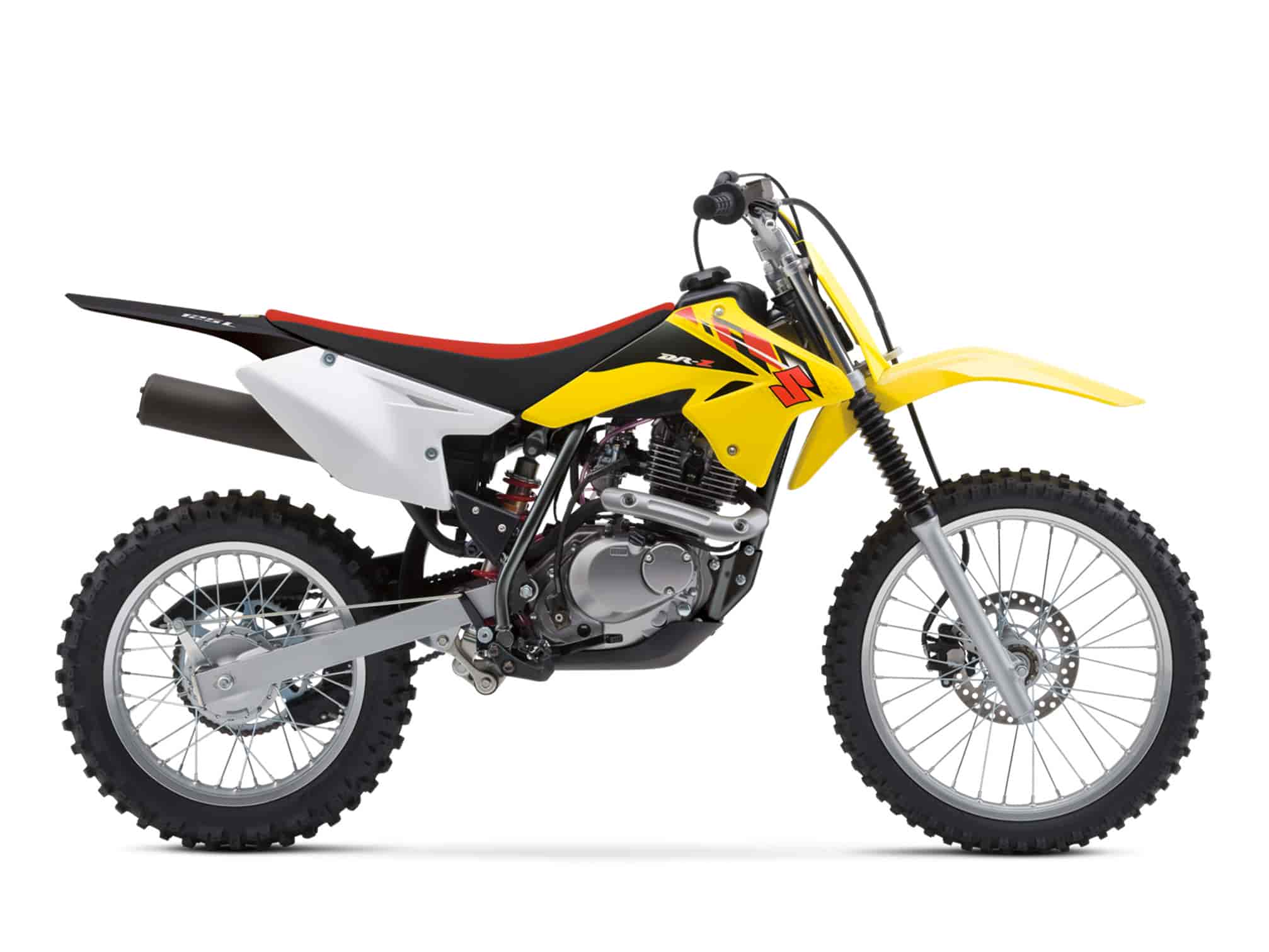

2014 Suzuki DR-Z125L
2014 Suzuki DR-Z125L



2014 Suzuki DR-Z125L Review

2014 Suzuki DR-Z125L on Totalmotorcycle.com

Rev it up…

This custom version of the DR-Z125 features full-size, 19-inch front and 16-inch rear tires and wheels and a front disc brake, making it a great choice for larger riders. Its styling is inspired by the championship-winning RM-Z motocross bike line with sharp-looking fenders, number plates, and frame covers. It also offers a terrific combination of crisp handling and strong low-end and mid-range power. When you’ve got a DR-Z, the whole world looks a little different. You start seeing whoops, jumps, and washboards everywhere you look.

When you’ve got a DR-Z, the whole world looks a little different. You start seeing whoops, jumps, and washboards everywhere you look. Even a rainy day just means more mud to play in.





2014 Suzuki DR-Z125L Totalmotorcycle.com Key Features

Aggressively styled bodywork, number plates and graphics built to look exactly like the race winning RM-Z competition models.






2014 Suzuki DR-Z125L Totalmotorcycle.com Features and Benefits

Engine Features


Compact 124cc 4-stroke, SOHC, single-cylinder, air-cooled engine provides a strong low-to-mid range power range that can be easily handled.


Precise digital CDI ignition system with an ignition-timing map tuned to optimize the engine’s power characteristics.


MIKUNI VM20SS carburetor contributes to excellent throttle response.


Suzuki Composite Electrochemical Material (SCEM) – plated cylinder for durability, lightweight and superior heat transfer.



Transmission Features


Five-speed transmission with link-type gearshift system for precise operation and positive feel.



Chassis Features


Lightweight, high rigidity steel pipe frame and rear swingarm are designed specifically to create a compact, fully-sized off road machine.


The seat and bodywork design provides a seamless surface for easy maneuverability.


Strong braking performance provided by lightweight front disk and rear drum brakes.


Telescopic front forks and link-type rear suspension provide long wheel travel and smooth, progressive action for enhancing enjoyable, comfortable ride.


The rear shock absorber spring preload is fully adjustable for a wide range of riding conditions.


A lightweight plastic skid plate helps protect the bottom of the engine.



Additional Features


32 inch seat height.


Lightweight aluminum rims (19-inch front/16-inch rear) for reduced weight provide agile handling and improved suspension performance.









2014 Suzuki DR-Z125L – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $3199 USD


Chassis:

Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc brake
Brakes Rear Drum brake
Tires Front 70/100-19 42M, tube type
Tires Rear 90/100-16 52M, tube type
Fuel Tank Capacity 1.1 US – Including Reserve
Color Champion Yellow / Solid Black


Dimensions and Curb Weight:

Overall Length 1885 mm (74.2 in)
Overall Width 770 mm (30.3 in)
Overall Height 1110 mm (43.7 in)
Wheelbase 1270 mm (50.0 in)
Seat Height 805 mm (32.0 in)


Curb Weight 89 kg (196 lbs)


Drive Train:

Transmission 5-speed constant mesh
Final Drive DID 428HG, 130 links


Electrical:

Ignition Electronic ignition (CDI)


Engine:

Engine 124cc, 4-stroke, air-cooled, OHC
Bore x Stroke 2.244.60 in x 1.921 in
Compression Ratio 9.5 : 1
Fuel System MIKUNI VM20SS
Starter Primary Kick
Lubrication Wet sump


Warranty:

Warranty
6 months unlimited mileage limited warranty.









2014 Suzuki DR-Z125L – Totalmotorcycle.com Canada Specifications/Technical Details
Canadian MSRP Price: $3499 CDN

Chassis
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc brake
Brakes Rear Drum brake
Tires Front 70/100-19 42M, tube type
Tires Rear 90/100-16 52M, tube type
Fuel Tank Capacity 62.L (1.6 US gal)
Color Champion Yellow/Solid Black
DimensionsandCurbWeight
Overall Length 1885 mm (74.2 in)
Overall Width 770 mm (30.3 in)
Overall Height 1110 mm (43.7 in)
Wheelbase 1270 mm (50.0 in)
Ground Clearance 290 mm (11.4 in)
Seat Height 805 mm (32.0 in)
Curb Weight 89 kg (196 lbs)
DriveTrain
Transmission 5-speed constant mesh
Final Drive DID 428HG, 130 links
Electrical
Ignition Electronic ignition (CDI)
Engine
Engine 124cc, 4-stroke, air-cooled, OHC
Bore Stroke 2.244.60 in x 1.921 in
Compression Ratio 9.5 : 1
Fuel System MIKUNI VM20SS
Starter Primary Kick
Lubrication Wet sump
Warranty
Warranty 12 Month unlimited mileage limited warranty



Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
