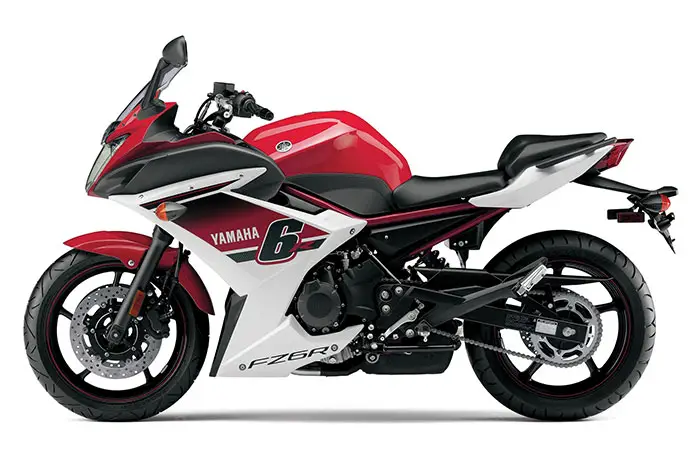

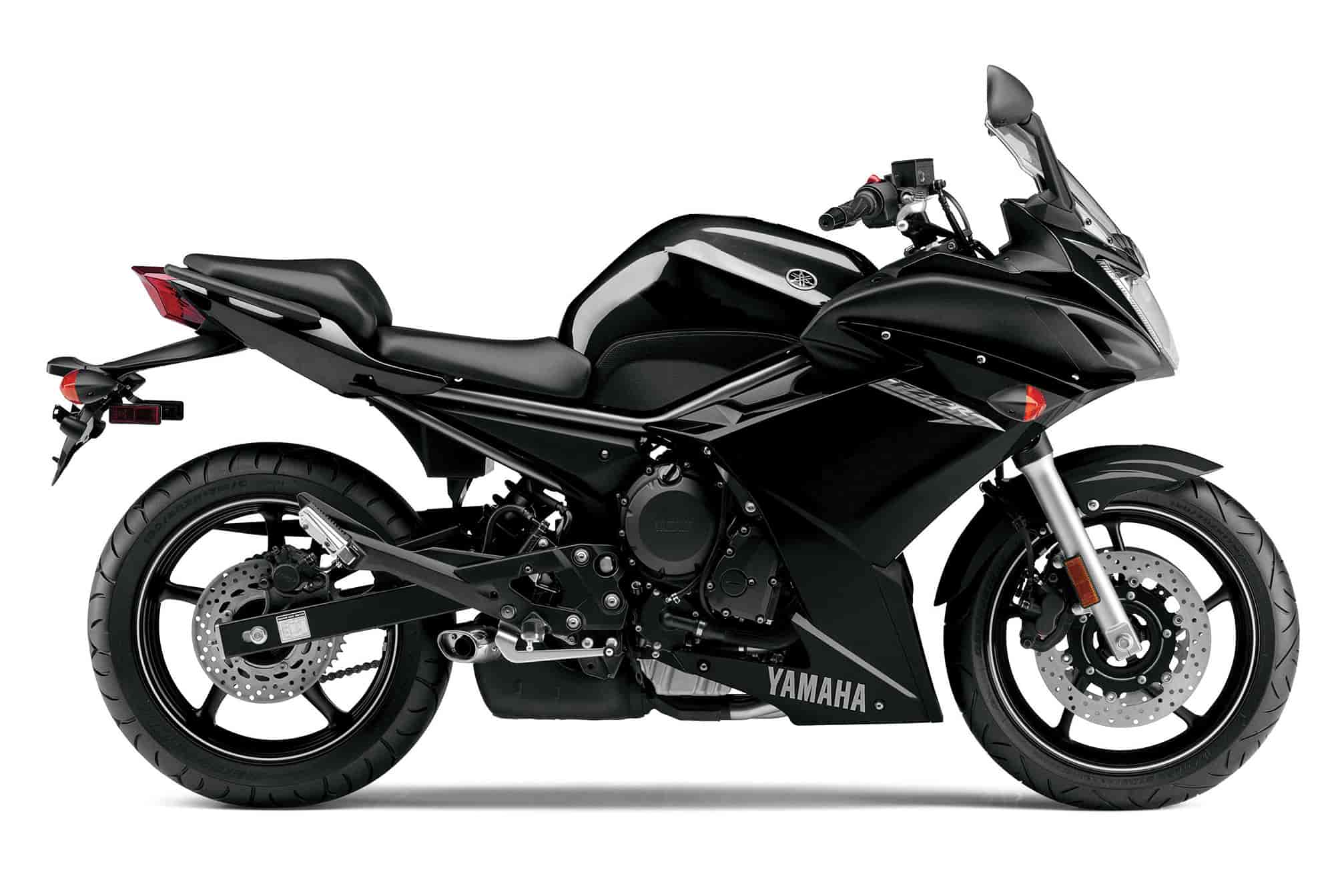

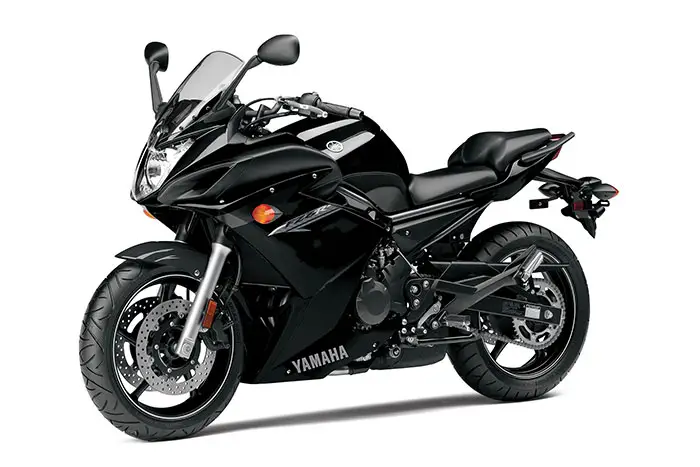

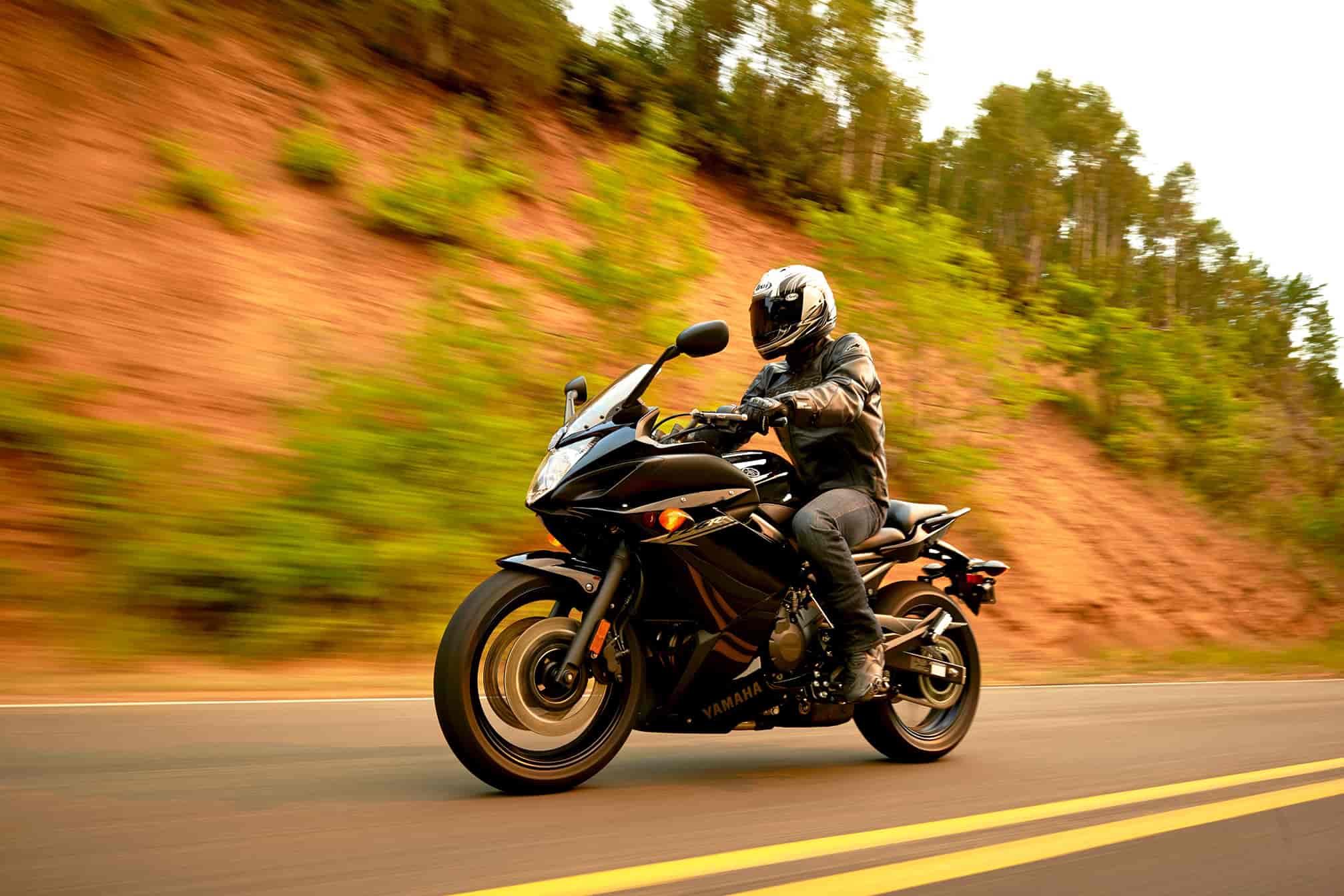

2014 Yamaha FZ6R

2014 Yamaha FZ6R

2014 Yamaha FZ6R

2014 Yamaha FZ6R

2014 Yamaha FZ6R

2014 Yamaha FZ6R

2014 Yamaha FZ6R Review

2014 Yamaha FZ6R on Totalmotorcycle.com

The ultimate first sportbike, the FZ6R is packed with innovative features like adjustable seat height that make it easy for new riders to get started.

Time to Ride!

The 2014 Yamaha FZ6R offers features that make it easy for riders to get started: a low seat height, grips that reach back to you, and a torquey, 600cc engine you won’t outgrow anytime soon. Add a beautiful diamond-steel frame, a sleek fairing, an R6-style exhaust and a price that makes it way more affordable that it looks, and it all adds up to the ultimate first sportbike.

The FZ6R has a special ambience that makes you feel comfortable the minute you swing a leg over the seat. It is a sports bike that does not make any earth shattering claims; just a bike that will leave you smiling after each and every ride. Perhaps you are just getting started in motorcycling or have been around long enough to recognize that fun is not always determined by engine size or horsepower.

2014 Yamaha FZ6R Totalmotorcycle.com Key Features

1 – A rider in the market for an entry level or commuter 600cc bike doesn’t have to compromise performance or style to get value. The FZ6R is a great combination of performance, handling, and exciting sport bike style, but also with a low seat height that’s both
adjustable to fit a wider variety of riders and also narrower where it counts to make it even easier to put both feet on the ground.

2 – The engine delivers smooth power just the way today’s rider needs it, brisk acceleration with plenty of torque that makes it a pleasure to get around town, with lots in reserve for when you want more. This is certainly not a “no frills” motor. Its derived
from the FZ6 motor, fuel injected and tuned for outstanding low to mid engine performance.

3 – Even if your primary goal is commuting to school or work, you want to be able to get out and have fun riding some twisty back roads. The FZ6R is ready to put a grin on your face! The diamond-shaped frame, made of high-tensile steel pipes using the engine
as a structural member of the chassis, becomes the foundation for handling performance. It’s designed to provide the right rigidity balance to contribute to smooth cornering performance.

4 – When it comes to putting power to the pavement, the FZ6R uses nothing less than quality radial tires, 120/70R-inch front and 160/60R 17-inch rear. And this bikes excellent stopping performance is due to the dual 298mm front discs and 245mm rear disc,
both with comfortable-to-use controls.

5 . Estimated 43 mpg means this cruiser can go the distance between fill-ups.



/// Power
Ultra-compact, 600cc, liquid-cooled, DOHC, 16-valve, slant block in-line four powerplant. This engine has been specially tuned for ease of riding with very linear power characteristics.

/// Performance
Lightweight hollow camshafts provide excellent torque in the low and mid rpm range and also help to achieve linear throttle control. Fuel economy is also optimized.

/// Handling
“Diamond-type”, high tensile tube steel frame is used. The main frame tubes are 31.5mm in diameter and feature a minimum of welds and bends. Rigidity around the steering head and swingarm pivot has been optimized for excellent handling and stability.





2014 Yamaha FZ6R Totalmotorcycle.com Features and Benefits

/// Engine
•Ultra-compact, 600cc, liquid-cooled, DOHC, 16-valves, slant block in-line four powerplant. This engine has been specially tuned for ease of riding with very linear power characteristics.
•Compact, 4-valve cylinder head features 25mmm intake valves and 22mm exhaust valves. Special narrow intake port shape increases air velocity resulting in a more linear throttle response.
•Lightweight hollow camshafts provide excellent torque in the low and mid rpm range and also help to achieve linear throttle control. Fuel economy is also optimized.
•Automatic hydraulic-type cam chain tensioner reduces mechanical engine noise and maintenance.
•One-piece cylinder and upper crankcase assembly provides superior engine and chassis rigidity as well as reducing weight.
•Ceramic composite plated cylinder “bores” are a “liner less” design with the ceramic coating sprayed directly on the aluminum block to ensure great heat dissipation for consistent power delivery, reduced friction and reduced weight.
•Lightweight forged pistons connected to carburized connecting rods provide superior strength and reduced reciprocating mass for crisp throttle response and reduced vibration.
•”Group-Type” Mikuni 32mm throttle body fuel injection provides outstanding throttle response and excellent fuel economy. Group fuel injection divides the four cylinders into two groups (1 & 4 and 2 & 3) with two injections of fuel for every 720 degrees of crank rotation.
•Compact “high dynamic range” injectors use 4-hole / 2-direction spray type injectors for excellent throttle control, reduced emissions and great fuel economy.
• A high powered, compact 32 bit ECU controls the ignition and fuel injection processes.
•Compact slant-block engine uses a “Tri-Axis” stacked 6-speed transmission design to create a shorter engine (front to back) which allows for optimum engine placement in the frame for a balanced weight distribution and great handling.
•”Inner push” type clutch release mechanism provides very light and smooth clutch lever action.
• Shifter layout and design provides smooth, positive shifting.
•Compact 4 into 2 into 1 “midship” style exhaust system features a 3-way catalytic converter which reduces harmful exhaust emissions (CO, HC, CO2 and NOx). The result is very clean running engine that easily surpasses strict EPA and EU European emission standards.
• This “midship” style exhaust system concentrates mass in the centre of the bike and keeps the centre of gravity low for light agile handling at any speed.
•High capacity radiator with ring-type cooling fan insures maximum cooling efficiency.
•Liquid cooled oil cooler maintains consistent oil temperatures for extended engine and lubricant life.
• Convenient spin-on type oil filter.
• Maintenance-free transistor controlled ignition (TCI) ensures fast starts and optimum engine performance.
•Air Induction System (AIS) reduces harmful hydrocarbon and carbon monoxide (HC & CO) exhaust emissions.

/// Chassis
•”Diamond-type”, high tensile tube steel frame is used. The main frame tubes are 31.5mm in diameter and feature a minimum of welds and bends. Rigidity around the steering head and swingarm pivot has been optimized for excellent handling and stability.
• This frame design helps to maintain one of the lowest seat heights (785mm / 30.1″) in the 600 sports class.
• The engine is mounted to the frame in 4 locations making it a stressed chassis member and enhancing handling qualities.
• A box section steel swingarm compliments the frame and aids in providing a light handling feel.
•Detachable steel rear sub frame reduces costs in the event of damage.
• Conventional 41mm cartridge style fork provide great handling and excellent ride comfort. Plastic protectors help prevent tube damage due to stone chips. Wheel travel is 130mm (5.1″).
•”Link less” rear suspension means the rear shock mounts directly to the frame and swingarm without the use of linkages. The rear suspension system has been designed to provide a rising rate feeling without the additional weight of linkage arms and pivots. The shock features 7-way spring pre-load adjustability. Wheel travel is 130mm (5.1″)
•Dual 298mm floating front disc brakes are squeezed by a twin piston calipers. Braking performance is progressive and lever feel is excellent.
•245mm rear disc brake with single piston caliper provides excellent stopping power.
•Full fairing offers great wind and weather protection. An inner panel around the instrument area provides a clean, quality image for the “cockpit”.
• Stylish 17 litre (3.7 Imp. gal.) fuel tank provides an excellent riding range between fill ups.
•Lightweight 5-spoke mag wheels are fitted with Z rated radial tires which reduce unsprung weight for light, agile handling.
• Stylish two piece rider and passenger seat design offers excellent comfort. The rider portion of the seat is adjustable. The standard position is the lowest (785mm / 30.9″) position with an ability to increase the rider seat height by 20mm or approximately ¾ of an inch.
•Adjustable handlebar design. The traditional 7/8″ steel handlebar not only offers a comfortable, more upright riding position but can also be adjusted 20mm (approximately ¾ of an inch) forward by rotating the handlebar mounting brackets 180 degrees. The traditional handlebar design also allows easy replacement to a different “bend” if so desired.
• FZ1 inspired multi-function instrument assembly. Features include an analog tach, digital speedo, dual tripmeters, clock, fuel gauge and fuel reserve tripmeter plus a full range of warning lights.
• Bright, single 60/55 watt halogen headlight

/// DETAILS
•5-position adjustable front brake lever
•Passenger grab rails
•520 size “O” ring chain reduces weight
•Low maintenance, sealed battery
•Helmet holder cable







---



2014 Yamaha FZ6R – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $7,790 (Raven) Available September 2013; $7,890 (Rapid Red/Pearl White) Available from September 2013 USD

Engine
Type 600cc liquid-cooled 4-stroke, DOHC 16 valves
Bore x Stroke 65.5mm x 44.5mm
Compression Ratio 12.2:1
Fuel Delivery Fuel injection
Ignition Digital TCI: Transistor Controlled Ignition
Transmission 6-speed; multi-plate wet clutch
Final Drive O-ring chain

Chassis
Suspension / Front Telescopic fork, 5.1-in.travel
Suspension / Rear Single shock, 5.1-in travel
Brakes / Front 298mm Hydraulic disc
Brakes / Rear 245mm Hydraulic disc
Tires / Front 120/70 ZR17M/C 58W
Tires / Rear 160/60 ZR17M/C 73W

Dimensions
Length 83.5 in
Width 30.3 in
Height 46.7 in
Seat Height 30.9 in
Ground Clearance 5.5 in
Wheelbase 56.7 in
Rake (Caster Angle) 26.0°
Trail 4.1 in
Fuel Capacity 4.6 gal
Fuel Economy** 43 mpg
Wet Weight 470 lb

Other
Warranty 1 Year (Limited Factory Warranty)





---



2014 Yamaha FZ6R – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $7,999.00 CDN

/// ENGINE
ENGINE
Liquid-cooled, DOHC, 16-valves, in-line four
DISPLACEMENT
600cc
BORE AND STROKE
65.5 x 44.5mm
COMPRESSION RATIO
12.2:1
MAXIMUM TORQUE
6.1 kg-m (44.1 ft-lb) @ 8,500 rpm
FUEL DELIVERY
Mikuni 32mm throttle body FI
ESTIMATED FUEL CONSUMPTION±
18.1 kpl/ 51.5 mpg (Imp.)
LUBRICATION
Wet sump
IGNITION / STARTING
TCI / Electric
TRANSMISSION
6-speed
FINAL DRIVE
“O” ring chain

/// CHASSIS
SUSPENSION (FRONT)
41mm fork
SUSPENSION (REAR)
Adjustable Monocross
BRAKES (FRONT)
Dual 298mm discs – twin piston calipers
BRAKES (REAR)
245mm disc – single piston caliper
TIRES (FRONT)
120/70ZR17
TIRES (REAR)
160/60ZR17

/// CRITICAL DATA
LENGTH
2,120mm (83.5″)
WIDTH
770mm (30.3″)
HEIGHT
1,185mm (46.7″)
WHEELBASE
1,440mm (56.7″)
RAKE / TRAIL
26° / 103mm (4.1″)
GROUND CLEARANCE
140mm (5.5″)
SEAT HEIGHT
785mm (30.9″) or 805 (31.7″)
FUEL CAPACITY
17 litres (3.7 Imp. gal.)
WET WEIGHT
212kg (467 lb)
COLOUR(S)
Metallic Black
Vivid Red



---

2014 Yamaha FZ6R – Totalmotorcycle.com UK/Europe Specifications/Technical Details
UK/European MSRP Price: £NA.

Details to follow shortly.



---

2014 Yamaha FZ6R – Totalmotorcycle.com Australian Specifications/Technical Details
AU MSRP Price: See dealer for pricing AUD

Details to follow shortly.



Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
