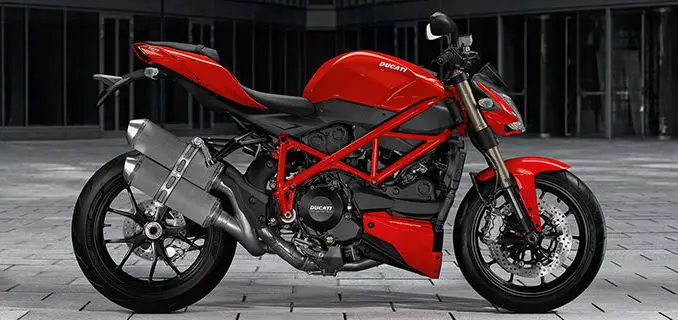

2015 Ducati Streetfighter 848
2015 Ducati Streetfighter 848

2015 Ducati Streetfighter 848
2015 Ducati Streetfighter 848

2015 Ducati Streetfighter 848
2015 Ducati Streetfighter 848

2015 Ducati Streetfighter 848
2015 Ducati Streetfighter 848



2015 Ducati Streetfighter 848 Review

2015 Ducati Streetfighter 848 on Totalmotorcycle.com

Confident contender – Supreme fighter…

The confident and urban-friendly Streetfighter 848 continues the stylish, exciting and high-performance challenge from this unique naked family.

The Streetfighter delivers pure motorcycle enjoyment with the sophisticated combination of a brilliantly engineered 848 Testastretta 11° engine and the enhanced geometry of a frame that ensures optimum agility with confidence-inspiring “feel”. The user-friendliness created by the smooth and flexible power delivery, excellent ergonomics and Ducati Traction Control (DTC), combines with Ducati’s unique fighter style to create pure excitement.

The Ducati Streetfighter scored a round one knock-out when it entered the ring for the first time at the Milan show back in November 2008. Its supreme elegance stole the ‘Most Beautiful Bike’ award and raised the bar for extreme nakeds. Its asphalt-ripping reputation became the desire of sport naked connoisseurs throughout the world and the Streetfighter 848 further strengthens that desire with everyday accessibility.

The model is dressed in red with a red frame and black wheels.



Control, precision and pure fun: the supremacy of the new Streetfighter 848

The new Streetfighter 848 offers pure motorcycling thrills thanks to its perfect combination of 848 Testastretta 11° engine and a new Trellis frame with Superbike 848EVO-derived geometry. Outstanding control and precision make the Streetfighter 848 irresistible. Thanks to the superb handling offered by the new frame, the progressive easy-to-manage power delivery provided by the Testastretta 11° engine, the confidence-inspiring upright riding position and Ducati Traction Control, which keeps watch over the power, this latest interpretation of the fighter concept delivers instant, knock-out riding enjoyment.


Streetfighter reborn

The Streetfighter culture was born on the backstreets of Northern Europe during the late 70s and 80s. If the Café racer movement had taken traditional bikes and transformed them to establish out-and-out sportbikes, then Streetfighters were definitely anti-establishment. They evolved by removing the fairings from sport bikes, fitting higher bars and customising to create high-performance, over-the-top nakeds. Ducati took that concept and applied their own Italian sophistication to a stunning, factory-prepared Streetfighter.

The Ducati Streetfighter is equipped with everything that made the Superbike a legend: Awesome L-Twin muscle with ride-enhancing torque, thoroughbred chassis technology, beautiful single-sided swingarm, racebred brakes and pure, sophisticated class.
While the tank and seat shapes leave no doubt as to the Streetfighter’s roots, it is the upright and commanding riding position that really starts to shape the character of this ultimate naked. Minimalistic controls, instrumentation and headlight design leave the front looking clean and mean, while twin-stacked right-side mufflers at the rear leave the tail-end high and sharp. No other Ducati has ever achieved such an aggressive stance while providing a comfortable, empowering, controllable and enjoyable ride.

Add street-going Ducati Traction Control as standard equipment and Ducati Data Analysis-ready electronics and it’s clear that the Streetfighter perfectly balances the essential DNA of an exciting naked motorcycle with the latest race-derived electronic technology.

Taking control

The Streetfighter 848 provides an empowering riding position with seat, footpeg and handlebar relationship optimised to enhance comfort without losing the desired feeling of an extreme naked Ducati. Showing attention to detail, the handlebars are gripped by beautifully shaped clamps that flow sleekly into the bar-risers. Even the switchgear presents minimalism at its best. The slim-line bodies house easy-to-use switches and buttons and feature a unique weapons-like ‘trigger catch’ that slides down to cover the starter button when activating the kill-switch. Symmetrically mounted, remote brake and clutch reservoirs are small, low and compact and feed slim, radial master-cylinders with adjustable levers by Brembo to complete the clean and uncluttered controls arrangement.

The Streetfighter’s instrumentation continues that same clean look with a compact shape that blends into the aggressive line of the headlight. Information additional to the default read-outs is managed from the lefthand handlebar-mounted switch gear, allowing the rider to scroll through and select from various menus.

The display presents rpm and speed, with the former displayed across the screen in a progressive bar graph. Additionally, the instruments display DTC status and level selected, lap times, time, air temperature, coolant temperature, battery voltage, two trips and a trip that automatically starts as the fuel system goes onto reserve. Warning lights illuminate to signify neutral, turn signals, high beam, rev-limit, low oil pressure, fuel reserve, DTC intervention and scheduled maintenance.

The instrument display can also be used to manage Ducati Traction Control settings, list lap times recorded by using the high-beam flash button as a stopwatch and additionally as a control panel for the activation of the Ducati Data Analyser (DDA) system, which is available as an accessory from Ducati Performance. It consists of a special DDA software and memory key that slots into a plug under the seat, which also doubles as the connection for a handy battery charger also available as an accessory from Ducati Performance.

The aggressive looking headlight is the ‘face’ of the Streetfighter and it leaves little doubt as to its character. While the main lighting source and multi-reflector design provides powerful illumination to cut through the night, its two evil eye strips of LED positioning lights give a striking and unmistakable identity to the bike.

Preserving the clean and stylish design, the directional indicators remain unobtrusive with clear lenses and coloured bulbs, while the rear light is integral to the shape of the tailpiece, providing unobscured illumination while maintaining the smooth and elegant look to the high and sharp rear-end.





2015 Ducati Streetfighter 848 Totalmotorcycle.com Key Features

Ducati Traction Control

The Streetfighter 848 is armed with Ducati’s full eight-level DTC as standard equipment. In developing its World Championship level traction control system for road use, Ducati continue to demonstrate the strategy of transferring technologies from its racing motorcycles into the production environment, proving how solutions developed for performance on the track really can be applied to enhance safety on the road.

Accessible from the left-hand switchgear and displayed on the digital instrumentation, the system offers a choice of eight profiles, or ‘sensitivity levels’, each one programmed with a wheel-spin tolerance matched to progressive riding levels of skill, graded from one to eight.

While level eight administers a confidence-building, high level of interaction from the system by activating upon the slightest amount of wheel-spin, level one offers a much higher tolerance, resulting in less intervention for highly competent riders. Once the level is selected and DTC activated, both are displayed on the Streetfighter’s instrumentation. The system then analyses data sent from front and rear wheel speed sensors to detect wheel-spin. Should the system recognise wheel-spin above a certain threshold, the DTC
ECU instantly evaluates the many possible wheel-spin scenarios before administering two types of interaction in varying amounts.

DTC is able to sense the exact use that the Streetfighter is being put to. From slow mid-corner acceleration with considerable vehicle inclination to high speed corner exits while almost upright, DTC is intelligent enough to react according to each and every situation. It’s even smart enough not to intervene during a burnout or a wheelie.

The first “soft” stage of system interaction is executed by high speed software that instantly makes electronic adjustment to the ignition by administering varying amounts of retardation to reduce the engine’s torque output. During this initial stage of DTC interaction, both outer warning lights on the Streetfighter instruments – normally used to signify over-rev – illuminate to signify that DTC is being applied.

If the DTC software detects that the first “soft” stage of system interaction is inadequate to control the wheel-spin, it continues to administer ignition retardation and instructs the engine ECU to initiate a pattern of constantly increasing injection cuts until, if necessary, full injection cut. During this second stage of system interaction, both outer and central warning lights fully illuminate to signify that DTC has also initiated injection cuts.

After either stage one (ignition retardation) or stage two (pattern of injection cuts or full cut), the system incrementally returns to the original ignition and injection mapping as the wheel speeds approach equalisation. This carefully programmed return to full power delivery is the real key to DTC’s smooth and efficient operation.

Chassis

At 169 kg (373 lb) dry weight, the Streetfighter 848 boasts an impressive power-to-weight ratio. The beautifully built Trellis frame uses the same 24.5° of rake as the Superbike 848EVO to provide optimum agility, while 103 mm of trail gives the confidence-inspiring “feel” of a well-planted front-end.

The Streetfighter 848 is armed with fully adjustable 43 mm Marzocchi forks up front and a fully adjustable Sachs monoshock at the rear, giving the bike high performance handling and the rider absolute confidence and a comfortable ride. The matte champagne coloured fork bodies house natural chrome finished sliders, are fully adjustable in spring preload and compression and rebound damping and feature radial mounts for the Brembo brake callipers. The lower triple-clamp is formed in a strength-enhancing gull-wing shape for increased rigidity, it maintains a vice-like grip on the fork legs, giving a precise and solid feeling through the bars on fast direction changes.

On the rear, a single Sachs unit, fully adjustable in spring preload and compression and rebound damping, operates through a progressive linkage and cast aluminium single-sided swingarm. The Streetfighter uses Brembo’s powerful four-piston radial callipers gripping twin 320 mm discs on the front and a two-piston calliper on the rear with a 245 mm disc to provide user-friendly and dependable braking performance.

Y-shaped, 5-spoke wheels with a rear rim width of 5.5 in and 3.5 in on the front are made in black-finished, lightweight aluminium to help keep the overall motorcycle weight down and maintain an all-important control on unsprung weight. This weight is made up of all the components between the suspension and the road and includes tyres, brake discs and callipers etc, but when rotating at high speed, it is the wheels that store most of the kinetic energy and offer the most resistance when steering, accelerating or braking. Their weight saving, therefore, is a serious contribution to both the handling and performance of the motorcycle and the Streefighter pulls out all the stops achieve the best results.

Pirelli Diablo Rosso Corsa tyres

The Streetfighter 848 confidently relies on Pirelli Diablo Rosso Corsa tyres created using technologies developed in the Superbike World Championship and perfected for street use – the ideal methodology for bringing race technology to performance street products. The construction and profiles ensure optimum agility and control by providing enhanced support during vehicle inclination.

The 120/70ZR17 front tyre uses a 0° steel belted construction that guarantees maximum support under heavy braking and corner entry. The new 180/60ZR17 sized rear tyre is constructed with three compound zones, featuring a softer compound on the shoulders (25% on each side) for performance in cornering and a harder compound on the centre section for longer tyre life.

The 180/60ZR17 rear tyre implements an aspect ratio used in World and National Supersport competition and offers a larger contact patch compared with the 180/55, further enhanced with an increased “slick” area when at maximum lean angle. The higher and slightly wider profile improves riding comfort and the larger contact patch spreads road stresses throughout the contact area for reduced wear of both rear compounds.

Transversal grooves between the rear tyre’s central and side shoulder sections quickly disperse residual water, providing excellent grip in wet conditions, while the central non-grooved rib ensures maximum rubber on the ground for traction under acceleration and improved straight line stability.

848 Testastretta 11° engine

Ducati’s 848 engine has been a massive success since its first introduction in 2008. Enhanced to “EVO” spec in 2011, its thrilling, flexible and user-friendly power delivery made it a popular Superbike choice.

Combined with the factory’s latest Testastretta 11° technology, it is transformed into what many consider to be Ducati’s perfect engine and provides the Streetfighter 848 with a power-to-weight ratio to be proud of.

With 132 hp @ 10,000rpm and 69 lb-ft (93.5 Nm) of torque @ 9,500rpm, the 848 Testastretta 11° engine is all about authentic Ducati Desmodromic performance. Radical cam timing adjustment enabled Ducati to achieve strong torque through a wider rev-range, considerably enhancing the 848 Streetfighter’s ridability, while ensuring plenty of power remains on tap for high-rpm fun.

For an engine with brute power on tap when needed and smooth, user-friendliness available for an effortless and comfortable ride, Ducati revised the configuration of the cam timing with particular focus on the valve overlap angle. The overlap angle is defined as the interval of crankshaft rotation, measured in degrees, during which both the intake and exhaust valves are open at the same time. This overlap occurs between the end of the exhaust stroke and the start of the intake stroke. High performance engines, which are subject to compromising smoothness for extreme power delivery, use high values of this parameter in order to benefit from the pressure waves to improve engine performance by maximising volumetric efficiency.

On the 848 Testastretta 11° engine, this angle has been reduced from 37°, previously intended for high performance track use, to 11°. As a result, the fresh inlet charge from the GP-derived elliptical throttle bodies is less compromised by the exiting exhaust gases, producing a much smoother combustion, improved fuel economy and lower exhaust emissions.

The valves are controlled by Ducati’s signature Desmodromic system, which activates valve closure mechanically instead of relying upon normal valve springs to follow the steep closure profile of highperformance cam profiles. This system, which closes the valves mechanically with the same level of accuracy that they are opened, is used in every Ducati engine, including those specially prepared by Ducati Corse for world championship competition.

Ducati’s Streetfighter 848 engine is smooth and tractable, while a high performance six-speed box with userfriendly wet clutch ensures a smooth riding experience in all conditions.

The stylish Streetfighter 2-1-2 exhaust system is made from weight-saving 1 mm thick steel and flows from 58 mm to 63.5 mm diameter pipes. The system uses two lambda probes to ensure precise fuel mapping for optimum performance and an electronic valve in the mid-section to achieve a wide spread of power. The cannon-style, vertically stacked mufflers sport a brushed steel finish and deliver the famous Ducati L-Twin sound synonymous with raw, Desmo power.

Decades of experience combined with constant investment in advanced materials and precision engineering techniques has enabled the distance between the major service intervals (valve clearence check) to be set at 24,000 kilometres (15,000 miles). This continual attention to detail and development of twin-cylinder technology makes Ducati ownership even more accessible and enjoyable than ever.

Streetfighter colours

The model is dressed in red with a red frame and black wheels.





2015 Ducati Streetfighter 848 Totalmotorcycle.com Features and Benefits

Streetfighter culture


The Streetfighter culture was born on the backstreets of Northern Europe during the late 70s and 80s. If the Café racer movement had taken traditional bikes and transformed them to establish out-and-out sportbikes, then Streetfighters were definitely anti-establishment. They evolved by removing the fairings from sport bikes, fitting higher bars and customising to create high-performance, over-the-top nakeds.

Ducati’s Streetfighter project was inevitable. The passion to build the most successful Superbikes ever, mixed with the desire to create iconic, naked motorcycles was a rush of adrenaline just waiting to happen. Who else would create a bike for out-and-out purists to celebrate naked power in all its forms? A bike with muscle-engine performance, aggressive chassis engineering and intelligent electronics all laid bare to appreciate, respect and enjoy? Ducati build bikes for enthusiasts – for bikers who appreciate the details that come together to make an awesome bike.

848 Testastretta 11°


A masterpiece of Desmodromic engine design, the 848 Testastretta 11° can deliver 132 hp at 10,000 rpm and a torque of 9.5 kgm at 9,500 rpm. A direct offshoot of the Testastretta Evoluzione used on the Superbike 848EVO, it makes the most of the Testastretta 11° technology that has already proved so successful on the Multistrada and Diavel, giving awesome torque even at low revs. With respect to the Testastretta Evoluzione the overlap angle has been reduced from 37° to 11° to ensure unbeatably fluid power delivery, a much wider power band and reduced consumption and emissions.
The Testastretta 11° maintenance schedule requires valve regulation just once every 24,000 km.

Power & torque curves


With its 132 HP and awesome torque of 9.5 Kgm (93.5Nm) at 9,500 rpm , the 848 Testastretta 11° provides pure Desmodromic performance. Radical changes to the timing diagram have allowed achievement of a full torque curve even at low revs, which considerably increases the ridability of the Steetfighter 848 and, because it remains constant throughout an extremely wide power band, ensures maximum enjoyment at high revs too.

Magnesium alloy covers


Attention to weight reduction is further underlined with both cam covers and clutch outer cover cast in manesium alloy.

Vacural® crankcases


The Testastretta 11° engine on the Streetfighter 848 features a crankcase produced by pressure die casting under vacuum using Vacural® technology: this gives significant weight savings and ensures constant wall thickness and greater strength.

Crankshaft


The Streetfighter 848 lightweight crankshaft assembly operates a ‘over-square’ bore and stroke with 94mm pistons and 61.2mm strokes.

Wet clutch


The Testastretta 11° engine transmits drive to a sophisticated wet clutch that is a full kilo lighter than the corresponding dry version; it is also characterised by enhanced durability, improved ‘feel’ and lower noise levels, making riding a real pleasure whatever the circumstances.

Exhaust system


The massive 2-1-2 exhaust system is made from weight-saving 1mm thick steel and flows from 58mm to 63.5mm diameter pipes. The system uses two lambda probes to ensure precise fuel mapping for optimum performance and an electronic valve in the mid-section to achieve a wide spread of power.

The cannon-style, vertically stacked, brushed steel mufflers deliver the famous Ducati L-Twin sound synonymous with raw, Desmo power.

Ergonomics


The riding position on the Streetfighter 848 gives maximum control thanks to a dominant stance achieved through in-depth study of seat-footpegs-handlebar distances, providing maximum comfort without changing the unique ‘feel’ that only a Ducati-designed naked can offer its rider.

Fighter 848 frame


Thanks to an exceptional dry weight of 169 kg, the Streetfighter 848 has the best power-weight ratio in its category. The new Trellis frame, characterised by a rake angle of 24.5° and a fork yoke offset of 103 mm, has the same geometry as that on the Superbike 848, ensuring maximum responsiveness to rider control.

Marzocchi forks


Fully adjustable 43mm Marzocchi forks feature a natural chrome slider finish and radial mounts for the brake callipers and are fully adjustable in spring preload as well as compression and rebound damping.

Brakes


The new Streetfighter 848 uses powerful 4-piston radially-mounted Brembo calipers on dual 320 mm discs at the front and a 2-piston caliper at the rear that acts on a 245 mm disc , thus ensuring efficient, instantly available, awesome braking power.

Sachs rear suspension


A fully adjustable Sachs monoshock at the rear operates through a progressive linkage and is also fully adjustable in spring preload and damping, both in compression and rebound.

Lightweight 10-spoke wheels


The 10-spoke wheels, 5.5 inches at the rear and 3.5 inches at the front, made of lightweight black-finished aluminium, help reduce overall bike weight and also make sure that limitation of unsprung weight (i.e. the mass of all the components between the suspension and the road surface – wheels, tyres, brake calipers and discs etc.) is achieved. When these parts rotate they would, if too heavy, affect the handling characteristics of the bike on account of the gyroscopic effect.

Single-sided swingarm


At the rear, the all-new single-sided swingarm, finished in black, is a high-grade aluminium cast that has been lengthened by 35 mm with respect to the Superbike, thus taking the overall wheelbase to 1475 mm for even more uncompromising acceleration.

Pirelli Diablo Rosso Corsa tyres


The Streetfighter 848 mounts Pirelli Diablo Rosso Corsa tyres, created using technology developed in the World Superbike Championship. The front 120/70ZR17 tyre is built with a 0° steel circumferential belt that ensures maximum performance during both extreme braking and at the turn-in point, while the new rear 180/60ZR17 tyre has the same aspect ratio as the tyres used in national and world Supersport competitions. The rear tyre offers a larger contact surface area than the 180/55, rendered even more effective by a slick zone at the maximum lean angle. The higher and slightly wider profile increases rider comfort, while the larger ‘footprint’ gives increased traction during acceleration and improved stability on the straight.

Compact instruments


The Streetfighter’s instrumentation blends into the aggressive line of the headlight. Information additional to the default read-outs is managed from the left-hand handlebar-mounted switch gear, allowing the rider to scroll through and select from various menus.

The display presents rpm and speed, with the former displayed across the screen in a progressive bar graph. Additionally, the instruments display lap times, DTC status and level selected (if activated on Streetfighter S) time, air temperature, coolant temperature, battery voltage, two trips and a trip that automatically starts as the fuel system goes onto reserve.

Warning lights illuminate to signify neutral, turn signals, high beam, rev-limit, low oil pressure, fuel reserve, DTC intervention (if activated on Streetfighter S) and scheduled maintenance.

The instrument display is also used as the control panels for the DDA and DTC systems as well as listing lap times recorded by using the high-beam flash button as a stopwatch.

Minimalist switchgear


The switchgear presents minimalism at its best. The slim-line bodies house easy-to-use switches and buttons and feature a unique weapons-like ‘trigger catch’ that slides down to cover the starter button when activating the kill-switch.

Lighting


The aggressive looking headlight is the ‘face’ of the Streetfighter and it leaves little doubt as to its character. While the main lighting source and multi-reflector design provides powerful illumination to cut through the night, its two evil eye strips of LED positioning lights give a striking and unmistakable identity to the bike.

Keeping design matters clean and stylish, the directional indicators remain unobtrusive with clear lenses and coloured bulbs, while the rear light is integral to the shape of the tailpiece, providing unobscured illumination while maintaining the smooth and elegant look to the high and sharp rear-end.

Ducati Quick Shift system


The Streetfighter 848 has fixtures to mount the Ducati Quick Shift system. Usually used in racing, this device allows you to change gear without using the clutch and keeping the throttle open, minimising shift times, which contributes significantly to reducing lap times.
The DQS has a microswitch inserted in the shift control transmission rod unit, available as a Ducati Performance accessory, that is used to start the system.

Ducati Traction Control (DTC)


Accessible from the left-hand switchgear and displayed on the digital instrumentation, Ducati Traction Control (DTC) offers a choice of eight profiles, or ‘sensitivity levels’, each one programmed with a wheel-spin tolerance matched to progressive riding levels of skill, graded from one to eight.

While level eight administers a confidence-building, high level of interaction from the system by activating upon the slightest amount of wheel-spin, level one offers a much higher tolerance, resulting in less intervention for highly competent riders.

Once the level is selected and DTC activated, both are displayed on the instrumentation. The system then analyses data sent from front and rear wheel speed sensors to detect wheel-spin. Should the system recognise wheel-spin above a certain threshold, the DTC ECU instantly evaluates the many possible wheel-spin scenarios before administering two types of interaction in varying amounts.

DTC is able to sense the exact use that the bike is being put to. From slow mid-corner acceleration with considerable vehicle inclination to high speed corner exits while almost upright, DTC is intelligent enough to react according to each and every situation. It’s even smart enough to not intervene if you decide to perform a burnout or a wheelie.

The first ‘soft’ stage of system interaction is executed by high speed software that instantly makes electronic adjustment to the ignition by administering varying amounts of retardation to reduce the engine’s torque output.

During this initial stage of DTC interaction, both outer warning lights on the instrumentation – normally used to signify over-rev – illuminate to signify that DTC is being applied.

If the DTC software detects that the first ‘soft’ stage of system interaction is inadequate to control the wheel-spin, it continues to administer ignition retardation and instructs the engine ECU to initiate a pattern of constantly increasing injection cuts until, if necessary, full injection cut. During this second stage of system interaction, both outer and central warning lights fully illuminate to signify that DTC has also initiated injection cuts.

After either stage one (ignition retardation) or stage two (pattern of injection cuts or full cut), the system incrementally returns to the original ignition and injection mapping as the wheel speeds approach equalisation. This carefully programmed return to full power delivery is the real key to DTC’s smooth and efficient operation.

In developing its World Championship-winning traction control system for road use, Ducati continue to demonstrate their strategy of transferring technologies from their race bikes into the production environment, and show how solutions developed for performance on the track really can be applied to enhance safety on the road.

Stopwatch


The digital display is programmed with a stopwatch function that, when enabled, can be triggered by using the high-beam flash button and each recorded time stored in a memory. After your journey or track session, the times or lap times can be recalled from the memory and scrolled through by using the instrumentation buttons on the left-hand switchgear.

Fighter controls


The handlebars are gripped by beautifully shaped clamps that flow sleekly into the bar-risers. Symmetrically mounted, remote brake and clutch reservoirs are small, low and compact and feed slim, radial master-cylinders by Brembo to complete the clean and uncluttered controls arrangement.











2015 Ducati Streetfighter 848 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $13,495 USD


Engine
Type
Testastretta 11° L-Twin, 4 Desmodromically actuated valves per cylinder, liquid cooled
Displacement
849cc
Bore x Stroke
94×61,2mm
Compression ratio
13.2:1
Power
132hp (97kW) @ 10.000rpm
Torque
93.5 Nm (69 lb-ft) @ 9,500 rpm

Technical data referring to power and torque was measured on an engine test stand at Ducati.
Fuel injection
Marelli electronic fuel injection, elliptical throttle bodies
Exhaust
Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin stainless steel mufflers

Transmission

Gearbox
6 speed
Primary drive
Straight cut gears, Ratio 1.84:1
Ratio
1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final drive
Chain; Front sprocket 15; Rear sprocket 42
Clutch
Wet multiplate with hydraulic control

Chassis

Frame
Tubular steel Trellis frame in ALS 450
Front suspension
Marzocchi 43mm fully adjustable usd forks
Front wheel
10-spoke in light alloy 3.50 x 17
Front Tyre
Pirelli Diablo Corsa 120/70 ZR17
Rear suspension
Progressive linkage with fully adjustable monoshock. Aluminium single-sided swingarm
Rear wheel
10-spoke light alloy 5.50 x 17
Rear tyre
Pirelli Diablo Corsa 180/60 ZR17
Front wheel travel
127mm (5in)
Rear wheel travel
127mm (5in)
Front brake
2 x 320mm semi-floating discs, radially mounted Brembo callipers 4-piston, 2-pad
Rear brake
245mm disc, 2-piston calliper
Instrumentation
Digital unit with displays for: Speedometer, rev counter, lap times, time, air temp, coolant temp, battery voltage, A & B trips, fuel reserve trip, DTC status and level selected (if activated) scheduled maintenance. Warning lights for: Neutral, turn signals, high-beam, rev-limit, DTC intervention, oil pressure, fuel reserve. Plus: Immobilizer system and management of DTC and DDA

Dimensions and weight

Dry weight
169kg (373lb)

Weight data refers to the dry weight of the motorcycle without battery, lubricants and coolants for liquid-cooled models.
Wet weight (KERB)
199kg (439lb)

Kerb weights indicate total bike weight with all operating consumable liquids and a fuel tank filled to 90% of capacity (as per EC standard 93/93).
Seat height
840mm (33in)
Wheelbase
1475mm (58.1 in)
Rake
24,5°
Trail
103mm (4.05in)
Fuel tank capacity
16,5 l – 4.4 gallon (US)
Number of seats
Dual seat


Warranty
2 years unlimited mileage
Maintenance service intervals
7,500m
Valve clearance check
15,000m

Emissions and Consumption

Standard
follows the US Federal Regulation









2015 Ducati Streetfighter 848 – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $14,495 CDN

Engine
Type
Testastretta 11° L-Twin, 4 Desmodromically actuated valves per cylinder, liquid cooled
Displacement
849cc
Bore x Stroke
94×61,2mm
Compression ratio
13.2:1
Power
132hp (97kW) @ 10.000rpm
Torque
93.5 Nm (69 lb-ft) @ 9,500 rpm

Technical data referring to power and torque was measured on an engine test stand at Ducati.
Fuel injection
Marelli electronic fuel injection, elliptical throttle bodies
Exhaust
Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin stainless steel mufflers

Transmission

Gearbox
6 speed
Primary drive
Straight cut gears, Ratio 1.84:1
Ratio
1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final drive
Chain; Front sprocket 15; Rear sprocket 42
Clutch
Wet multiplate with hydraulic control

Chassis

Frame
Tubular steel Trellis frame in ALS 450
Front suspension
Marzocchi 43mm fully adjustable usd forks
Front wheel
10-spoke in light alloy 3.50 x 17
Front Tyre
Pirelli Diablo Corsa 120/70 ZR17
Rear suspension
Progressive linkage with fully adjustable monoshock. Aluminium single-sided swingarm
Rear wheel
10-spoke light alloy 5.50 x 17
Rear tyre
Pirelli Diablo Corsa 180/60 ZR17
Front wheel travel
127mm (5in)
Rear wheel travel
127mm (5in)
Front brake
2 x 320mm semi-floating discs, radially mounted Brembo callipers 4-piston, 2-pad
Rear brake
245mm disc, 2-piston calliper
Instrumentation
Digital unit with displays for: Speedometer, rev counter, lap times, time, air temp, coolant temp, battery voltage, A & B trips, fuel reserve trip, DTC status and level selected (if activated) scheduled maintenance. Warning lights for: Neutral, turn signals, high-beam, rev-limit, DTC intervention, oil pressure, fuel reserve. Plus: Immobilizer system and management of DTC and DDA

Dimensions and weight

Dry weight
169kg (373lb)

Weight data refers to the dry weight of the motorcycle without battery, lubricants and coolants for liquid-cooled models.
Wet weight (KERB)
199kg (439lb)

Kerb weights indicate total bike weight with all operating consumable liquids and a fuel tank filled to 90% of capacity (as per EC standard 93/93).
Seat height
840mm (33in)
Wheelbase
1475mm (58.1 in)
Rake
24,5°
Trail
103mm (4.05in)
Fuel tank capacity
16,5 l – 4.4 gallon (US)
Number of seats
Dual seat


Warranty
2 years unlimited mileage
Maintenance service intervals
7,500m
Valve clearance check
15,000m

Emissions and Consumption

Standard
follows the US Federal Regulation








2015 Ducati Streetfighter 848 – Totalmotorcycle.com European/UK Specifications/Technical Details
UK/European MSRP Price: £10,995 GBP (On The Road) (including 20% VAT + Pre-delivery Inspection)

Engine
Type
Testastretta 11° L-Twin, 4 Desmodromically actuated valves per cylinder, liquid cooled
Displacement
849cc
Bore x Stroke
94×61,2mm
Compression ratio
13.2:1
Power
132hp (97kW) @ 10.000rpm
Torque
93.5 Nm (69 lb-ft) @ 9,500 rpm

Technical data referring to power and torque was measured on an engine test stand at Ducati.
Fuel injection
Marelli electronic fuel injection, elliptical throttle bodies
Exhaust
Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin stainless steel mufflers

Transmission

Gearbox
6 speed
Primary drive
Straight cut gears, Ratio 1.84:1
Ratio
1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
Final drive
Chain; Front sprocket 15; Rear sprocket 42
Clutch
Wet multiplate with hydraulic control

Chassis

Frame
Tubular steel Trellis frame in ALS 450
Front suspension
Marzocchi 43mm fully adjustable usd forks
Front wheel
10-spoke in light alloy 3.50 x 17
Front Tyre
Pirelli Diablo Corsa 120/70 ZR17
Rear suspension
Progressive linkage with fully adjustable monoshock. Aluminium single-sided swingarm
Rear wheel
10-spoke light alloy 5.50 x 17
Rear tyre
Pirelli Diablo Corsa 180/60 ZR17
Front wheel travel
127mm (5in)
Rear wheel travel
127mm (5in)
Front brake
2 x 320mm semi-floating discs, radially mounted Brembo callipers 4-piston, 2-pad
Rear brake
245mm disc, 2-piston calliper
Instrumentation
Digital unit with displays for: Speedometer, rev counter, lap times, time, air temp, coolant temp, battery voltage, A & B trips, fuel reserve trip, DTC status and level selected (if activated) scheduled maintenance. Warning lights for: Neutral, turn signals, high-beam, rev-limit, DTC intervention, oil pressure, fuel reserve. Plus: Immobilizer system and management of DTC and DDA

Dimensions and weight

Dry weight
169kg (373lb)

Weight data refers to the dry weight of the motorcycle without battery, lubricants and coolants for liquid-cooled models.
Wet weight (KERB)
199kg (439lb)

Kerb weights indicate total bike weight with all operating consumable liquids and a fuel tank filled to 90% of capacity (as per EC standard 93/93).
Seat height
840mm (33in)
Wheelbase
1475mm (58.1 in)
Rake
24,5°
Trail
103mm (4.05in)
Fuel tank capacity
16,5 l – 4.4 gallon (US)
Number of seats
Dual seat


Warranty
2 years unlimited mileage
Maintenance service intervals
7.500m
Valve clearance check
15,000m

Emissions and Consumption

Standard
Euro 3



Specifications and appearance are subject to change without prior notice.

About Michael Le Pard 10138 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.

Be the first to comment

Leave a Reply
