2015 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic

Back to 2015 Harley-Davidson Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

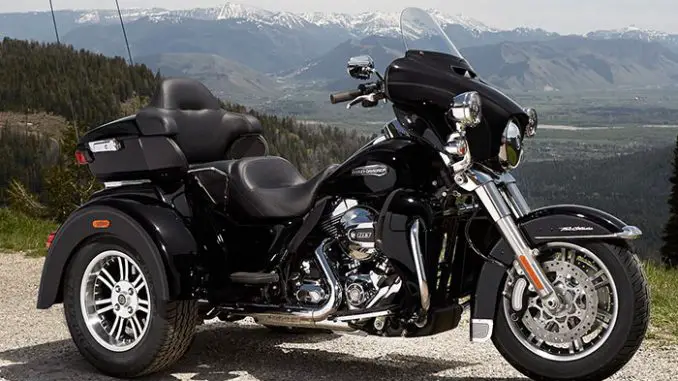

2015 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic

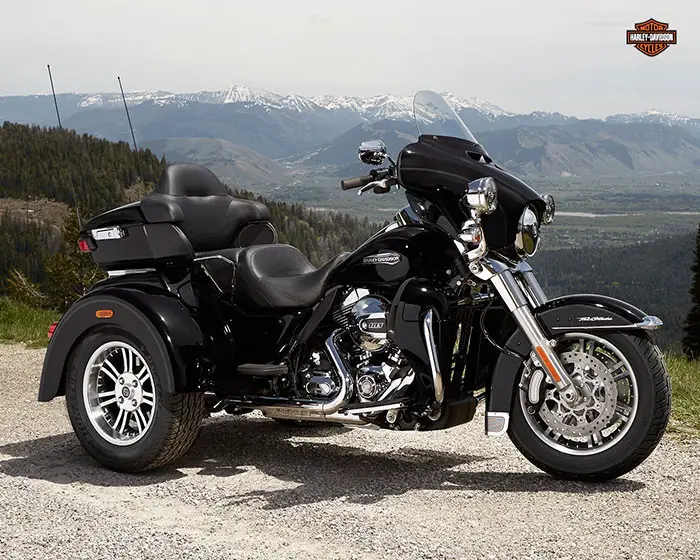

2015 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic

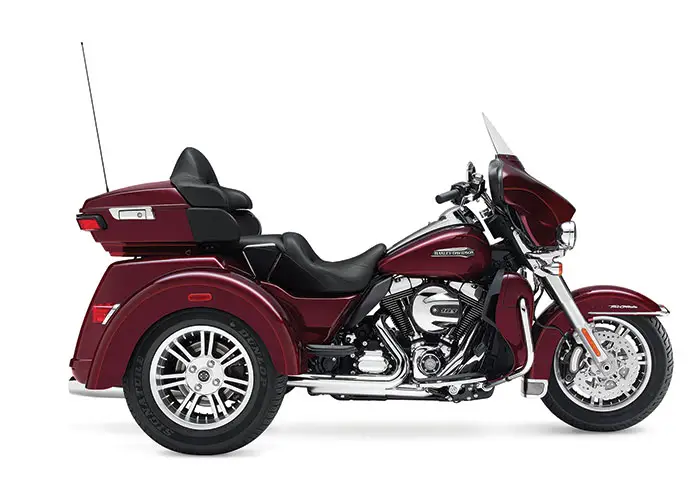

2015 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic

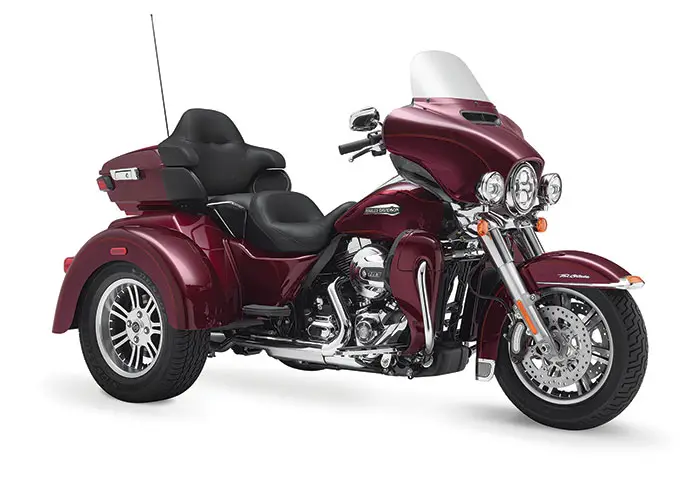

2015 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic

2015 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic
2015 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic



2015 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic Review

2015 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic on Totalmotorcycle.com

How much motorcycle can you fit on three wheels? One look at the Tri Glide® Ultra motorcycle and you’ll have your answer…

The 2015 Tri Glide™ Ultra Classic® Trike offers an authentic three-wheel touring alternative, built from the frame up to provide maximum comfort and handling that is truly Harley-Davidson. Features include the Twin-Cooled™ High Output Twin Cam 103™, designed to maintain performance and power in a broad range of conditions. The linked braking system applies front and rear brakes together when the foot brake control is applied, and the Tri Glide Ultra parking brake system is activated by a foot pedal on the rider’s left side. Batwing fairing features a Splitstream vent to reduce head buffeting.

6-Speed Cruise Drive® transmission
Lengthened and raked front forks optimize steering
Air-adjustable rear shocks
Rear-axle assembly with lightweight aluminum center section and steel axle tubes
Trunk provides 4.3 cubic feet of storage space and 50-pound capacity
Height-adjustable passenger footboards
Electric reverse drive
Electronic cruise control





2015 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic www.Totalmotorcycle.com Key Features

NEW Paint color options including Custom color
• Twin-Cooled™ High Output Twin Cam 103™Black powder-coated powertrain with chrome covers
• Hydraulic clutch actuation with Assist & Slip feature
• Wind tunnel-tested Batwing fairing with splitstream vent for reduced head buffeting
• Linked braking system
• Floating front brake rotors with large rear brake rotors
• Foot-operated parking brake
• Daymaker™ LED headlight and fog lights
• Bullet front turn signals
• Boom!™ Box 6.5 GT audio system with GPS and touchscreen, Bluetooth capability, with 25-watt per channel amplifier and
four speakers
• Jukebox media compartment with USB connection and One-Touch access door
• One-Touch access to the Tour-Pak®, Jukebox, and fuel tank permits latching and unlatching with a press or pull of a finger
• Tour-Pak® case with One-Touch latch and integrated lock; rear LED stop, turn, and position lights located on the Tour-Pak®
• Ergonomic hand controls with intuitive design and improved tactile feel
• 49 mm forks, stiff triple clamps and large steering bearings
• Low profile front fender
• Large, comfortable passenger seating area
• Easy-to-read gauges with wide numbers
• 40-watt CB radio and intercom system
• Electronic cruise control
• Chrome, low-profile fuel tank console
• Chrome 2-1-2 dual exhaust with tapered mufflers
• Adjustable fairing-mounted wind deflectors





2015 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic Totalmotorcycle.com Features and Benefits

Project RUSHMORE – Control

Here are some of the innovations Project RUSHMORE led to: the Reflex™ Linked Brakes with ABS, the Daymaker™ LED headlamps and fog lamps, brighter Tour-Pak® lighting, brighter turn signals, brighter brake lights, and a steering head with stiffer front forks. Locked-up tires are now history even when there’s wet pavement. We’ve made it feel even better to lean your way through a turn. Now you can see better. And we’ve made you more conspicuous to the cage-driving public. Because one thing we all agree on is this: bikes that work better make riders who ride better. Take a ride. See how good you can be.

H-D® Smart Security System (Optional)

The factory-installed next-generation security system features a hands-free fob that automatically arms and disarms the vehicle’s electronic security functions as you approach and walk away from the bike. Stick the fob on your ignition key ring and let it do all the work. It’s this attention to detail and security that make Harley-Davidson® motorcycles unique.

Three-Wheel Frame Design

Trikes are bound to ride a little differently than two-wheeled machines. But when they’re done right, they have a joy of their own. Harley-Davidson uses legendary engineering and ride dynamics to keep you comfortable and connected to the road. This three-wheeled pioneer is built from the ground up for maximum handling. The frame and chassis structure is engineered to specifically handle the steering forces and weight of a three-wheel vehicle. And we defy you find a more comfortable ride on the touring circuit—from two to four to eighteen wheels.

Dual Disc Front and Hayes™ Rear Brakes

We’ve installed the ultimate complement to the reliable dual-disc front brakes. The top-of-the-line Hayes™ dual-disc assembly in back comes complete with hand-actuated parking brake. So whether you’re descending a mountain of switchbacks or just trying to park in San Francisco, you can ease your mind.

Ergonomically Designed Hand Controls

It’s hard to enjoy the ride or keep your eyes focused on what’s coming down the road when you’re fussing and bothering with the switches on your handlebar. So we’ve worked over the hand controls on our trikes with as much passion as we’ve worked over our engine. We made the shape more ergonomic and located and angled them to fall right under your thumbs. We’ve added left-hand cruise for easy activation, toggle switches to control infotainment functions, and an easily locatable trigger switch to control and scan through functional readouts. And we’ve improved the feel to give you a confidence-inspiring click at every push of a button. Even the dash panel switch gets better. And it’s all prewired for parts and accessories, which even lets you customize with less fuss and bother.

Steering Head and Front Forks

Whether it’s a big sweeping curve or a set of tight turns, getting through the corners just got better. We stiffened up the front end and increased the fork diameter to 49mm, an increase of 18 percent. The responsiveness is dialed in. Plus a steering damper controls feedback from the road. So when you’re out with your bagger buddies, you’ll stay right at the front of the pack.

Daymaker™ LED Headlamp and LED Fog Lamps

For those who regard darkness as an invitation to go farther, the Daymaker™ LED headlight with LED fog lamps will light the way. With 2,136 powerful, daylight-simulating lumens that bathe the dark road in natural light, a shoulder-to-shoulder spread of 160 feet and a 450-foot punch, the night is yours to take with full confidence. Because not all of us look for an exit when day turns to night.

Rear to Front Linked Brakes

No doubt about it, there are times riding when you need to haul things down in a hurry. That’s why the Tri Glide® Ultra model comes standard with rear to front linked brakes. When the rear brake is applied the system also applies the front brake for maximum stopping power. However, the front brake is independent so you can use it without applying and brake to the rear. No matter how good you are, this will make you a better rider.

Six-Speed Cruise Drive® Transmission

You want a ride that rumbles—not begs for mercy—when you lean on it a little. The Six-Speed Cruise Drive® transmission provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine turnover and road speed. It’s a rare ride when a bike responds like this, and a low growl goes a long way when you’re opening up the road ahead.

Twin Cam 103™ Engine Heritage

The knowledge of what makes an engine truly move a rider runs deep at The Motor Company, and it was put to good use when we created the Twin Cam 103™ engine. We sweated bullets perfecting every cubic inch, pushing design and technology forward. And we did it all without compromising one bit of Harley-Davidson’s unique styling. Evolved, yet carrying on the legacy of the Flathead, Knucklehead, Panhead, Shovelhead, Evolution® and Twin Cam 88® and Twin Cam 96® engines that came before. The performance and durability are a direct result of the untold miles logged on the V-Twin since 1909 and the proud heritage that comes from a century’s worth of commitment to life on two wheels.

Twin Cam 103™ Engine Innovation

Fire up the air-cooled, rubber-mounted Twin Cam 103™ engine and feel the low-end torque unleashed for a smooth ride. Thanks to the lightweight piston design, delivery of the added power is more refined than ever. Then put your foot on the shifter and feel how the engine and Six-Speed Cruise Drive® transmission were designed to work together. Six speeds. A strong driveline and strong internal parts. Low routine maintenance. And a low cruising rpm couldn’t feel better.

Project RUSHMORE – Engine

As every rider knows, the engine is at the heart of the experience of riding a motorcycle. The amount of torque and horsepower it delivers over the RPM range is in direct proportion to the feeling it gives you when you roll on the throttle. We know what riders want from a motorcycle engine because we’ve been building them for 110 years. Project RUSHMORE gave us the opportunity to dial it in just right. We conducted thousands of road tests with real riders giving us feedback to build the next iteration of the legendary Harley-Davidson® engine. The consensus was: We want more. More low-end torque, more passing power, more perfection in the tone of the exhaust note, more of the feeling we ride a motorcycle for. So we built the engines that deliver it. We’re proud to unveil the next level of Harley-Davidson® V-Twin engine. And prove once and for all, the customer is always right.

Twin-Cooled™ High Output Twin Cam 103™ Engine

If you started in 1909 with the very first Harley-Davidson® V-Twin engine and worked your way up through every engine, every innovation, every improvement, every ride, every durability test in all those years and countless miles since, you arrive at the Twin Cooled™ High Output Twin Cam 103™ engine. This is the top of the line. 103 cubic inches of air and precision cooled Harley-Davidson® V-twin engine power. Twin cooling cools the heads around the exhaust ports to deliver at or near peak performance under all operating conditions and temperatures. A higher compression ratio increases efficiency and horsepower. The airbox delivers increased airflow and the cams optimize low-end torque. It’s got the fastest 60 to 80 mph 5th gear roll on in the history of Harley-Davidson. Which means it’s got the most passing power in the history of Harley-Davidson. On top of all that, it puts less heat on the rider and passenger on scorching days and in stop-and-go traffic.

Project RUSHMORE – Infotainment

More sound. Purer sound. Big, full-color touch screens. Switches that are located where you intuitively want them to be and can reach without removing your hands from the grips. Voice activation for your music, phone and GPS. Or as more than one rider asked: “Why can’t the infotainment system on my motorcycle blow away the ones the car companies put in their cars?” We couldn’t agree more. Check out the infotainment system Project RUSHMORE brought to the sport of motorcycling. You won’t believe your eyes. Or ears.

Boom!™ Box 6.5GT Radio

Let’s start with this: 25% more volume for your tunes. The Boom!™ Box 6.5GT Radio puts out 25 watts per channel at 1% distortion and features a factory-tuned, optimized equalizer that pumps out more power and can be played louder while maintaining the clarity of your sound. And the speed tuning system delivers more than just volume changes at different speeds. It changes the level of bass and treble to dial in the best sound, whether you’re running at a stately pace down the strip or going hell for leather down an open stretch of road. How do you like the sound of a Harley® motorcycle now?

6.5-inch Full Color Touch Screen Display

This 6.5-inch full-color touch screen puts all your information in front of you bigger than ever. Modern graphics, colors you can dial in, and auto and manual dim. Designed to sit stylishly inside your fairing, it takes screen technology to an eye-popping level of Harley-Davidson functionality. This is more than you expect, but when you’re going all the way, it’s everything you deserve.

Jukebox with USB Port for iPod/iPhone

The Jukebox opens with one touch of a button and includes a USB connection which accepts your iPhone, iTouch, non-iPod imitators, and SD card and other USB compatible devices. Pop it open, plug in and your device becomes a part of your motorcycle. Ready to be operated by voice command or hand controls.

Voice Recognition, Bluetooth

The Boom!™ Box 6.5GT gives you voice recognition for hands-free operation of your mobile phone, navigation system and music. It’s also Bluetooth capable. Whatever you want, just say the word. Whether it’s directions to the next gas station, a call back to the office you’re not at today or a song that fits the stretch of road you’re on, it’ll be served up without missing a beat.

5.25-inch Front and Rear Speakers

The sound delivered front and rear comes from 5.25-inch speakers mounted securely in sealed and tuned enclosed speaker housings.

Ready For Your Upgrades

The Boom!™ Box 6.5GT was built with your personal touches in mind. You can integrate P & A satellite radio right into the vehicle radio with no external mounting and control it through the hand controls. Additional satellite services such as weather and traffic can be added and overplayed on the GPS maps. You can even download map upgrades and additional functions. The only question is, how far do you want to go?

Project RUSHMORE – Comfort

We dialed in the comfort of our machines the hard way: over thousands of miles in all kinds of riding conditions on every kind of street, road and highway ever laid down in pavement. Experienced riders and passengers putting in long hours in the saddle and giving us feedback on every aspect that contributes to comfort on the road. Airflow, heat management, passenger space, back rests, seat textures, legroom and hand controls all went under the hard microscope of the road and got tested and re-tested by real riders and worked and re-worked by us until we were satisfied we had built the most comfortable machines on the road. We all want to go farther, and when you and your passenger are more comfortable in the saddle, you can.

Full-Length Footboards & Toe/Heel Gear Shifts

Your boots were made for riding—any way you see fit. Our full-length footboards boast a time-tested, tried-and-true design and rubber isolation for a comfortable ride, while the height-adjustable passenger boards add another level of customizable comfort for your riding partner. And for shifting gears, you can use either the traditional toe-shift or the even easier, more convenient heel-shift. It might take a few rides, but once you’ve gotten used to the smooth shifting rhythm, you’ll never give it up.

Mid-Frame Air Deflectors

Designed and tested to deflect heat generated from the V-Twin, the mid-frame air deflectors are enlisted for duty on every ride, especially the hotter days. These low-profile black deflectors are mounted to the frame of the Tri Glide® Ultra model just below the seat and move the heat away from your legs and body. Summer rides just got more comfortable.

Wide Set Handlebar

Classic style and maximum comfort. That’s the perfect balance of the wide set handlebars that come standard on the Tri Glide® Ultra model. They’re designed to keep you comfortably propped in a commanding position while making sure your neck muscles stay calm and relaxed mile after mile, state after state. Durable stainless steel ensures the structural rigidity you expect from a Harley-Davidson® motorcycle with the deep, lustrous finish you desire.

Standard Cruise Control

Installing cruise control is standard operating procedure on the trike models because riding long stretches of unbroken highway is standard operating procedure among touring riders. Electronic throttle control means no cable cluttering up your handlebar. And the switches are placed where you can easily dial in your speed with your left thumb, give the wrist a break, and keep hauling on down the road.

Back and Arm Rests

If you really want to know what makes a passenger comfortable, you start by asking people who’ve seen a good part of the world from the back of a bike. You run thousands of miles of road tests in heat, cold, sun, and rain. You use their input to perfect the height, the width, the shape, the contour, the texture of the leather, the lumbar support. You install controls that can be easily reached and operated with one hand. What you end up with is the back and arm rests you’re looking at right here. Passengers love them like they’re their own babies, because in a manner of speaking, they are.

Fairing Design Reduces Head Buffeting

This is what the science of cheating the wind involves at Harley-Davidson now: fluid mechanics, algorithms, high-speed super computers and thousands upon thousands of wind-tunnel tests with riders in the saddle telling us how it feels. And that’s before we take it out on the road for thousands of miles of real world wind gusts and every form of rain a cloud can spit out. The result: a Batwing fairing that delivers smoother air flow and reduced head buffeting. Most of it thanks to the pressure-equalizing duct on the front. It opens and closes with one touch of a button. The feeling of being in the wind just got even better.

Accessory Connector

Beyond its capacity, comfort, head-turning looks and that broad band of power, you can enhance your Tri Glide® Ultra model even more by taking advantage of the exhaustive catalogue of Harley-Davidson add-ons and accessories. The accessory connector sits discreetly under the rider seat, making it easy to plug in and reach whatever you envision adding to your Trike.

Trunk and King Tour-Pak® Storage

With a total cargo capacity of 6.7 cubic feet and up to 80 pounds, the Tri Glide® Ultra model puts the “haul” in long haul. The integrated trunk offers 4.4 cubic feet and 50 pounds of storage capacity, while the waterproof, injection-molded Tour-Pak® luggage carrier keeps things classy and neat with soft woven-nylon luggage liner and plenty of storage pockets. So head out cross country or to Biketoberfest knowing you’ve got the capacity to turn luxury touring into luxury living on the road.

Project RUSHMORE – Convenience

If you want the ride to be truly epic, you have to sweat bullets to make the little things work exactly right. This is what Project RUSHMORE was all about. Now you have saddlebags and Tour-Pak® luggage carriers that can be easily opened with one hand. Compartments that open with one touch. And we’ve increased the storage space on these machines without ruining the sleek, road-eating look of the bike. It all adds up to hundreds of little moments where things just click conveniently into place. Because there can be no imperfections in the quest for the perfect ride.

One-Touch Design Philosophy

Here’s the rule we laid down for every compartment cover and saddlebag lid on our touring line: if it doesn’t open with the single touch of a button or one hand, while wearing gloves, it doesn’t go on the motorcycle. Because in all our conversations with all the riders we talked to over the eight years we were rebuilding these motorcycles from the ground up, we didn’t encounter a single individual who wanted to have to put something on the ground before he could store it in a saddlebag.

ne-Touch Fuel Door

One button, one touch, fuel door open. Any questions?

Tour-Pak® Design

The Tour-Pak® luggage carrier sports a sleek look, but it didn’t come at the expense of storage space. They’re bigger inside than ever and can easily accommodate two full face helmets. There’s a document and toolkit pouch. The lock is integrated into the latch to keep your key away from your premium paint. And the premium hinges work better and look sharper. You can operate the single latch with one hand. Storage. Check. We have it covered.

Standard Battery Charging Harness

No question a battery charging harness is a must-have on a motorcycle. Now it’s standard. So you don’t have to waste even the ten minutes it takes to install one on some sunny Saturday when you could be riding.

Electric Reverse with Handlebar-Mounted Control

We know you expect the ultimate performance from the ultimate Harley-Davidson® touring machine, so we make sure to deliver. Case in point: this electric reverse puts convenient control at your fingertips, for confident, easy movement for parking, loading, close-quarters maneuvering, or any situation where only going one way is not an option.

Foot-Operated Parking Brake

The parking brake on the Tri Glide® Ultra model couldn’t be any simpler to find or operate. It’s right there by your left foot. When you want to lock in, you push it down. When it’s time to take off again, you give it another push. And a light has been added to the gauges to alert you when your parking brake is engaged.

Seamless Styling and Matching Paint

This three-wheeled pioneer is designed, developed and tested to the highest standards of the Motor Company and backed by over a hundred years of touring mastery. This is not a bolt-on, aftermarket Trike kit. It’s engineered and road-tested as a whole. Every inch is integrated for comfort, cargo and confidence. From the smooth, classically designed lines to the front-to-rear matching paint, the Tri Glide® Ultra model has the bloodlines of a true Harley-Davidson® motorcycle through and through.

Bullet Turn Signals

We went end to end and top to bottom to give the Harley-Davidson® touring lineup the clean, tight, sharp, iconic look and feel that only befits the next generation of our motorcycles. The finishing touch – bullet turn signals. Sleek and modern, yet a timeless classic.

Inner Fairing Design

Put your eye to the inner fairing of the Tri Glide® Ultra model. There’s a bigger display screen (see the whole story in the infotainment section). Check out the gauges. You’ll notice a 10 percent larger viewing area, with wider, taller numbers sitting on top of that classic black background. The information gets bigger and better too. There’s a gear indicator for all six gears and the display area, which can now be operated by an extremely convenient trigger switch, puts more information at your fingertips. The temperature and fuel gauge are larger too. When you’re on the road, one quick glance tells you everything you need to know.

Tank and Fender Badges

This isn’t just a motorcycle. It’s a work of art, born out of passion, creativity and long days, late nights and refusing to be satisfied until every detail was perfect. When we added the signature badges, we did it with metal. Nothing else would be right on this masterpiece.

High Flow Airbox

Our design philosophy can be summed up pretty simply: form follows function, but both report to emotion. This airbox is a prime example of that. It’s the most functional airbox we’ve ever put on a Harley-Davidson® touring bike. It lets the engine breathe better for more power, but it’s also designed to provide better airflow around the rider. Emotion? That’s the part you feel when you look at it sitting right at the center of your V-Twin engine.

17″ Impeller® Front Wheel

Sitting out front on the Tri Glide® Ultra model, you’ll notice a 17-inch cast aluminum, 10-spoke Impeller wheel. In the back you’ve got a couple of 16-inch Impeller wheels to match. The brake rotors are designed to show off more of the premium custom look of the wheels. Because if you’re going to go this far, you might as well take it all the way.












2015 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic – www.Totalmotorcycle.com American Specifications/Technical Details
USA MSRP Price:
Vivid Black $32,999; Color Option $33,849; Two-Tone Option $34,349; Custom Color Option $34,749 USD

PRICING 6
Vivid Black $32,999
Color Option $33,849
Two-Tone Option $34,349
Custom Color Option $34,749
Security Option STD
Cruise Control Option STD
California Emissions $200
Freight $856
Premium Radio Option Standard

DIMENSIONS
Length 105.1 in.
Seat Height, Laden 7 27.1 in.
Seat Height, Unladen 7 28.3 in.
Ground Clearance 4.5 in.
Rake (steering head) (deg) 26
Trail 3.94 in.
Wheelbase 65.7 in.
Tires, Front Specification MT90B16 72H
Tires, Rear Specification P205/65R15
Fuel Capacity 6 gal.
Oil Capacity (w/filter) 4 qt.
Weight, As Shipped 1,180 lb.
Weight, In Running Order 1,215 lb.
Luggage Capacity -Volume 6.8 cu ft

INFOTAINMENT
SCREEN
Size 6.5 inch
Type Color
Color Choices Orange (default), Blue, Brown, Green, Gray, Purple, Red
Day/Night Dimmer Standard
Audio Output
Watts Per Channel 25
Speakers 4
Speaker Size 5.25 inch/6.5 inch – P&A Upgrade
Bass Port Rear Speakers Standard
Distortion (THD) 1%
Internal Amp Standard
External Amp P&A Upgrade
Wired Headset Standard
Headset Specifications (if equipped) 16-64 ohms
AUDIO SOURCES
AM Standard
FM Standard
Weather Band (WB) Standard
MP3 – USB Connection Supported
SD Card – via USB Connection Supported
Flash Drive – via USB Connection Supported
AUDIO SETUP
CB Presets 6
AM Presets 6
FM Presets 15
SiriusXM Presets 20.0
iPod Device Presets 20.0
USB-Storage Device Presets 20.0
WB Presets 6
Media Player Device Presets 20
Global Presets Selectable, up to 20 presets
Favorites 1 FAV hardkey plus 6 favorites
Classic Mode Selectable
Seek/Scan Standard
INTERFACE LANGUAGES
Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese
VOICE RECOGNITION
Hands-free Mobile Phone – via Bluetooth Standard
Voice Recognition Languages: Phone functions only English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese
Voice Recognition Languages: Tuner/Media/Navigation English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese
COMMUNICATION
Rider/Passenger Intercom Standard
OTHER FEATURES
“Vehicle Information Screen (Air temperature, oil pressure and engine temperature)” Standard
Software Update via USB interface Standard
Text-to-Speech (TTS) Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese
USB USB/MTP/iPod/iPhone
Bluetooth Phone/Media Supported

ENGINE
Engine 1 Twin-Cooled™ High Output Twin Cam 103™
Bore 3.87 in.
Stroke 4.374 in.
Displacement 103.1 cu in
Compression Ratio 10:01
Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)

DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 10.534
Gear Ratios (overall) 2nd 7.302
Gear Ratios (overall) 3rd 5.423
Gear Ratios (overall) 4th 4.392
Gear Ratios (overall) 5th 3.741
Gear Ratios (overall) 6th 3.157

CHASSIS
Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers
Wheels, Front Type 9 Black, 7-spoke Cast Aluminum
Wheels, Rear Type Black, 7-spoke Cast Aluminum
Brakes, Caliper Type 6 piston fixed front with 4-31.75 mm front pistons and 2-25.4 mm linked rear pistons, 31.75mm single piston floating rear
Parking Brake Foot actuated dual parking brake

PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 2 106.2 ft-lb
Engine Torque (rpm) 3,750
Fuel Economy: Combined City/Hwy 5 38 mpg

ELECTRIC
Lights (as per country regulation), Indicator Lamps 8 High Beam, running lights, front fender running lights, directional lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system (optional), gear indication, low fuel warning, reverse, park brake, miles to empty display, fog/aux lamp indicator
Gauges Gauges compared to MY13: 10% larger speedometer and tachometer with 68% wider numbers; 28% larger fuel and volt gauges with 30% wider numbers; display features odometer, trip A, trip B, range to empty, and gear indicator; and larger telltale indicators, including new reverse indicator light

Recommended 91 octane or higher fuel (R+M)/2.
Values shown are nominal. Performance may vary by country and region.
Standard and optional fuel systems may vary by country.
See motorcycle owner’s manual for complete details.
Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.
Measurement reflects 180 lb. (81.7 kg) operator weight.
North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
Standard and optional wheels may vary by country and region.








2015 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: Vivid Black $ 41,359; Color Option $ 42,389; Two-Tone Option $ 42,999; Custom Color Option $ 43,489 CDN

PRICING
Vivid Black $ 41,359
Color Option $ 42,389
Two-Tone Option $ 42,999
Custom Color Option $ 43,489

DIMENSIONS
Length 2,670 mm
Seat Height, Laden 6 688 mm
Seat Height, Unladen 6 720 mm
Ground Clearance 115 mm
Rake (steering head) (deg) 26
Trail 100 mm
Wheelbase 1,670 mm
Tires, Front Specification MT90B16 72H
Tires, Rear Specification P205/65R15
Fuel Capacity 22.7 l
Oil Capacity (w/filter) 3.8 l
Weight, As Shipped 545 kg
Weight, In Running Order 560 kg
Luggage Capacity -Volume 0.19 m3

INFOTAINMENT
SCREEN
Size 6.5 inch
Type Color
Color Choices Orange (default), Blue, Brown, Green, Gray, Purple, Red
Day/Night Dimmer Standard
Audio Output
Watts Per Channel 25
Speakers 4
Speaker Size 5.25 inch/6.5 inch – P&A Upgrade
Bass Port Rear Speakers Standard
Distortion (THD) 1%
Internal Amp Standard
External Amp P&A Upgrade
Wired Headset Standard
Headset Specifications (if equipped) 16-64 ohms
AUDIO SOURCES
AM Standard
FM Standard
MP3 – USB Connection Supported
SD Card – via USB Connection Supported
Flash Drive – via USB Connection Supported
AUDIO SETUP
CB Presets 6
AM Presets 6
FM Presets 15
SiriusXM Presets 20.0
iPod Device Presets 20.0
USB-Storage Device Presets 20.0
WB Presets 6
Media Player Device Presets 20
Global Presets Selectable, up to 20 presets
Favorites 1 FAV hardkey plus 6 favorites
Classic Mode Selectable
Seek/Scan Standard
INTERFACE LANGUAGES
Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese
VOICE RECOGNITION
Hands-free Mobile Phone – via Bluetooth Standard
Voice Recognition Languages: Phone functions only English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese
Voice Recognition Languages: Tuner/Media/Navigation English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese
COMMUNICATION
Rider/Passenger Intercom Standard
OTHER FEATURES
“Vehicle Information Screen (Air temperature, oil pressure and engine temperature)” Standard
Software Update via USB interface Standard
Text-to-Speech (TTS) Lanugages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese
USB USB/MTP/iPod/iPhone
Bluetooth Phone/Media Supported

ENGINE
Engine 1 Twin-Cooled™ High Output Twin Cam 103™
Bore 98.4 mm
Stroke 111.1 mm
Displacement 1,690 cc
Compression Ratio 10:01
Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)

DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 10.534
Gear Ratios (overall) 2nd 7.302
Gear Ratios (overall) 3rd 5.423
Gear Ratios (overall) 4th 4.392
Gear Ratios (overall) 5th 3.741
Gear Ratios (overall) 6th 3.157

CHASSIS
Exhaust New Batwing fairing
Wheels, Front Type Black, 7-spoke Cast Aluminum
Wheels, Rear Type 8 Black, 7-spoke Cast Aluminum
Brakes, Caliper Type 6 piston fixed front with 4-31.75 mm front pistons and 2-25.4 mm linked rear pistons, 31.75mm single piston floating rear
Parking Brake Foot actuated dual parking brake

PERFORMANCE
Engine Torque Testing Method J1349
Engine Torque 2 144 Nm
Engine Torque (rpm) 3,750
Fuel Economy: Combined City/Hwy 5 6.2 l/100 km

ELECTRIC
Lights (as per country regulation), Indicator Lamps 7 High Beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system (optional), 6 speed, low fuel warning, reverse enabled
Gauges New gauges: 10% larger speedometer and tachometer with 68% wider numbers; 28% larger fuel and volt gauges with 30% wider numbers; display features odometer, trip A, trip B, range to empty, and gear indicator; and larger telltale indicators, including new reverse indicator light

Recommended 91 octane or higher fuel (R+M)/2.
Values shown are nominal. Performance may vary by country and region.
Standard and optional fuel systems may vary by country.
See motorcycle owner’s manual for complete details.
Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
Measurement reflects 180 lb. (81.7 kg) operator weight.
North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
Standard and optional wheels may vary by country and region.

Specifications and appearance are subject to change without prior notice.

About Michael Le Pard 1608 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle. Supporting Motorcyclists and Motorcycling for 18 great years.

Be the first to comment

Leave a Reply
