2016 Harley-Davidson Low Rider S Review

2016 Harley-Davidson Low Rider S on www.Totalmotorcycle.com

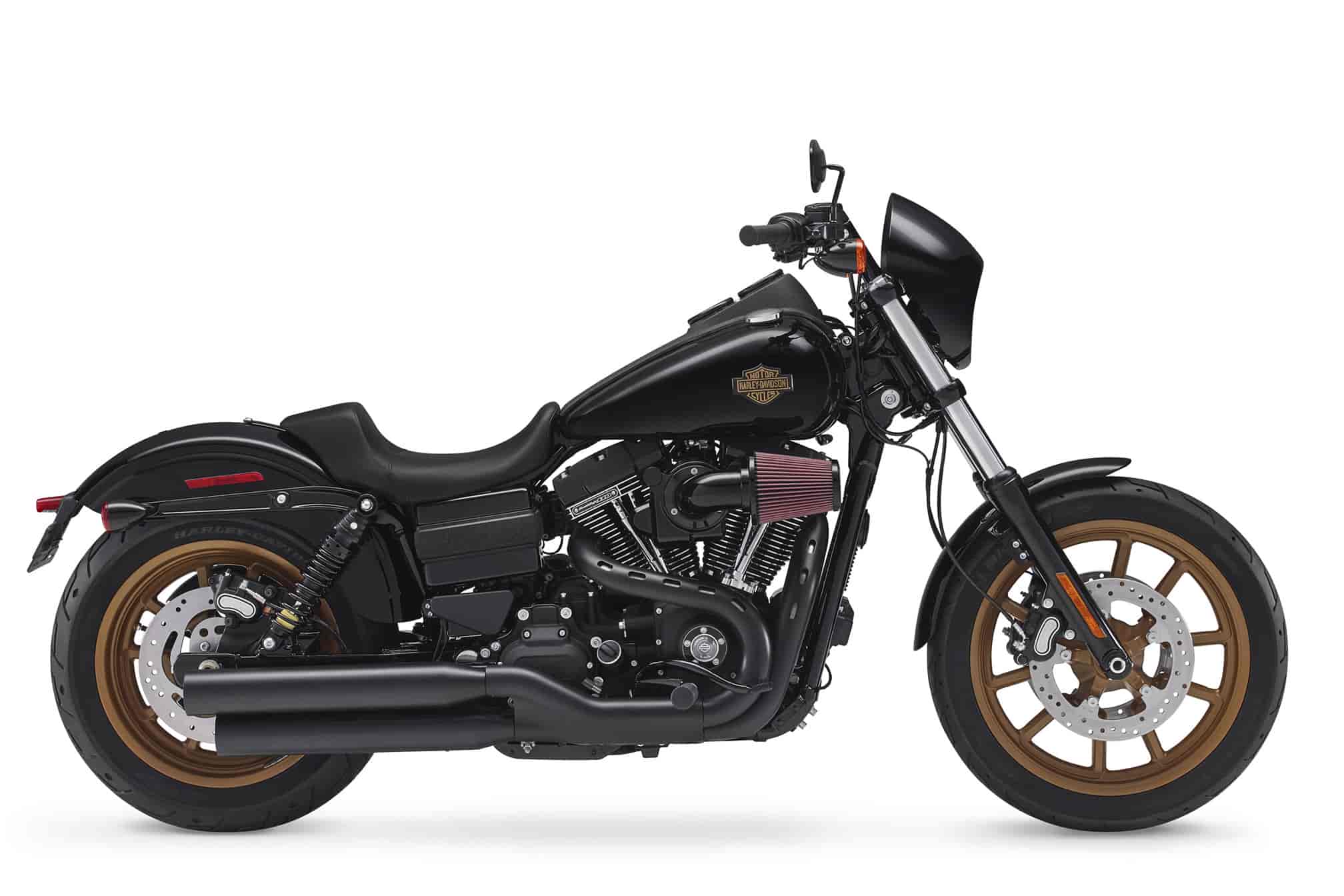

The new Low Rider® S takes the factory custom genre to a raw and powerful new edge. Get behind the fixed speed screen and hang on…

The Low Rider S joins the Fat Boy® S and Softail Slim® S as the third model in the Harley-Davidson S Series of cruiser motorcycles, bikes designed to deliver maximum performance with styling inspired by global custom motorcycle culture. Powered by the Screamin’ Eagle® Twin Cam 110™ engine with upgraded suspension and brakes, the Low Rider S is stripped down and ready for action.

HARLEY-DAVIDSON LOW RIDER S PUSHES CRUISER PERFORMANCE TO THE EDGE
New Performance Cruiser Features Screamin’ Eagle Muscle and Stripped-Down Style

MILWAUKEE (January 27, 2016) – The original Harley-Davidson® Low Rider® model pushed the limits of a factory-custom motorcycle. Now Harley-Davidson delivers a new generation of performance and blacked-out style with the mid-year launch of the Low Rider® S model.

Powered by the Screamin’ Eagle® Twin Cam 110™ engine, the Low Rider S model joins the recently released Fat Boy® S and Softail Slim® S models as the third member of Harley-Davidson’s S Series cruiser lineup, bikes designed to deliver maximum performance with styling inspired by global custom motorcycle culture. Upgraded suspension and brakes complete the performance package of a motorcycle that’s stripped down and ready for action.

“Riders have been asking when Harley-Davidson would build another aggressive, performance-based bike like the legendary FXR models,” said Harley-Davidson Director of Styling Brad Richards. “This is our answer to that question. The Low Rider S is informed by the current tall-bike custom trend and our own styling heritage, but also seeks to redefine Harley-Davidson performance for a new generation of riders. We wanted to really connect the rider to the road by delivering instantaneous power and agile handling with a bike that’s trimmed to the essentials.”

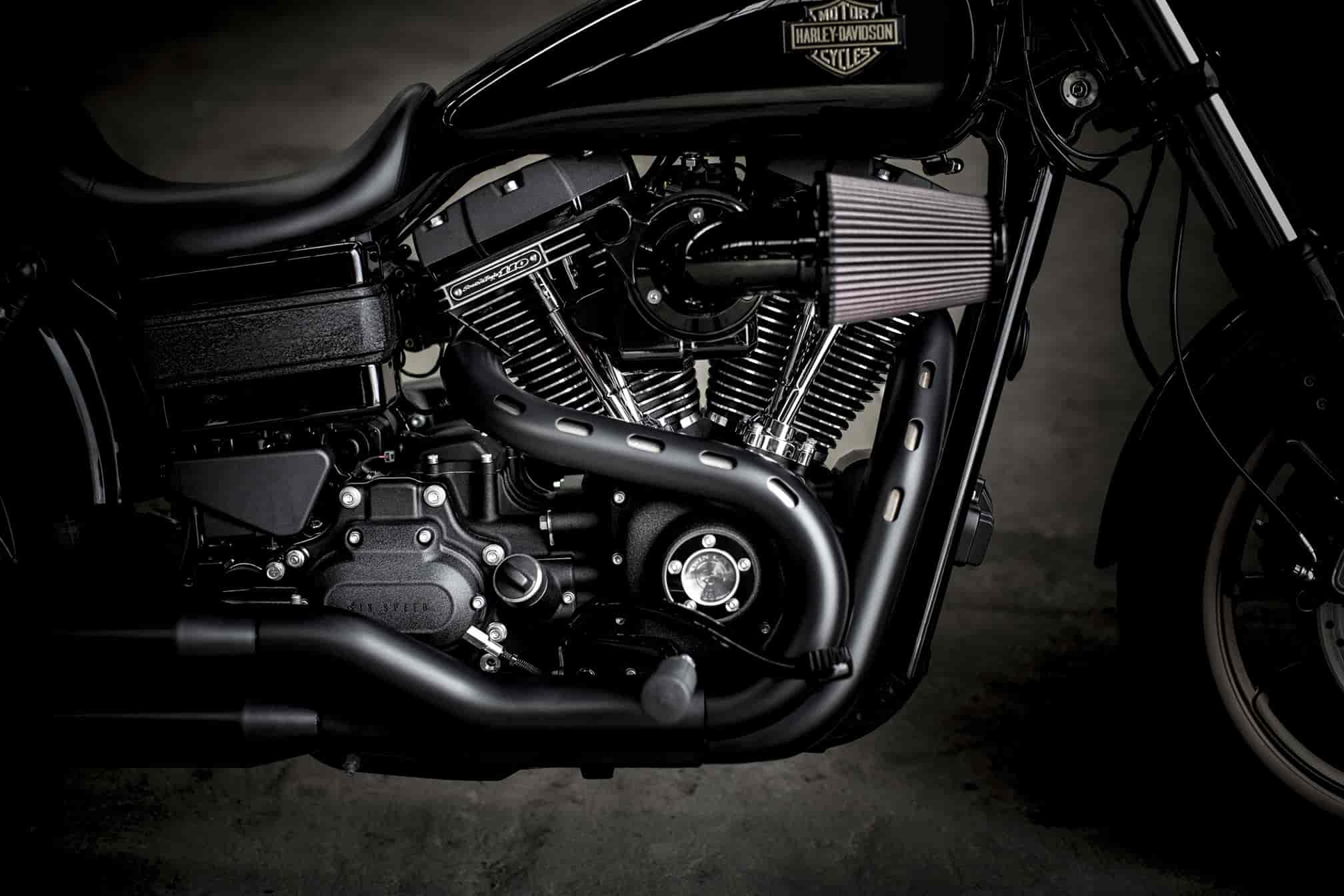

Those essential elements begin with the powertrain. The Screamin’ Eagle Twin Cam 110 engine is a powerhouse V-Twin and the largest-displacement engine Harley-Davidson installs at the factory. Equipped with a Screamin’ Eagle® Heavy Breather performance intake and Fat Bob-style 2-into-2 exhaust, this engine pounds out 115 foot pounds of peak torque at 3500 rpm – 13 percent more power than the standard Low Rider model. A heavy-duty clutch delivers that power to a 6-speed Cruise Drive® transmission. Cruise control enabled by electronic throttle control is standard equipment. The entire powertrain and exhaust is finished in a combination of gloss black and wrinkle black powdercoat.

The Low Rider S model is equipped to be as maneuverable as it is powerful. Premium Ride nitrogen gas-charged emulsion shocks and a Premium Ride cartridge fork deliver exceptional handling and comfort. Front and rear suspension components react quickly to small bumps and keep the tires in contact with the road surface for confident, controlled handling and braking performance. Triple disc brakes with dual floating front rotors are equipped with standard Anti-Lock Braking System. A new solo seat, flat drag bar on 5.5-inch-tall risers and mid-mount controls put the rider in an aggressive hands-up position square over the pegs. Seat height remains low, at 26.6 inches.

The rider views the road over a distinctive speed screen that gives the Low Rider S motorcycle instant identity on road.

“When you ride fast in this upright position, you need a little wind protection,” said Harley-Davidson Senior Stylist Dais Nagao. “Then the way we inset the headlamp deeper into the speed screen gives the Low Rider S an aggressive face. It’s a powerful way to communicate the personality of the motorcycle.”

The solo seat, chopped rear fender and side-mount license plate keep the rear end uncluttered. Because no other color makes a statement like black, the Low Rider S is offered only with Vivid Black on the sheet metal. Other black finishes maintain the dark theme from the forks to the console to the rear fender struts. The single exception: new Magnum Gold lightweight cast-aluminum wheels, a finish inspired by the gold-tone magnesium wheels used on race cars in the 1960s. A gold tank badge pays homage to the 1977 XLCR Café Racer model.

2016 Harley-Davidson Low Rider S www.Totalmotorcycle.com Key Features

• Screamin’ Eagle® Heavy Breather performance intake

• Fat Bob-style 2-into-2 exhaust

• 6-speed Cruise Drive transmission

• Cruise control enabled by electronic throttle control

• Premium Ride nitrogen gas-charged emulsion shocks and Premium Ride cartridge fork

• Triple disc brakes with dual floating front rotors

• Standard Anti-Lock Braking System

• New solo seat set at 26.6 inches

• Gold tank badge pays homage to the 1977 XLCR Café Racer model

The Low Rider S is an unforgettable fusion of Dark Custom™ attitude and heart-thumping performance.

It boasts an incredible Screamin’ Eagle® Twin Cam 110™ engine and an all-new denim and black paint job
that’ll really turn heads.

HARLEY-DAVIDSON STRENGTHENS MOST POWERFUL CRUISER LINEUP
Unveils New Low Rider S and CVO Pro Street Breakout Bikes at X Games Aspen

MILWAUKEE (JANUARY 27, 2016) – Today at X Games Aspen, Harley-Davidson unveiled the Low Rider® S and the Harley-Davidson® Custom Vehicle Operations (CVO)™ Pro Street Breakout® motorcycles – two additions to its 2016 model-year lineup, which is the most powerful collection of cruisers in the brand’s 113-year history.

Raw, dark and trimmed to the essentials, the new Low Rider S motorcycle is the most powerful non-CVO™ Dyna® cruiser ever offered by Harley-Davidson. The Screamin’ Eagle® Twin Cam 110™ engine, Screamin’ Eagle® Heavy Breather performance intake and Fat Bob-style 2-into-2 exhaust deliver 115 foot pounds of peak torque at 3500 rpm. Premium suspension and brakes complete the performance package. The new limited-edition bike joins the Fat Boy® S and Softail Slim® S models as the third in the new line of S series cruisers for the 2016 Harley-Davidson® lineup.

The new CVO Pro Street Breakout motorcycle rewrites the factory-custom book with obsessive attention to styling detail. This limited-edition motorcycle has a new, darker look and utilizes cutting-edge finishes and textures. Menacing, muscular and steeped in drag racing attitude, the CVO Pro Street Breakout motorcycle matches the high-intensity performance of the Screamin’ Eagle Twin Cam 110 engine with a look that is pure American street machine.

“X Games Aspen is the ideal global stage to unveil our newest motorcycles that take cruiser performance, attitude and design to a whole new level,” said Shelley Paxton, Vice President of Marketing and Brand, Harley-Davidson Motor Company.

2016 Model Lineup Highlights
• The new Iron 883™ and Forty-Eight® models join the Harley-Davidson Street® motorcycle to assert Harley-Davidson’s leadership with its Dark Custom® motorcycle line-up inspired by the rebellious spirit of the past updated with modern design and performance.
• High Output Twin Cam 103™ engines upgrade the power for all Softail® and Dyna® models (except Street Bob®) in the United States, Canada and Mexico.
• The convenience of electronic cruise control is available on all Harley-Davidson Softail models. Enabled by new electronic throttle control, cruise control is standard equipment on 2016 Heritage Softail® Classic, Softail® Deluxe, Fat Boy S and Softail Slim S models and available as an accessory for all other 2016 Softail models.
• All 2016 Sportster® models tame rough roads with all-new front and rear suspension and improved seats working together to enhance rider comfort and control.
• Harley-Davidson’s touring segment leadership grows with the addition of the Road Glide® Ultra motorcycle to the Project RUSHMORE lineup and the refresh of the iconic Heritage Softail Classic model.

2016 Harley-Davidson Low Rider S www.Totalmotorcycle.com Features and Benefits

Rule the street.

In 1977, when the first Harley-Davidson® Low Rider® rolled off the line, it pushed the limits of factory custom design to a place they’d never been. Now, the Low Rider® S is taking the genre to a raw and powerful new edge. We mounted our Screamin’ Eagle Twin Cam 110™ engine in a nimble Dyna chassis and installed a heavy breather intake. We added tall bars, mid-mount controls and a new seat that position arms up and out and feet square, along with premium front and rear suspension, giving the rider everything required to put the massive power to good use. We stripped down and blacked-out the rest with gold accents like the tank badge and pinstripe and matching split five-spoke cast aluminum wheels. Get behind the fixed speed screen and hang on.

2016 Harley-Davidson Low Rider S – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: Starting from $16699 USD

PRICING 6
Vivid Black $16,699
Security Option STD
ABS Option STD
Cruise Control Option STD
California Emissions $200
Freight $390
DIMENSIONS
Length 89.9 in.
Seat Height, Laden 7 26.6 in.
Ground Clearance 4.13 in.
Rake (steering head) (deg) 30.5
Trail 5.1 in.
Wheelbase 64.2 in.
Tires, Front Specification 100/90B19 57H
Tires, Rear Specification 160/70B17 73V
Fuel Capacity 4.7 gal.
Oil Capacity (w/filter) 3 qt.
Weight, As Shipped 646 lb.
Weight, In Running Order 674 lb.
ENGINE
Engine 1 Screamin’ Eagle® Air-cooled, Twin Cam 110™
Bore 4 in.
Stroke 4.374 in.
Displacement 110 cu in
Compression Ratio 9.2:1
Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.311
Gear Ratios (overall) 2nd 6.454
Gear Ratios (overall) 3rd 4.793
Gear Ratios (overall) 4th 3.882
Gear Ratios (overall) 5th 3.307
Gear Ratios (overall) 6th 2.79
CHASSIS
Exhaust Blacked-out, Shotgun 2-1-2 collector exhaust with dual mufflers
Wheels, Front Type 9 Magnum Gold, Split 5-Spoke Cast Aluminum
Wheels, Rear Type Magnum Gold, Split 5-Spoke Cast Aluminum
Brakes, Caliper Type 4-piston fixed front, and 2-piston torque-free floating rear
PERFORMANCE
Engine Torque Testing Method EEC/95/1
Engine Torque 2 116 ft-lb
Engine Torque (rpm) 3,500
Lean Angle, Right (deg.) 29.5
Lean Angle, Left (deg.) 30.5
Fuel Economy: Combined City/Hwy 5 44 mpg
ELECTRIC
Lights (as per country regulation), Indicator Lamps 8 High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (standard), 6-speed, low fuel warnings, ABS
Gauges Speedo and tachometer mounted in a wrinkle black console mounted on the tank with a black trim ring

1. Recommended 91 octane or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.

2016 Harley-Davidson Low Rider S – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: Starting from $19499 CDN

PRICING 6
Vivid Black $19,499
Security Option STD
Cruise Control STD
ABS Option STD
DIMENSIONS
Length 2,283 mm
Seat Height, Unladen 6 685 mm
Ground Clearance 105 mm
Rake (steering head) (deg) 30.5
Trail 128 mm
Wheelbase 1,630 mm
Tires, Front Specification 100/90B19 57H
Tires, Rear Specification 160/70B17 73V
Fuel Capacity 17.8 l
Oil Capacity (w/filter) 2.8 l
Weight, As Shipped 293 kg
Weight, In Running Order 306 kg
ENGINE
Engine 1 Screamin’ Eagle® Air-Cooled, Twin Cam 110B™
Bore 101.6 mm
Stroke 111.1 mm
Displacement 1,801 cc
Compression Ratio 9.2:1
Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.311
Gear Ratios (overall) 2nd 6.454
Gear Ratios (overall) 3rd 4.793
Gear Ratios (overall) 4th 3.882
Gear Ratios (overall) 5th 3.307
Gear Ratios (overall) 6th 2.79
CHASSIS
Exhaust Blacked-out, Shotgun 2-1-2 collector exhaust with dual mufflers
Wheels, Front Type Magnum Gold, Split 5-Spoke Cast Aluminum
Wheels, Rear Type 8 Magnum Gold, Split 5-Spoke Cast Aluminum
Brakes, Caliper Type 4-piston fixed front, and 2-piston torque-free floating rear
PERFORMANCE
Engine Torque Testing Method EEC/95/1
Engine Torque 2 157 Nm
Engine Torque (rpm) 3,500
Lean Angle, Right (deg.) 29.5
Lean Angle, Left (deg.) 30.5
Fuel Economy: Combined City/Hwy 5 5.1 l/100 km
ELECTRIC
Lights (as per country regulation), Indicator Lamps 7 High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (standard), 6-speed, low fuel warnings, ABS
Gauges Speedo and tachometer mounted in a wrinkle black console mounted on the tank with a black trim ring

1. Recommended 91 octane or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.

2016 Harley-Davidson Low Rider S – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: Starting from £14995 GBP (On The Road inc 20% Vat)

PRICING 5
Vivid Black £ 14,995
DIMENSIONS
Length 2,390 mm
Seat Height, Unladen 685 mm
Ground Clearance 125 mm
Rake (steering head) (deg) 30.5
Trail 128.3 mm
Wheelbase 1,630 mm
Tyres, Front Specification 100/90B19 57H
Tyres, Rear Specification 160/70B17 73V
Fuel Capacity 17.8 l
Oil Capacity (w/filter) 2.8 l
Weight, As Shipped 293 kg
Weight, In Running Order 305 kg
ENGINE
Engine Air-cooled, Screamin’ Eagle® Twin Cam 110™
Bore 101.6 mm
Stroke 111.1 mm
Displacement 1,801 cc
Compression Ratio 9.2:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.311
Gear Ratios (overall) 2nd 6.454
Gear Ratios (overall) 3rd 4.793
Gear Ratios (overall) 4th 3.882
Gear Ratios (overall) 5th 3.307
Gear Ratios (overall) 6th 2.79
CHASSIS
Exhaust Blacked-out, Shotgun 2-1-2 collector exhaust with dual mufflers
Wheels, Front Type Magnum Gold, Split 5-Spoke Cast Aluminium
Wheels, Rear Type Magnum Gold, Split 5-Spoke Cast Aluminium
Brakes, Caliper Type 4-piston fixed front, and 2-piston torque-free floating rear
PERFORMANCE
Engine Torque Testing Method EEC/95/1
Engine Torque 156 Nm
Engine Torque (rpm) 3,500
Lean Angle, Right (deg.) 29.5
Lean Angle, Left (deg.) 30.5
Fuel Economy: Combined City/Hwy 5.1 l/100 km
ELECTRIC
Lights (as per country regulation), Indicator Lamps High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (standard), 6-speed, low fuel warnings, ABS
Gauges Speedo and tachometer mounted in a wrinkle black console mounted on the tank with a black trim ring.

1. Recommended 91 octane or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.

*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
